Student Activity Center at Bangkok University / Supermachine Studio

  • 01:00 - 27 January, 2014
Student Activity Center at Bangkok University / Supermachine Studio

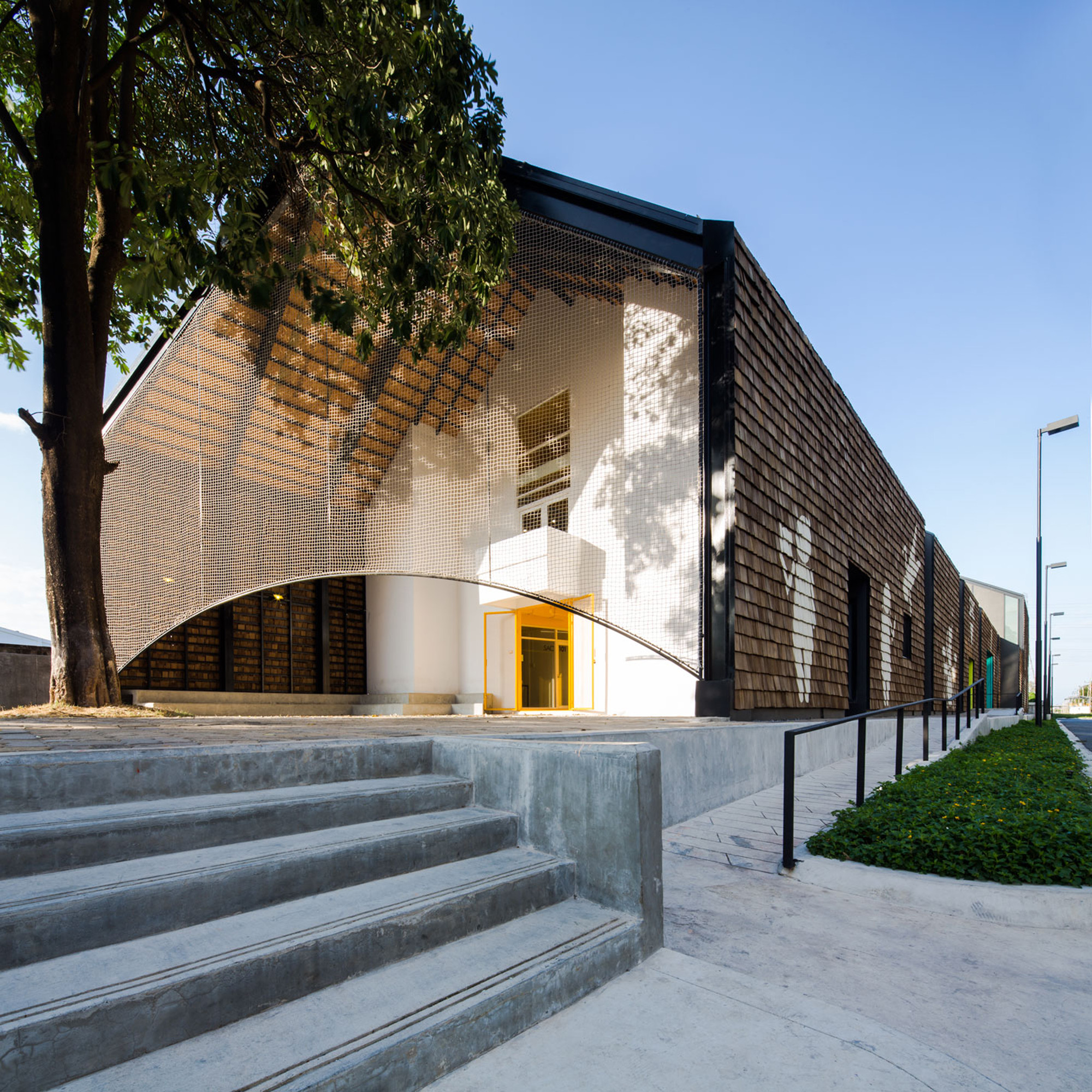

Student Activity Center at Bangkok University / Supermachine Studio, © Wison Tungthunya
© Wison Tungthunya

© Wison Tungthunya © Wison Tungthunya © Wison Tungthunya © Wison Tungthunya + 23

  • Architects

  • Location

    Bangkok University, 9/1 Phaholyothin Road, Khlong Luang District, Pathum Thani 12120, Thailand
  • Design Team

    Pitupong Chaowakul with Jetsada Phongwasin, Theerayut Somtua, May Monthakarn, Mix Archawin
  • Area

    2200.0 sqm
  • Project Year

    2013
  • Photographs

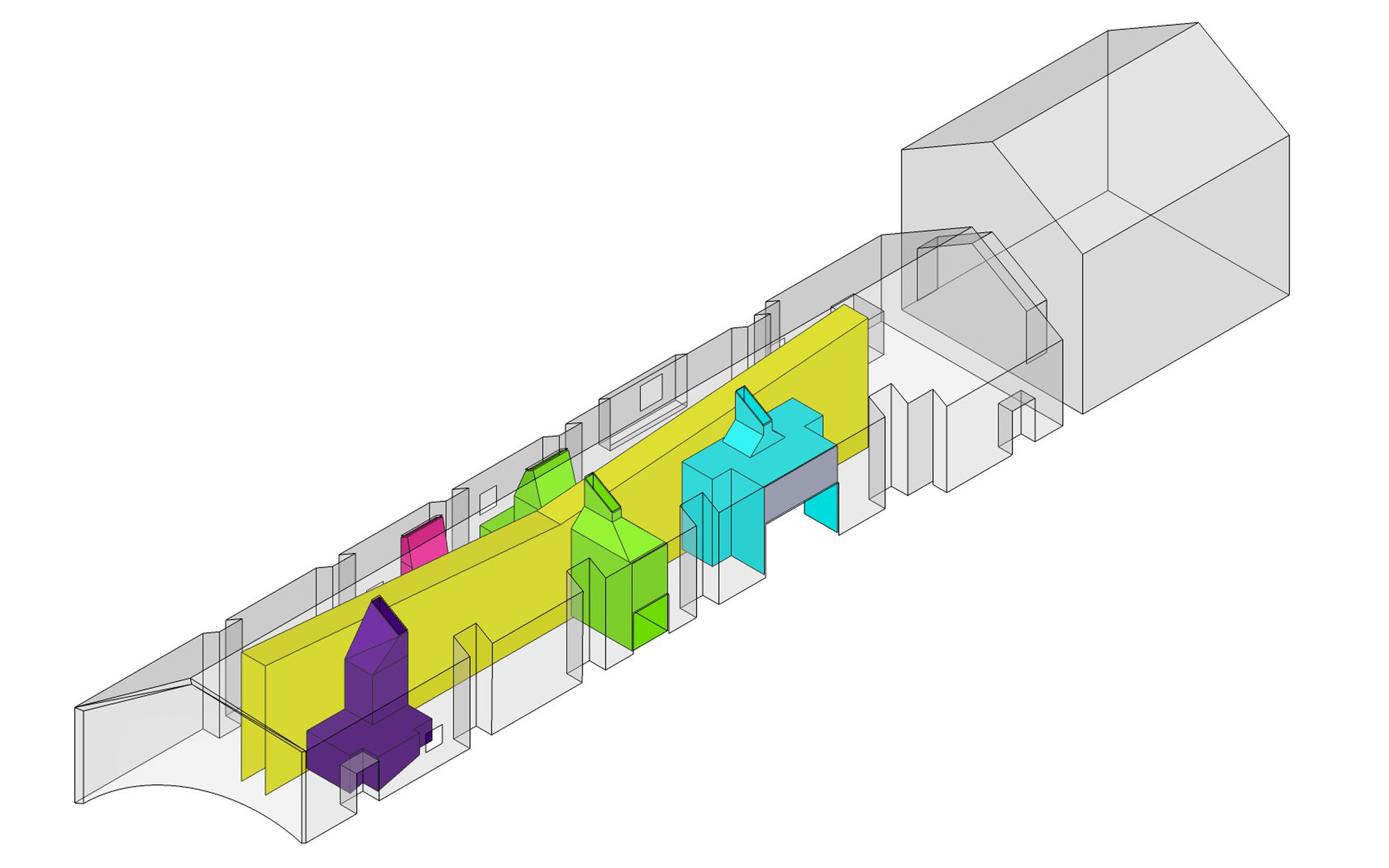

Interior Isometric
Interior Isometric

Text description provided by the architects. SAC (Student Activity Center) is one of the most challenging projects that Supermachine studio has to do for Bangkok University from quite a number that we have done for the campus. It is not only because of the complexity of the program but also the 2,200 s.q.m.  project has to be on the 20 + year old building that used to be a dormitory. It is the most drastic building transformation that we have done to date.

Student Activity Center at Bangkok University / Supermachine Studio, © Wison Tungthunya
© Wison Tungthunya

SAC consists of diverse facility space, mainly for out-of-classroom ones, from photo studio, music rehearsal room, Thai dance club, 20+ faculty rooms, meeting rooms to Pom Pom cheer leader training hall. All of the students’ programs have to be accommodated into the existing structure of the building that was not designed for.

© Wison Tungthunya
© Wison Tungthunya

The old building was a 32 compact room dormitory inserted with 12 compact courtyards. The 90 meter long building was low, dark and damaged from the great flood in Thailand in 2011. The main operation is to merge 2 gable roofs into a new single roof with new structure to make the space more livable for the increasing number of users.

© Wison Tungthunya
© Wison Tungthunya

The outer skin of the building is re-clad though out with single material which is a cedar shingle. Half of the inner space are kept intact but repainted systematically the existing corridor is yellow while 4 of the voids are modified, made public and painted into 5 different colors; purple, green, pink and turquoise. Natural light is brought in through the void skylights to make sure that the new space is bright enough.

© Wison Tungthunya
© Wison Tungthunya

At the rear end of the building is a completely new structure as it has to house the Bu Pom Pom club. When completed the 16 meter high gym will be the new training ground for the famous cheer leader team of Bangkok University that has won a lot of competitions internationally.

© Wison Tungthunya
© Wison Tungthunya

Given a nickname like a chocolate while being developed, “Toblerone”, SAC has been transformed from a simple program dorm into a complex programmed public building compressed into one long stick. Architecture also can be “Recycled.”
