Gordon Park Arts Hall / Motorized FlexShades ® | Draper

Share
  • Use

    Window shades
  • Applications

    Commercial, institutional, educational, healthcare, residential & corporate
  • Characteristics

    Protection against solar heat gain and control of glare, affordability, ease-of-installation and quiet operation
  • Sizes

    Available in sizes up to 13' wide x 20' high (396 cm x 610 cm), depending on fabric selection

BIM Files

Supplementary Files

Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

  • Architects: Valerio Dewalt Train Associates
  • Location: Chicago, IL, United States
  • Design Architect: Valerio Dewalt Train Associates
  • Area: 90000.0 ft2

The University of Chicago Lab School's new arts facility, the Gordon Parks Art Hall, includes art and music labs, rehearsal rooms, an art gallery, performance spaces and a music hall.

Funded in part by a donation from the George Lucas Family Foundation, the high-profile project features large windows that required an optimal daylighting solution.

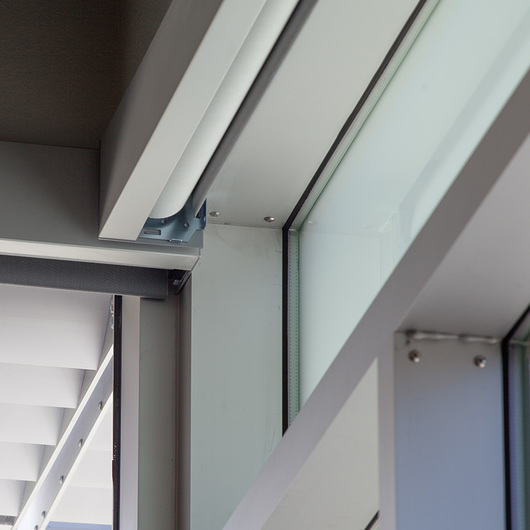

After some back-and-forth exchange of ideas and on-site meetings, a final design was agreed upon: a custom motorized shade system on tracks. The shades would be operated via a wall switch, and feature Mermet E Screen Charcoal/Gray with a 3% openness factor.

The custom solution was based on Draper’s Motorized FlexShade ®.

MOTORIZED FLEXSHADE®

undefined

120V AC MOTORIZED FLEXSHADE®

120V AC Motorized FlexShade® features affordability plus ease-of-installation. This 4-wire motor is equipped with easy push button limits and offers a wide array of external IntelliFlex® control options. Whether the concept is simply to control a few shades, a floor, or to implement a more extensive project for an entire building, the 120V AC Motorized FlexShade® is ideal for church, residential, commercial, healthcare, or governmental applications.

120V AC 485 MOTORIZED FLEXSHADE®

High-tech convenience coupled with a wide array of control options makes the 120V AC 485 Motorized FlexShade® window shade the perfect choice to integrate large-scale commercial systems. An encoded motor provides a wide range of applications, from the high-end home user to the integration of window shading with commercial lighting systems. The 120V AC 485 Motorized FlexShade® provides the scalability to synchronize automation between just a few window shades or entire floors within large commercial buildings.

120V AC RTS MOTORIZED FLEXSHADE®

The 120V AC RTS Motorized FlexShade® window shade offers a 3-wire motor that features parallel wiring, electronic programmable limits, and a multitude of control options. With a hand-held remote control and Plug & Play options, this easily programmable shade is the ideal choice for the office, boardroom, small commercial settings, residential, and church applications.

24V DC MOTORIZED FLEXSHADE®

A low-voltage motorized solution, the 24V DC FlexShade® window shade reduces wiring costs and fits small spaces. This motorized shade is available in 24V RTS, 24V dry contact, and 24V 485 platform technologies. The 24V RTS motor features wireless RTS control and is easily programmable. For large commercial buildings, the 24V 485 motor provides the scalability to fit the needs and budget of a project. The 24V dry contact provides a simple relay control for low-voltage shades making it ideal for home theaters.

FLEXSHADE RECHARGE

A rechargeable, motorized window shade, the FlexShade® Recharge features quiet operation and ease of installation in difficult areas with no wiring or electrician needed.

FLEXSHADE 2

The FlexShade® 2 window shade provides the ability to reduce light gap in institutional or commercial areas that contain a large span of windows. As a taller shade, it maximizes the ability to reduce light gap by minimizing the number of window shades required for coverage.

COLOSSAL FLEXSHADE®

The Colossal FlexShade® window shade offers superior control of heat gain and glare in large shading applications. This window shade maximizes the ability to reduce light gap, by minimizing the number of window shades required for coverage.

BATTERY POWERED FLEXSHADE®

Where hard-wiring is not an option, the Battery Powered FlexShade® window shade provides ease-of-installation in very tight or hard-to-reach spaces without the need for wiring or an electrician.
