FIBRAN offers a range of ventilated facade solutions in which the thermal insulation layer is combined with a suspended external cladding, separated by a continuously ventilated air cavity. This configuration protects the building envelope from weathering and solar gain while allowing moisture to escape, keeping the insulation dry and preserving its performance over time. The system also gives architects broad freedom in facade design, as the cladding layer can be finished in natural stone, decorative brick, tiles, or metal panels.
Ventilated Suspended Clad Facade with Stonewool
In this configuration, FIBRANgeo stonewool boards are fixed to the external wall behind the ventilated cavity and the suspended cladding. Stonewool combines thermal insulation with acoustic performance and non-combustibility, adding fire safety to the facade build-up. Boards faced with a black non-woven glass veil, such as FIBRANgeo B-570-YM, are designed for ventilated assemblies, protecting the fibers from air movement in the cavity and remaining visually discreet behind open-joint claddings.
Ventilated Facade with FIBRANgyps NEXT
This dry construction solution builds the ventilated facade with FIBRANgyps NEXT BOARD, an exterior-grade board with a fiber-reinforced gypsum core faced with glass mat on both sides, combined with FIBRANgeo B-570-YM stonewool insulation. The assembly provides a lightweight, weather-resistant substrate for the final facade finish.

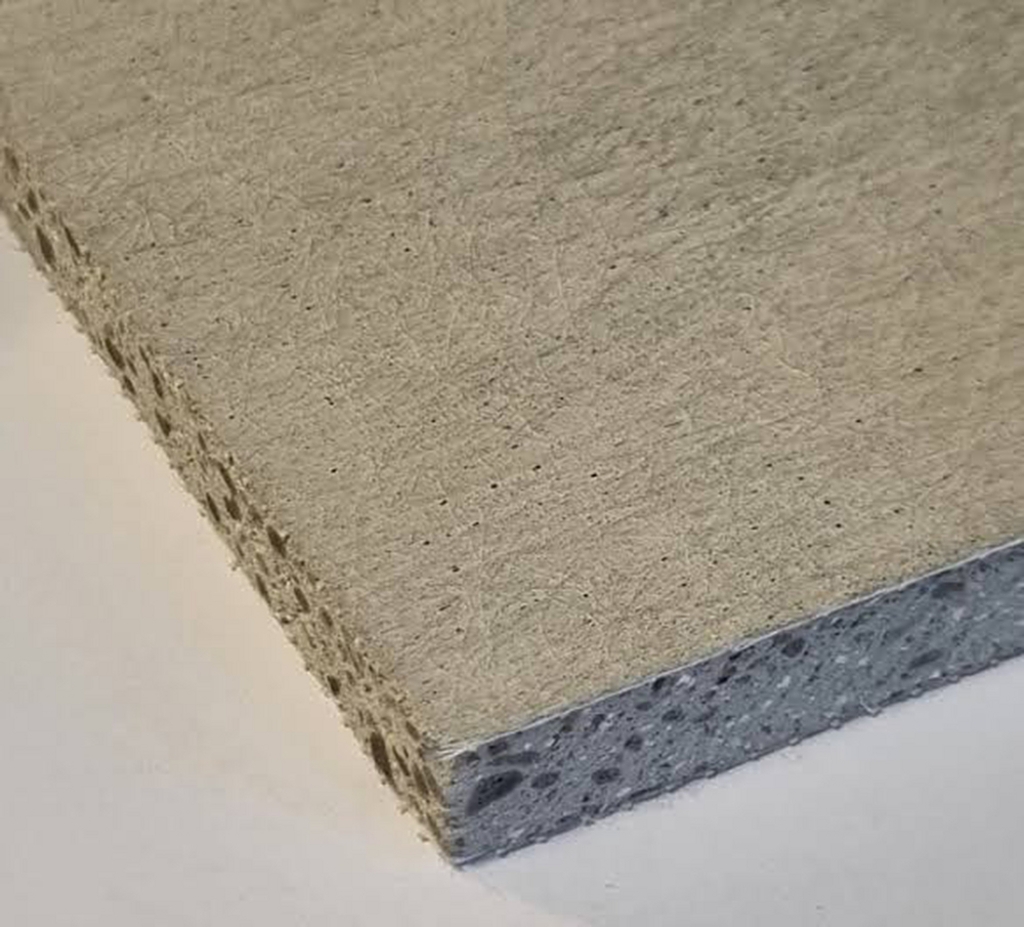

Ventilated Facade with FIBRAN CEMNEXT
Based on the FIBRAN CEM NEXT cement board combined with stonewool insulation, this system offers a robust, moisture-resistant outer layer for ventilated facade assemblies, suited to demanding exposure conditions.
Recommended Products
| Product | Description |
| FIBRANgeo B-570-YM | Stonewool boards faced with black non-woven glass veil, designed for ventilated facades |
| FIBRANgyps NEXT BOARD | Exterior-grade boards with a fiber-reinforced gypsum core, faced with glass mat on both sides |
| FIBRAN CEM NEXT | Cement board for exterior dry construction assemblies |
| FIBRANskin VENT | Vapor-permeable protective membrane for ventilated assemblies |
