Fastmount Standard Range Clips in X-Frame Project | Fastmount™

  • Available in

  • Use

    Heavy wall and ceiling panels
  • Applications

    Architectural, marine, aviation, and recreational vehicles
  • Characteristics

    Hidden fixing, easy panel removal, perfect panel alignment, high pull out load per clip

2 General Catalogs

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
Fastmount™ Logo

Contact manufacturer

Fastmount™

Fastmount™ Logo

Contact manufacturer

Fastmount™

More from Fastmount™

Website

More about this product

Using circular design principles, Victoria University of Wellington PHD candidate, Ged Finch has implemented Fastmount™ Standard Range clips into his modular building design, the X-Frame, which aims to reduce waste in the construction industry in New Zealand.

New Zealand’s residential construction relies on using single use fixings such as adhesives and nails that irreversibly damage materials when they are separated at end-of-life. As a result, building renovation and demolition waste represents more than 50% of all New Zealand's waste every year. “A single new home can create about 4 tonnes of waste during construction, and up to 15 tonnes when finally demolished and taken to landfill,” says Finch.

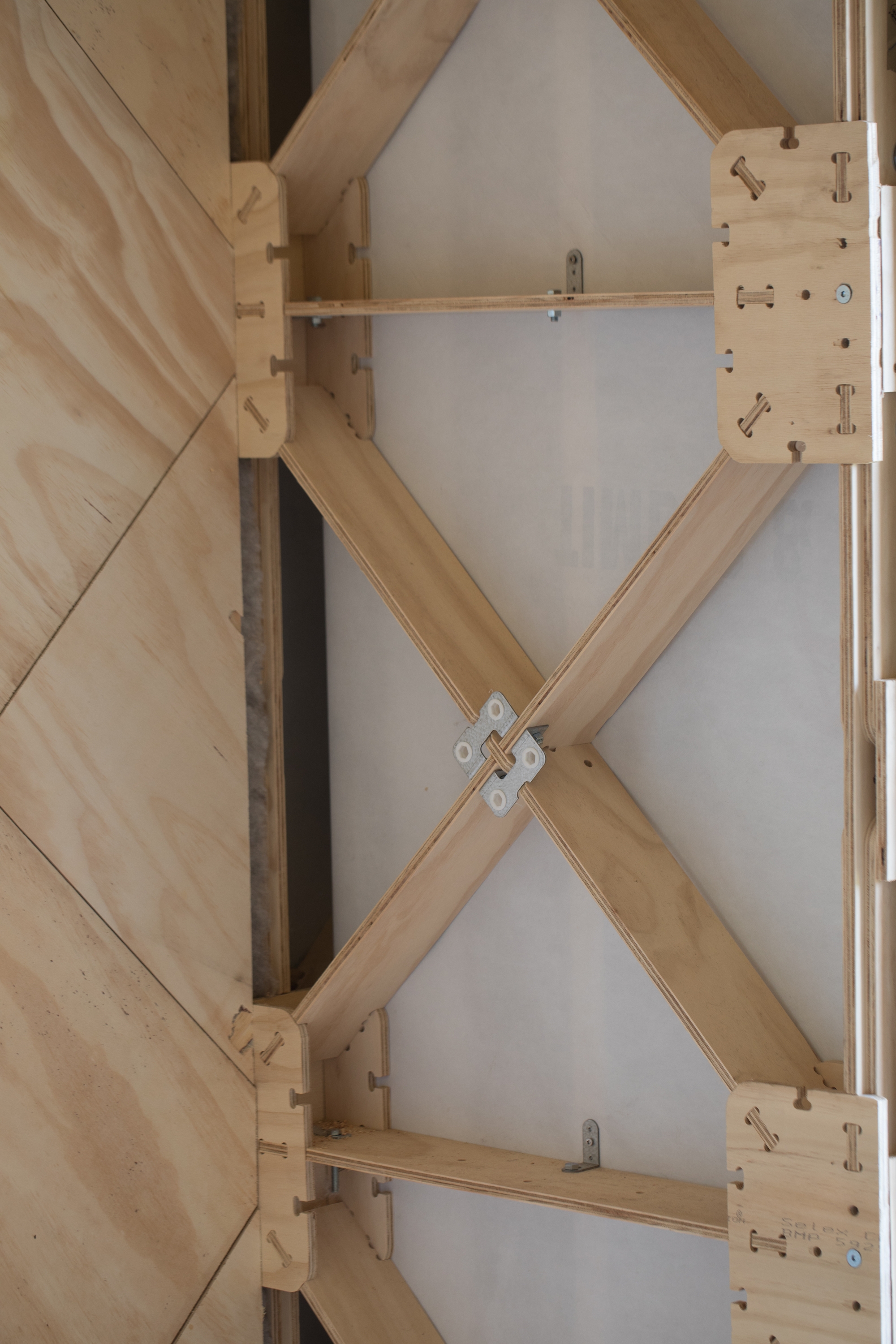

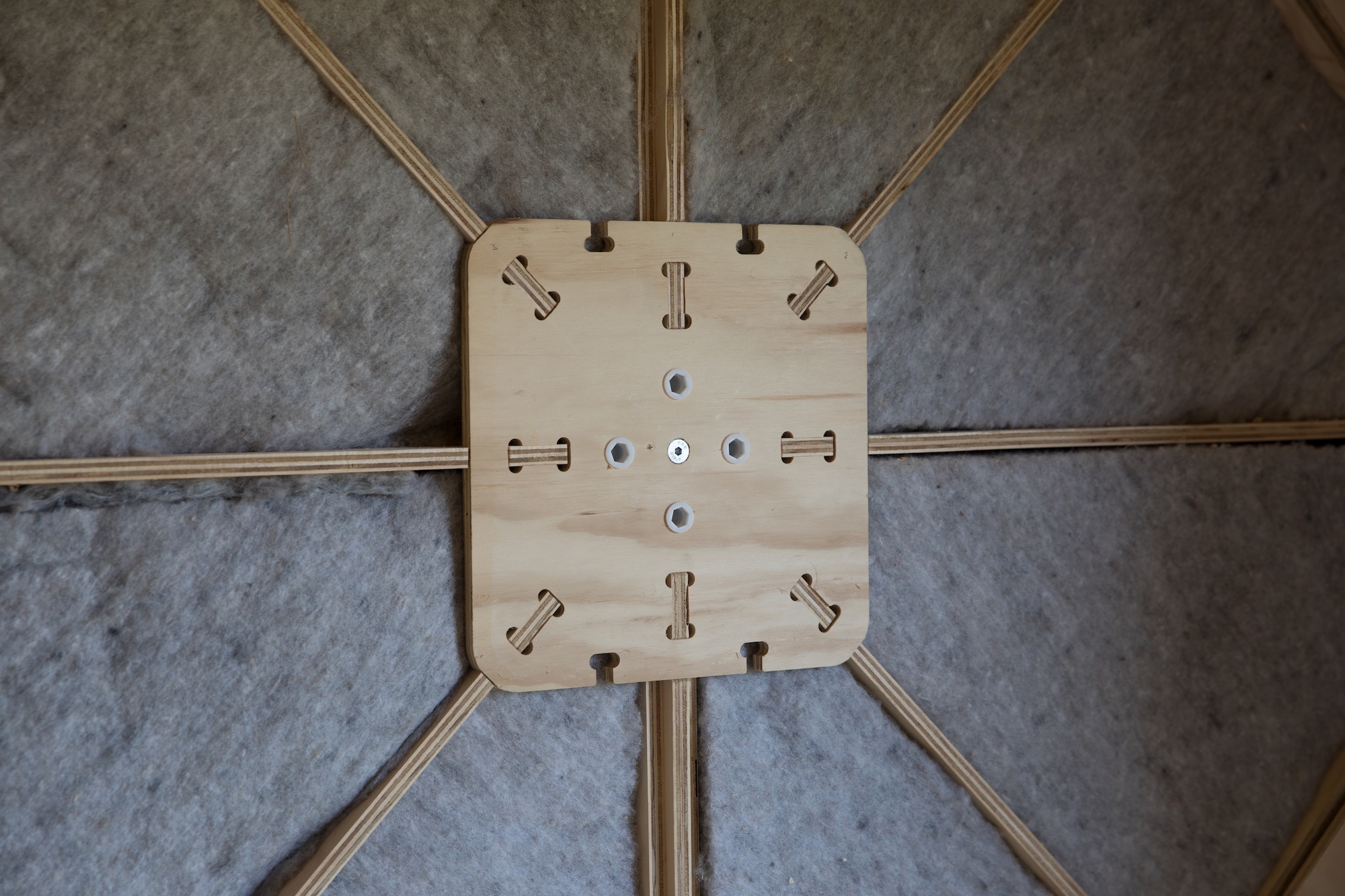

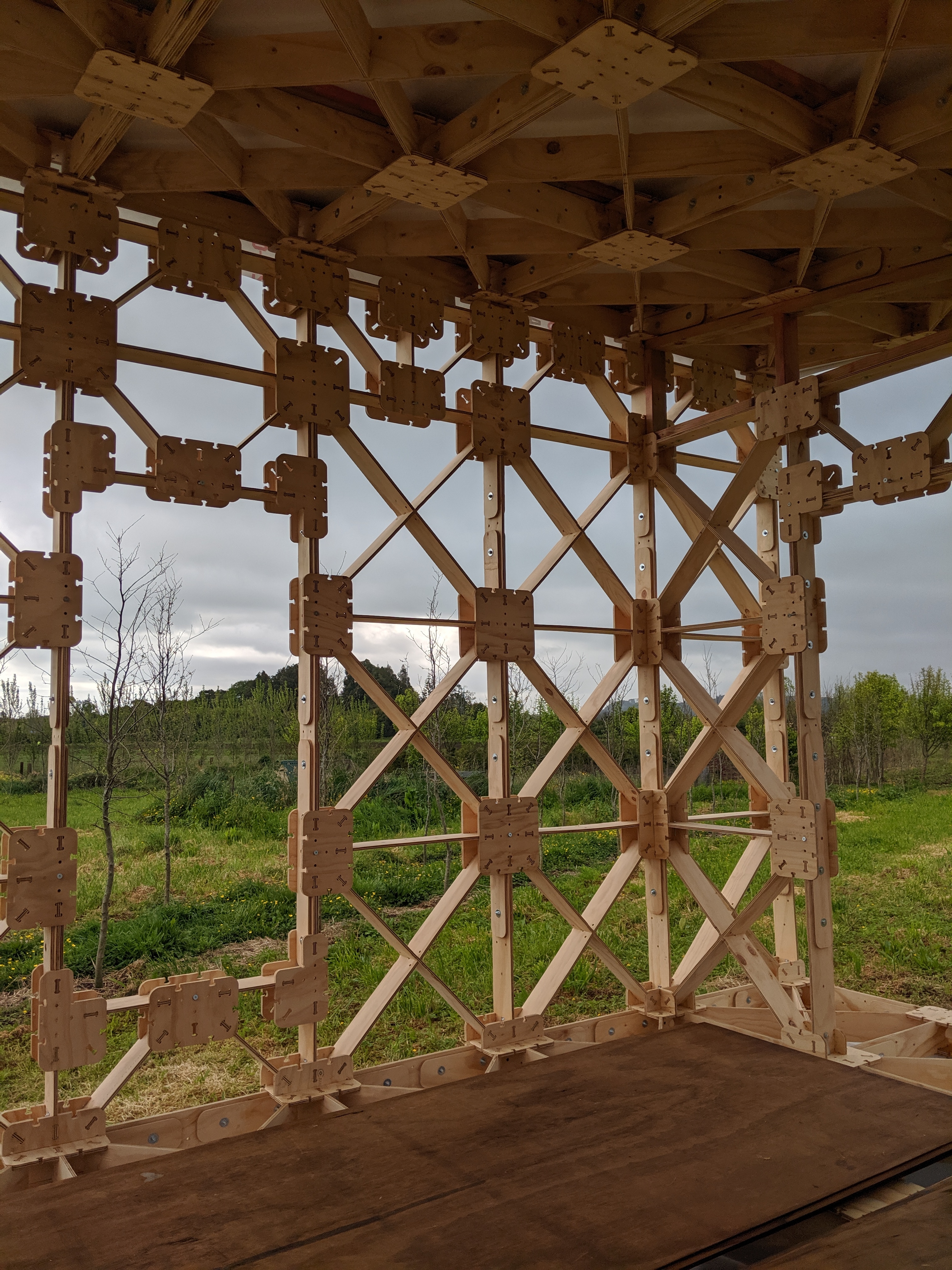

Finch’s X-Frame concept seeks to reduce construction waste, and promote reuse of materials at what would traditionally be the end-of-life stage renovation or demolition. Using a CNC machined, self-braced interlocking wood design, the concept does not use single use fixings, rather focusing on low impact and reusable materials that can be repurposed within its environment.

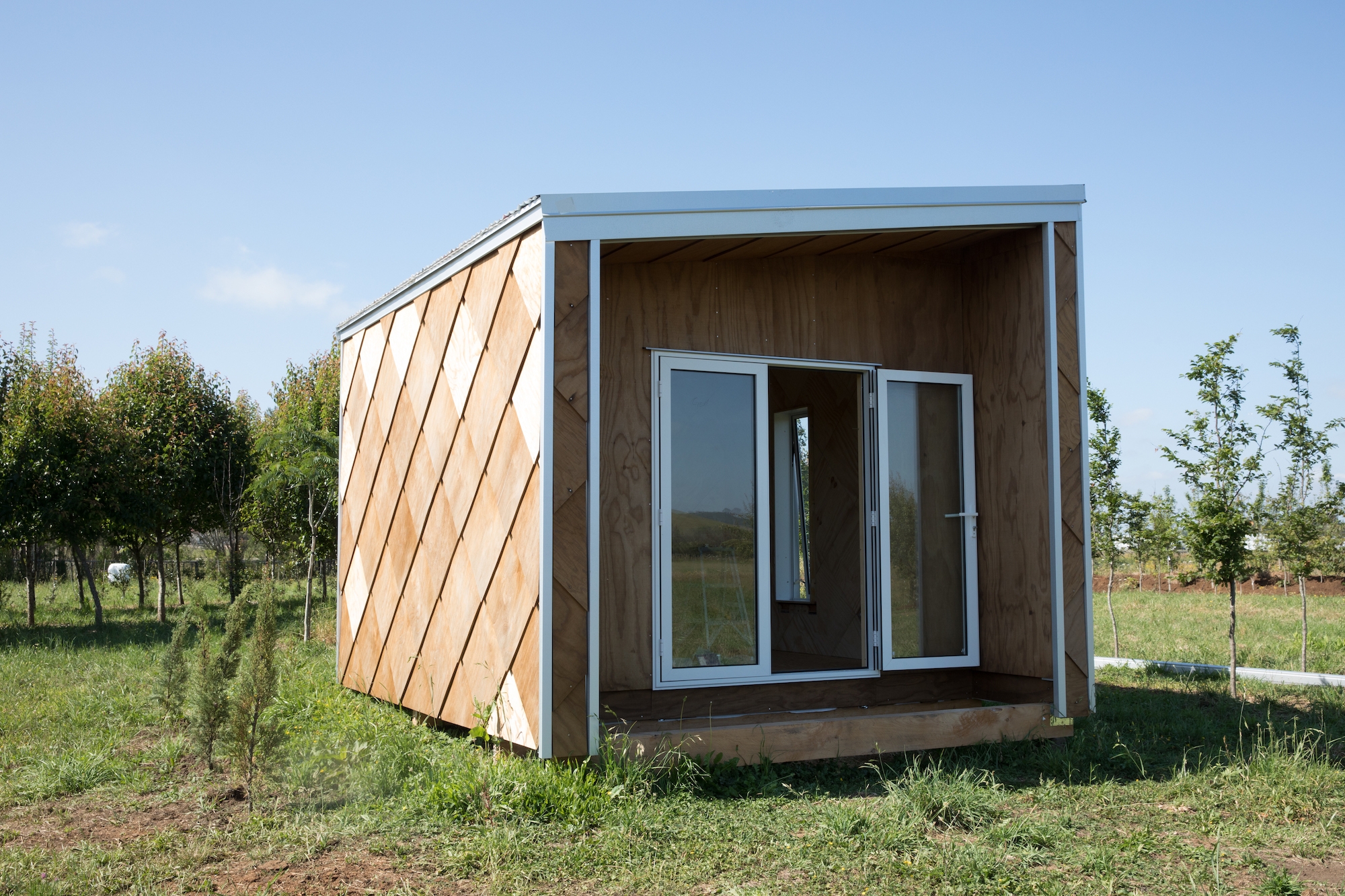

X-Frame - ©Ged Finch

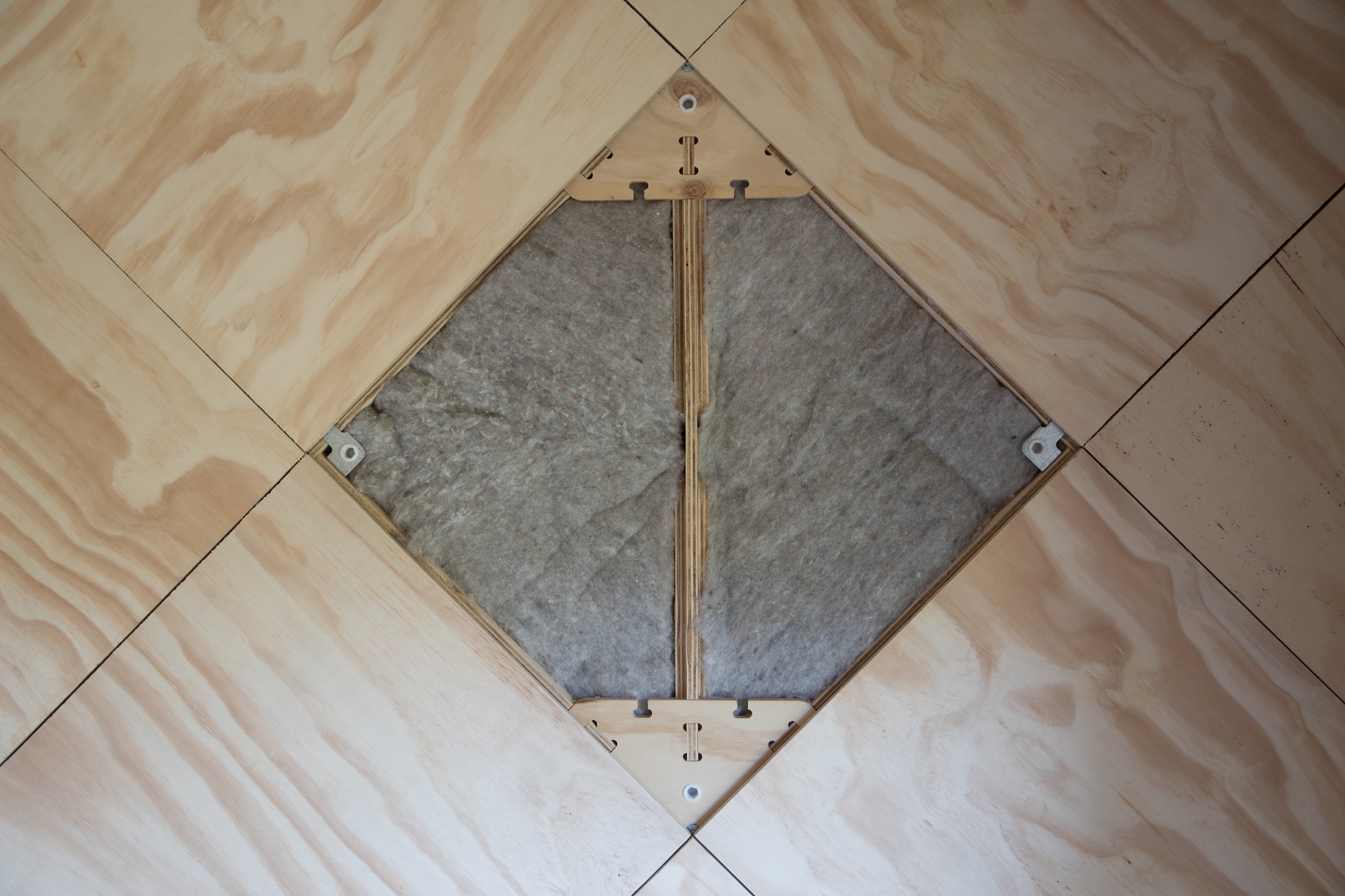

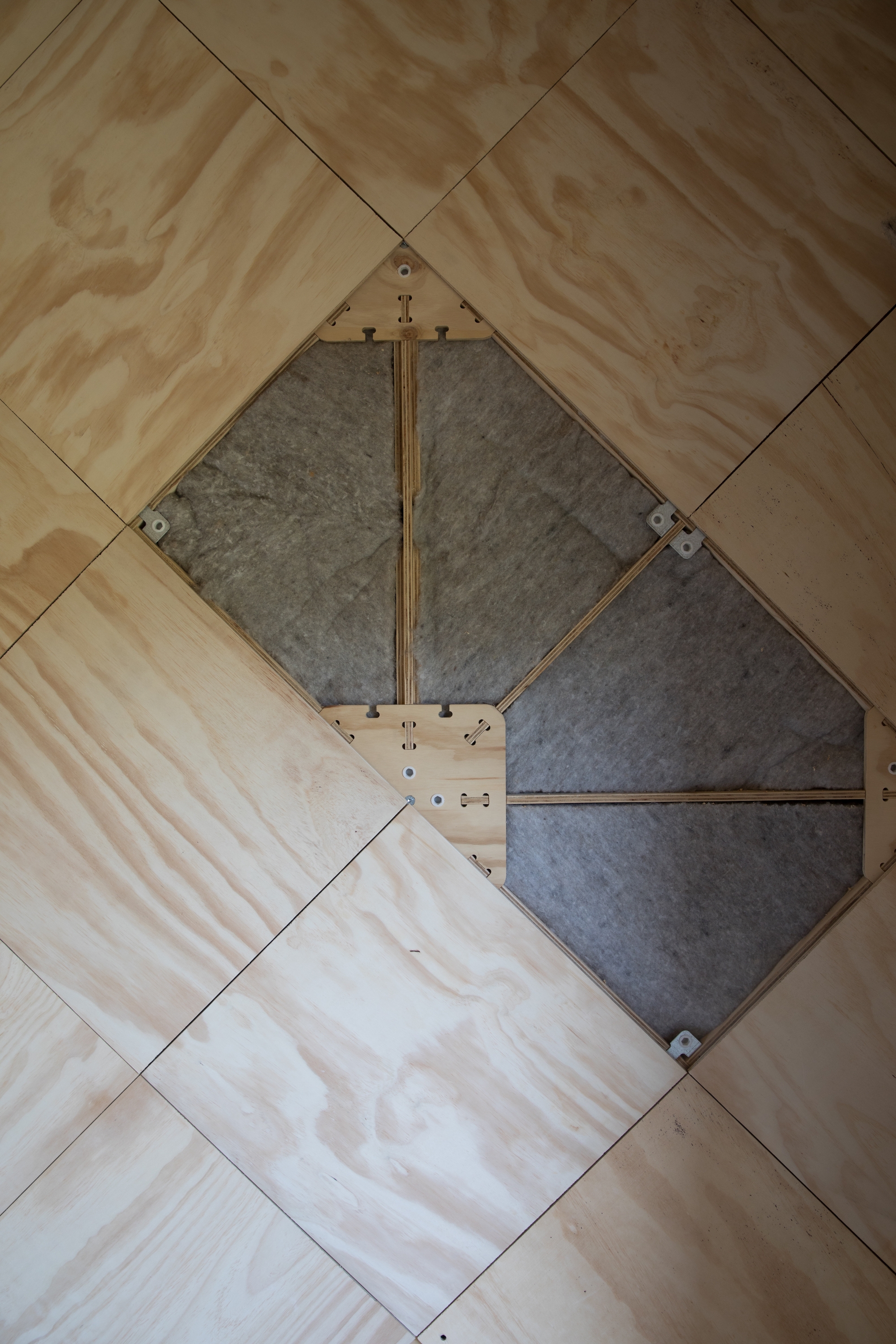

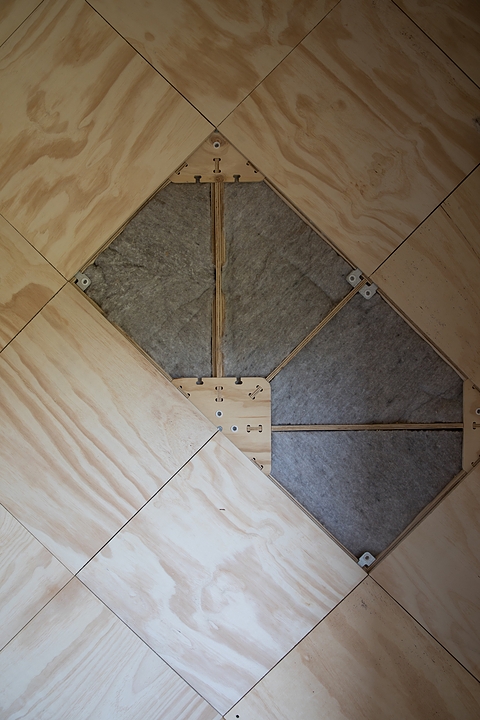

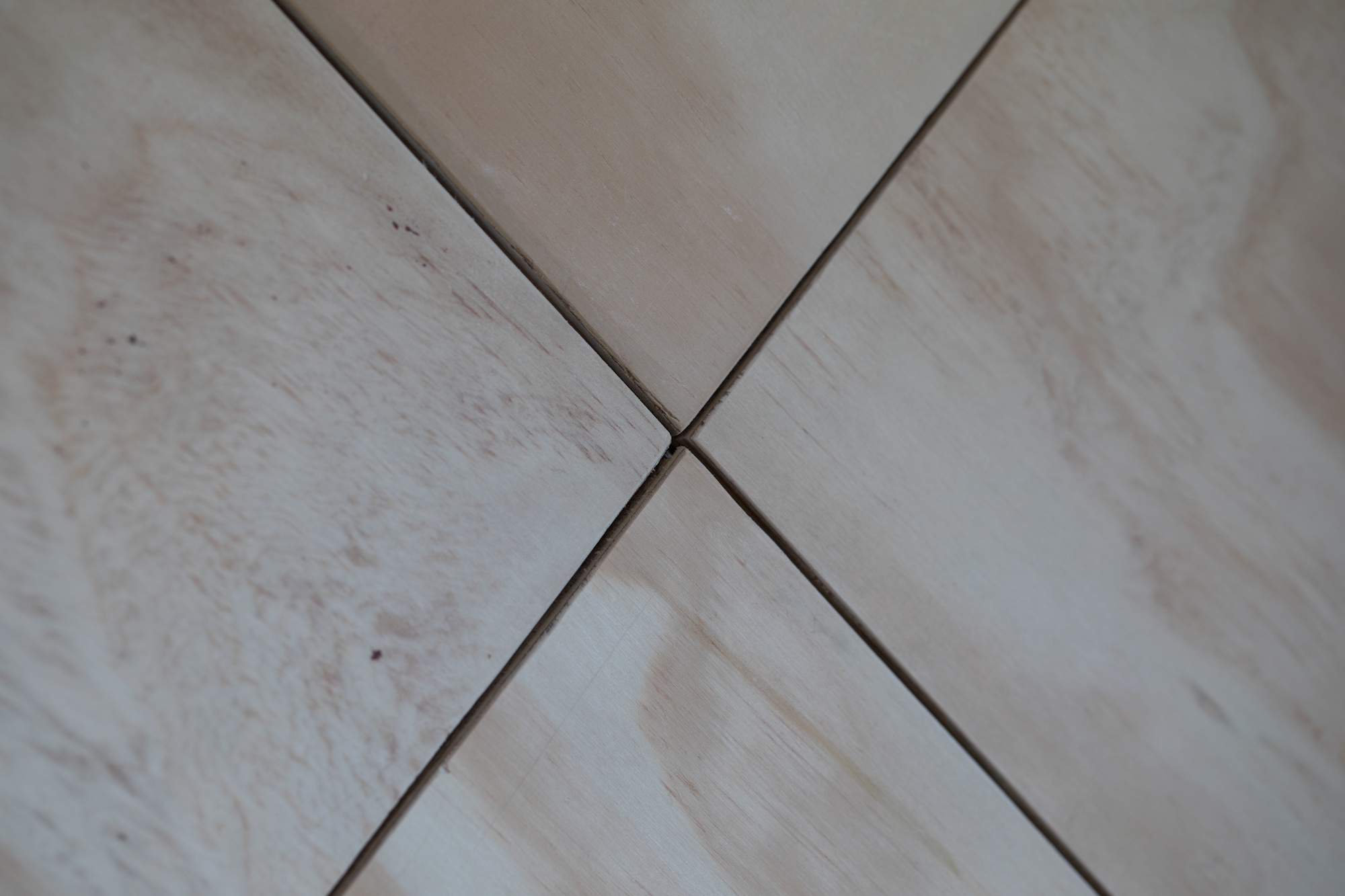

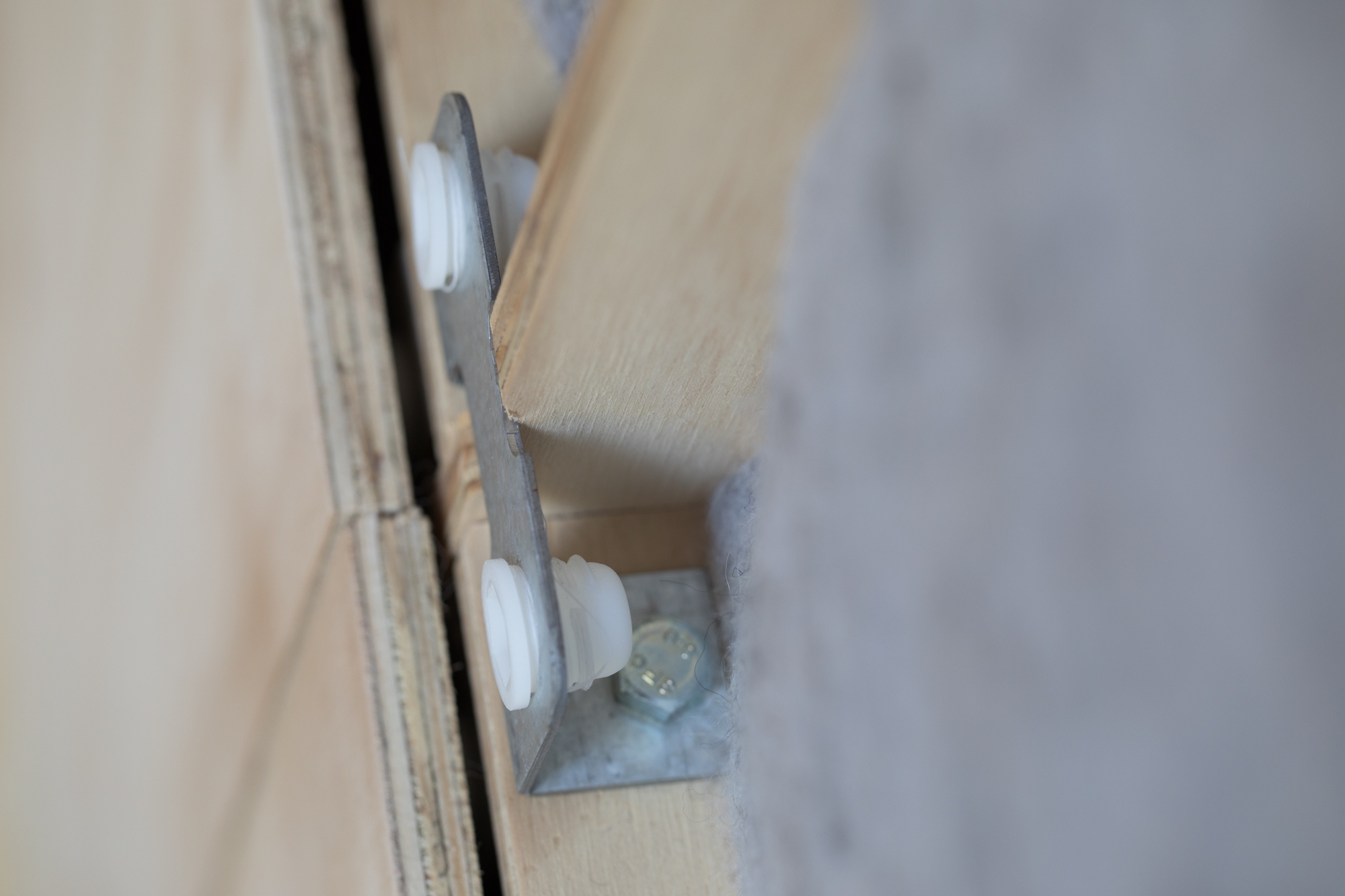

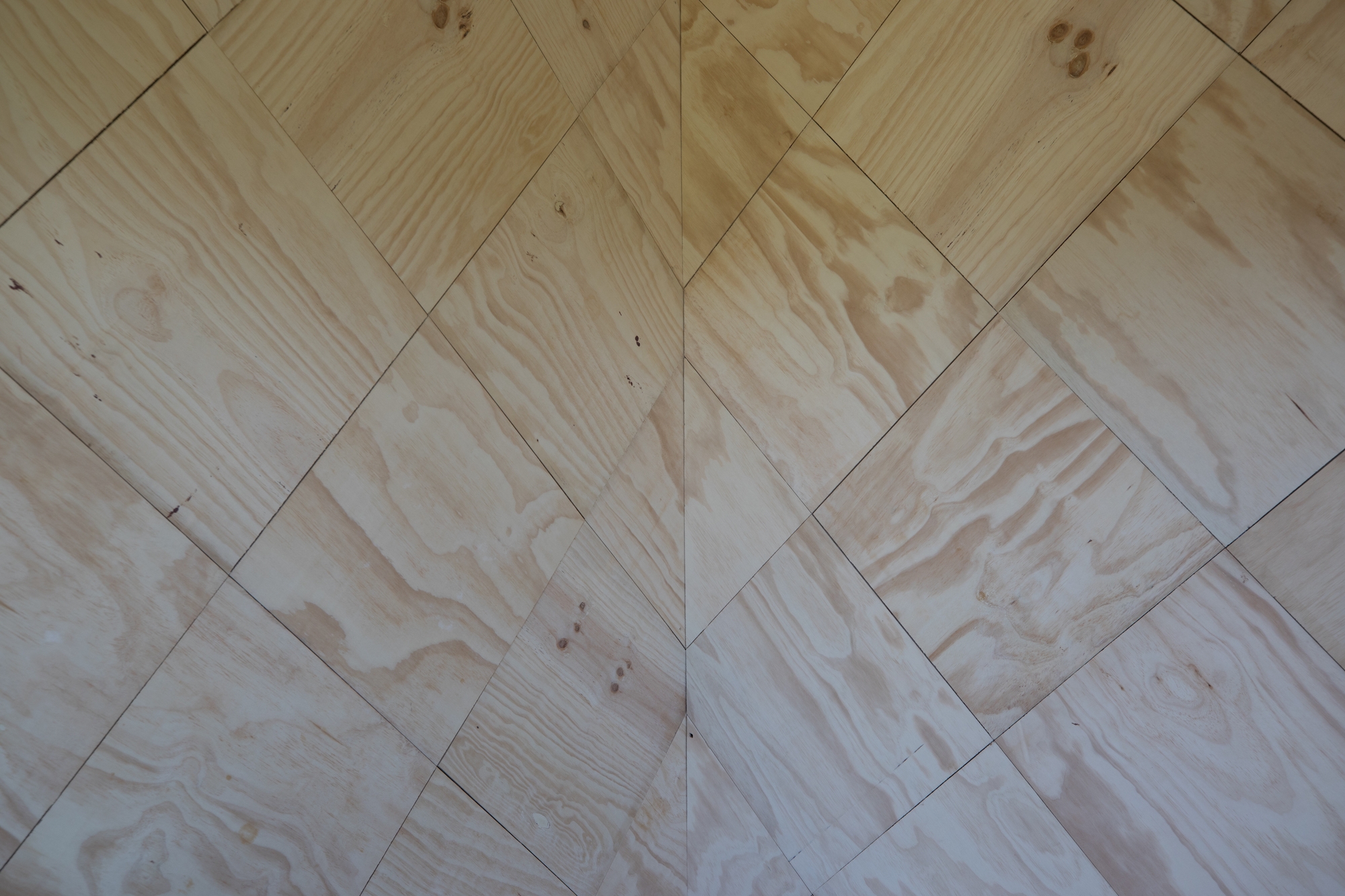

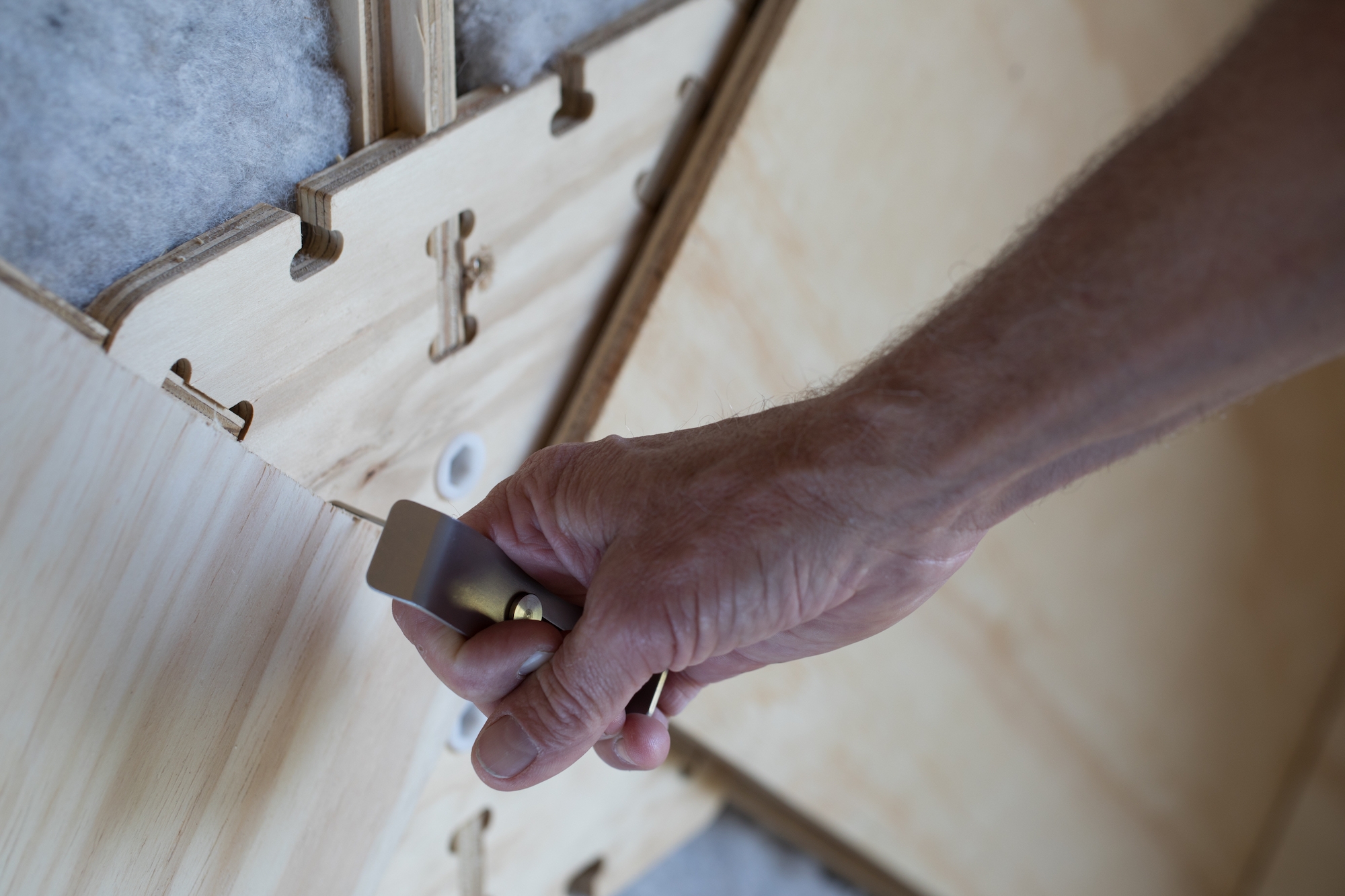

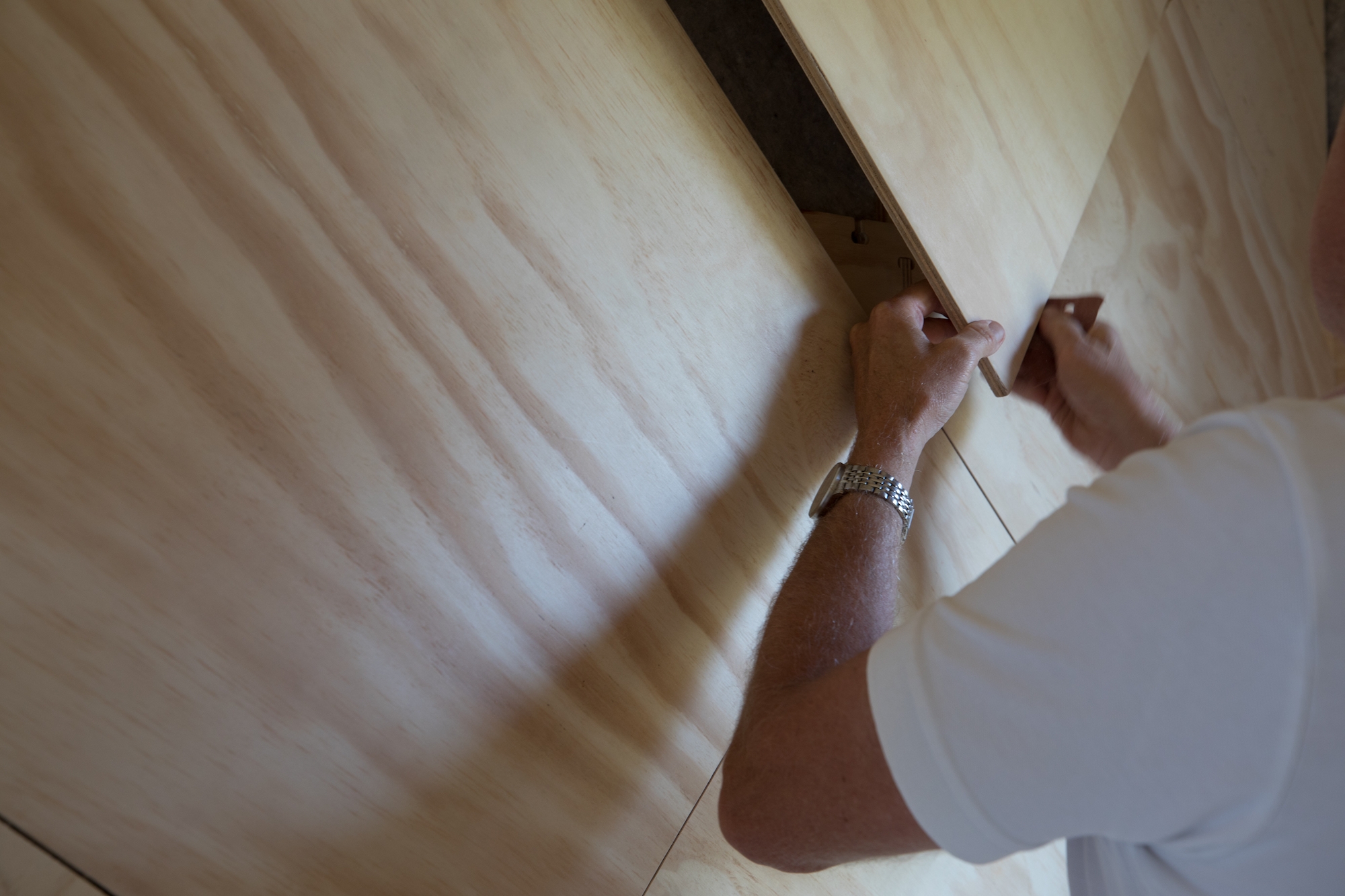

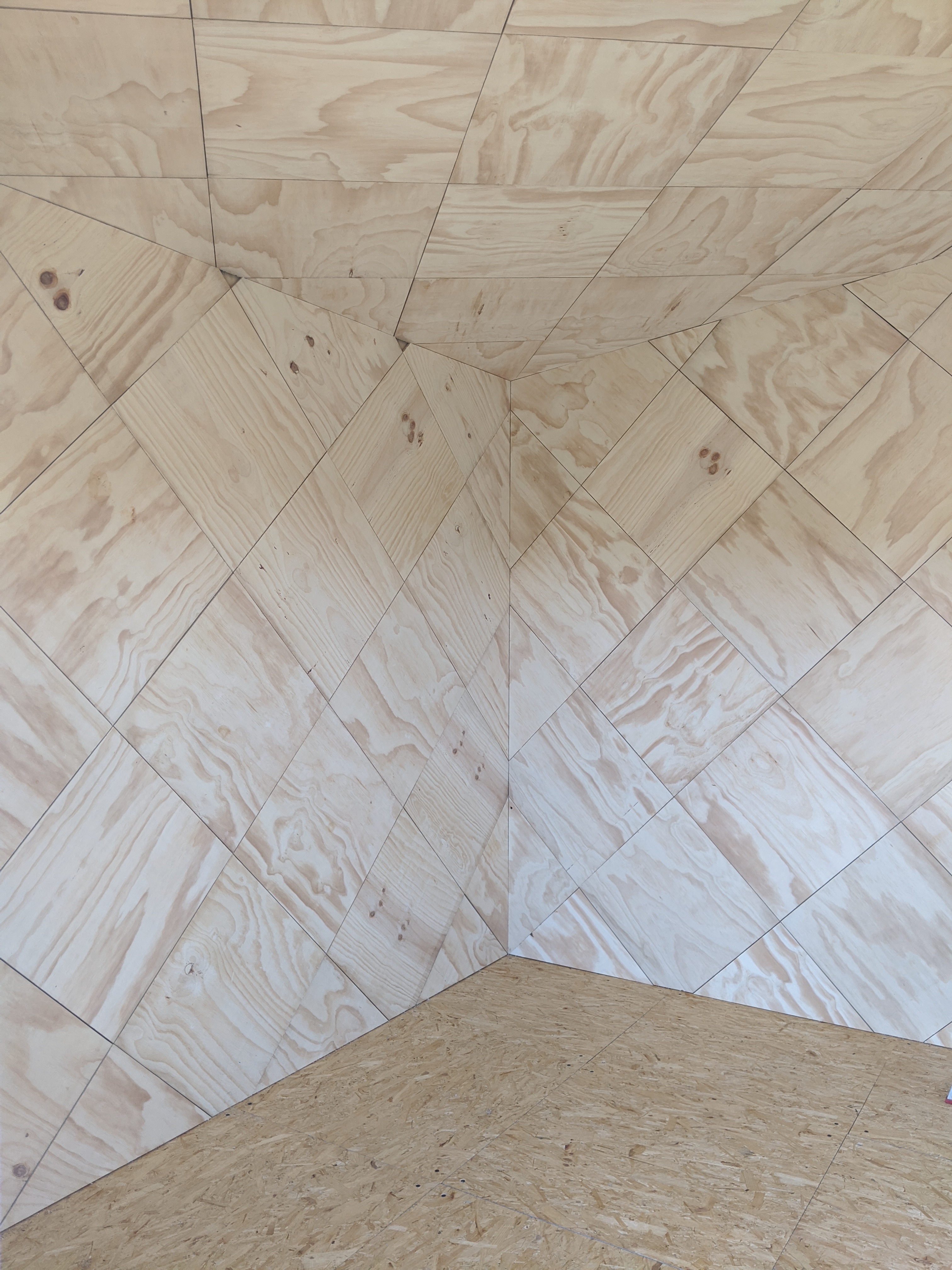

Fastmount™ PC-F1A and PC-M1B clips were used to create an interior lining without single use fixings or adhesives, that could be assembled, disassembled and reassembled easily, creating the ability to re-use the interior panels. "Fastmount™'s clips are an ideal solution for reversibly fixing interior wall linings when designing under the rules of a circular economy," says Ged. "We combined the convenience of Fastmount™ with 600mm square plywood panels that were prefabricated on a CNC router, including pre-drilled holes on the rear of each panel to receive the Fastmount™ clips. On site we simply screwed in the clips and pushed the panels into place. The 10m2 room was lined in less than 90 minutes and required no further finishing. Using Fastmount™ means that we can come along at any time and remove the lining panels, make changes, and re-mount the panels all without creating any waste.”

 Fastmount clips in modular building design

The project was supported by the Kiwinet Emerging Innovator Programme, New Zealand's Building Research Levy, Unitec Institute of Technology (Auckland), Steel and Tube New Zealand, Abodo, Jacobson’s Flooring and Fastmount™.
