FritsJurgens pivot door hinge System One is completely mortised in the door. The System One pivot door hinge has a pivot hinge which acts as a revolving point making it the most compact system in FritsJurgens pivot hinge system range. The System One pivot door hinge can be opened to both the left and the right and turns through 360˚. It is possible to combine System One with door frames.
- Compact system
- No hold positions or closure function
- Can be combined with door frames
- No structural elements in floor and ceiling
- Quick and simple to install
- For new and existing situations
- Easily adjustable with the door in place
- Suitable for timber, steel, framed glass, and massive clad doors
- For single and double action doors
|Maximum bearing capacity ||500 kg |
|Minimum door thickness ||40 mm |
|Minimum dimensions around the door for fitting || |
Minimum 4 mm, maximum 10 mm
|Minimum distance from the pivot point to the side of the door ||91 mm |
| || |

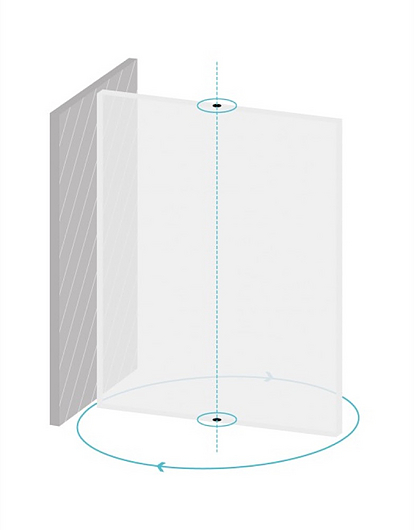

|Rotation: 360˚ ||Rotation: 90˚ |
(in combination with door frames)
FritsJurgens SystemOne is suitable for fire-resistant doors, soundproof doors, doors with draught-excluding, windproof and waterproof profiles, and burglar-resistant doors.
Delivered as a complete set including:
- CEILING PLATE
A stainless-steel ceiling plate is fitted in the ceiling. The pin of the top pivot fits seamlessly into the hole in the ceiling plate.
- TOP PIVOT
The top pivot is integrated into the top of the door and uses a so-called pin/hole connection. The pin is fixed to the top pivot and drops into the hole in the ceiling plate when this is turned.
- SYSTEM ONE
SystemOne is integrated into the lower part of the door. The oval base of the pivot hinge system is inserted into the slot in the floor plate.
- FLOOR PLATE
A stainless-steel floor plate with an oval recess is fitted to the floor. The base of the pivot hinge fits seamlessly into the recess in the floor plate.
