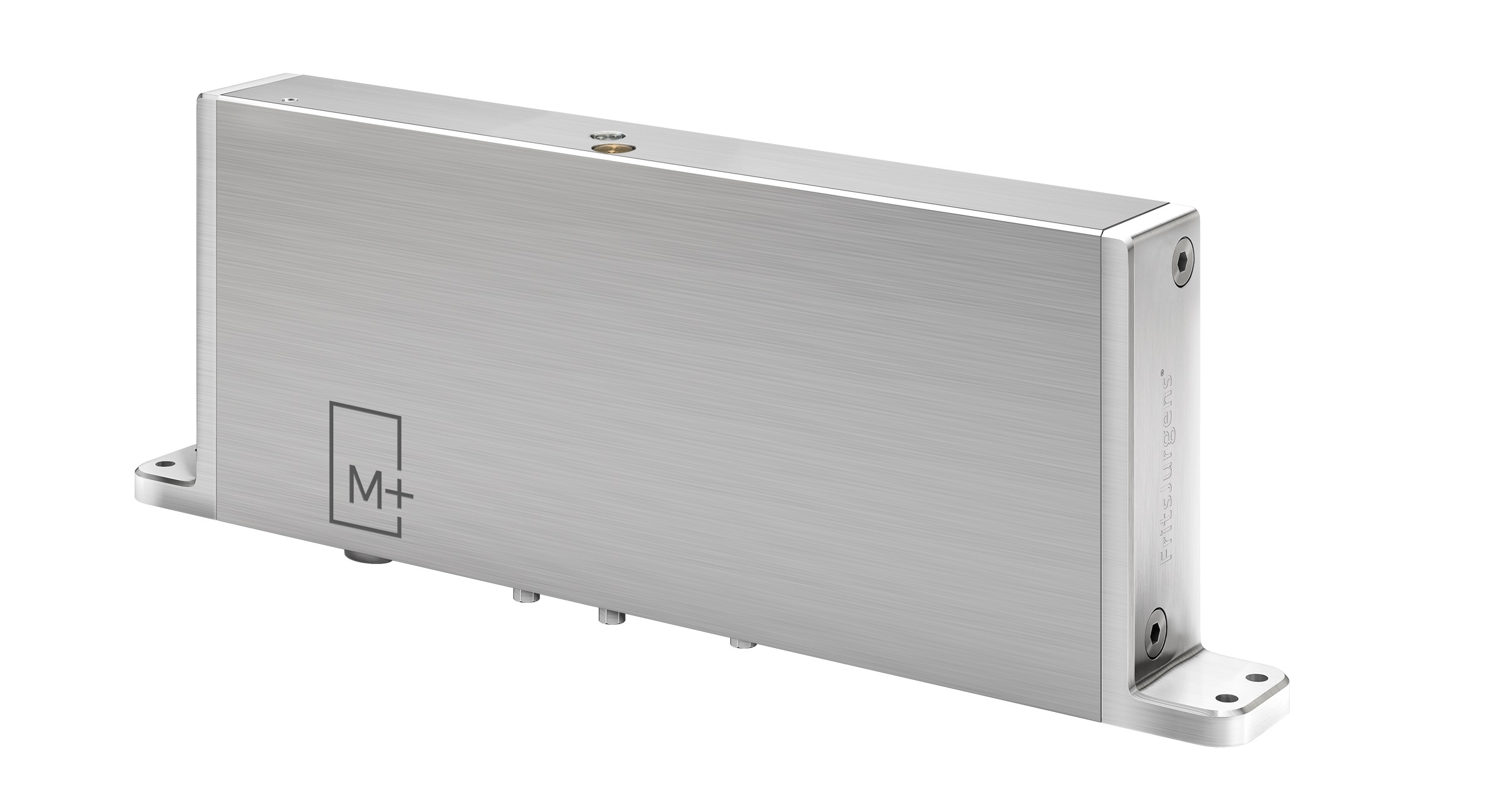

Pivot Hinges for Oversized Doors | FritsJurgens

Share
  • Use

    Interior/exterior pivot door hinges
  • Applications

    Commercial, residential
  • Characteristics

    Heavy-duty, loadbearing up to 500 kg, concealed pivot door hinges, choice of pivot system

Ask for more information / Quote

You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

Oversized doors – they are everything but usual. Incorporating a very tall door in the interior or exterior will draw the eye to the height of the building and accentuate it. When creating a pivot door like this, pivot hinges by FritsJurgens are the right choice.

Every pivot hinge by FritsJurgens – System M, System 3 and System One – is designed to carry doors from 20 kg to 500 kg. There are no limits to the height and weight of your pivot door design with FritsJurgens Inside.

Unlimited design

FritsJurgens pivot hinges are hidden inside the door so it does not disrupt the design. The high load-bearing capacity of FritsJurgens pivot hinges makes it possible to design any kind of oversized door.

Materials

Various materials are suitable for large pivot doors, from wood, glass, and steel to different types of stone, like marble. These can be used to create large pivot doors using a single material like wood or a combination of materials, such as glass and steel.

An oversized door can have many different appearances. Pivot doors of various materials and sizes have been combined with FritsJurgens pivot hinges.

Timeless design

Whether you would like to use a heavy material like marble or just want to create a pivoting oversized door, FritsJurgens pivot hinges are suited for the job. The systems are all made of materials of the highest quality and are thoroughly tested to last over a million movements – that equals 136 years of daily use, even when carrying doors that weigh 500 kg. Even the most diverse circumstances do not affect the performance of FritsJurgens pivot hinges.

Installing an oversized door

Even the largest, oversized doors can be installed quickly and easily with FritsJurgens pivot hinges inside. The floor and ceiling plate are mounted on-site; the top pivot and system are mounted into the door beforehand. Then the door can be placed and is ready to use. With System M, the motion of the door can be adjusted to specification.

System Elements

  • A floor plate
  • A ceiling plate
  • A top pivot
  • The system of your choice

Suitable FritsJurgens systems

Oversized doors require heavy-duty pivot hinges; There are three pivot hinge systems that are suited to different applications; System M, System One and System 3. Every pivot hinge can carry doors with weights up to 500 kg meaning there is no limit to the inspiration you can find when designing a pivot door.

System M System One System 3
undefined undefined undefined

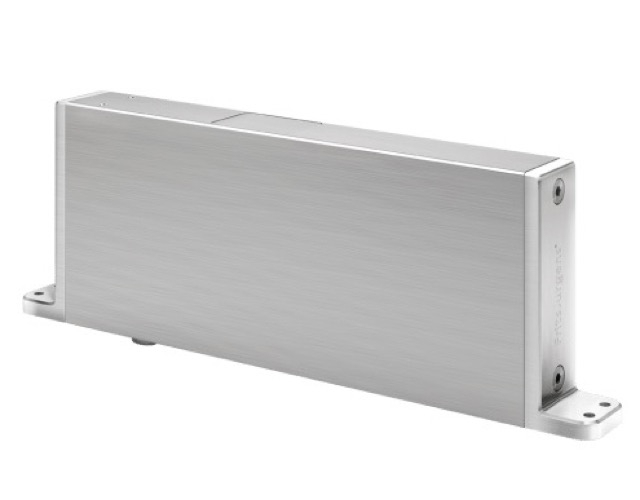

  • Hold positions at 0˚, 90˚and -90˚
  • Self-closing from -125˚ to + 125˚
  • Adjustable closing damping (soft closing)
  • Adjustable hydraulic backcheck
  • Can be combined with door frames
  • Patented system

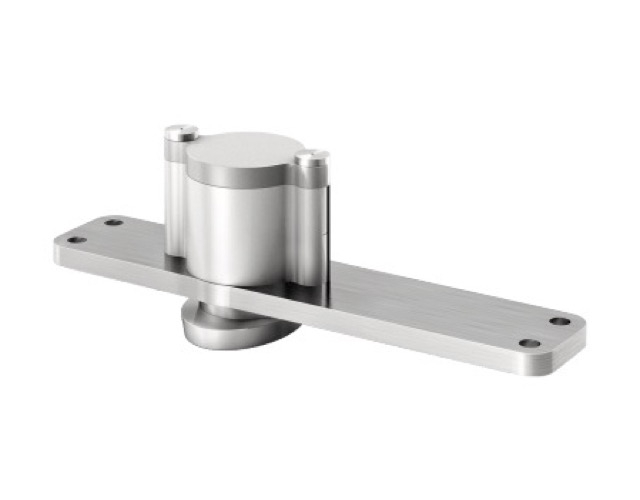

  • Compact system
  • No hold positions or closure function
  • Can be combined with door frames

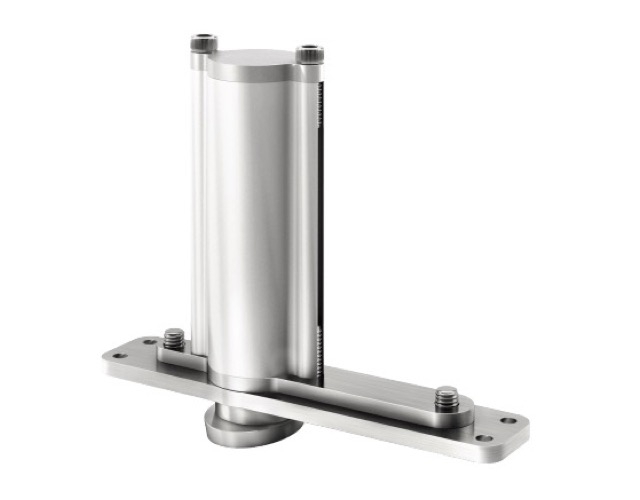

  • Hold positions at 0˚, 90˚, 180˚ and 270˚
  • Self-opening
  • Self-closing
  • Patented spring system
