Heavy Duty Panel Fastener - Standard Range | Fastmount®

Share
  • Available in

  • Use

    Heavy wall and ceiling panels
  • Applications

    Architectural, marine, aviation and recreational vehicles
  • Characteristics

    Hidden fixing, easy panel removal, perfect panel alignment, high pull out load per clip

Contact manufacturer

Fastmount®

More about this product

Fastmount™ presents its heavy-duty clips. While all Fastmount™ clips feature the ability to allow for flex, and hold panels securely, the heavy-duty clip is primarily designed to be used with bigger, heavier panels. This means customers have a greater range of panel mounting options yet still enjoy the usual benefits from the Fastmount™ panel mounting system

The Fastmount™ system achieves perfect alignment and panels can quickly and easily be removed and refitted to exactly the same location every time.

PC-M2H. Heavy-duty self tapping male
Fastmount™ heavy duty self-tapping clips are specifically designed for thicker panels with increased loading requirements, where PC-M1B is not strong enough. Mounts into PC-F1A, PC-SF1, PC-RF1 and PC-AF1 with 10 kg pull out load per clip. Minimum panel thickness of 9mm and screws into 10mm hole with CT-10.

PC-M2H

Benefits

  • Self-aligning installation without adhesives
  • Perfect panel alignment secure mounting every time
  • Remove and refit panels in any sequence 100+ times
  • Saves time and reduces cost
  • 10kg pull out load per clip
  • Allows for flexing and expansion of panel and support frame materials
  • Material: Black acetal copolymer

Applications

  • Covered or painted panels with minimum 8mm thickness
  • Ceiling and wall panels
  • Refits and upgrades of existing installation
  • Variety of substrates
  • Use with: PC-F1A, PC-RF1, PC-SF1, PC-AF1.

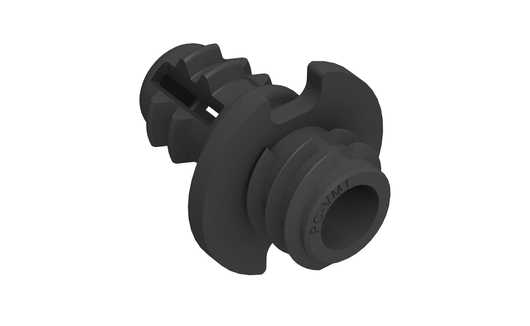

PC-VMX. Self tapping male
The Fastmount™ male self-tapping clip with variable gap and high shear strength is an extra heavy-duty clip with 15kg pull out load. For panels with a minimum panel thickness of 9mm. PC-VMX mounts into PC-F1A, PC-SF1, PC-RF1, PC-AF1 and screws into 10mm hole with CT-10.

undefined

PC-SM2H. Surface mount heavy duty male
Male surface mount heavy duty clip with SuperGroove base for increased loading. PC-SM2H mounts into PC-F1A, PC-SF1, PC-RF1 and PC-AF1 and has a 10kg pull out load per clip. Glue fix with Fastmount SuperGroove Adhesive or other suitable epoxy glue. No special tools required for installation.

PC-SM2H

Benefits

  • Self-aligning secure mounting (min.10kg per clip)
  • Installation requires no special tools
  • Uses Fastmount SuperGroove Adhesive
  • No drilling of panels, fast installation
  • Works with existing Fastmount clips
  • Allows for flexing and expansion of panel and support frame materials
  • Material: Black acetal copolymer

Applications

  • Mounting thicker panels with increased loading
  • Soft or honeycomb cored panels with thin facings
  • Mounting panels where no drilling is preferred
  • Ideal for refit
  • Mounts into PC-F1A, PC-SF1, PC-RF1 and PC-AF1.

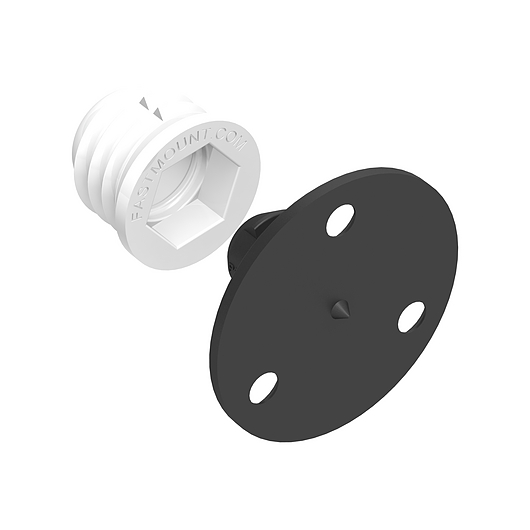

PC-SVMX clips

Fastmount has introduced a new heavy-duty clip with a screw fixing to its Standard Range, the PC-SVMX clip aims to further simplify installation of interior panels in the architectural market. The clip has a 15kg pull out load and 100kg shear load making it suitable for installing heavier wall panels and ceiling panels without visible fixings

PC-SVMX clips have the qualities of the popular Fastmount PC-VMX clip, including a sturdy head shape and strong shear load, but removes the self-tapping base in favour of three screw holes, which helps it provide rapid installation without special tools. Unlike the PC-VMX, the PC-SVMX can be installed without the red CT-01ST centrepoint tool, typically used for panel to wall alignment, thanks to a self-centring point on the back face.

Benefits

  • Invisible panel fixing
  • No special tools required for installation
  • Extra heavy duty 15kg pull out load
  • 100kg shear load
  • Durable head shape, ideal for pre- fabrication
  • Perfect panel alignment
  • Rapid installation
  • In-built centrepoint
  • CNC machine compatible

Applications

  • Heavyweight wall panels
  • Ceiling panels
  • Pre-fabricated panels
  • Architectural interiors
  • Marine interiors
  • Use with:PC-F1A, PC-RF1, PC-SF1, PC-AF1

Compatible with the following female clips:

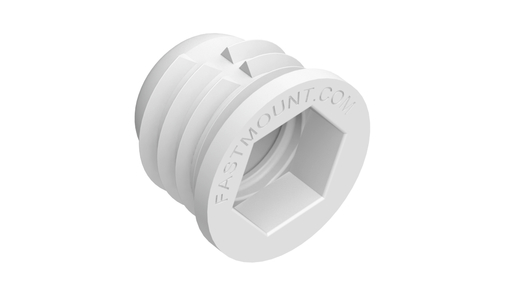

PC-F1A. Self tapping female
Self-tapping PC-F1A female clips work with all Standard range male clips and are designed for self-tapping, heavy-duty, high shear strength or variable gap requirements.

PC-F1A

Benefits

  • Self-aligning installation without adhesives Perfect panel alignment and secure mounting every time
  • Remove and refit panels in any sequence multiple times
  • Saves time and reduces cost
  • Option of 2kg, 5kg, 10kg, or 15kg pull out load per clip
  • Allows for flexing and expansion of panel and support frame
  • Material: White acetal copolymer

Applications

  • Covered, painted and prefinished panels
  • Ceiling and wall panels
  • Refits and upgrades of existing installations
  • Variety of substrates
  • Composites and thin-walled panels
  • Use with: PC-M2H, PC-VM1, PC-SM2, PC-M1B, PC-VMX, PC-SM2H, PC-SM1AC.

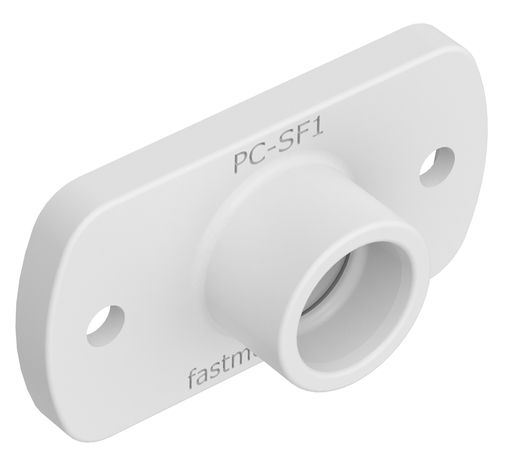

PC-SF1. Surface mount female
The surface mount female is an extension of the Fastmount™ system specifically for use where a cavity is required or where installers prefer a screw-fixed mounting. Use with clips designed for self-tapping, adhesive fix, high shear strength, and variable gap requirements.

PC-SF1

Benefits

  • Several mounting options
  • Screw fixed to support frame
  • Installation requires no special tools
  • Works with Standard range Fastmount clips
  • Allows for flexing and expansion of panel and support frame
  • Material: White acetal copolymer

Applications

  • Mounting onto aluminum frames
  • Mounting onto fire rated cabins
  • Mounting panels where a cavity between panel and frame is required
  • PC-SF1 can be used on panel or support frame side
  • *Use with: PC-M1B, PC-VM1, PC-SM2, PC-M2H, PC-VMX, PC-SM2H, PC-SM1AC

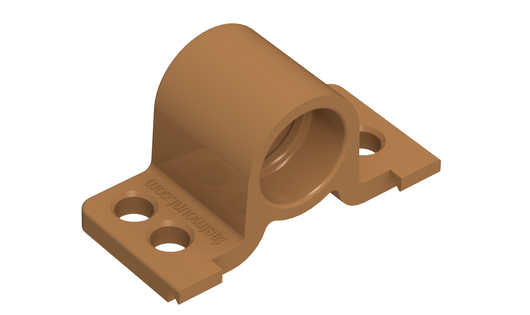

PC-RF1. Side mount female
Ideal for applications that require side mounting, such as refit, cabinet construction or securing floor panels. This versatile screw-fixed clip works with all-male clips from the Standard range.

PC-RF1

Benefits

  • Side mounting
  • Installation requires no special tools
  • Screw fixed to frame
  • Several mounting options
  • Works with existing Standard range Fastmount clips
  • Allows for flexing and expansion of panel and support
  • Material: Brown acetal copolymer

Applications

  • Ceiling and wall panels
  • Cabinet assembly and shelf support
  • Refits and upgrades of existing installations
  • Variety of substrates
  • Floor panels
  • Inspection hatches
  • Use with: PC-M1B, PC-VM1, PC-SM2, PC-SM1AC, PC-M2H, PC-VMX, PC-SM2H.

PC-AF1. Autofit female clip
The Fastmount™ autofit PC-AF1 is ideal for applications that require lateral adjustment, such as curved panels. This versatile screw-fixed clip works with all Standard range male clip types.

PC-AF1

Benefits

  • Lateral panel adjustment in all directions
  • Installation requires no special tools
  • Push-fit into 35Ø hole
  • Several mounting options
  • Works with Standard range Fastmount clips
  • Material: White acetal copolymer

Applications

  • Complex shaped panels where lateral adjustment is required
  • Ceiling and wall panels
  • Mounting of curved panels
  • Variety of substrates
  • Molded into hull
  • Mounts with: PC-F1A, PCRF1, PC-SF1, PC-AF1.

For more information see Fastmount™'s catalog.
