Ductal® Cladding Panels (EU) | Ductal®
Navigate products using your keyboard
  1. ArchDaily
  2. Products
  3. Fiber Cements / Cements
  4. Ductal® Cladding Panels (EU)

Ductal® Cladding Panels (EU) | Ductal®

Share in Whatsapp
  • Use

    Rainscreen cladding systems
  • Applications

    Residential, Hotels, Corporate, Educational, Retail, Healthcare, Collective Housing
  • Characteristics

    Manufactured UHPFRC (Ultra High Performance Fibers Reinforced Concrete) panels, fire resistant, low porosity, strong and impact resistant, ductile, low maintenance
  • Format

    Panels
  • Colors

    Customizable
  • Sizes

    Up to 1.2 x 3.6 m
  • Certification

    French ATEx

BIM Files

Supplementary Files

Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
I want to receive a sample
I agree to the Terms of use and the Privacy Policy.

More about this product

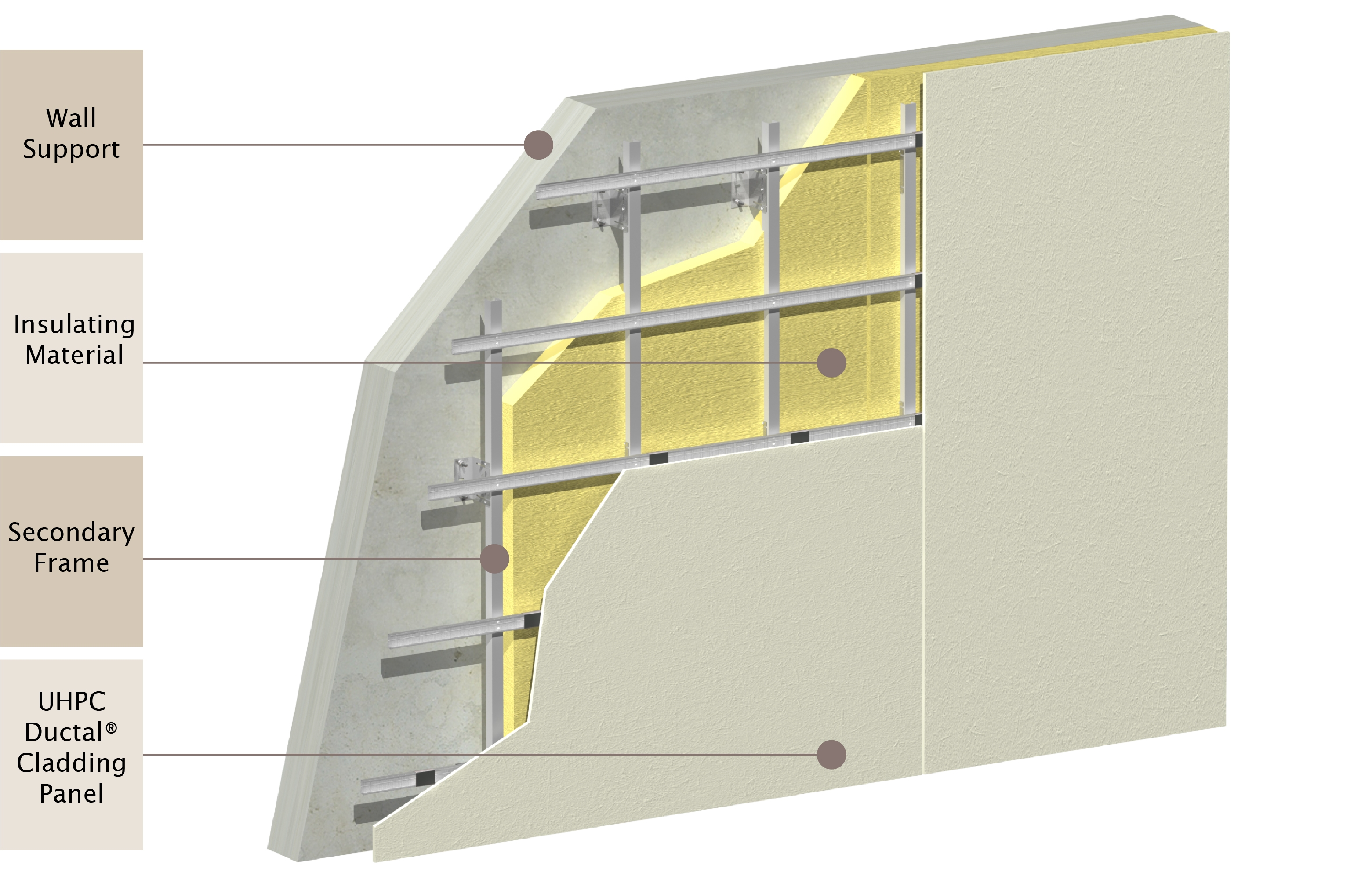

Ductal© UHPC (Ultra-High Performance Concrete) cladding panel solution is designed to meet the specific requirements needed for a variety of buildings. Whether you’re working on high rises, offices, shopping centers, apartments or public buildings, you’ll find that UHPC Ductal® rainscreen cladding solutions provide the right mix of sustainability, durability, low porosity, fire resistance and aesthetic flexibility that’s just right for any design. It can be used alone or in an External Thermal Insulation (ETI) system as an effective response to the latest thermal regulations.

Advantages

  • Fire resistant: A1 and A2s1d0.
  • An entire height up to 3,6 m can be covered with a single Ductal Panel.
  • Easy Maitenance
  • Ductal®’s self-consolidating behavior and finegrained texture results in a surface finish that replicates mold materials with the greatest precision.

undefined

Specifications

  • Panel Dimensions: Standard sizes: 1.2 x 1.2 m 1.2 x 2.4 m 1.2 x 3.6 m
  • Panels can be cuted to achieve any size up to 3.6m.
  • Thickness: 15 - 16 mm Weight 35 - 37 kg/m²
  • Fire classification: A1-A2s1d0 (European legislation)
  • Surface treatments:
    1. Anti-graffiti
    2. Water-repellant
    3. Glazing

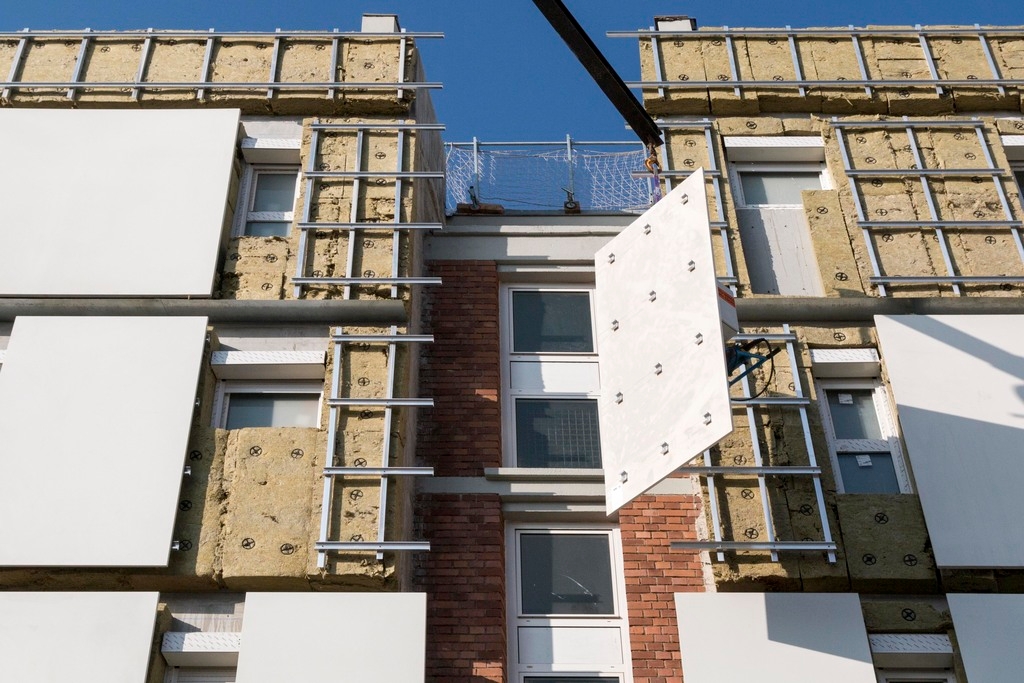

  • Fixing systems:
    1. Concealed attachments: rail-mounted
    2. Face-fastened attachments using screws
  • Corner treatments: Beveled Corner, Cross corner, One piece Corner
  • Installation: Impact resistance possibility (Q4 in France)
  • Aesthetic customizable

The fiber-reinforced ultra-high performance concrete (UHPC) offers durability, low-porosity, resilience and ductility, creating façades that will stand the test of time.

undefined

For more information, download the Catalog from the Supplementary Files Section in this Product Page.
