Rooftop Park / RDR arquitectos

Rooftop Park / RDR arquitectos

© Javier Agustín Rojas © Javier Agustín Rojas © Javier Agustín Rojas © Javier Agustín Rojas + 32

Extension  ·
Belgrano, Argentina
  • Architects Authors of this architecture project RDR Arquitectos
  • Area Area of this architecture project
    215278.21 ft2
  • Project Year Brands with products used in this architecture project
    2016
  • Manufacturers Brands with products used in this architecture project
    Angel Nesis, Blangino, F60, Lucciola, Sika, Vistosi
  • Architect in Charge

    Jacques Richter, Ignacio Dahl Rocha, Bruno Emmer, Facundo Morando
  • Project Team

    Ignacio Dahl Rocha, Bruno Emmer, Nicole Michel, Rodrigo Muro, Martín Rosello, Facundo Morando, Jorgelina Tortoricci, Ovidio Lagos, Nicolás Adrián, Inés Loviseck, Gerardo Pietrobelli, Ignacio Bóscolo, Martina Portugal, Guillermo Aporsegui.
  • Photographs

  • Landscaping

    Grupo Landscape. (Cora Burgin, Sebastián Mouzo)
  • Civil engineer

    Ing. José Zaldua
  • Thermomechanics

    Frisia S.A.
  • Sanitary

    ITISSA SA
  • Electric

    Ritec.
  • Acoustic

    Gustavo Basso
  • Client

    Universidad Torcuato Di Tella
More Specs Less Specs
© Javier Agustín Rojas
© Javier Agustín Rojas

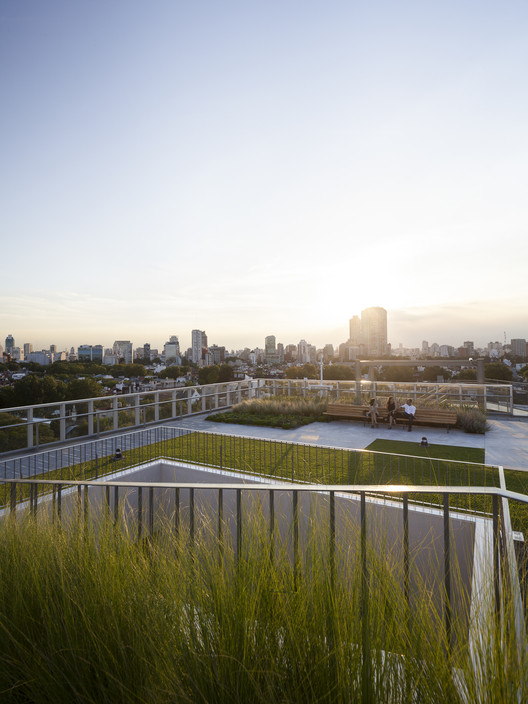

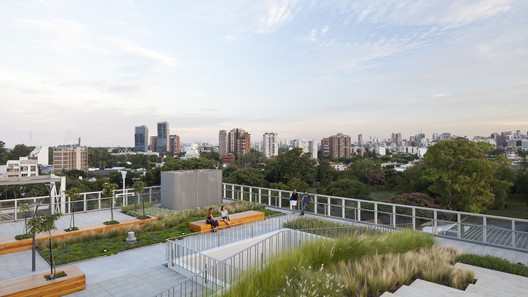

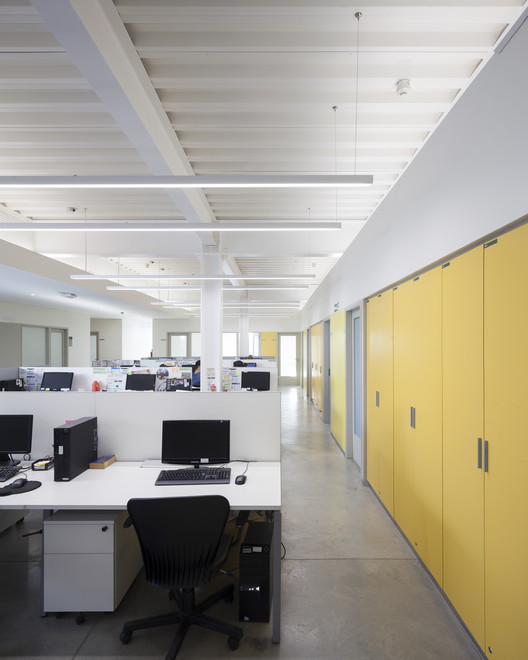

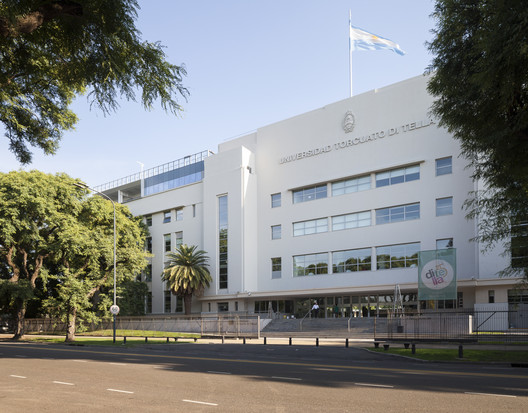

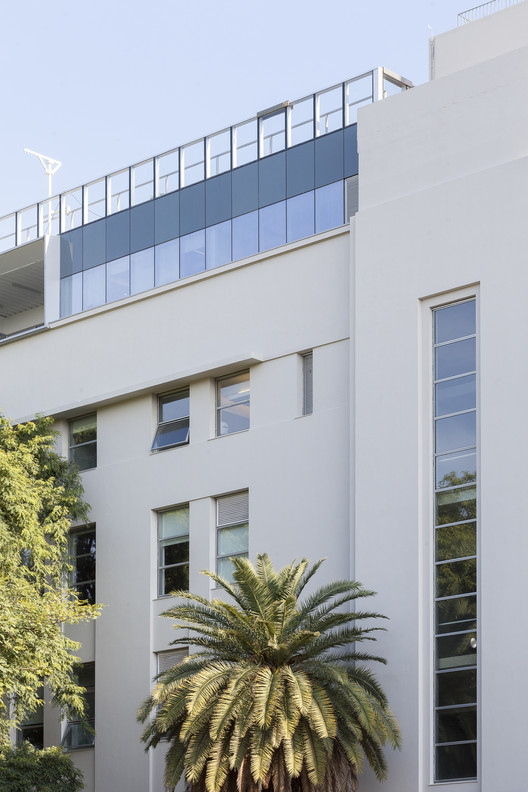

Text description provided by the architects. This work culminates the different stages of the Alcorta headquarters of the Torcuato Di Tella University developed since 2009 by RDR arquitectos. It consists of two new levels that finish the building, built with a metal structure and glazed enclosures that rest on the pre-existing roof of the previously remodeled building, fully operational. The fourth floor houses a restaurant, offices and classrooms, and the fifth floor is a large 2,000 m2 garden roof covering the entire length of the plant. This new green space allows the University to expand its recreational areas and enjoy the open views towards the river and the city, attracting students to a new meeting place.

© Javier Agustín Rojas
© Javier Agustín Rojas

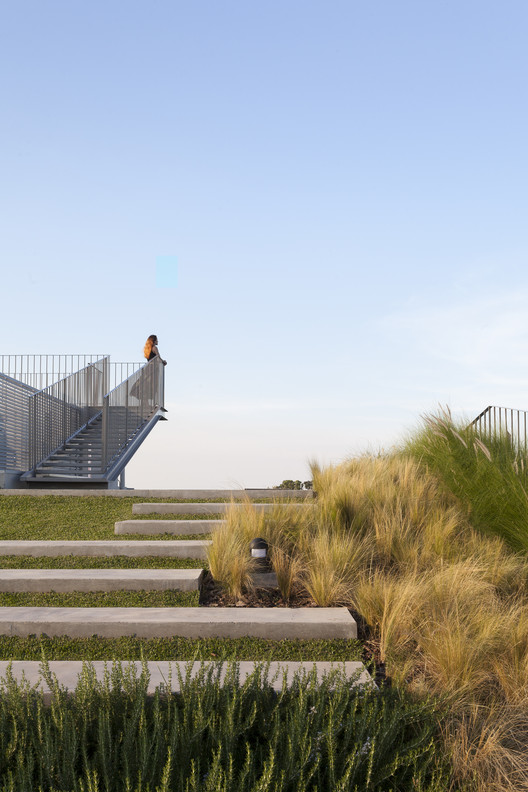

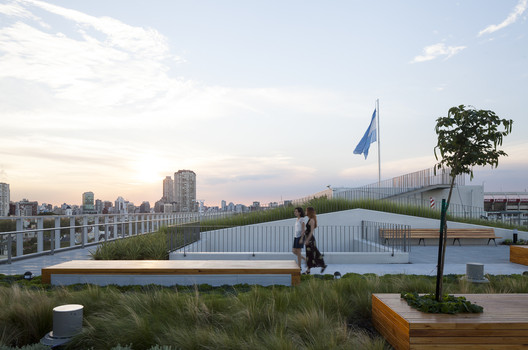

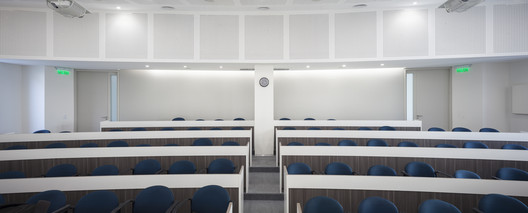

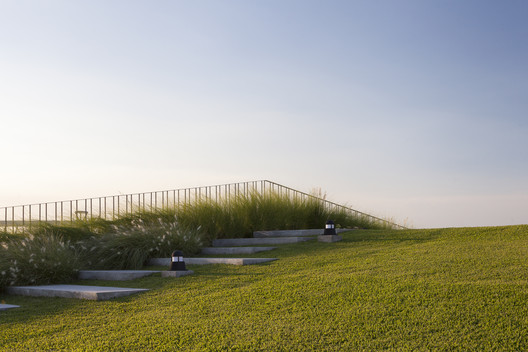

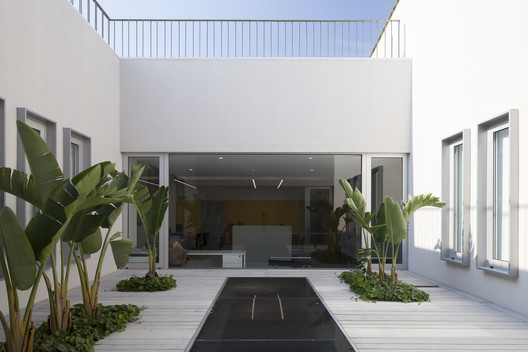

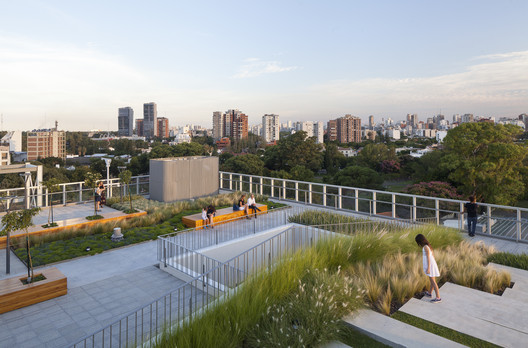

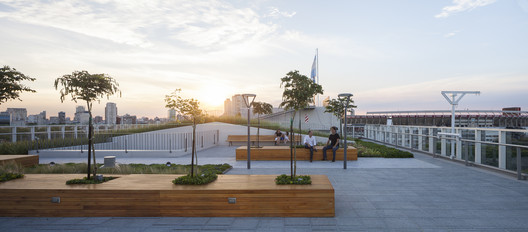

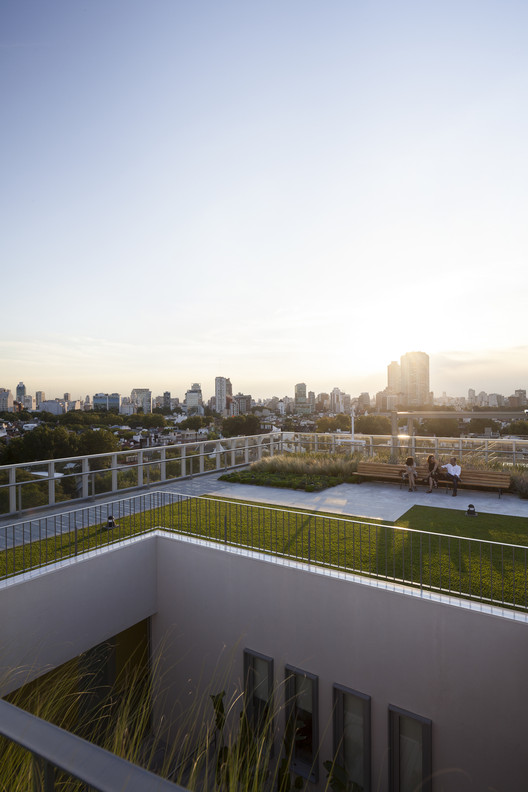

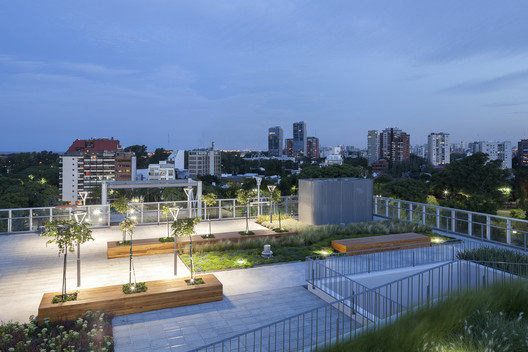

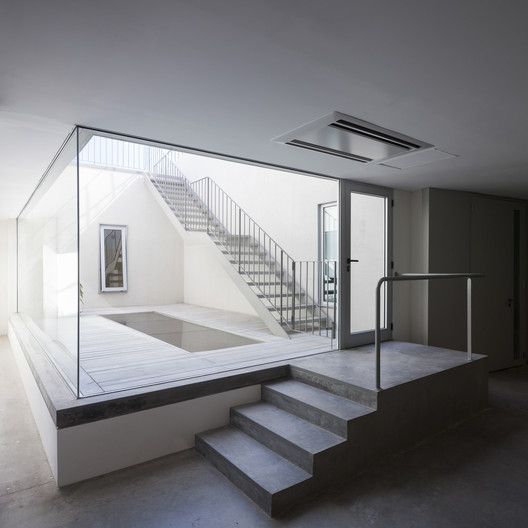

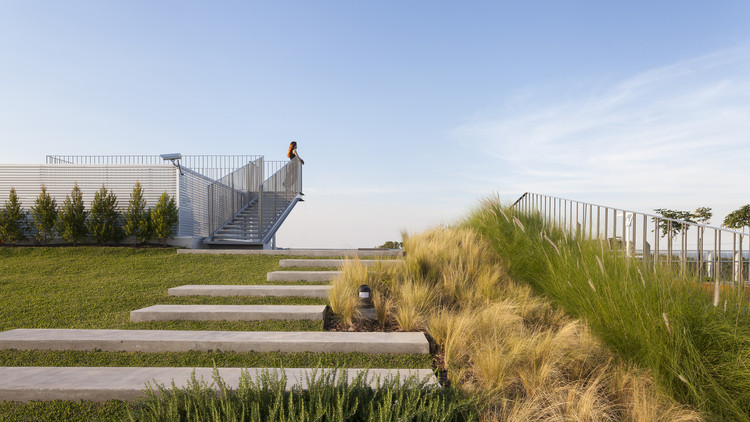

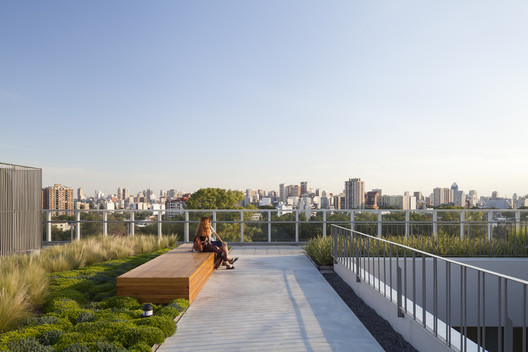

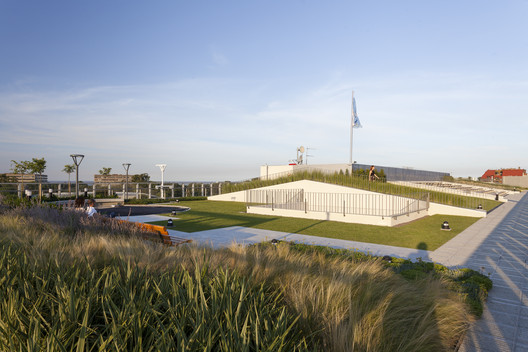

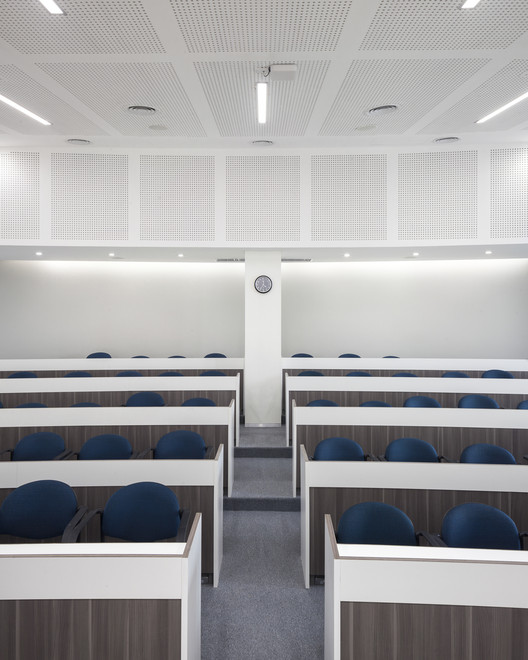

The terrace was conceived as a large park capable of housing both leisure and gastronomic venues as open-air auditoriums and sectors for academic and sports activities. The large folds of the roof enrich the route and generate situations of formal and informal auditoriums in the open. These folds, in turn, allow three large classrooms to be housed in the lower floor, conferring the height according to their dimensions. The courtyards bring light to the lower levels and contain the stairs to the terrace from the fourth floor hall.

© Javier Agustín Rojas
© Javier Agustín Rojas
Longitudinal section
Longitudinal section
© Javier Agustín Rojas
© Javier Agustín Rojas
Terrace section C
Terrace section C

This stage required a material strategy capable of building an additional level on a densely populated building without interrupting its activities. The project took on this challenge not only by including in this instance materials such as metallic primary structures and gypsum rock ceilings and partition walls that allowed an almost exclusively dry work, but also to extend and complete the overhead light inlets and the vertical circulations forming patios through in a delicate staggering of tasks that always kept properly isolated hydrophobic, acoustically and thermally to the spaces of use in the lower levels. Finally, this new architecture emerges in the garden terrace with a palette of natural materials, assembled and light, of evident contrast with the monolithic, neutral and tectonic technology of the concrete and the masonry of the pre-existing building.

© Javier Agustín Rojas
© Javier Agustín Rojas
Cross section
Cross section
© Javier Agustín Rojas
© Javier Agustín Rojas

Project gallery

See all Show less

Project location

Address: Av. Pres. Figueroa Alcorta 7350, Núñez, City of Buenos Aires, Argentina

Location to be used only as a reference. It could indicate city/country but not exact address.
