St John’s Orchard / John Smart Architects

  • 01:00 - 17 March, 2014
St John’s Orchard / John Smart Architects
St John’s Orchard / John Smart Architects, © Edmund Sumner
© Edmund Sumner

© Edmund Sumner © Edmund Sumner © Edmund Sumner © Simon Ellis + 20

© Tim Crocker
© Tim Crocker

Context

Second Floor Plan - Myrtle House
Second Floor Plan - Myrtle House

Set within a tree lined neighbourhood in South London; a distinctive local landmark has been attentively refurbished and crafted into four elegant houses. The Old St John’s Convent and Orchard at 17 Grove Park has been given a fresh lease of life through combining the rich history of the original Victorian building with new contemporary spaces and interventions. Each house is set over 5 floors and spans over 4000 square feet.

The Great Room Floor

© Simon Ellis
© Simon Ellis

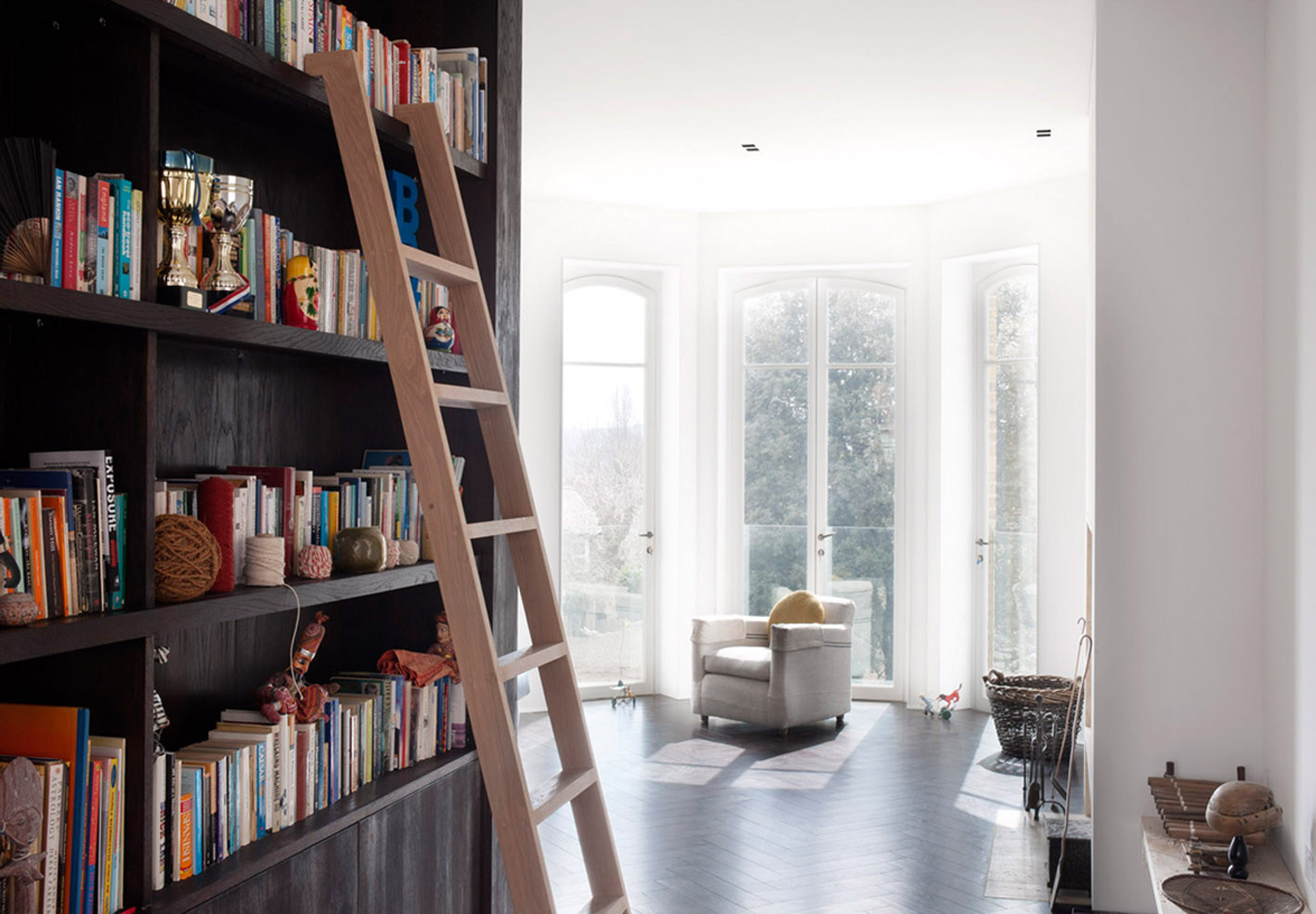

Conceived as an open single space, the Great Room Floor provides three distinct areas within the original ground floor of the convent, whilst still maintaining an open dialogue across the floor.

Library

© Edmund Sumner
© Edmund Sumner

The oak library unit forms a central ‘furniture wall’ in the Great Room. Concealed full height doors allow space to flow freely around it, creating a fluid space. The fumed oak joinery relates to the fumed oak stair, bringing the verticality of the central core into the spatial dynamic.

Staircase Design

© Edmund Sumner
© Edmund Sumner

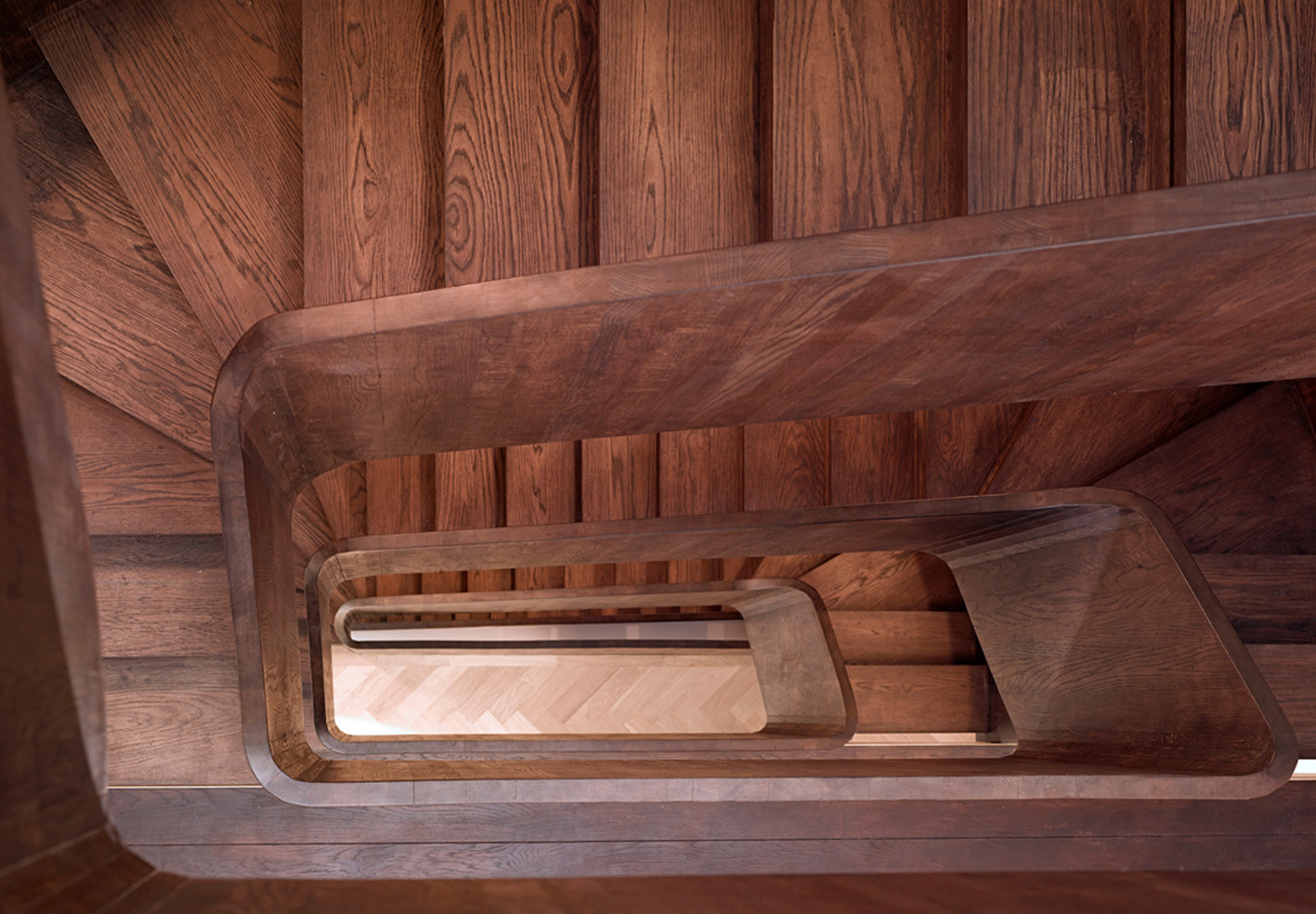

The five-storey oak stair is constructed using staves of standard section sizes that were laminated into a bespoke form. Crafted in a workshop, the elements were assembled on-site into a seamless flight that rises through the core of the house. Detailing is reduced to a minimum - just two types of wedged-shaped staves were used to achieve the inner and outer curves of the stair, which serves as both stringer and handrail.

Kitchen and Dining

Section
Section

At the heart of each house is a cooking and dining space situated under a dramatic six-metre ‘double height’ void. Framed by a full height oak window and sliding door, it has vistas onto the gardens and terrace beyond. Inside merges with outside; giving a garden backdrop to cooking, eating and entertaining in one light-filled room. The double aspect space can be used to create two distinct atmospheres if desired, each with their own ambiance, for casual family dining and more structured formal dining. A monolithic polished screed floor unifies the space while storage and utility are concealed neatly behind bespoke cupboards and timber clad walls. The kitchen itself is crafted from fumed oak with framed black granite oak doors and an Italian white marble worktop.
