Zinc Coil - Sheets elZinc | MetalTech-USA

Share
  • Use

    Building Material
  • Applications

    Interior / Exterior surfaces
  • Characteristics

    Zinc is highly resistant to atmospheric corrosion and can be recycled indefinitely.
  • Colors

    Natural, slate, graphite, red, gold, green, blue, brown, and black
Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

MetalTech USA's standard zinc coil for zinc wall cladding and zinc roof construction comes in a width of a meter wide in all colors (natural, slate, red, brown, blue, green, gold, and black). Standard gauges are .7mm .8mm 1mm 1.2mm and 1.5mm.

elZinc coils are available in 1, 2, and 4 ton. Custom coils are available upon request:

  • 0.7 mm (24 gauge/0.028") (1.03 lb./ft.2)
  • 0.8 mm (22 gauge/0.032") (1.18 lb./ft.2)
  • 1 mm (20 gauge/0.04") (1.48 lb./ft.2)
  • 1.2 mm (18 gauge/0.05") (1.77 lb./ft.2)
  • 1.5 mm (16 gauge/0.06") (2.21 lb./ft.2 )

Sheets

MetalTech-USA is a zinc sheet metal supplier which provides standard sheet widths are 39.4” (meter wide) and with a length of 120” in gauges of .7mm, .8mm 1mm, 1.2mm, and 1.5mm. Custom widths and cut to lengths are also available by request. elZinc’s backside coating Protect+ is available for widths of .7mm, .8mm.,1.0mm.,and 1.2mm. Ask MetalTech-USA about special thicknesses available for zinc metal panels.

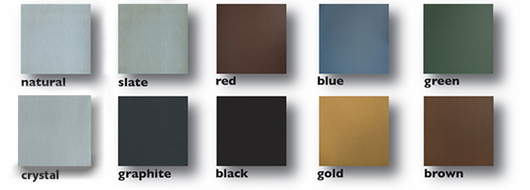

elZinc colors available: natural, slate, graphite, red, gold, green, blue, brown, and black

null

Why Use elZinc on Your Projects?

elZinc zinc coils and sheets may be purchased directly through MetalTech-USA. They are available in the natural finish as well as two preweathered finishes and 6 Rainbow colors. The advantages of using zinc as a building material are numerous:

Durability: elZinc has a very long life. One of the most important characteristics of zinc is that it is highly resistant to atmospheric corrosion. The patina that appears on the surface after exposure has a self-protecting effect giving the material a beautiful appearance which lasts for decades.

Environment: Zinc is one of the few materials used in construction that can be recycled indefinitely without losing its physical and chemical characteristics.

Malleability: Zinc conforms to practically any shape including bends and complex geometric forms. Architects have great freedom in their designs.

Style: Zinc is a contemporary material which is perfectly suited for all types of construction both in classical and modern architecture.

Variety: elZinc offers a huge variety of surface finishes, allowing vast application possibilities.

elZinc sheets and coils are distinguished by:

  • Maleability, irrespective of the rolling direction
  • High stability once formed
  • Electrofusion optimal performance due to low surface oil.
  • Limited low temperature brittleness

All rolled products by elZinc exceed the requirements set by the ASTM B69-13 standard for rolled architectural zinc and the EN988 standard.
