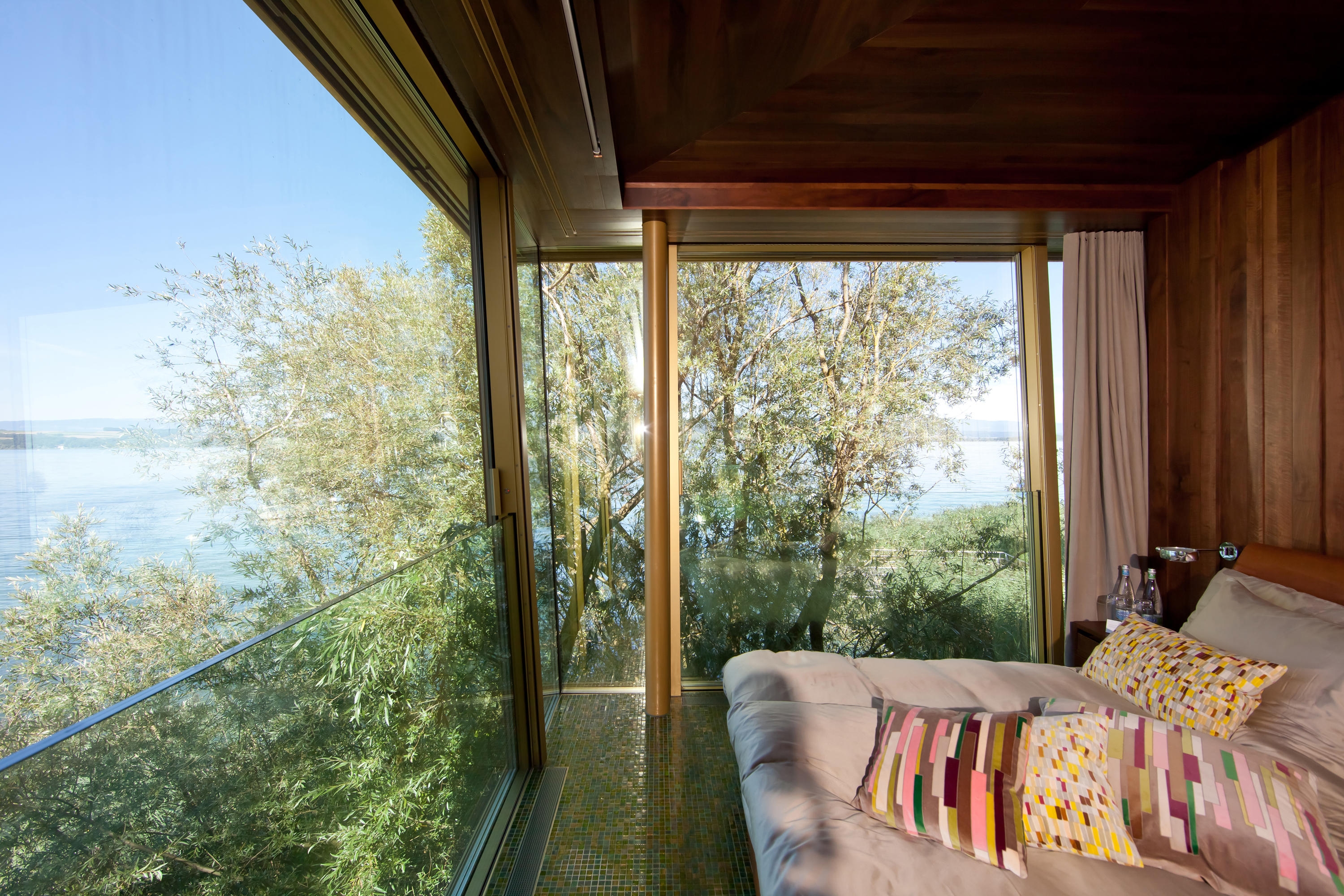

Sliding Window - Slanted | Air-Lux

Share
  • Use

    Windows
  • Applications

    Residential
  • Characteristics

    Diagonally opening, inflatable seal, 100% tightness, automation possibility, sliding sashes up to 25m²

More about this product

Air-Lux slanted windows are a diagonally opening sliding window. The patented Air-Lux technology uses an inflatable seal that not only enables horizontally opening sliding windows but is also suitable for special opening types. slanted is the sliding element that can be opened obliquely inwards or outwards.

Opening Types

  • Sloping, openable glazing (roof cut-outs)
  • Vertically upward and/or downward slidable wings
  • Curved plants
  • Vertical elements, from bottom to top / from top to bottom

In all these special designs, the openable wings are 100% airtight, because the air-supported seal adapts perfectly to the moving wing element and thus closes the intermediate gap completely.

Sliding Sashes up to 25m²

With the aid of the air seal, the system can accommodate more construction tolerances than conventional sealing systems. This in turn allows sash sizes up to a maximum width of 8 × 3.1 m (W × H) or a maximum height of 3.1 × 6 m (W × H) - and this with frameless installation flush with the floor and ceiling. With a weight of almost 2 tons, such a slide acts like a glass facade that can be moved sideways silently.

Automation

As there are no frictional resistances when the seal is vented as in systems with brush seals, motorization is only recommended from approx. 600 kg. The Air-Lux integral drive is invisibly integrated into the frame for all opening types and requires neither recesses nor recesses in the ceiling.

Safety

The very resistant Air-Lux basic construction can be upgraded with additional mechanical components and a special glass up to the tested resistance class RC3. All safety measures remain invisible and do not change the profile or the face width. Bulletproof glass or alarm glass up to a thickness of 60 mm can also be used. Electronic components for monitoring the closing position and locking the sliding sashes enable the control and monitoring of the sliding window via the building services (alarm system, house control system etc.) - even with mobile devices such as smartphones and tablets.

Tightness

With the help of the patented sealing concept of Air-Lux, optimum values are achieved in all aspects of tightness. Be it rain tightness, wind tightness or sound insulation. This guarantees maximum living comfort in all weather conditions. Since the air seal has no signs of wear, 100% tightness is guaranteed even years later.

Operation and Function

The sliding windows are operated on the window frame via a button with an integrated LED. Opening and closing are done manually or fully automatically, gently and quietly - without any effort. Outside, access options such as key switches, numeric codes, fingerprints, or badges are possible. And in the event of a power failure, the elements can be pushed manually and lock automatically. On request, we can also take over the planning, preparation, and installation of sun protection systems, slit ventilation systems, and insect screens for optimum living comfort. With darkening systems on the inside of the room, privacy can be further increased.

Threshold Training

The system can optionally be equipped with a swiveling floor flap or with a trailing sleeper carriage for disabled access. When using the sleeper carriage, there must be a free space opposite the opening direction where the sleeper carriage can be parked when closed.

Safety Catcher

Due to the arrangement of the sliding sash on the outside, an all-glass railing can be integrated directly into the system on the inside, so that the guardrail is not visible from the outside and hardly perceptible from the inside.
