ah! Vertical Sliding | panoramah!®

Share
  • Use

    Frameless, insulated sliding doors and windows
  • Applications

    Residential, Commercial, Restaurants, Hotels, Corporate
  • Characteristics

    Aluminum structure. Self supporting glass. Limitless number of rails.
  • Format

    Vertical sliding
  • Certification

    ISO 9001:2015 Quality Certified

4 Supplementary Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

Ask for more information / Quote

You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

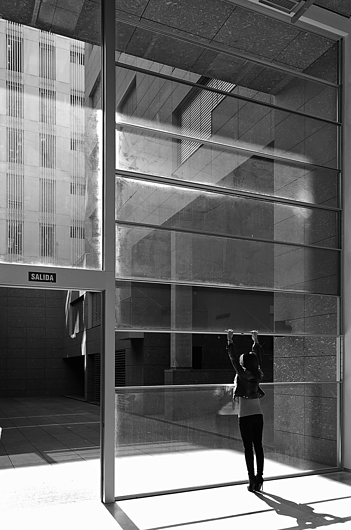

This opening window system from panoramah!® operates by connecting two or more vertical sliding glass panes through an internal counterweight system. Perfectly balanced the glass panes move effortlessly in opposite directions and are freed to cover large surface areas. This allows the use of horizontal aluminium profiles with reduced dimensions and a manual or motorised operation of very large units.

Castellana 62 | Madrid | ©Panoramah!

Characteristics

  • ah!60 thermal insulation up to 0.8W/m².K, sound insulation: 44 dB, security RC4.
  • ah!38 thermal insulation up to 1.165W/m².K, sound insulation: 41 dB, security RC2.

Sizes

  • ah!60 vertical profile: 20mm, maximum leaf dimensions: 9000mm, maximum glazed area: 29m2 (double glazing) or 19m2 (triple glazing), glass thickness: 60mm.
  • ah!38 vertical profile: 20mm, maximum leaf dimensions: 6000mm, maximum glazed area: 19m2 (double glazing) or 6m2 (triple glazing), glass thickness: 38mm.
