Pivot Hinges for Wooden Pivot Doors | FritsJurgens

  • Available in

  • Use

    Interior/exterior pivot door hinges
  • Applications

    Commercial, residential
  • Characteristics

    Loadbearing up to 500 kg, concealed pivot hinges, choice of pivot system
FritsJurgens Logo

Contact manufacturer

FritsJurgens

FritsJurgens Logo

Contact manufacturer

FritsJurgens

More from FritsJurgens

Website Phone

More about this product

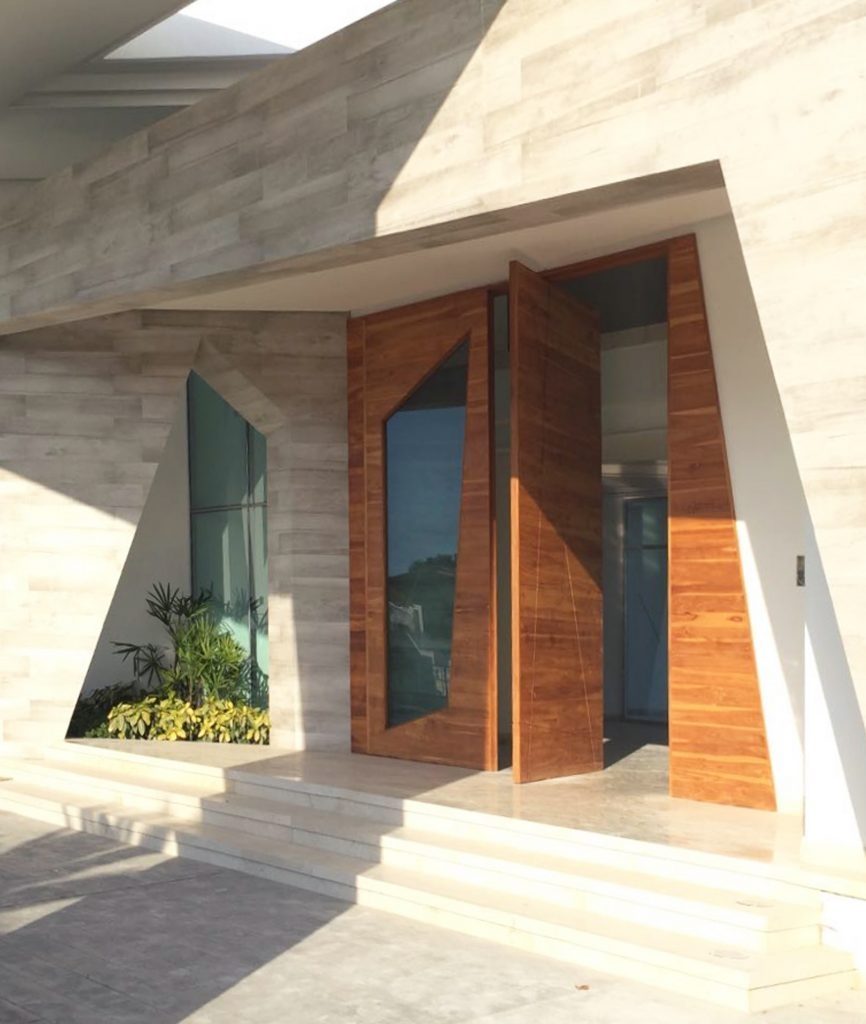

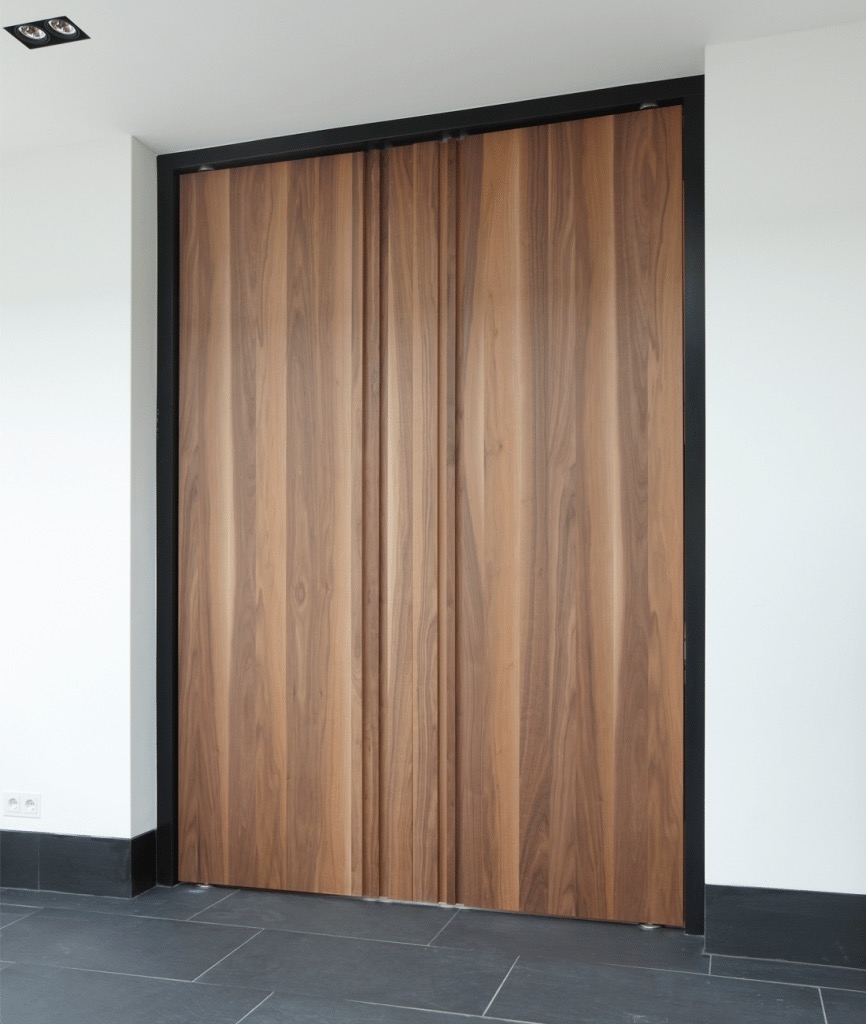

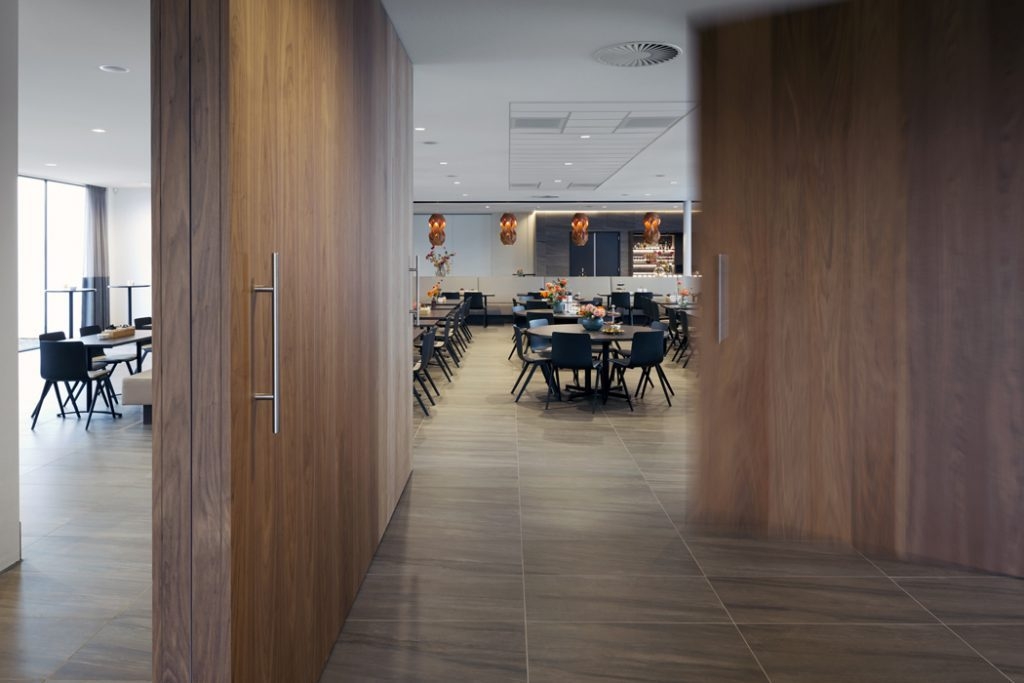

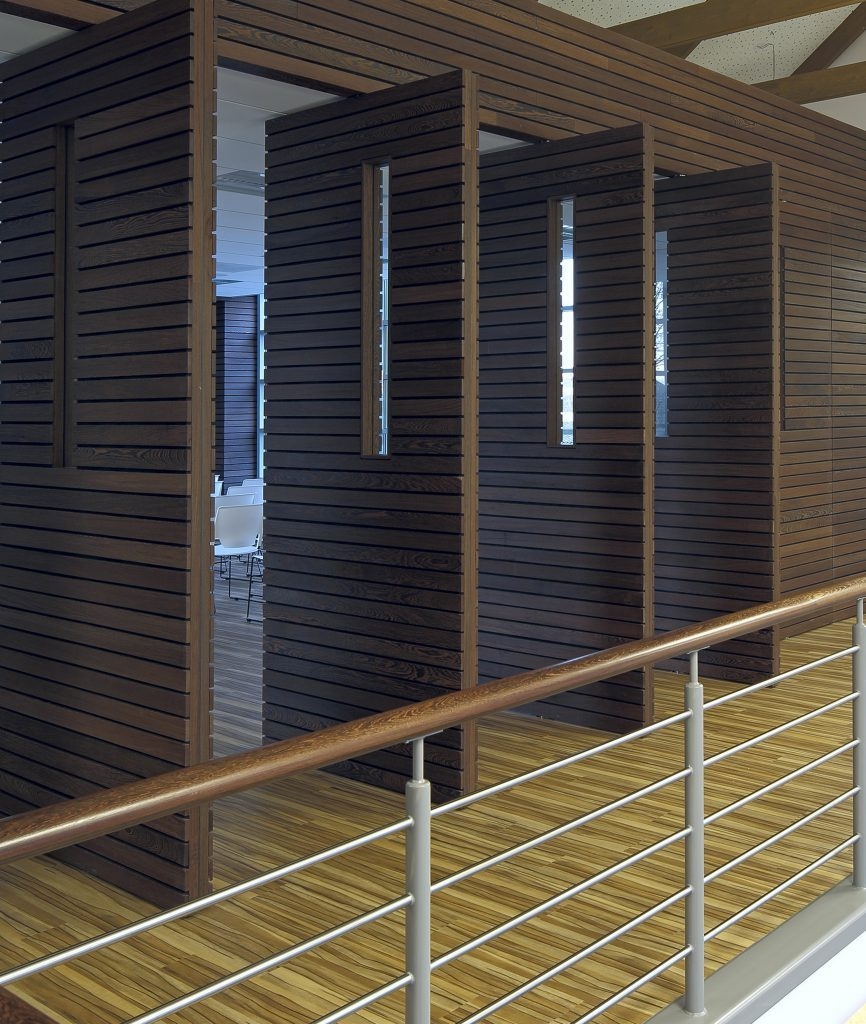

Wooden pivot doors have a timeless design and are suitable for a wide range of applications, from classic to modern interiors. Wooden interior doors give a space character and warmth. In addition, wood is durable and can be a great insulator and noise canceller. The weight of any kind of wood is easily carried by an invisible FritsJurgens pivot hinge.

FritsJurgens pivot hinges for light and heavy doors

No matter your choice of wood, a FritsJurgens pivot hinge is suited for big and small, hollow-core and solid-core, interior and exterior pivot doors. Every pivot hinge system – whether you choose System M, System M+, System One or System 3 – can carry doors with weights from 20 kg to 500 kg. So, whether you choose a light hollow-core door or a heavy solid-core door, a FritsJurgens hinge will ensure a fluent motion throughout the entire movement. Read more about the differences between our three pivot hinge systems and discover which system is suitable for your wooden pivot door.

FritsJurgens pivot hinge systems are invisible, and as a result, all attention goes to the beauty of the door. The fittings of FritsJurgens are completely concealed in the top and bottom of wooden pivot doors. Only a small footplate and ceiling plate are visible.

Custom pivot door systems

There are four pivot hinge systems that are suited to different applications; System M, System M+, System One and System 3. Every pivot hinge can carry doors with weights up to 500 kg meaning there is no limit to the inspiration you can find when designing a pivot door.

All FritsJurgens pivot door systems are suitable for wooden pivot doors.

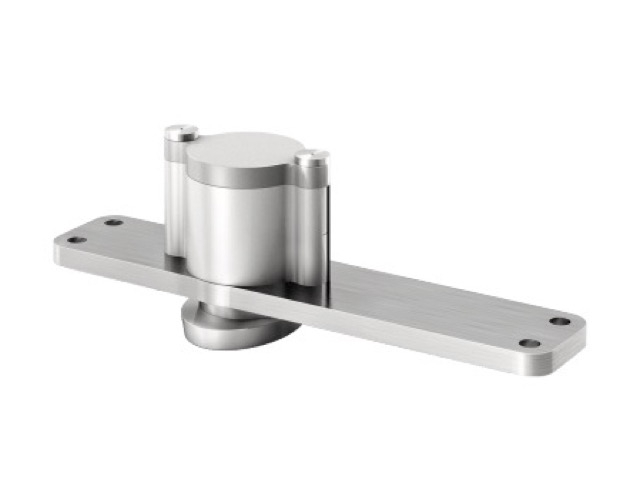

  • System One functions as a pivoting point and is suitable for outside doors when combined with a magnetic door lock.

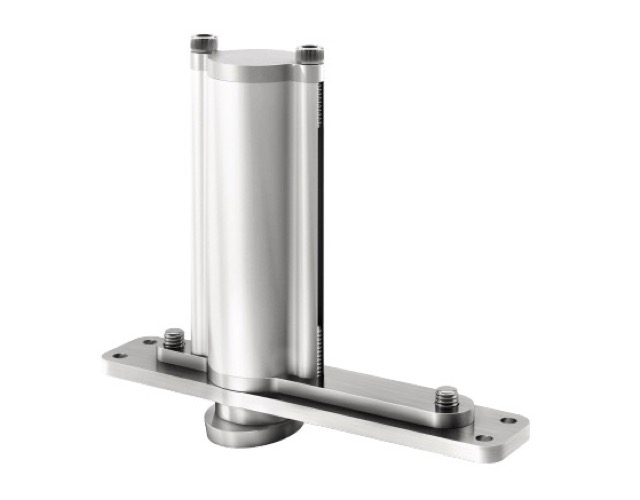

  • The pivoting door hinge System 3 has four holding positions, at 90-degree intervals.

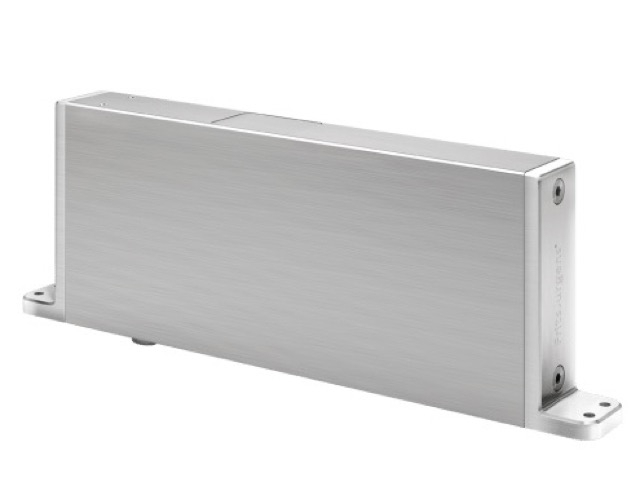

  • System M has a soft-close function, damping at the opening, and is self-closing. Ideal when combined with wooden pivot doors.

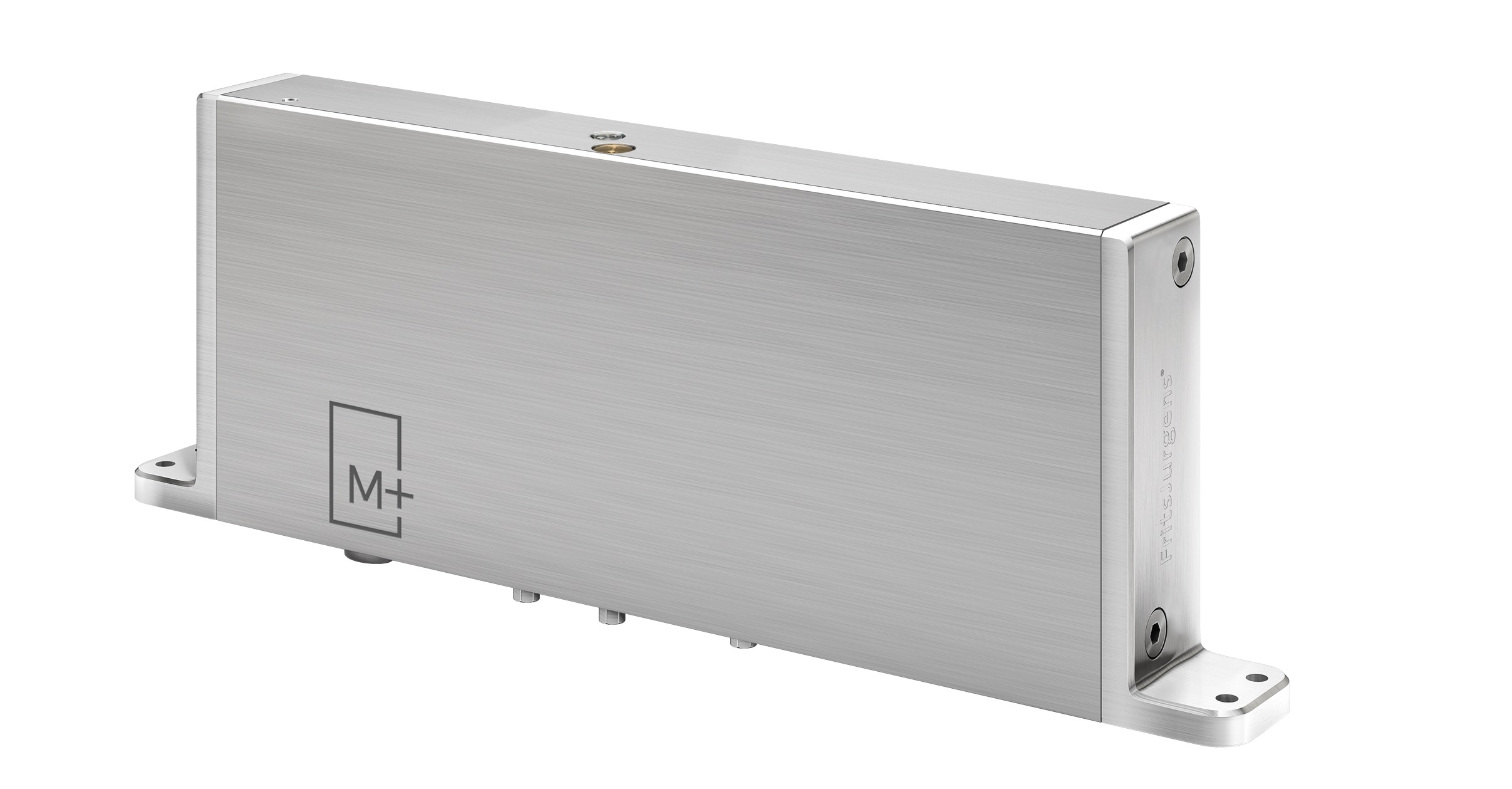

  • System M+ takes the System M pivot hinge range to a new level. This adjustable pivot hinge brings Latch Control to ensure proper latching, guaranteed control over the movement of doors up to 500 kg, and extra adjustability for the movement of the door.
System M System M+
  • Hold positions at 0˚, 90˚and -90˚
  • Self-closing from -125˚ to + 125˚
  • Adjustable closing damping (soft closing)
  • Adjustable hydraulic backcheck
  • Can be combined with door frames
  • Patented system
  • Hold positions at 0°, 90° and -90°
  • Damper Control
  • FlowMotion Technology
  • 30° Speed Control
  • Latch Control
  • Guaranteed control over the movement from 20 to 500 kg
System One System 3
  • Compact system
  • No hold positions or closure function
  • Can be combined with door frames
  • Hold positions at 0˚, 90˚, 180˚ and 270˚
  • Self-opening
  • Self-closing
  • Patented spring system
