Pivot Hinges for Frameless Pivot Doors | FritsJurgens

  • Use

    Interior/exterior pivot door hinges
  • Applications

    Commercial, residential
  • Characteristics

    Loadbearing up to 500 kg, concealed pivot hinges, choice of pivot system

Contact manufacturer


More about this product

Frameless pivot doors are a unique and modern design element that contributes to a timeless, minimalistic interior design style. The FritsJurgens pivot door system makes the door become part of the wall. Without frames, the alignment is tight and seamless.

Seamless frames and invisible connections

As opposed to doors with invisible frames, FritsJurgens pivot door hinges do away with the entire window frame. Doors fitted with a FritsJurgens pivot hinge become part of the wall. The pivot hinge is concealed in the door itself requiring no other specific construction elements within the floor and ceiling.


Many applications and appearances are imaginable for these pivot doors, such as glass-steel, solid or a wooden pivot door. The pivot doors are easy to install, without the need for construction devices in the floor or ceiling.

Diverse applications

Every pivot hinge system by FritsJurgens can be combined with a frameless pivot door. System One is the most compact system. System 3 has 360 degrees rotation and various hold positions. System M offers you complete control over the movement of the pivot door. It is self-closing, has multiple hold positions and soft-close and allows you to adjust its speed to your preferences. System M+ takes the System M pivot hinge range to a new level. This adjustable pivot hinge brings Latch Control to ensure proper latching and extra adjustability for the movement of the door. Every pivot hinge can carry doors with weights up to 500 kg meaning there is no limit to the inspiration you can find when designing a pivot door.

Installation in 4 easy steps

Any frameless pivot door can quickly and easily be installed when a FritsJurgens pivot hinge is applied. On-site, only the floor plate, and ceiling plate have to be mounted. The top pivot and pivot hinge system of your choice will already be mounted into the door when it arrives on site. First, the floor- and ceiling plate are installed into the floor and ceiling. The floorplate only needs to be fastened 8 mm into the floor, which makes every FritsJurgens system suitable for floors with floor heating. Then, the door can be placed and adjusted. When System M is applied, you can now finetune the movement of the door to your desire.

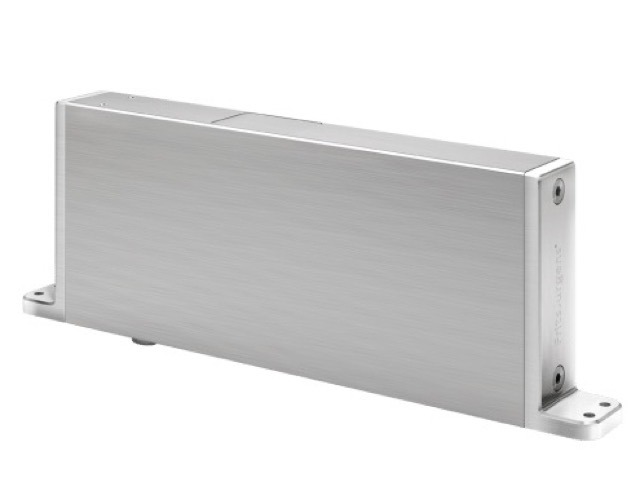

System M System M+
System M System M+
  • Hold positions at 0˚, 90˚and -90˚
  • Self-closing from -125˚ to + 125˚
  • Adjustable closing damping (soft closing)
  • Adjustable hydraulic backcheck
  • Can be combined with door frames
  • Patented system
  • Hold positions at 0°, 90° and -90°
  • Damper Control
  • FlowMotion Technology
  • 30° Speed Control
  • Latch Control
  • Guaranteed control over the movement from 20 to 500 kg

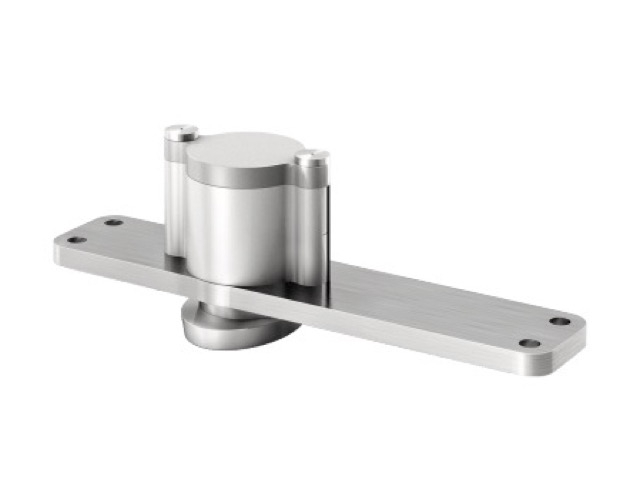

System One System 3
System One System 3
  • Compact system
  • No hold positions or closure function
  • Can be combined with door frames
  • Hold positions at 0˚, 90˚, 180˚ and 270˚
  • Self-opening
  • Self-closing
  • Patented spring system
