Series 600 Sliding Glass Door - Classic Line | Western Window Systems

Share
  • Use

    External partitions
  • Applications

    Door and window systems for residential, commercial, corporate, hospitality
  • Characteristics

    Features for improved energy performance, low-maintenance, smooth operation, customizable options
  • Sizes

    HEIGHT: <144” | WIDTH: <72" | maximum 60 feet squared
  • Certification

    NFRC, AAMA

More about this product

Click here to contact Western Window Systems.

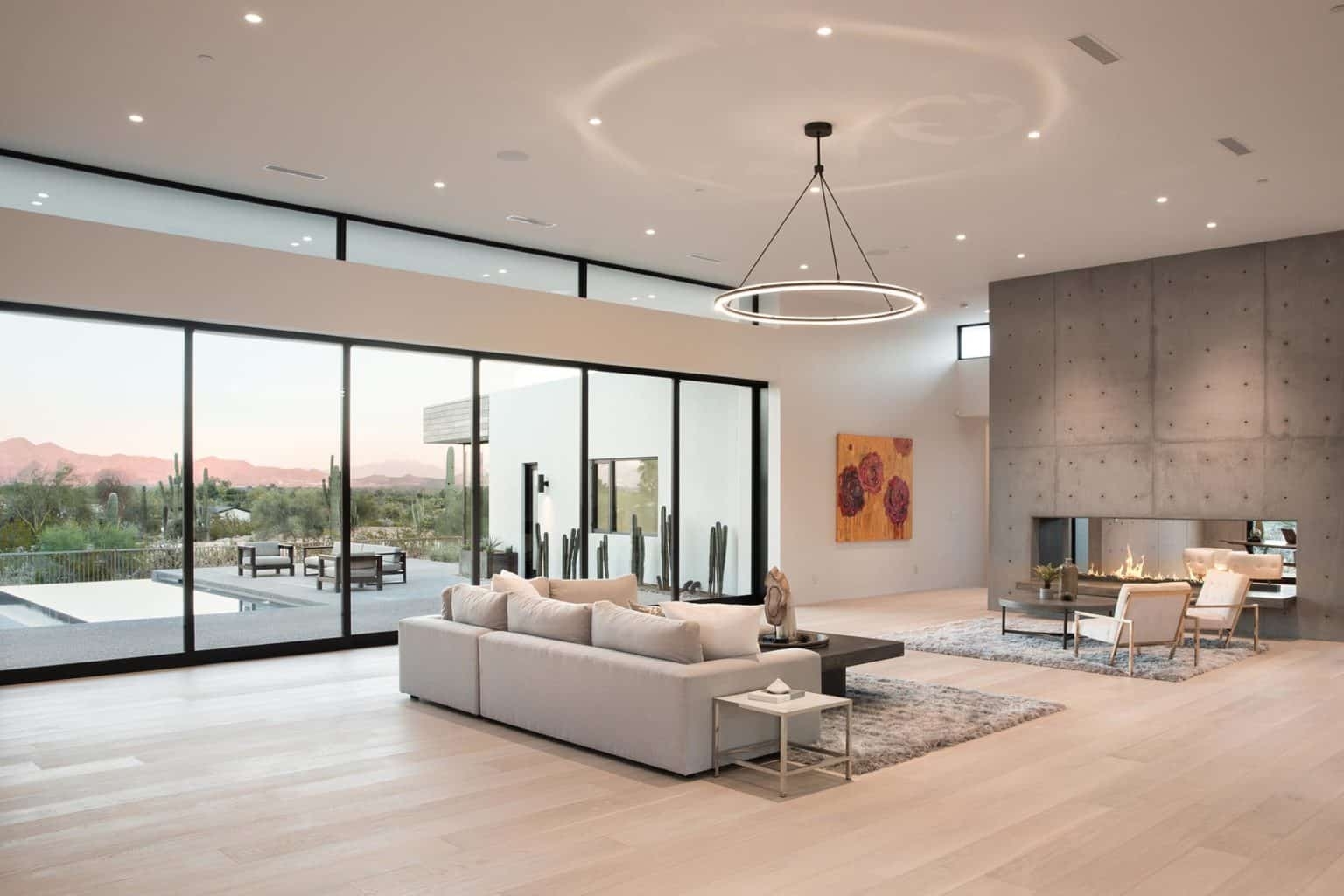

Western Window SystemsSeries 600 Sliding Glass Door is an architectural patio door with a single track sliding system and options to include two, three, or four stackable panels, allowing the door to span a wide variety of size openings. A simple and clean look gives the sliding glass door contemporary appeal. Its narrow profile lets in the maximum amount of natural light and the aluminum its made for is a low-maintenance material.

Features

  • Clean Design
    Designed for strength and the ability to blend into nearly any space, the Series 600 Sliding Glass Door features a 2.55” interlock stile. Extra wide panels let in natural light.
  • Durable
    Manufactured in the U.S., each product family is tested for air, water, and structural performance and certified by the NFRC (National Fenestration Rating Council) and AAMA (American Architectural Manufacturers Association).

Hardware
Western Window Systems uses heavy-duty stainless steel hardware. Rolling hardware is AAMA certified and includes two options:

  • Standard 1.81” size
  • 3” Monster Roller
    capable of handling more than twice the weight of the largest panel

Aluminum Types
Customize by choosing between contemporary classic aluminum or energy-efficient thermally broken aluminum.

  • Classic aluminum is ideal for residential and commercial projects in moderate climates.
  • Thermally broken aluminum is perfect for colder climates, it provides the same operation, versatility, and clean aesthetic, but with an insulating barrier that increases energy performance.

Climate Ready Glass
The sliding doors feature dual-paned low-E glass which reflects heat while allowing light to pass through for better energy performance. Glass can be customized in a variety of types, colors, and thicknesses for improved privacy, protection, and thermal efficiency.

Locking System
The Series 600 includes a concealed stainless steel multi-point lock to secure its large sliding panels, providing additional strength and protection. A keyed cylinder option is available.

Configurations and Sizes
The Series 600 Sliding Glass Door is available in nearly any configuration, with panels up to 72” wide and 144” tall (maximum 60'2). Sliding glass doors can also bi-part in the center.

Options - Window

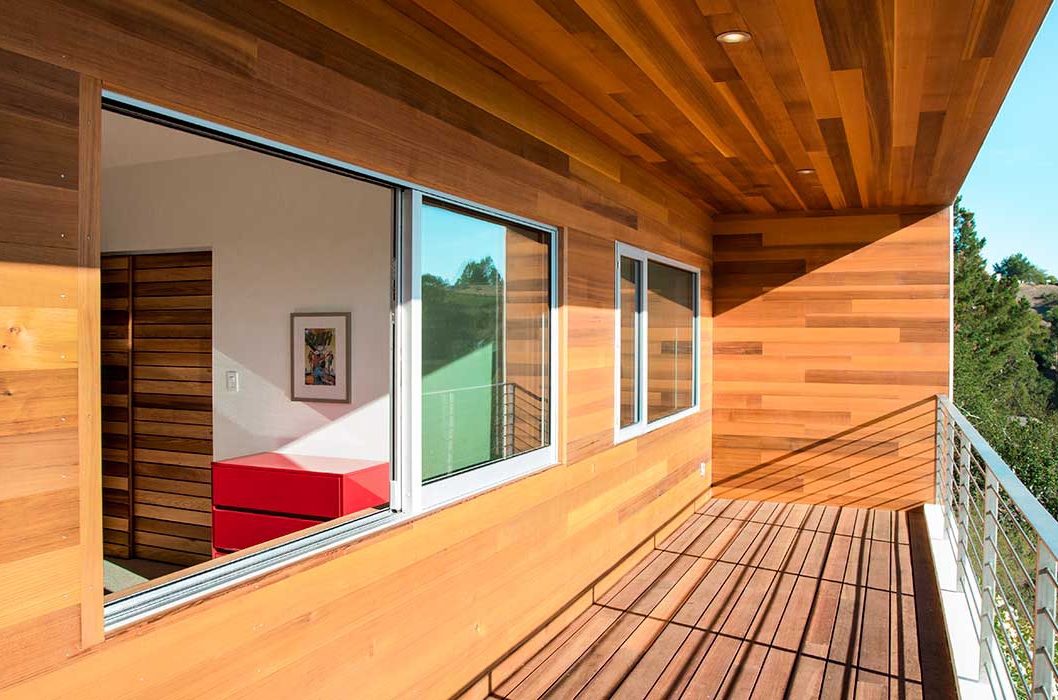

As a window option, the Series 600 features a sliding screen, energy-efficient thermally broken aluminum, and a nail fin to fasten the window in place.

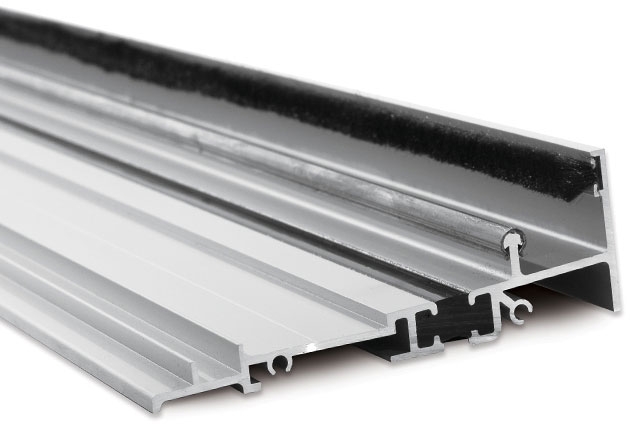

Options - Floor Tracks

  • 1.5” Sill - Standard option
    1.5” sill has a high interior leg and sloped profile to provides a water barrier and meets the commercial specifications of the American Architectural Manufacturers Association (AAMA). Finished to match the color of the frame.
  • 1.75” Sill
    For increased effectiveness against the elements, the 1.75” sill features a higher interior leg and a performance rating of HC40 from the American Architectural Manufacturers Association (AAMA). Finished to match the color of the frame. Not available in thermally broken aluminum.

Options - Handles and Locking
All handles come in a choice of brushed nickel or black and can include an optional keyed cylinder to allow the door to be unlocked from the exterior.

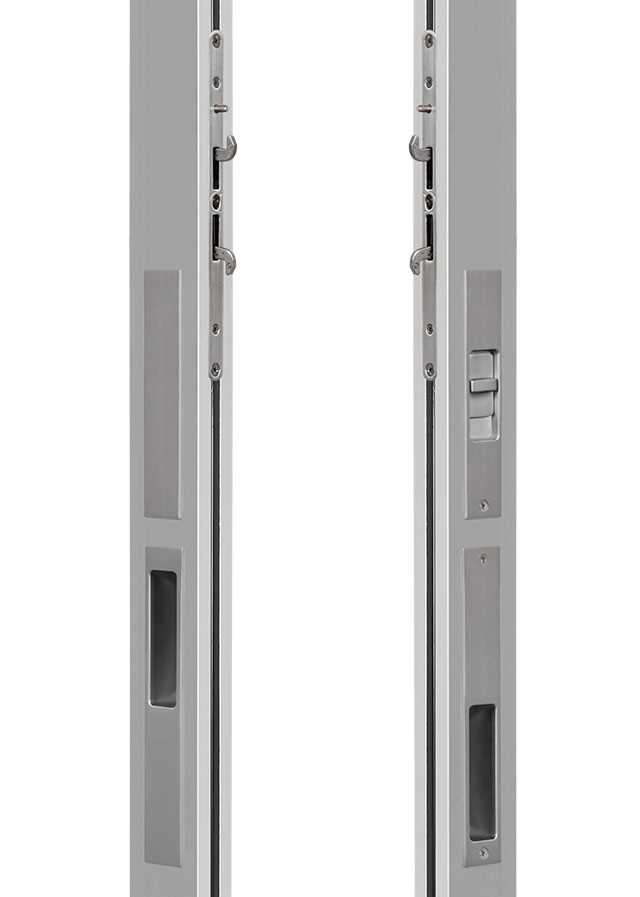

Flush-Mounted Handle Flush Handle Detail | Western Window Systems The flush-mounted handle is designed to integrate into the panel for a clean aesthetic.

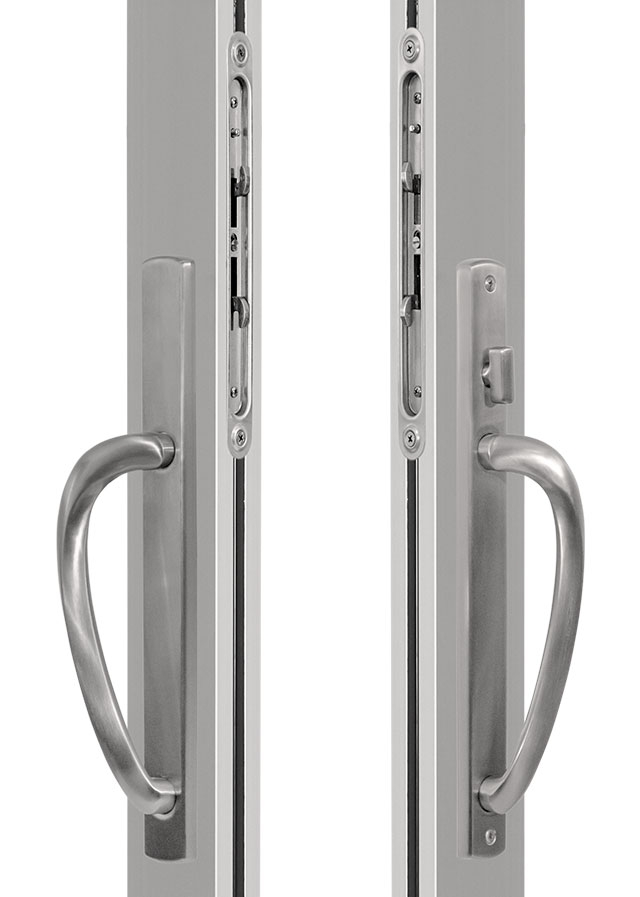

Premium Handle Premium Handle Detail | Western Window Systems The optional premium handle features a minimal one-piece design and comfortable grip.

Options - Screen
An aluminum frame panel screen can be seamlessly integrated with sliding glass doors to provide optimal ventilation and protection from outside pests.

Finishes
Aluminum finishes are available in-stock, as designer selections, or can be customized to match nearly any color.

  • In-Stock Finishes have a Class 1 coating thickness for increased smoothness and durability
    • Satin Anodized
    • Dark Bronze
  • Designer Finishes are based on popular choices and include high-quality paint finishes that conform to a minimum rating of AAMA-2605
    • Hillside Bronze
    • Bison Beige
    • Navajo White
    • Briar
    • Stonish Beige
    • Autumn Night
    • Warmtone
    • Cinnamon Toast
    • Western White
