The Western Window Systems' Series 7650 Sliding Glass Door is a performance-focused contemporary patio door. It features a modern sill option that creates a cleaner and smoother transition from the indoors to the outside.
Features
- Energy Efficiency
Featuring a 0.30 U-value for standard, low-E, argon-filled dual-pane glass, and a 0.19 U-value for high-performance triple-pane glass, the Series 7650 is an energy-efficient door in a variety of weather conditions. The aluminum extrusion design utilizing proprietary Insulbar technology further reduces energy consumption. - Clean Design
With features such as a narrow 2.9” interlock stile, a modern sill option, and jamb covers to hide exposed fasteners, consistent sightlines, and a concealed locking system, the Series 7650 Sliding Glass Door maintains a minimalist aesthetic. Engineering efficiencies eliminate the need for a bulky interlock, allowing door panels to neatly stack in alignment. - Bigger Sizes
Able to go taller and wider than most brands on the market, the Series 7650 is available in heights up to 15 feet in most markets. - Durable
The Series 7650 Sliding Glass Door features a design pressure (DP) rating of 50 and is certified by the NFRC and AAMA. Heavy-duty stainless steel hardware is used as standard.
Operation
Rolling hardware:
- Standard 1.81” tandem roller
- Quad-Zilla Roller, capable of handling extreme panel sizes and heavy glass types.
Climate-Ready Glass
The Series 7650 comes standard with Cardinal IG’s all climate coated or high-performance glass that delivers solar control and high visibility. Pre-applied Cardinal Preserve film protects glass through installation. Glass can be customized in a variety of types, colors, and thicknesses:
- Laminated glass
- Solar- and glare-control glass
- Enhanced winter performance glass
- Neat low-maintenance glass
Options - Screen
Manufactured with a thicker extrusion for durability, a heavy-duty aluminum frame panel screen provides optimal ventilation and protection from outside pests.
Options - Floor Tracks
The Series 7650 Sliding Glass Door comes standard with a 1.5” sill. For increased effectiveness against the elements, 2” and 2.6” options feature a higher interior leg. The 1.5”, 2”, and 2.6” sills meet the commercial specifications of the American Architectural Manufacturers Association (AAMA) and boast a performance rating of DP50. A flush sill option that lines up with most interior flooring is also available. All sills are finished to match the color of the frame.
Options - Handles and Locking
An optional keyed cylinder allows the door to be unlocked from the exterior. Finish choices are available in brushed nickel or black.

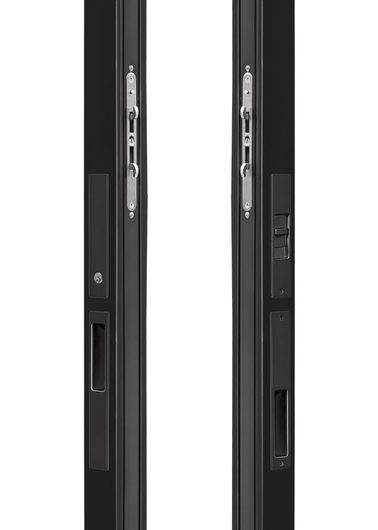

| Flush-Mounted Handle | | The flush-mounted handle is designed to integrate into the panel for a clean aesthetic. |

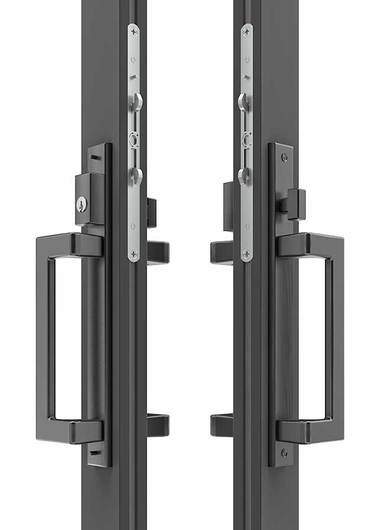

| Premium Handle | | The optional premium handle features a minimal one-piece design and comfortable grip. |
Aluminum finishes
Finishes can be used to create steel look aluminum doors. A variety of in-stock and designer colors are available, or finishes can be customized.
- In-Stock Finishes with a Class 1 coating thickness for smoothness and durability
- Satin Anodized
- Dark Bronze
- Designer Finishes based on popular choices conform to a minimum rating of AAMA-2605
- Split Finishes are available for the performance line where different finishes are used on opposite sides of the door
- Hillside Bronze
- Bison Beige
- Navajo White
- Briar
- Stonish Beige
- Autumn Night
- Warmtone
- Cinnamon Toast
- Western White
