Western Window Systems' Series 980 Pivot Door is a customizable home entryway that can swing in or out and thanks to its weight distribution lend itself to single-panel large openings. The design is modern and dramatic.
The massive glass on the Series 980 Pivot Door maximizes views and lets in natural light. Custom hardware allows it to open with ease. Because of its operation and configuration, the Series 980 Pivot Door is best suited for environments where screening is not necessary.
Features
- Clean Design
Large glass and a minimal frame allow for more natural light and a modern style. For commercial use, a 4.5” frame depth is comparable to that of typical storefront systems. - Smooth Operation
Custom pivot hardware supports the weight of the door on the bottom arm, creating less stress on the frame and allowing the door to swing smoothly and effortlessly. Even doors weighing up to 500 pounds open with ease. An optional concealed overhead closure and secondary lock ensure the door is self-closing. - Durability
Built to last, these pivot doors are designed with secured corners and top and bottom rails that nest with the stiles for a permanent, rigid connection.
Climate Ready Glass
The pivot doors feature dual-paned low-E glass which reflects heat while allowing light to pass through for better energy performance. Glass can be customized in a variety of types, colors, and thicknesses for improved privacy, protection, and thermal efficiency.
Configurations and Sizes
The Series 980 Pivot Door can swing in or out and is available in stile widths of 4.71” (with panels up to 63.75" wide and 122.75" tall). For even more design flexibility, it can be partnered with any of Western Window System style lines.
Commercial Threshold
The Series 980 Pivot Door utilizes a low-profile commercial threshold that favors ease of entry over protection from the elements. Available in satin and bronze anodized finishes. Capable of meeting ADA (American Disabilities Act) requirements.
Note: The commercial threshold may be less effective at preventing water penetration than the standard threshold.
Hardware

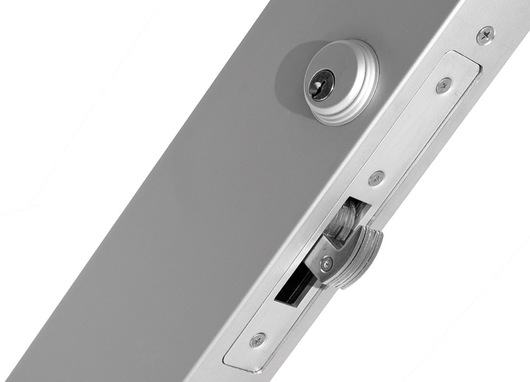

Standard hardware is heavy-duty and includes the Type C lock (a standard deadbolt lock with a 1.5” backset), top and bottom roller catches to help pull the door in tight, and a 48” tall ladder-style pull handle available in a brushed stainless or black finish.
- Aluminum finishes
- In-Stock Finishes with a Class 1 coating thickness for smoothness and durability
- Satin Anodized
- Dark Bronze
- Designer Finishes based on popular choices conform to a minimum rating of AAMA-2605
- Hillside Bronze
- Bison Beige
- Navajo White
- Briar
- Stonish Beige
- Autumn Night
- Warmtone
- Cinnamon Toast
- Western White
