Series 600 Multi-Slide Door - Classic Line | Western Window Systems

  • Available in

  • Use

    External partitions
  • Applications

    Residential, commercial, corporate, hospitality
  • Characteristics

    Features for improved energy performance, low-maintenance, smooth operation, customizable options
  • Sizes

    HEIGHT: < 12' (maximum 70 square feet)
  • Certification

    Finalist: Architizer A+ Awards, NFRC, AAMA

16 Product Files

1 General Catalog

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
Western Window Systems Logo

Contact manufacturer

Western Window Systems

Western Window Systems Logo

Contact manufacturer

Western Window Systems

More from Western Window Systems

Website

More about this product

Western Window Systems Series 600 Multi-Slide Door features large, unobstructed rolling glass panels that stack or slide into pockets to create extra-wide openings. These moving glass walls serve to expand living space, frame views, let in natural light, and provide ventilation.

Features

  • Clean Design
    A 2.55” interlock stile, wide panels, and modern details that allow for more glass and therefore natural light.
  • Smooth Operation
    With the help of sealed stainless steel ball-bearing rollers, operation is easy, even with extreme panel weights. An interlocking track design provides structural integrity and makes it possible to span wide openings with almost any number of panels.
  • Durable
    Manufactured in the U.S., each product family is tested for air, water, and structural performance and certified by the NFRC and AAMA.

Climate Ready Glass

The multi-slide doors feature dual-paned low-E glass which reflects heat while allowing light to pass through for better energy performance. Glass can be customized in a variety of types, colors, and thicknesses for improved privacy, protection, and thermal efficiency.

Hardware

Western Window Systems uses heavy-duty stainless steel hardware. Rolling hardware is AAMA certified and includes two options:

  • Standard 1.81” size
  • 3” Monster Roller
    capable of handling more than twice the weight of the largest panel

Configurations and Sizes

With panels up to 12 feet tall (maximum 70 square feet), the Multi-Slide Door can be made in almost any configuration and can go around curves, bypass obstacles, and bi-part in the center. Nearly any shape is possible, including open corners. The rolling glass panels stack or slide into pockets

Aluminum Types

Customize by choosing between contemporary classic aluminum or energy-efficient thermally broken aluminum.

  • Classic aluminum
    Ideal for residential and commercial projects in moderate climates.
  • Thermally broken aluminum
    Perfect for colder climates, it provides the same operation, versatility, and clean aesthetic, but with an insulating barrier that increases energy performance.

Options - Floor Tracks

Water Barrier Sill

Effective in every climate, the water barrier sill’s 1.5” interior leg and weep-hole system safeguards against water and the back leg of each sliding panel penetrates the track to keep out dust and debris.

Flush Sill For ease of entry, a flush sill makes a perfect choice. With an interior and exterior sill height of just .75", it lines up with most interior flooring to give a smooth transition to the outside. Weep holes in the track drain water away from the door and the back leg of each sliding panel discourages dust and debris by penetrating the track.
  • The flush sill is not warrantied against water penetration.
Thinline Sill The Thinline Sill can almost disappear completely making it ideal for projects where the flooring from the inside to the outdoors needs to appear virtually seamless. Staggered tracks expose a slim channel for the panels to roll, and the finished floor is installed between them.
  • The Thinline Sill is not warrantied against water penetration.

Options - Handles and Locking

The Series 600 Multi-Slide Door includes a concealed stainless steel multi-point lock to secure its large sliding panels, providing additional strength and protection. An optional keyed cylinder allows the door to be unlocked from the exterior. Finish choices are available in brushed nickel or black.

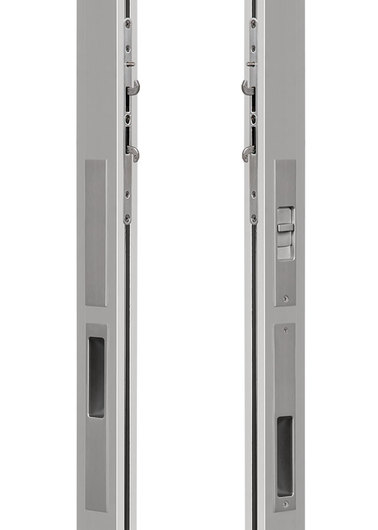

Flush-Mounted Handle Western Window Systemsmulti-slide doors feature the flush-mounted handle’s clean, narrow design as standard. This handle, allows panels to easily slide past each other or into a pocket.
Premium Handle The optional premium handle has a minimal one-piece design and a comfortable grip. The premium handle is not available on pocketing multi-slide door systems.

Options - Screen and Automation

  • Screen
    An aluminum frame panel screen can be seamlessly integrated with multi-slide doors and provides optimal ventilation and protection from outside pests.
  • System Automation
    All Western Window Systems multi-slide doors can be automated. Automation systems are designed and installed by third parties, contacts are provided via Western Window Systems

Aluminum finishes

  • In-Stock Finishes have a Class 1 coating thickness for increased smoothness and durability
    • Satin Anodized
    • Dark Bronze
  • Designer Finishes are based on popular choices and include high-quality paint finishes that conform to a minimum rating of AAMA-2605
    • Hillside Bronze
    • Bison Beige
    • Navajo White
    • Briar
    • Stonish Beige
    • Autumn Night
    • Warmtone
    • Cinnamon Toast
    • Western White
