Series 900 Hinged Door - Classic Line | Western Window Systems

  • Use

    External or internal partitions
  • Applications

    Door and window systems for residential, commercial
  • Characteristics

    Features for improved energy performance, low-maintenance, customizable options, smooth operation
  • Certification


2 BIM Objects

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

Contact manufacturer

Western Window Systems

More about this product

Western Window Systems' Series 900 Hinged Door is a versatile door that combines durability, precision, and protection with a clean, modern look. Featuring wide glass panels to maximize views and let in natural light, it’s designed to create main entrances, clear interior passages, or to connect indoors with the outside via a patio, deck, or balcony. The Series 900 can be partnered with other series from Western Window Systems. Customization options include single or double inswing and outswing configurations, handles, locks, sizes, and finishes.


  • Clean Design
    Two stile widths, wide panels, and modern details that allow for more natural light and glass.
  • Smooth Operation
    A continuous hinge, strong enough to support panels as wide as five feet and finished to match the frame color, keeps the Series 900 operating smoothly. An optional concealed overhead closure and a secondary lock ensure the door is self-closing.
  • Durable
    Manufactured in the U.S., each product family is tested for air, water, and structural performance and certified by the NFRC and AAMA.
  • Daylight elimination
    The top and bottom rails nest with the stiles to eliminate daylight at the corners. Corners are secured with a tie rod for a permanent, rigid connection. On hinged door pairs, the passive panel features continuous weather stripping for additional protection.

Thermally Broken Aluminum
Manufactured with thermally broken aluminum to provides an insulating barrier that increases energy performance in colder climates.

Climate Ready Glass
Dual-paned low-E glass gives improved energy performance. Glass can be customized in a variety of types, colors, and thicknesses for improved privacy, protection, and thermal efficiency.

On doors over 96" tall, heavy-duty roller catches are utilized to help pull the door in tight. Custom hardware can also be arranged.

Configurations and Sizes
Available in single or double inswing and outswing configurations, the hinged doors can be partnered with any window styles from Western Window Systems.

  • Single leaf with medium stile up to a size of 45" x 121.5"
  • Single leaf with narrow stile up to 39" x 109.5"
  • Hinged pair leaf up to 75" x 109.5."

Options - Thresholds

Standard Threshold Threshold Detail | Western Window Systems Ideal for residential applications, the standard threshold is 4.5” wide and features a 1” exterior step (1.68” for inswing doors) that protects against water penetration and allows full perimeter weather stripping on outswing doors, reducing air infiltration. Inswing doors are equipped with a weather strip assembly mounted to the bottom of the door that sweeps against the threshold. Finished to match the color of the frame.

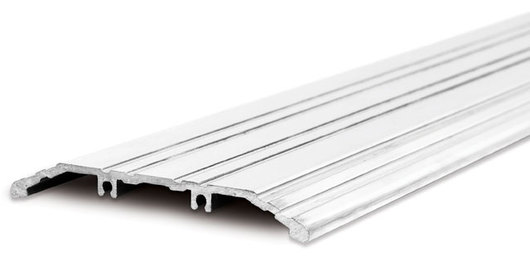

Commercial Threshold Threshold Detail | Western Window Systems

A low-profile commercial threshold that prioritizes ease of entry. Available in satin and bronze anodized finishes. Capable of meeting ADA requirements.

Note: The commercial threshold is not warrantied against water penetration.

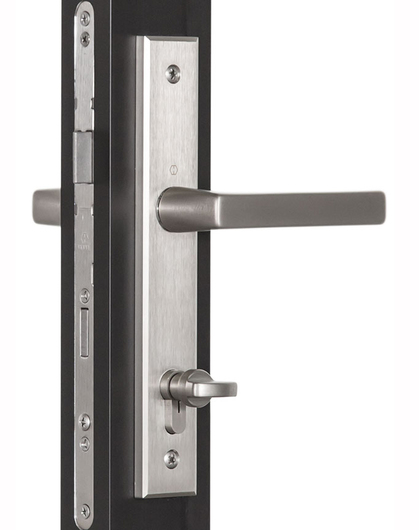

Premium Handle
The premium handle features a minimal one-piece design and a comfortable grip. Finish choices are available in brushed nickel or black. Available only with the 4.71” and 2.79” stile.

Brushed Nickel Black

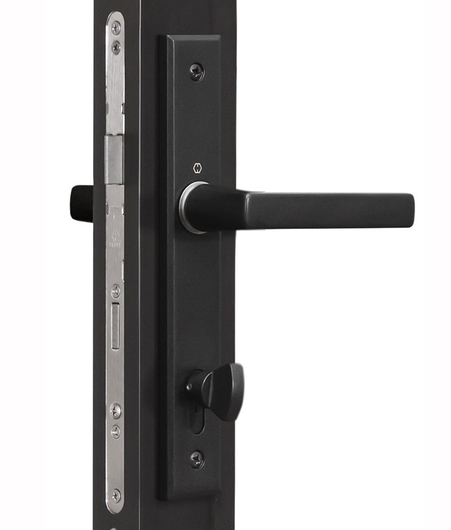

Premium Handle Detail | Western Window Systems Type-A Handle Detail | Western Window Systems

Options - Locks

  • Type C Lock
    The standard deadbolt lock, the heavy-duty Type C features a 1.12” backset on narrow-stile doors and a 1.5” backset on medium-stile doors.
  • Multi-Point Lock
    Lever-activated, the multi-point lock provides additional vertical strength and security through several locking points in the jamb or inactive stile. Available only with thermally broken aluminum hinged doors.
  • Single-Point Lock
    When the added protection of a multi-point lock isn’t necessary, the single-point lock secures the door in one place.

    Roller Catches
    On doors over 96” tall, roller catches are utilized to help pull the door in tight.

Aluminum finishes

  • In-Stock Finishes with a Class 1 coating thickness for smoothness and durability
    • Satin Anodized
    • Dark Bronze
  • Designer Finishes based on popular choices conform to a minimum rating of AAMA-2605
    • Hillside Bronze
    • Bison Beige
    • Navajo White
    • Briar
    • Stonish Beige
    • Autumn Night
    • Warmtone
    • Cinnamon Toast
    • Western White
