Panel Mounting System - Low Profile Range | Fastmount®

Share
  • Use

    Ceiling and wall panels, furniture
  • Applications

    Architectural, marine, aviation and recreational vehicles
  • Characteristics

    Require less depth, lateral movement in female clip half, the clips are interchangeable within the range, install into various materials, ideal for removable wall panels, acoustic panels, bedheads, thin walled panels and curved panels, 5kg pull out load per clip, hidden fixing, easy panel removal

Supplementary Files

Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
I want to receive a sample
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

Fastmount™ Low Profile Range, is ideal for applications that require less depth compared to the Standard Clip range; with lateral movement in female clip half. The clips are interchangeable within the range and install into various materials such as MDF, drywall and foam core panels. Ideal for removable wall panels, acoustic panels, bedheads, thin walled panels and curved panels. Supplied with installation and removal tools.

LP-M8A. Self tapping male
The male self tapping low profile clip is ideal for plywood and MDF type boards, mounts into LP-F8 and LP-DF8 and has a 5kg pull out load per clip. It screws into 10mm hole with CT-09 and is installed with CT-10.

Benefits

  • Invisible fixation
  • Self-tapping in wood (10mm minimum thickness)
  • Perfect alignment of the panel and secure fixation in all circumstances
  • Removing and installing the panel without constraint
  • Resistance by clip: 5kg
  • Insensitivity to bending or dilation of panel and support
  • Material: White acetal copolymer

Applications

  • Suitable for painted panels,lacquered or dressed
  • Acoustic panels
  • New construction or renovation
  • Headboards, works of art
  • Composite panels and thin panels
  • Use with: LP-M8A and LP-SM8AS.

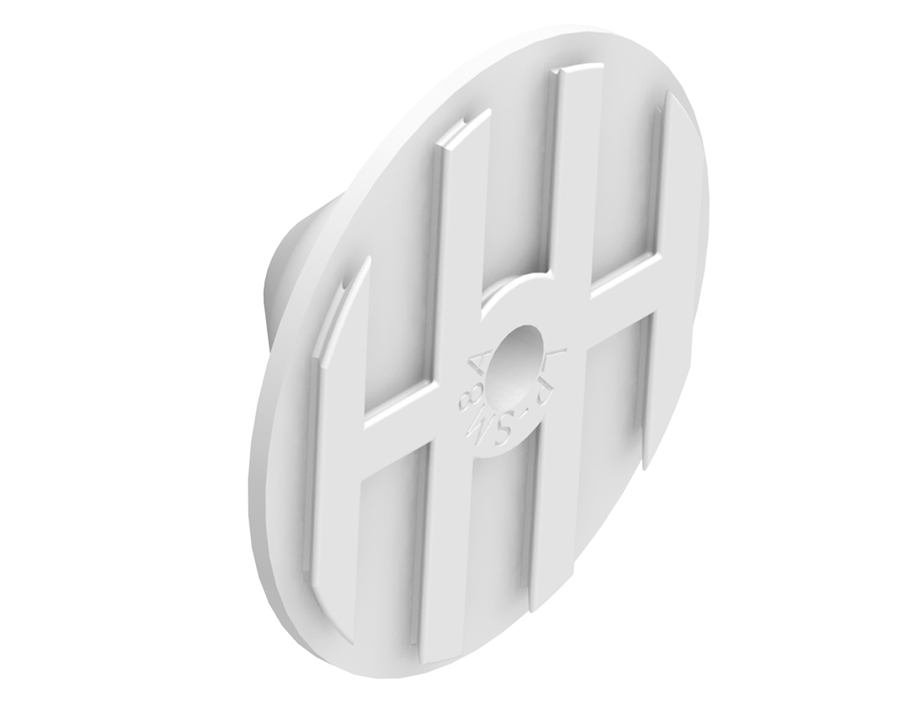

LP-SM8AS. Surface mount male
Male low profile surface mount clip with SuperGroove base for thinner panels. It mounts into LP-F8 and LP-DF8 and has a 5kg pull out load per clip. Screw fix with countersink 4 gauge screw or fix with Fastmount Supergroove Adhesive or other suitable epoxy glue. No special tools required for installation. Perfect for applications with less depth.

LP-SM8As

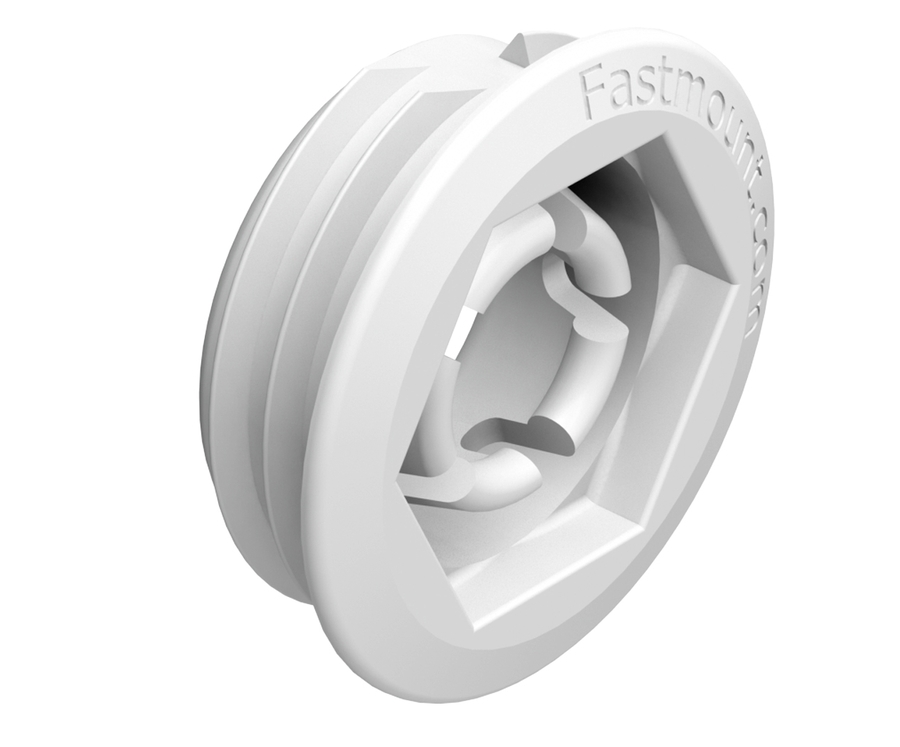

LP-F8. Self tapping female
Low profile clip LP-F8 self taps into a variety of subtrates and is used with male low profile clips, centre point and install tools.

Benefits

  • Self taps into plywood from 9mm thick
  • Perfect panel alignment and secure secure mounting every time
  • Remove and refit panels in any sequence multiple times
  • 5kg pull out load per clip
  • Allows for flexing and expansion of panel and support frame
  • Material: White acetal copolymer
  • Hidden Fixing

Applications

  • Suitable for covered, painted and prefinished panels
  • Acoustic panels
  • Refits and upgrades of existing installations
  • Bedheads, artwork
  • Composites and thin-walled panels

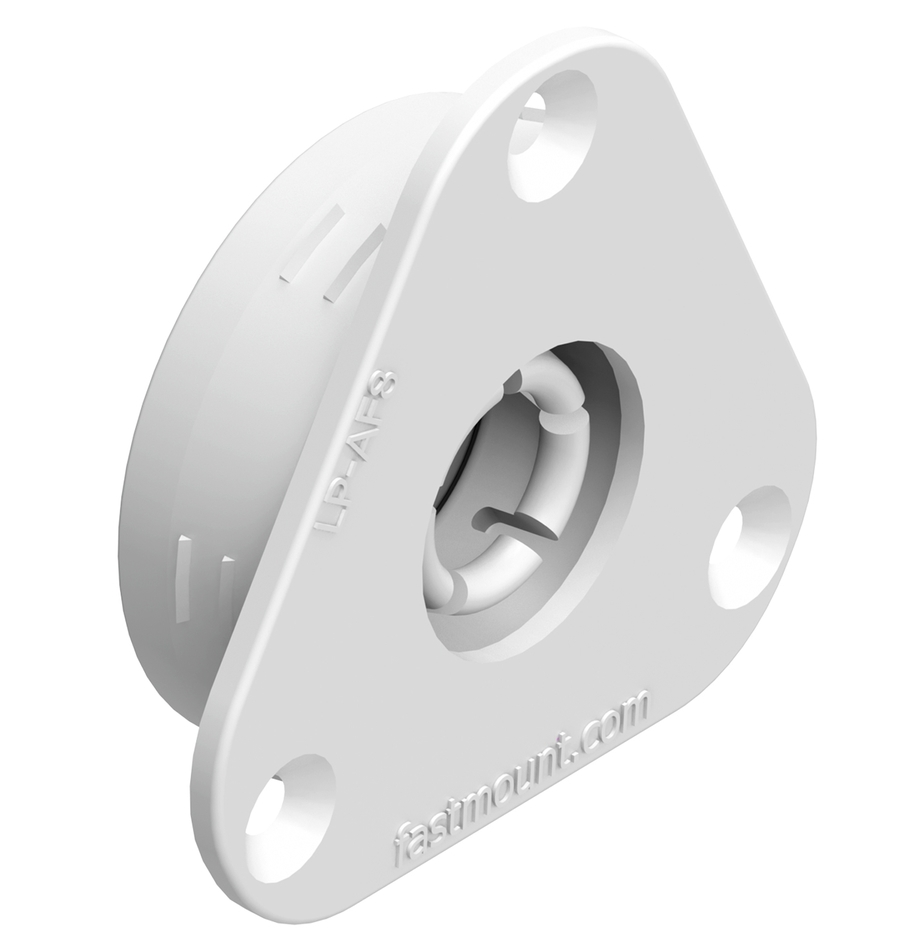

LP-AF8A. Low profile auto fit female
Low profile clip LP-AF8A provides 360 degree lateral adjustment, fitting into a 35ø hole. It mounts into a variety of materials, is used with male low profile clips and designed for the use with curved wall panels.

Benefits

  • Hidden fixing with 8mm lateral adjustment
  • Screw or glue into plywood min. 9mm thick
  • Perfect panel alignment and secure mounting every time
  • Remove and refit panels in any order multiple times
  • 5kg pull out load per clip
  • Allows for flexing and expansion of panel and support frame
  • Material: White acetal copolymer

Applications

  • Covered or painted and prefinished panels
  • Curved panels
  • Refits and upgrades of existing installations
  • Where installation tolerance is required
  • Can be moulded into fibreglass
  • Moulded into hull

For more information see Fastmount™'s catalogue.
