Solar Shading | Reynaers Aluminium

Solar Shading Solar Shading Solar Shading Solar Shading Solar Shading Solar Shading Solar Shading Solar Shading
  • Use

    Facades and solar control
  • Applications

    Brise Soleil Systems for residential, commercial, corporate, hospitality
  • Characteristics

    Standard or as a bespoke solution, panels can be manipulated manually and motorized

2 Product Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

More about this product

Reynaers Aluminium BS (Brise Soleil) systems are designed to provide an aesthetic and efficient shading solution to almost any new and existing building. They are offered both standard or as a bespoke solution. Brise Soleil is the generic term for a system of louvers which, when fitted to the external façade of a building, provides protection against solar heat and glare. The following references are available: BS 100, BS 30, BS 40.

BS 30

BriseSoleil 30 is a sunscreen system that protects against solar heat and glare with its horizontal Z-shaped frames. The preassembled aluminium solution ensures easy on-site installation and provides shade for any new-build or renovation project.

The BriseSoleil 30 sun shading system offers an aesthetic and efficient sunscreen solution for every project. Both as a standard and bespoke solution, the versatile frames attach to almost any building material thanks to a standardised anchorage method. The louvres are set at a fixed angle to ensure a maximum amount of shade. With a horizontal frame broad enough for cleaners to walk on, the easy-to-install BriseSoleil 30 system is easy to maintain as well.

BS 40

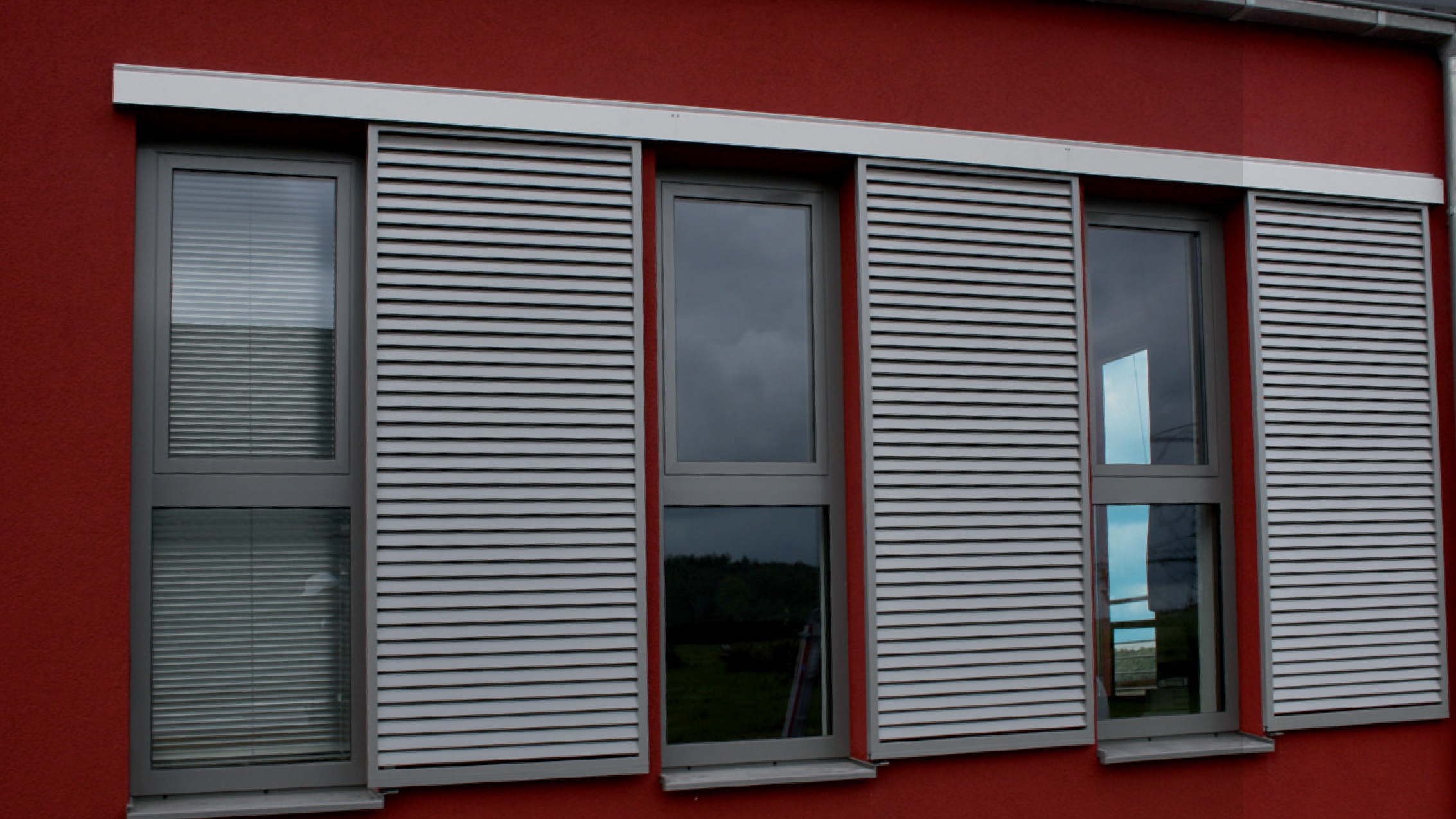

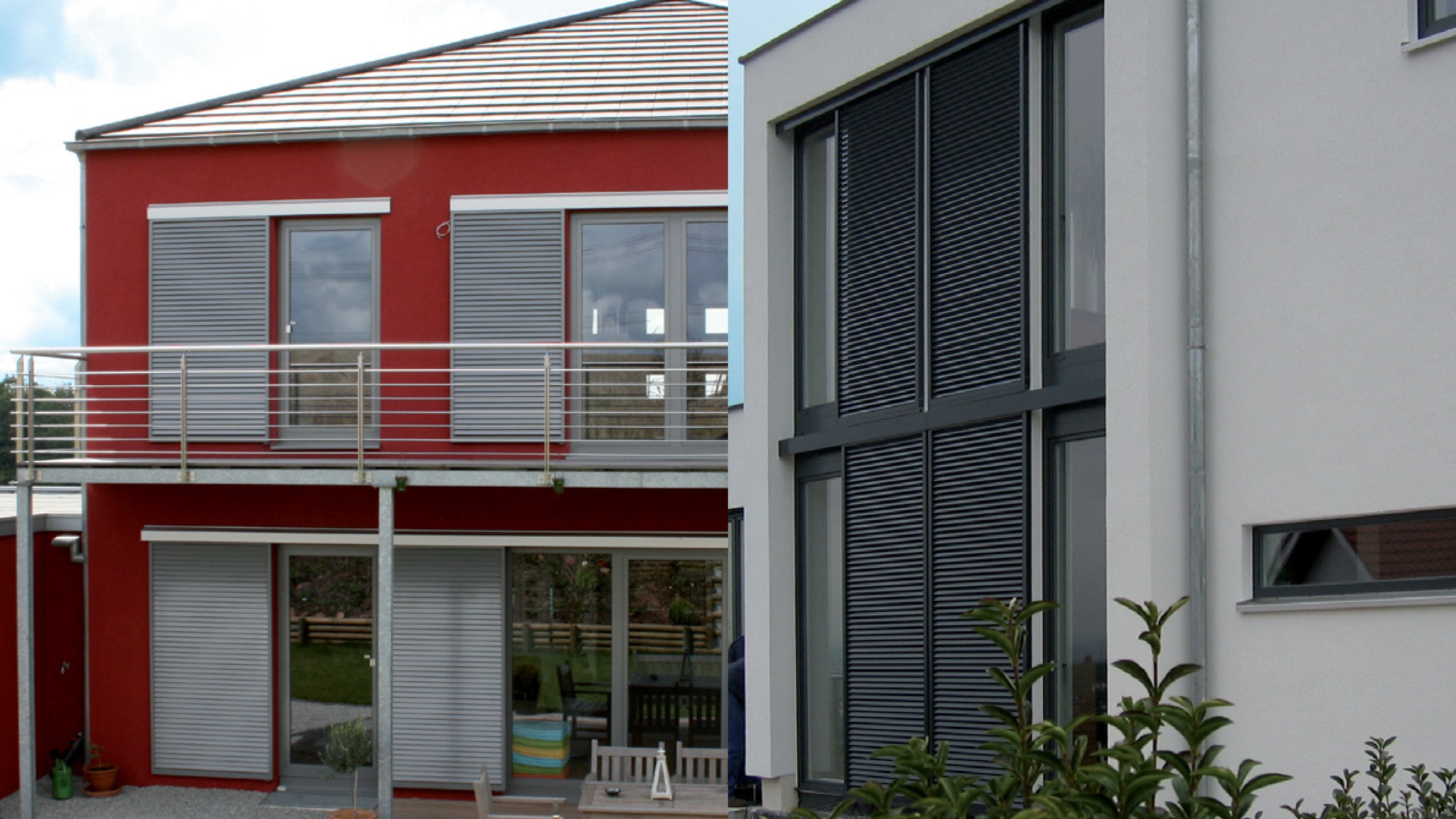

The BriseSoleil 40 sun screening system from Reynaers Aluminium offers an innovative and aesthetically pleasing shading solution for energy conservation, perfectly suitable in apartments and smaller buildings. The system exists of vents with z-shaped or curved louvers. The panels can be manipulated manually and motorized for opening and closing purposes. They offer different sliding options ranging from one to three panels behind each other, therefore making it an ideal application to manipulate the available minimum light and controlling the temperature and comfort level in buildings. The system comes with various mounting options, providing use in front of façades, between floors or in any combination thereof, making it an extremely versatile application.

BS 100

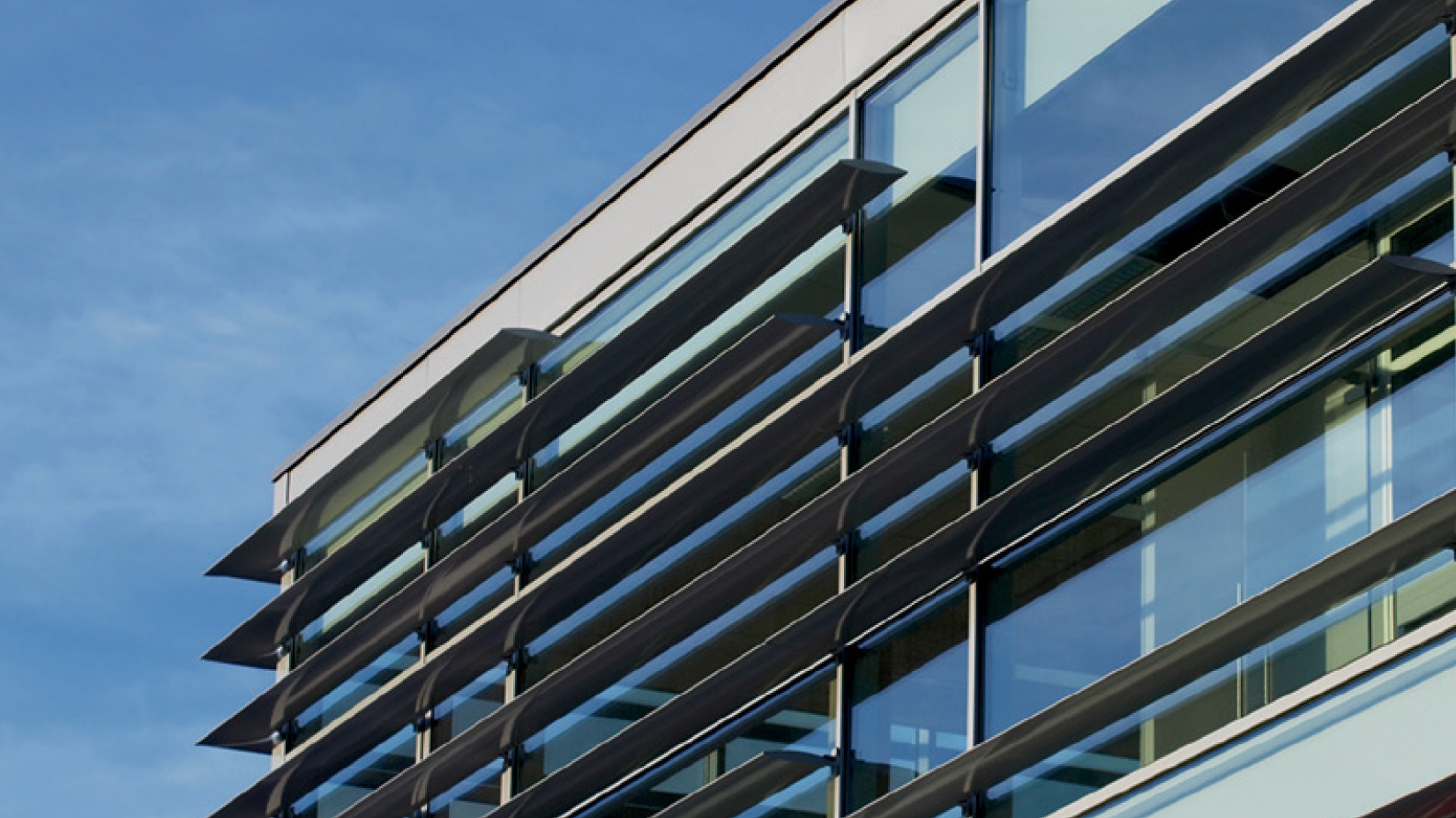

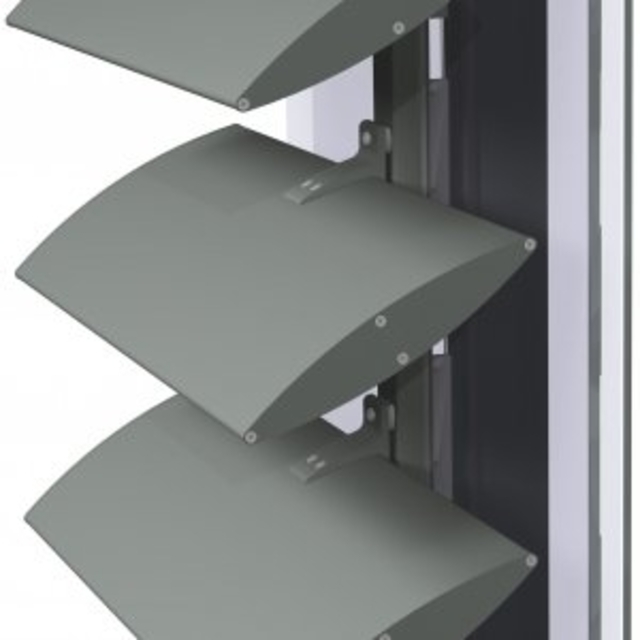

BriseSoleil 100 sunscreen solutions consist of ellipse-shaped or glass louvres that provide ample shade to enjoy. Available with both fixed and movable louvres, the versatile aluminium system can be adjusted to fit any project.

Whether applied as a standard or bespoke solution, BriseSoleil 100 always protects perfectly against solar heat and glare. Its louvres are available in a variety of designs and configurations, from glass frames to fixed or movable louvres, installed horizontally or vertically. Optional motorisation of the louvres ensures ultimate comfort. As an added benefit, the system has a variant that can be used as a walkway for the overall maintenance of the building it attaches to.

ReynaScreen

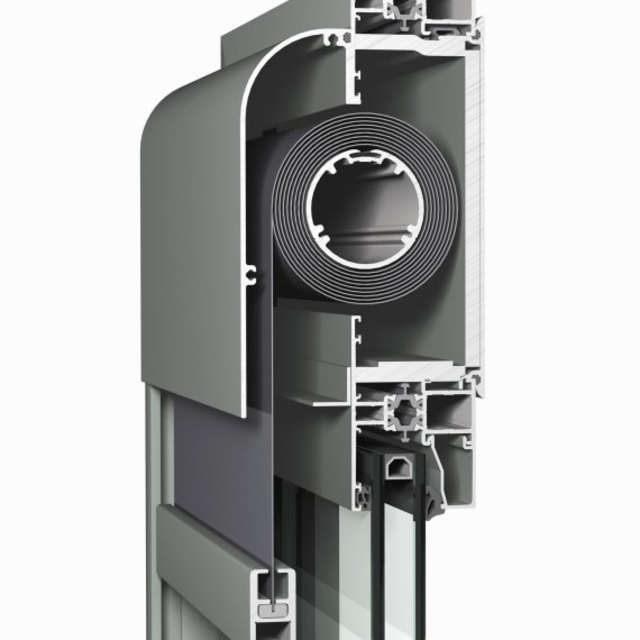

ReynaScreen is an integrated sun shading system using a drop-down screen, mounted on the outside of your window or door, ensuring coolness in the summer. In addition, the system is provided with the extra insulation in the casing, ensuring optimal thermal comfort throughout the whole year. To meet your needs, ReynaScreen can be operated manually or electrically. The system can be integrated with all Reynaers window and door systems, including Mosquito, the Reynaers insect screen.

You can find all technical details here.
