Roccolo’s Swimming Pool / act_romegialli

  • 02:00 - 2 June, 2015
Roccolo’s Swimming Pool / act_romegialli

© Marcello Mariana © Marcello Mariana © Marcello Mariana © Marcello Mariana + 32

  • Project Team

    Gianmatteo Romegialli, Angela Maria Romegialli, Erika Gaggia
  • Structures C A

    Studio Maffia-Rossetti
  • Steel Structures

    Studio Moncecchi Associati
  • Facilities

    Studio Bertolini
  • Landscape

    Emanuele Bortolotti - Ag&P
  • Construction

    Apag - Carvernago Bg
  • Furniture Design

    Gf Fioroni
  • Lighting

    Mario Sulis -Trasparenze
© Marcello Mariana
© Marcello Mariana

Text description provided by the architects. The client's requirement was for a pavilion to be connected to the main historic house causing the least visual interference with the surrounding parkland. The pavilion was for an indoor pool, and some space for fitness, service and leasure in a climate controlled space.

© Marcello Mariana
© Marcello Mariana

The main house, an early 1900  liberty building had been renovated by the clients ten years previously. The main house ground floor sat 100 cm above the external ground and as such had little connection to the surrounding parkland.The client also desired a glass enclosed space attached to the main house to enjoy the view of  its natural surroundings.

© Marcello Mariana
© Marcello Mariana

The previous renovation of the house included landscaping and the addition of a small artificial lake in the south corner of the parkland.

© Marcello Mariana
© Marcello Mariana

On this basis and after an accurate topographic survey the following principles were adopted to create minimal visual impact, place the pavilion volume underground.

© Marcello Mariana
© Marcello Mariana

Location informed by the natural topography of the parkland. Use the different ground levels to capture light inside, not with zenithale light but with windows directly connected to the outside landscape and lake. Visually connect the  underground pavilion to the artificial lake.

© Marcello Mariana
© Marcello Mariana

Locate the pavilion far away from the main house in a strategic position, to create a totally new and independent space reached by a path that emphasizes the sense of privacy. The location of the underground pavilion far away from the house would then create an interesting and dynamic relationship between the two spaces.

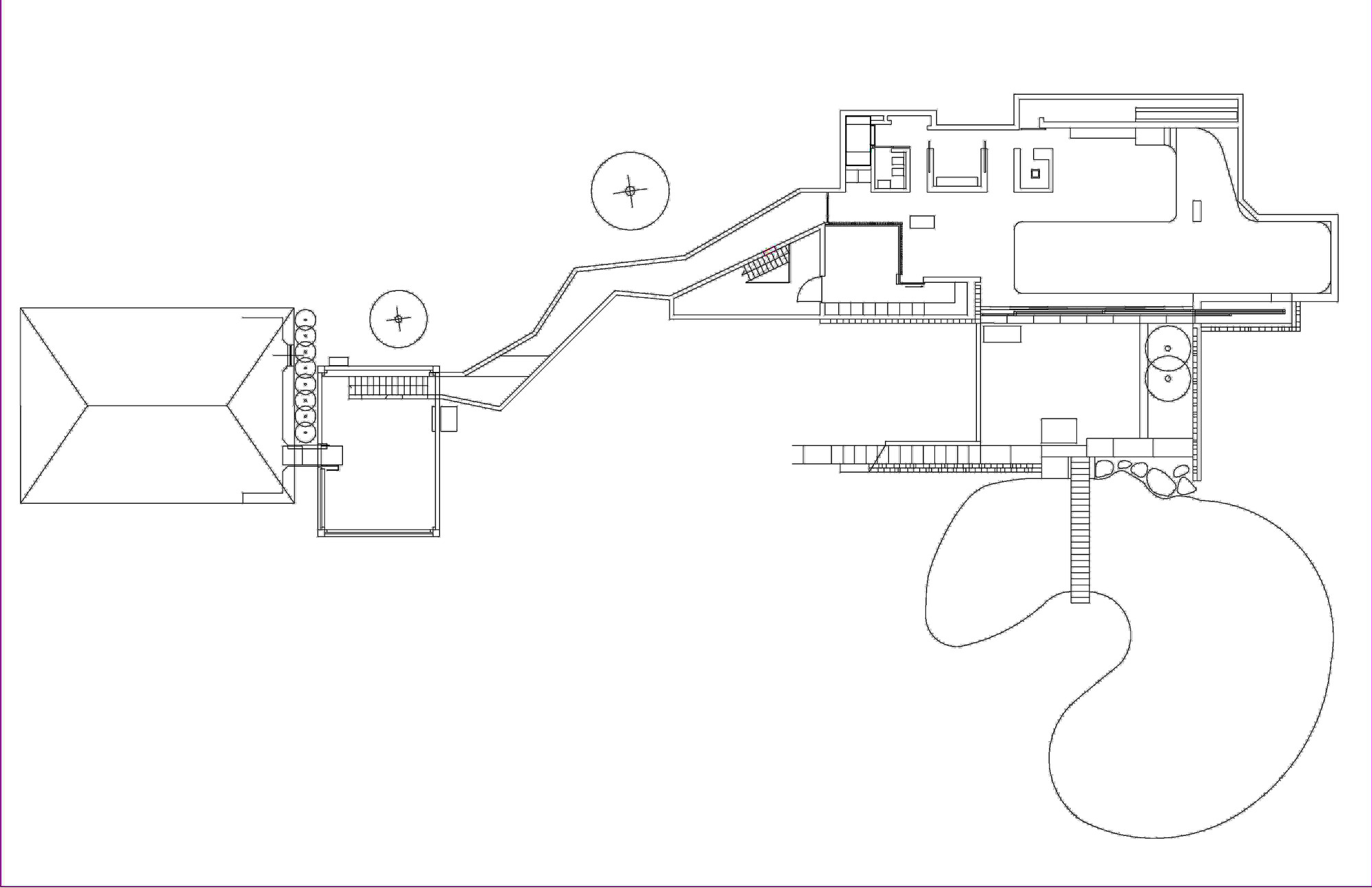

Floor Plan
Floor Plan

Connect the main house to the underground pavilion and pool via a tunnel. An irregular path was determined by the established trees which were to be protected.

© Marcello Mariana
© Marcello Mariana

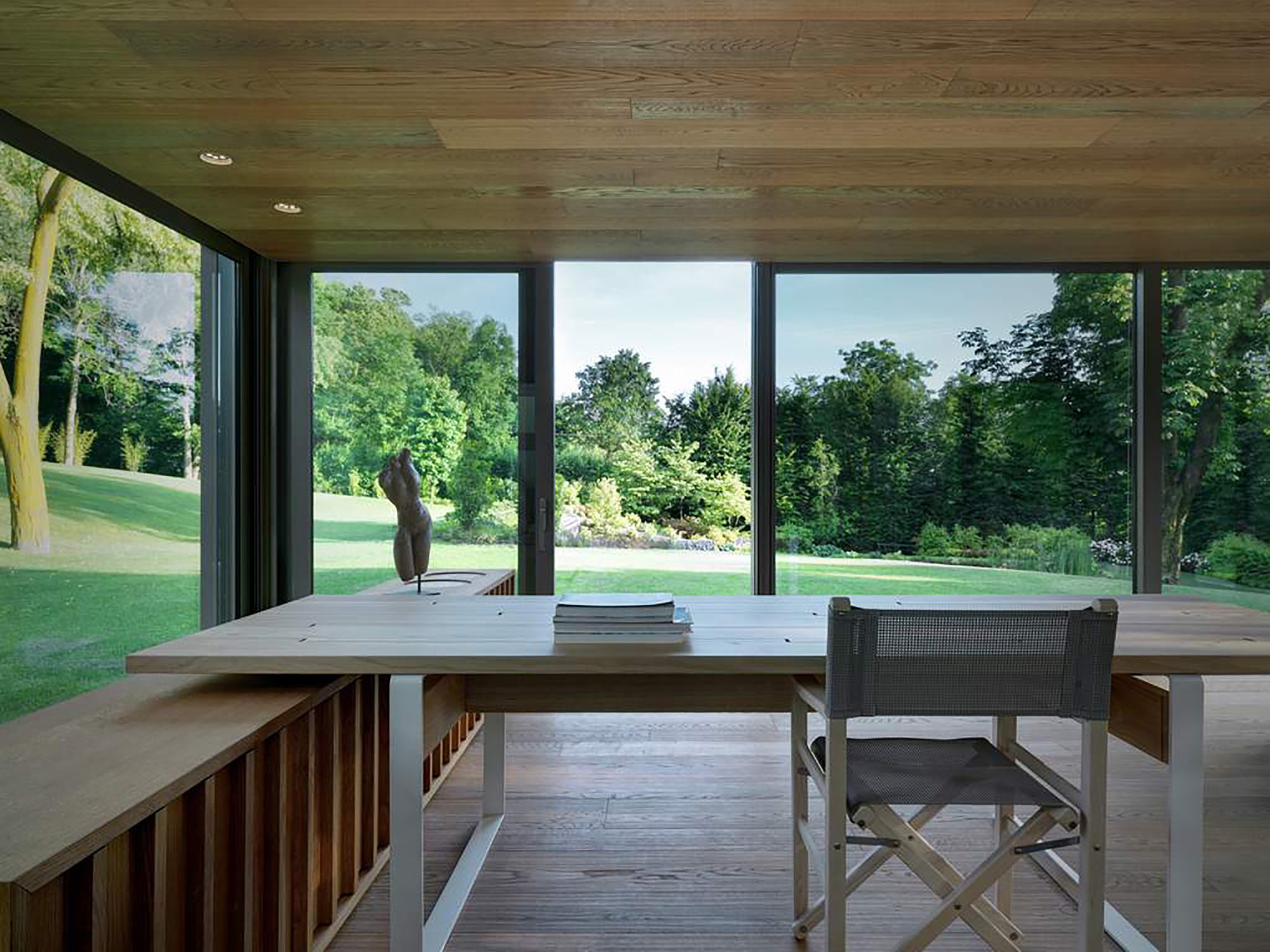

The tunnel also connects via a few steps to a second small glass enclosed conservatory totally open to the surrounding parkland. A glass enclosed narrow bridge connects the conservatory to the main house.

© Marcello Mariana
© Marcello Mariana

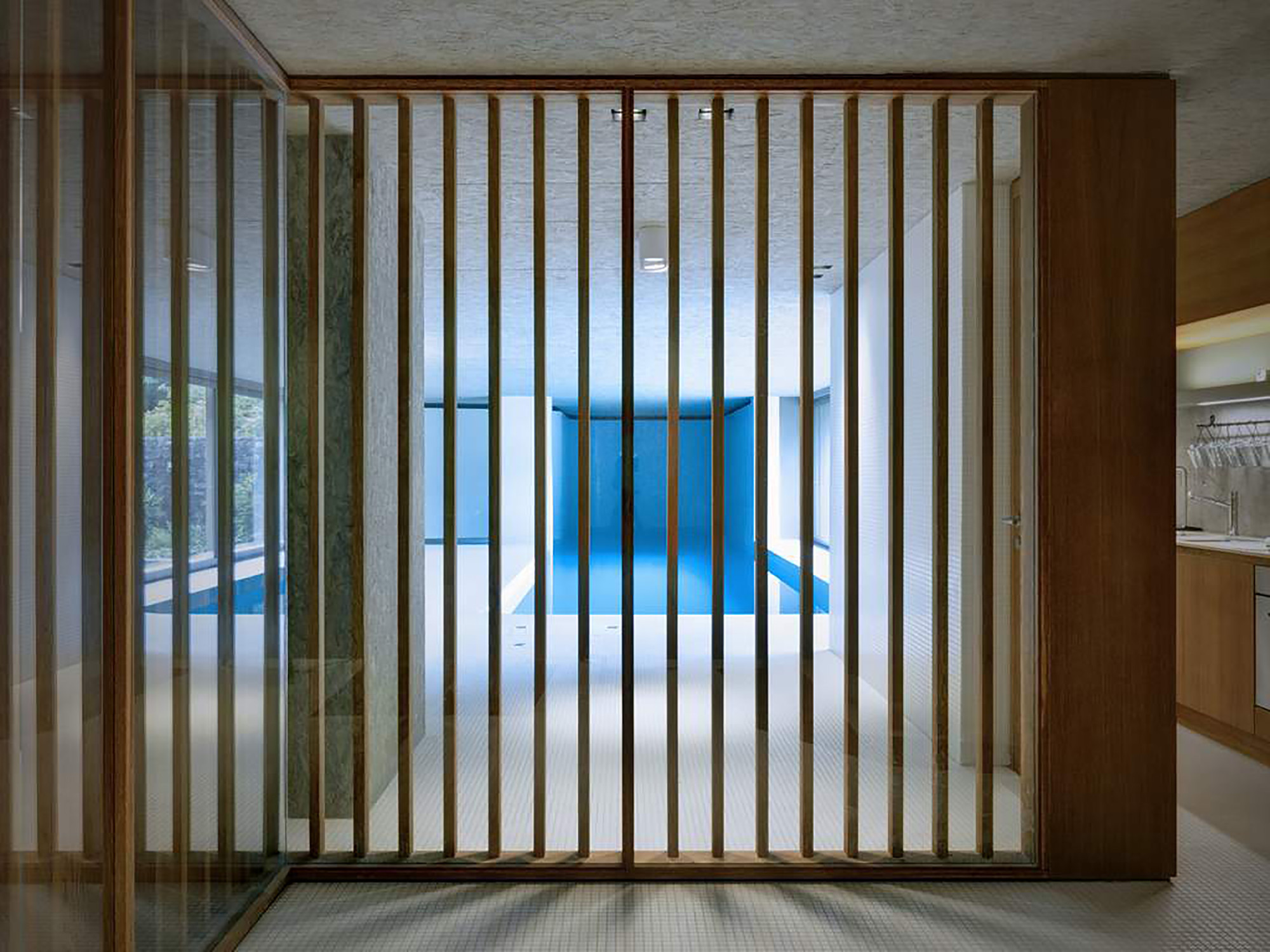

The specific design of the structural steel was placed outside the glass perimeter. This was to give depth and emphasis to the internal volume and at the same time make the window frame design secondary.Stone footings of the conservatory on the south side of the main house enabled changes in the surrounding garden level, to give a direct connection between the garden and the internal space. The pavilion space containing the indoor pool, fitness area and small kitchen is based on a sequence of simple geometric volumes in either wood or cement to contain the various functions.

© Marcello Mariana
© Marcello Mariana

All technical requirements for ventilation, climate control, automated pool cover etc were designed to be as discrete as possible within the overall design.

© Marcello Mariana
© Marcello Mariana

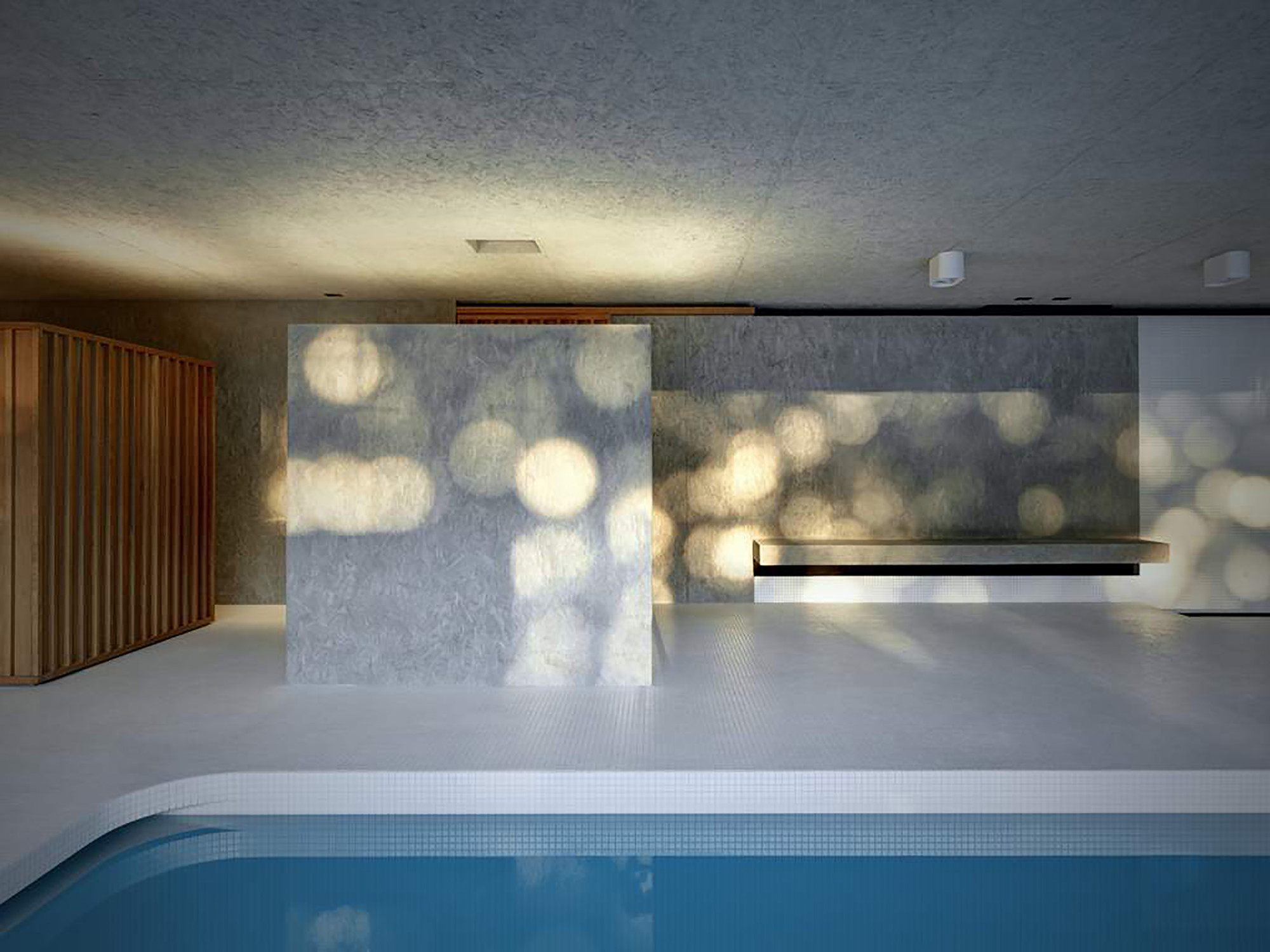

Choice of material for the pool lining and surrounding pavement needed to be durable and, neutral in colour. It also needed to be able to cover steps, ledges and curved surfaces ( pavement, walls and pool lining). The aim was to achieve a sense of continuity within the volume inside and outside the pool. A small white ceramic mosaic tile was chosen.

Section 2
Section 2

The choice of continuity of material creates an effect: a mass of water finds its natural resting state and settles in the lowest part of the volume, held by a dynamic and at the same time gentle form before it slowly follows its course down to quietly settle in the pool.

© Marcello Mariana
© Marcello Mariana

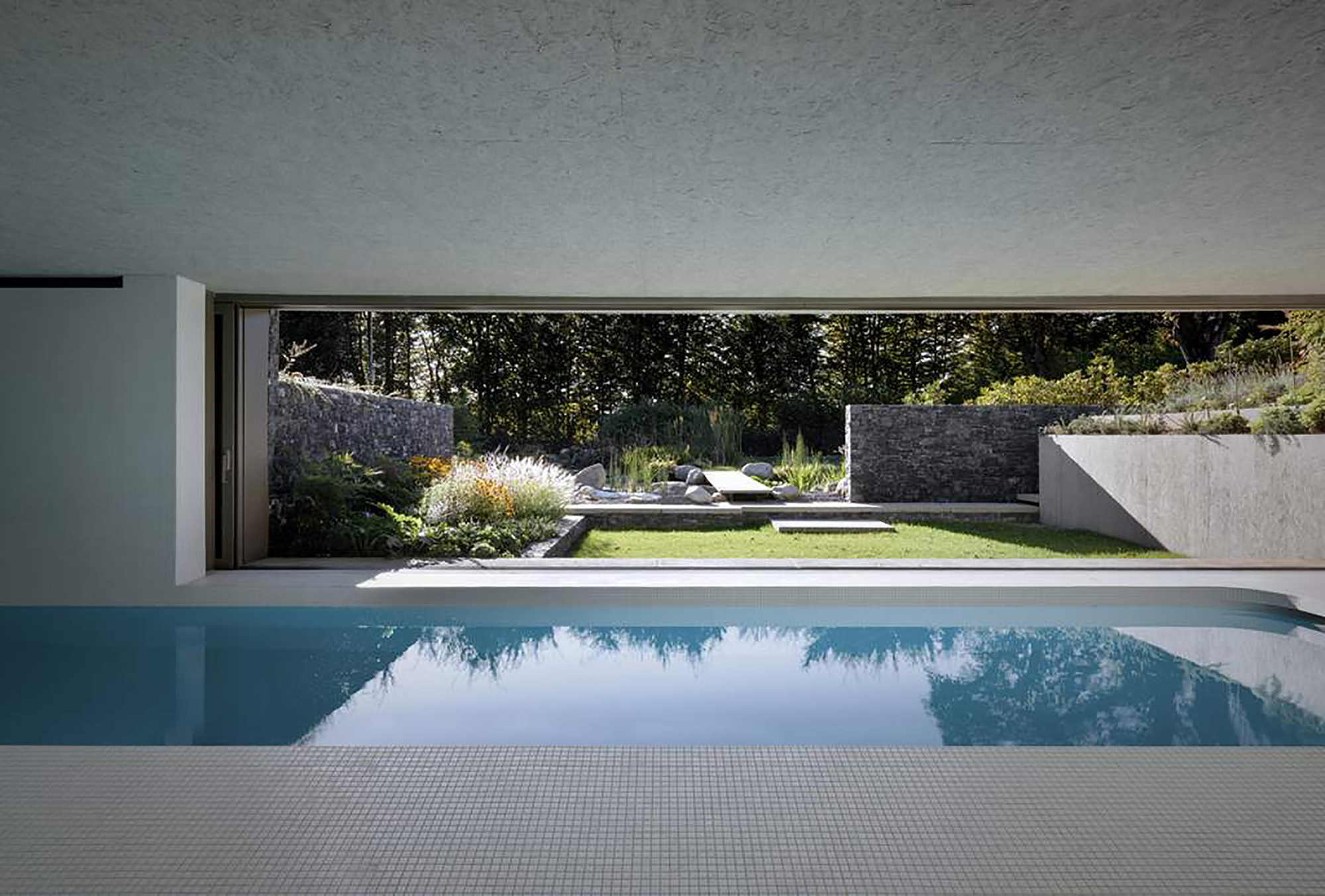

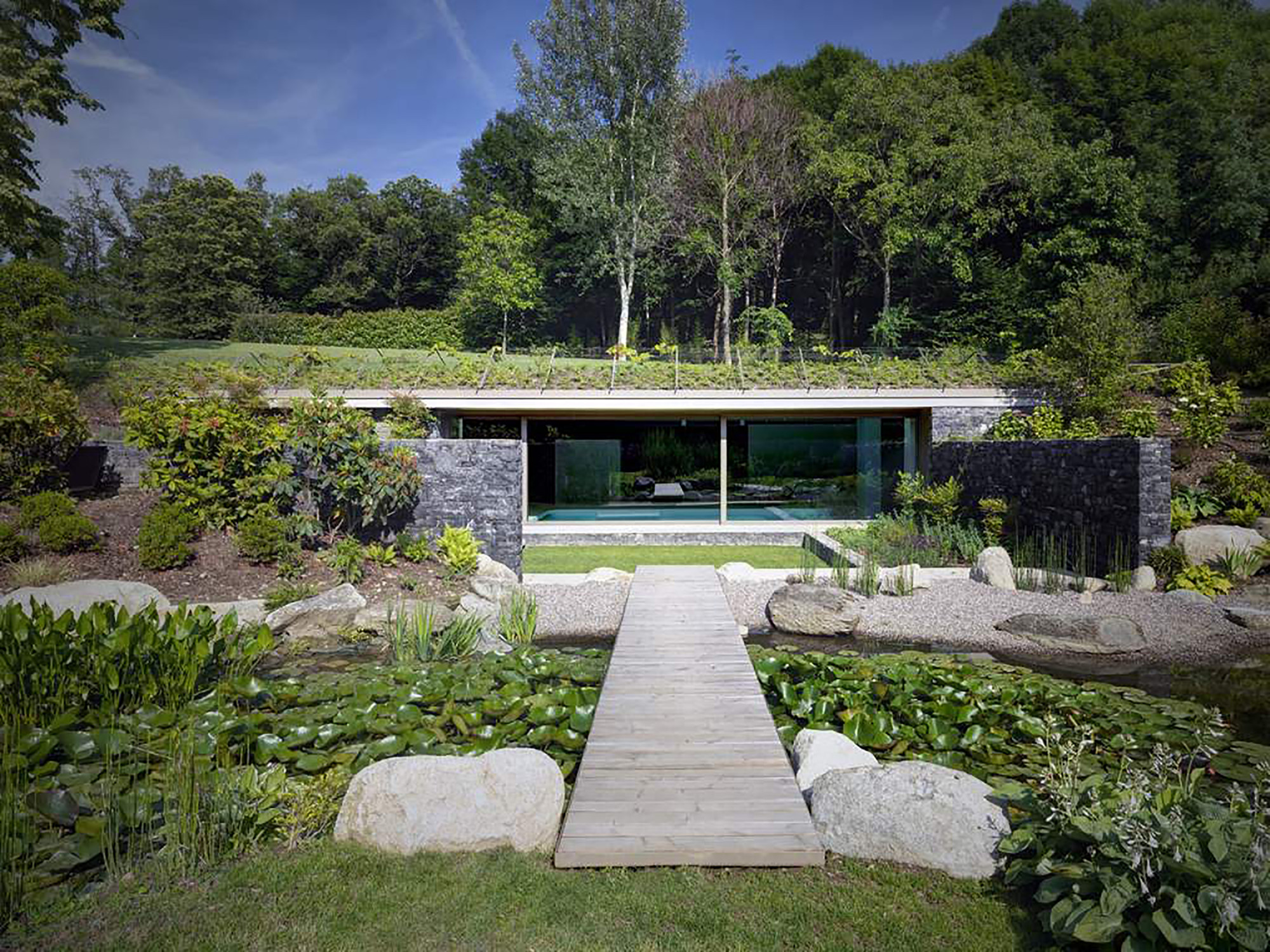

The west side of the pavilion (front) houses a sliding door. The door totally disappears into a structural cavity to maximize the connection with the surrounding artificial lake and parkland. In summer the indoor and outdoor spaces become one, a seamless  conversation between both water surfaces (pool and lake) .....

© Marcello Mariana
© Marcello Mariana

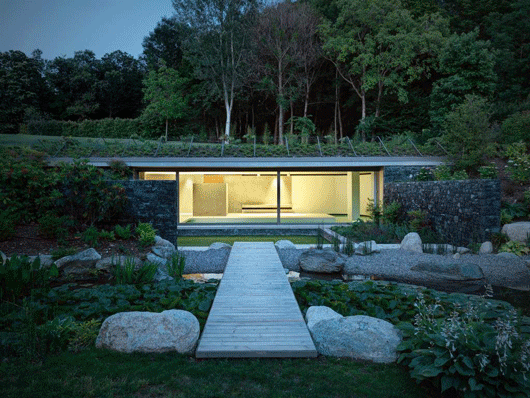

The surface level of the pool and lake are  the same. A small patio/ solarium 40 cm lower than this creates an entrance. The lowered space, obscured from the view of the house mediates the relationship of the natural surroundings and the pavilions simple geometry.

View the complete gallery

Location to be used only as a reference. It could indicate city/country but not exact address. Cite: "Roccolo’s Swimming Pool / act_romegialli" 02 Jun 2015. ArchDaily. Accessed . <https://www.archdaily.com/637043/roccolo-s-swimming-pool-act_romegialli/> ISSN 0719-8884
