European School in Frankfurt / NKBAK

  • 03:00 - 23 April, 2015
European School in Frankfurt / NKBAK
European School in Frankfurt / NKBAK , © Thomas Mayer
© Thomas Mayer

© Thomas Mayer © Thomas Mayer © Thomas Mayer © Thomas Mayer + 37

  • Structure Planning

    Bollinger + Grohmann GmbH
  • Mechanical Engineer

    Hochbauamt Frankfurt
  • Project Management

    Hochbauamt Frankfurt
  • Landscape

    Dipl.-Ing. Michael Gatttinger
  • General Contractor

    Kaufmann Bausysteme GmbH
  • Structure GC

    Merz Kley Partner ZT GmbH
  • Foundation

    Jean Bratengeier Bau GmbH
  • More Specs Less Specs
© Thomas Mayer
© Thomas Mayer

Text description provided by the architects. The new building of the Pre-primary and Primary School extends the existing school building of the European School in Frankfurt.

© Thomas Mayer
© Thomas Mayer

The building was designed in a modular timber structure and yet it retains a high design level by arranging the spatial units around a spacious and open corridor in different directions. In addition to the classrooms the corridor functions a meeting place for the children and provides different views of the scenery.

© Thomas Mayer
© Thomas Mayer

The vertical access to the building is via three staircases which are emphasized by spectacular colors and thus provide orientation for the children. A lift is integrated at the central staircase.

© Thomas Mayer
© Thomas Mayer

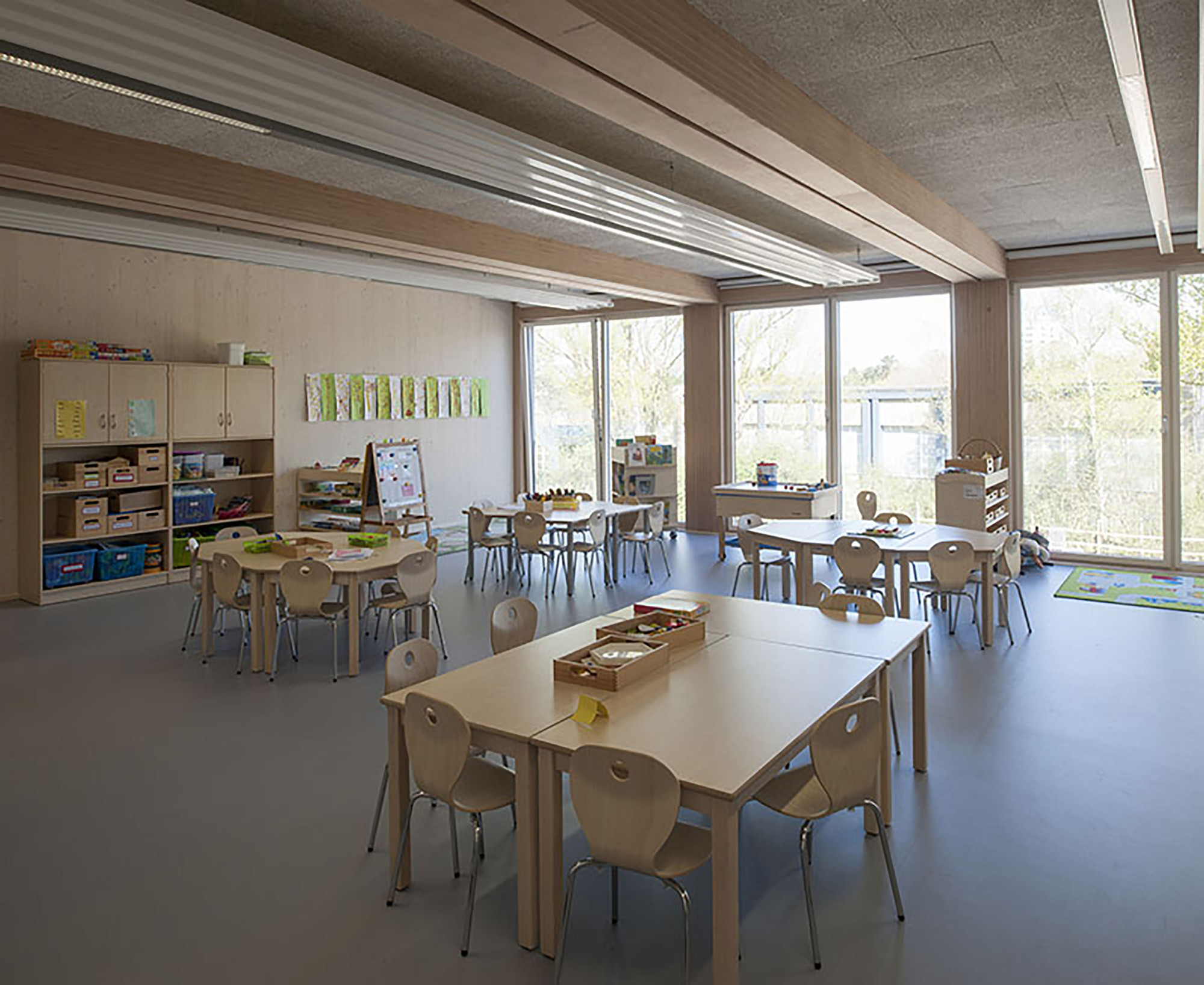

All classrooms have a fully external glazed facade. As a result a maximum natural illumination is achieved and it allows for different views of the surroundings.

© Thomas Mayer
© Thomas Mayer

The building has 10 classrooms with adjoining rooms and integrated sanitary facilities for the pre-primary school and 7 classrooms and sanitary facilities for the primary school. Facilities for the teaching staff as well as work and multi-purpose rooms complete the space program of the school. On the ground floor there is a a gym with a 12m span and a kitchen with attached dining room.

Ground Floor Plan
Ground Floor Plan

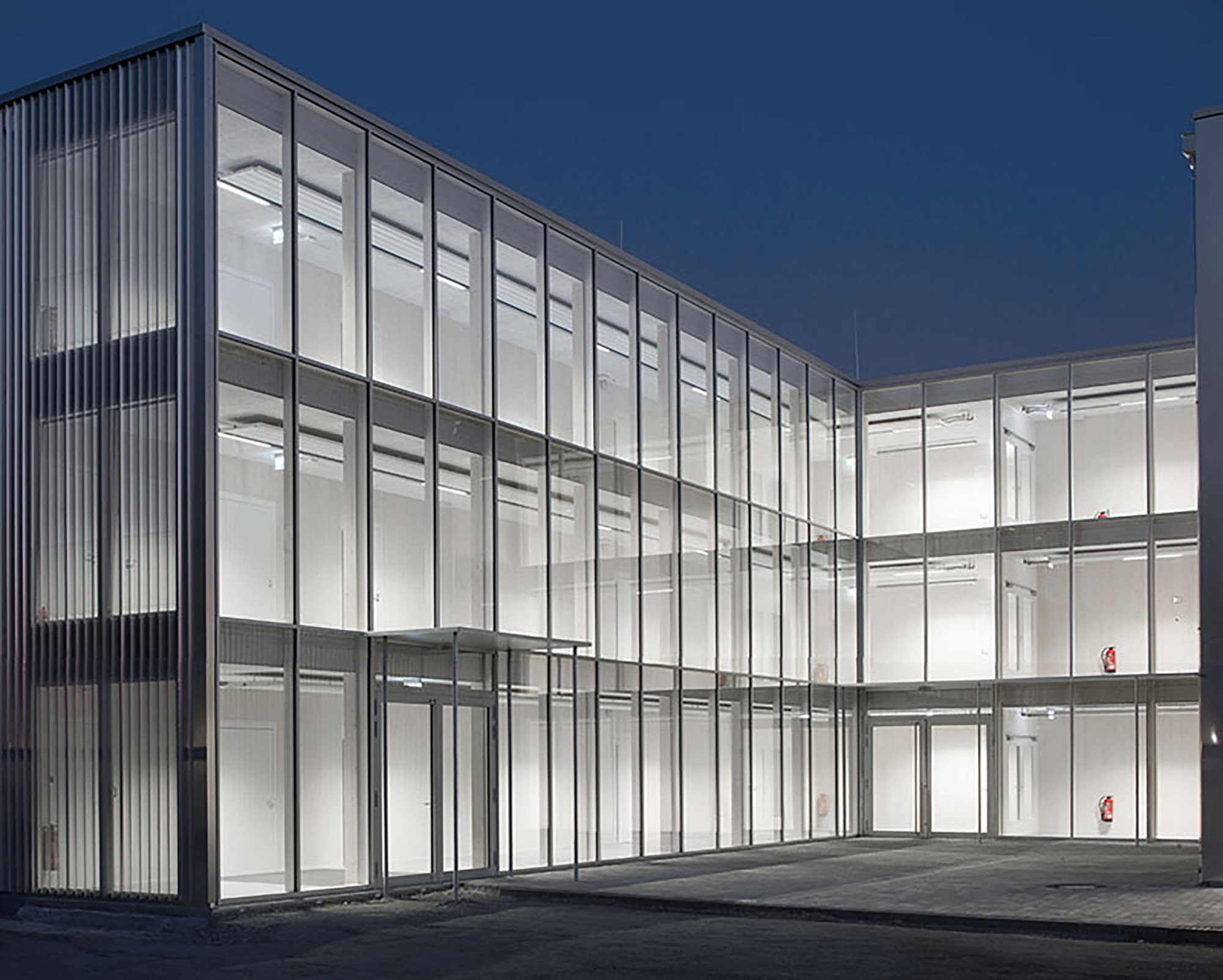

The exterior walls are cladded with corrugated sheets of reflective aluminum. The windows and doors are wood-aluminum profiles. The windows on the south side have an external shading.

© Thomas Mayer
© Thomas Mayer

Implementation

The Kaufmann Bausysteme has dealt with the design requirements and has developed wooden modules based on the specified floor plan. The modules have spans of up to 9m as self-supporting structures.

© Thomas Mayer
© Thomas Mayer

Each classroom is made up of 3 elements. The two edge elements have a longitudinal side wall of plywood board and a free-spanning beam. The middle element has longitudinally only two cantilever/free-spanning beams. To realize this, wood beams out of 'Baubuche' (Laminated beech plywood) were used the first time due to their high strength especially for slender structures with large spans. During transport the beams were supported.

© Thomas Mayer
© Thomas Mayer
