Joinville House / UNA Arquitetos

  • 01:00 - 4 September, 2014
Joinville House / UNA Arquitetos
Joinville House / UNA Arquitetos, © Bebete Viégas
© Bebete Viégas

© Bebete Viégas © Bebete Viégas © Bebete Viégas © Bebete Viégas + 25

  • Architects

  • Location

    Joinville, Brazil
  • Architect in Charge

    Cristiane Muniz, Fábio Valentim, Fernanda Barbara, Fernando Viégas
  • Design Team

    Ana Paulo De Castro, José Carlos, Miguel Muralha, Jimmy Liendo, Sílio Almeida, Carolina Klocker, Marta Onofre
  • Area

    432.0 sqm
  • Project Year

    2013
  • Photographs

  • Timber Structure

    Ita Construtora
  • Concrete Structure

    Mendes De Oliveira
  • Installations

    Mendes De Oliveira
  • Spt

    Mendes De Oliveira
  • Construction

    Focus Engenharia
  • Approval

    Airton Bassôa Frota
  • Site Area

    3.238,00 m²
  • More Specs Less Specs
© Bebete Viégas
© Bebete Viégas

Text description provided by the architects. This house’s site has a privileged location: apreserved hill full of woods, in the middle of Joinville´s downtown. The access, through a soil road, reaches the maximum height allowed for constructions, from where the mountain background appears between the vegetation.

© Bebete Viégas
© Bebete Viégas

The declivity and the trees position suggested the implantation; resulting in a narrow building that follows the contour. This linear solution allows continuity between open and closed spaces at the ground floor level, in a direct relation with the site.

© Bebete Viégas
© Bebete Viégas

This lower floor, which includes the living areas, the pool and the service areas, is built with exposed concrete. It works as its own foundation and contains the land, protecting the house from excessive moisture.

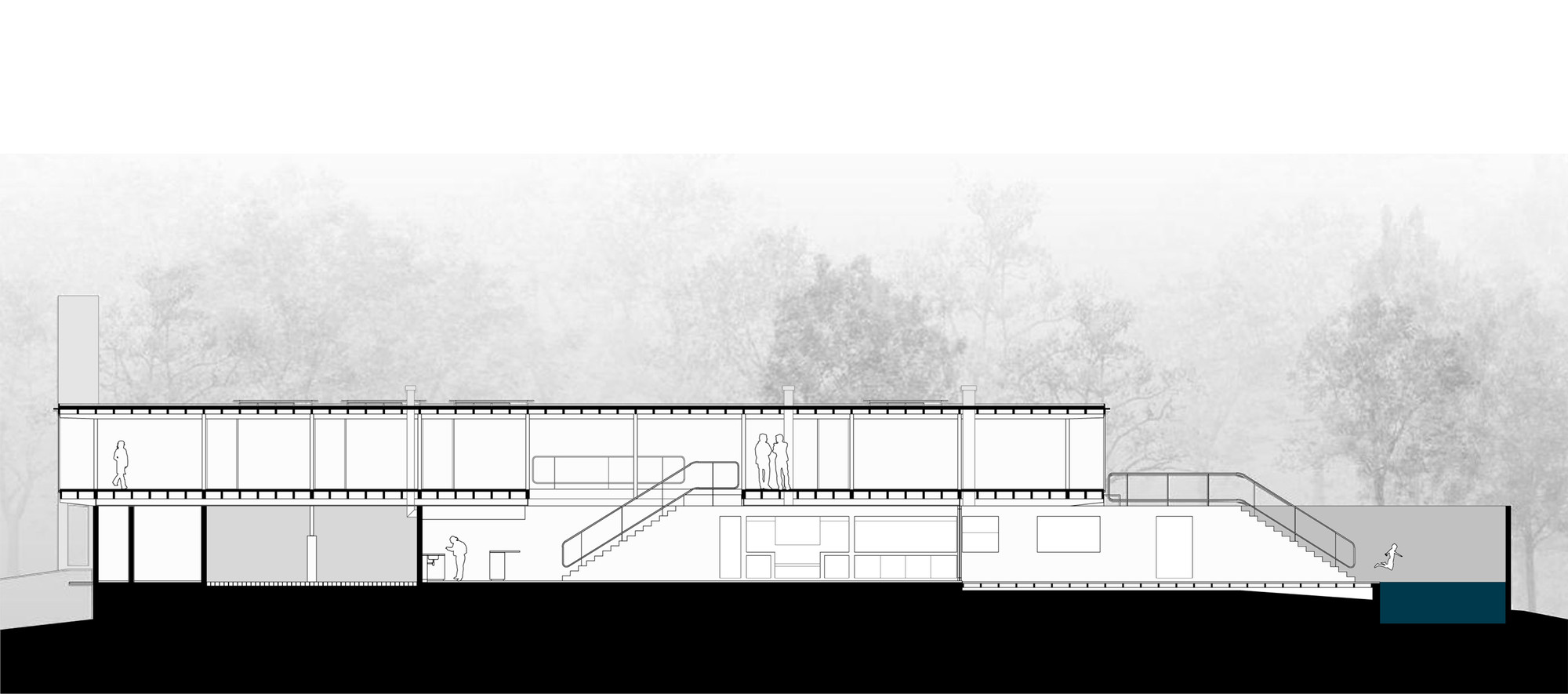

Section
Section

A single longitudinal block shelters both internal and external staircases, and also a niche for fireplace, ­ovens, bathrooms and pantry. It is totally overlaid with burned cement with red pigment, a popular solution in this region.

© Bebete Viégas
© Bebete Viégas

The upper floor rests in the concrete base. Its construction was thought as timber assembly: prefabricated structure, floors, inters fence panels and rooftop. These work strategies ensure a quickly covered building site, avoiding restraints caused by constant rain. At both edges are located common spaces, a studio and a small living room. The bedrooms are concentrated in the middle of this floor. As an exception, a double height empty space connects both levels.

© Bebete Viégas
© Bebete Viégas

The volume cladding is a glass wall. This material is at the same time transparent and reflexive and stays, at the trees canopy level, naturally shaded and diluted in the forest.

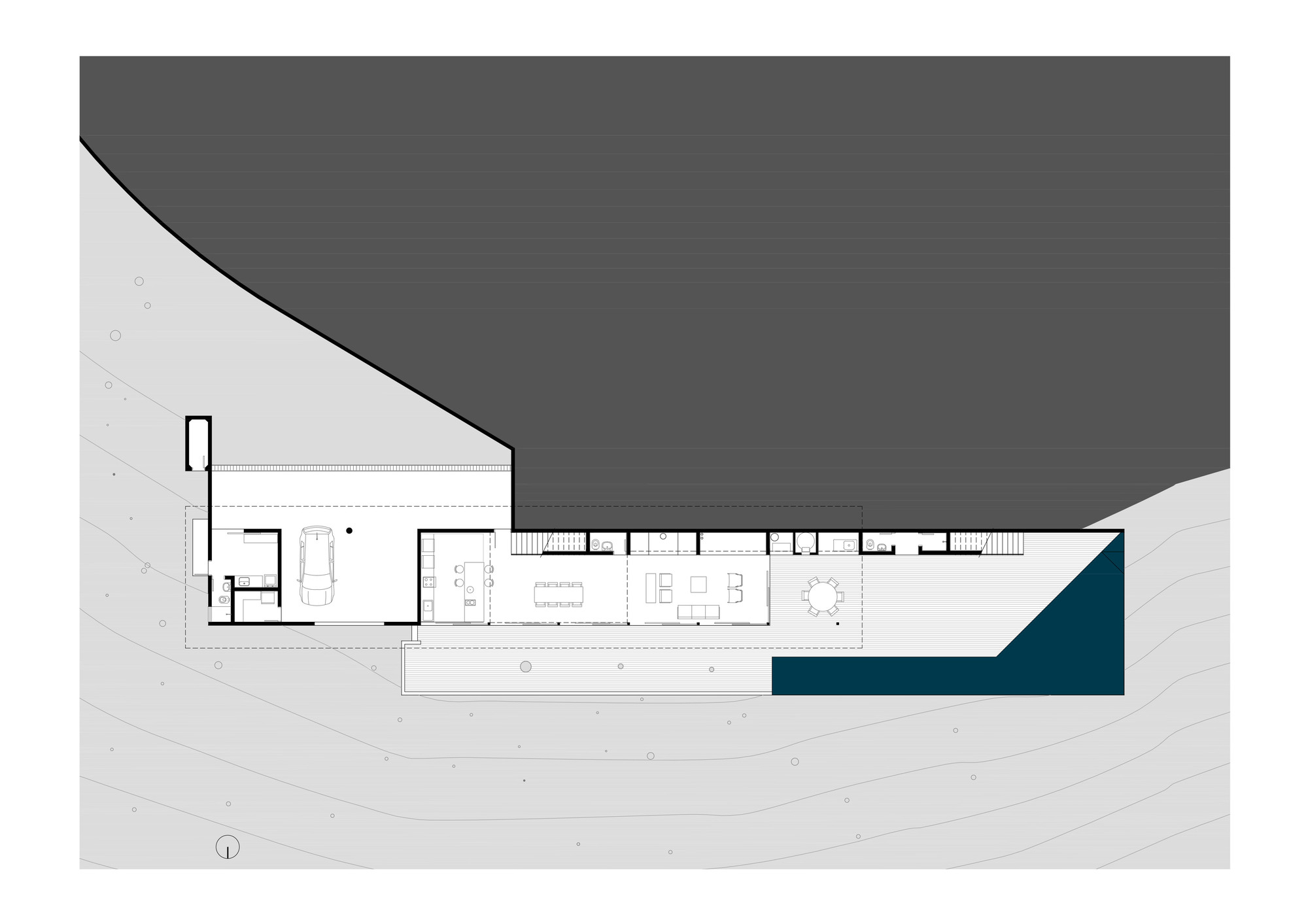

Floor Plan
Floor Plan
