Sports Hall at C.P. Pablo Iglesias / Planta 33 Arquitectura

  • 01:00 - 16 May, 2014
Sports Hall at C.P. Pablo Iglesias / Planta 33 Arquitectura
Sports Hall at C.P. Pablo Iglesias / Planta 33 Arquitectura, © Miguel de Guzmán
© Miguel de Guzmán

© Miguel de Guzmán © Miguel de Guzmán © Miguel de Guzmán © Miguel de Guzmán + 31

  • Collaborators

    Sergio Calvo, Marita Martín, Patricia Pintado, Valentina Bidone, Iván Barreira
  • Constructor

    Construcciones San Luis 32, Cypsa
  • Surveyor

    Jose Luis Rocha Tofiño
  • Structure

    GV 408
  • Installations

    Sergio Calvo, Natalia Balmaseda
  • Budget

    693.088 E
  • More Specs Less Specs
© Miguel de Guzmán
© Miguel de Guzmán

Text description provided by the architects. The work consist of an enlargement of an nursery and primary school which number of students has recently grown. The design includes two different projects: a new classroom building for pre-school education and a sport hall.

© Palíndromo Mészáros
© Palíndromo Mészáros

A strict scale and an accurate stitching with the surrounding buildings are needed due to the small size of existing free space.

© Miguel de Guzmán
© Miguel de Guzmán

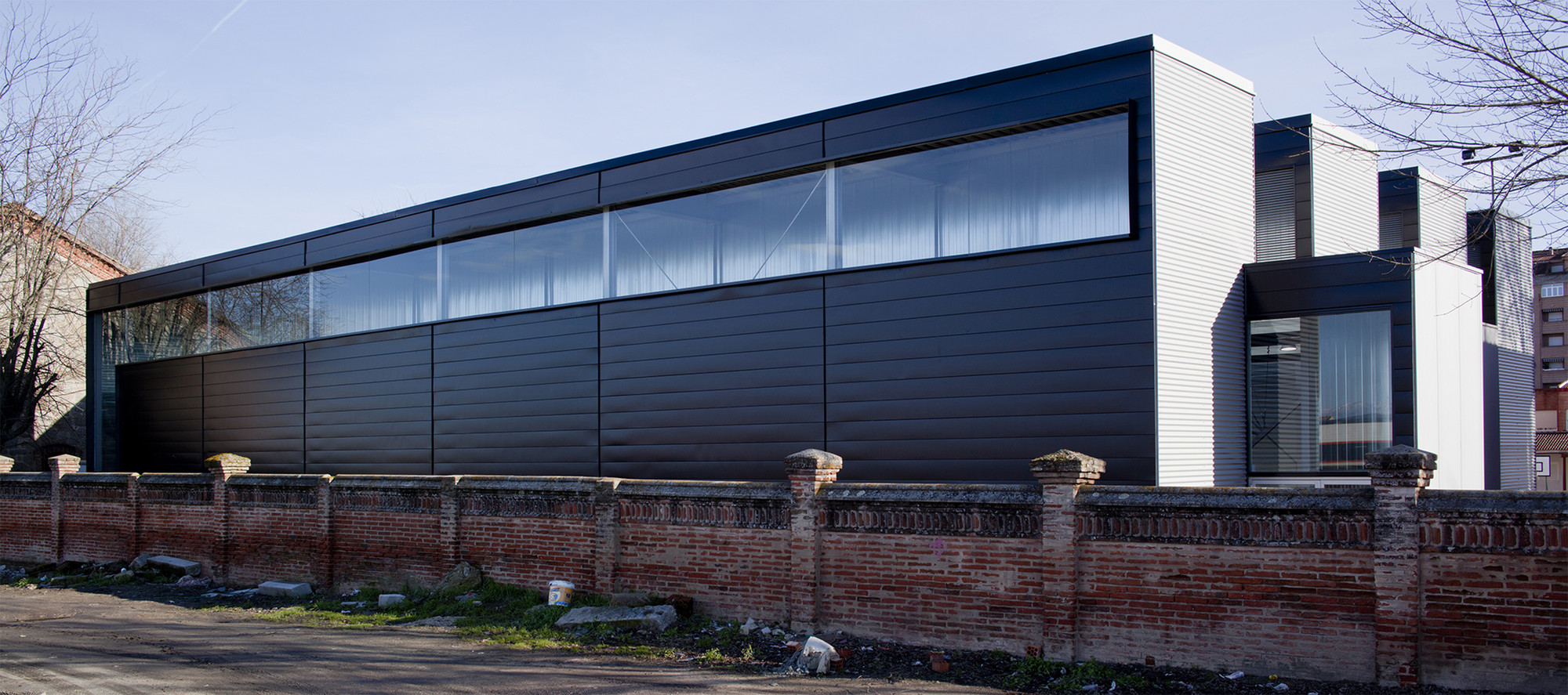

The pavilion is located in the northern part of the site, in a very compact space that borders the railway line that reaches Talavera de la Reina. This dimensional limitation leads to locating the longest side of the building facing east-west.

© Miguel de Guzmán
© Miguel de Guzmán

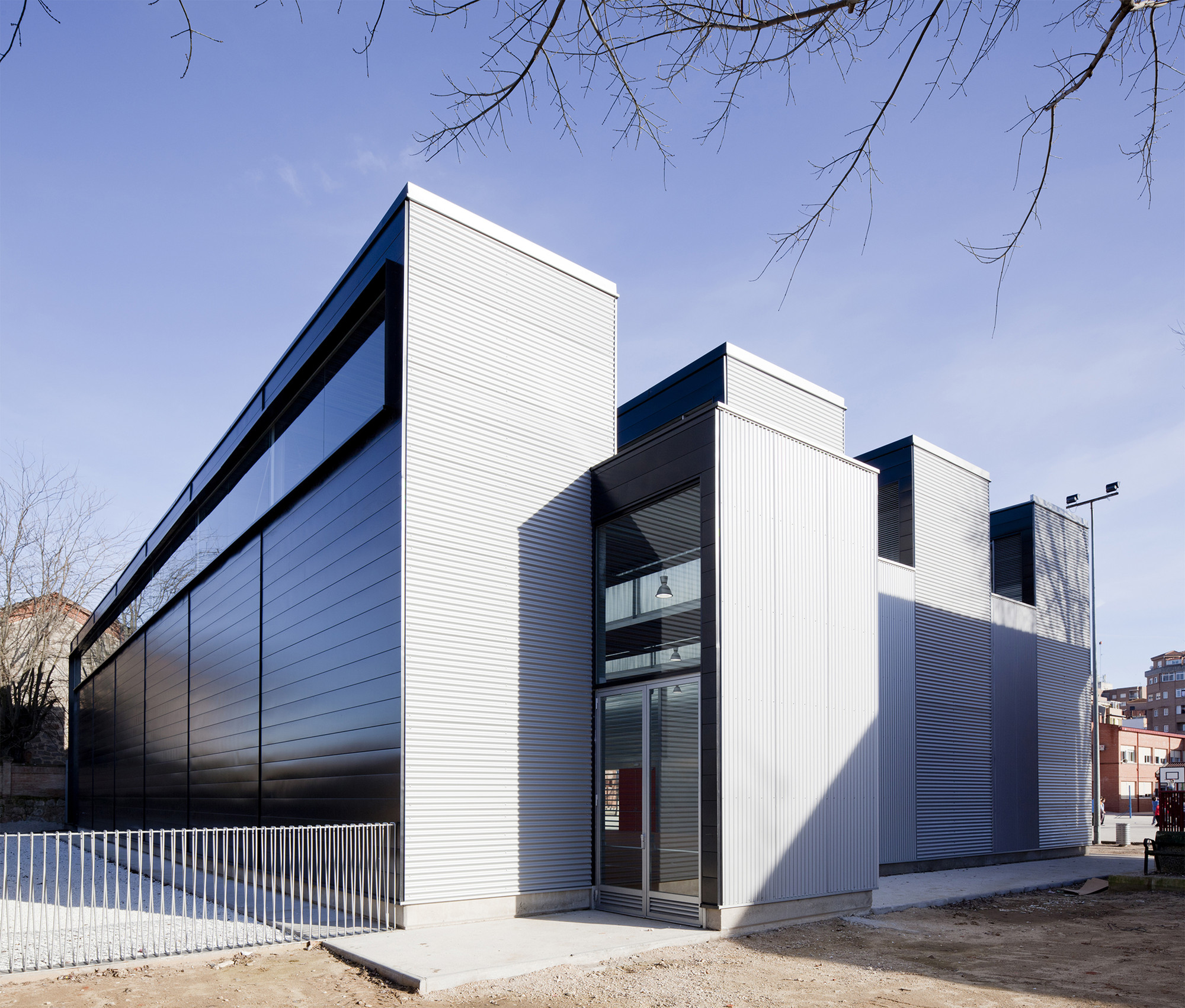

The building has the traditional saw-tooth sectioned industrial typology, but in this case, having skyligths longitudinally arranged instead. This main volume opens widely into the north so to let natural, uniform, diffuse light illuminate the space, guaranteeing athletes won’t be disturbed by glaring.

First Floor Plan
First Floor Plan

A unique gesture provides the solution to the entire building. Longitudinal 2.77 m wide stripes with Z-section try to accomplish the same geometry and appearance for both sections and floor plans. Four large skyligths fold up over themselves to create a stepped floor plan that, by providing the stripes, extends to the changing rooms and storage room. Between every two pieces, private gravel-finished patios are created to allow the proper ventilation and natural lighting of changing rooms, improving the living experience of these spaces, usually considered unimportant.

© Miguel de Guzmán
© Miguel de Guzmán

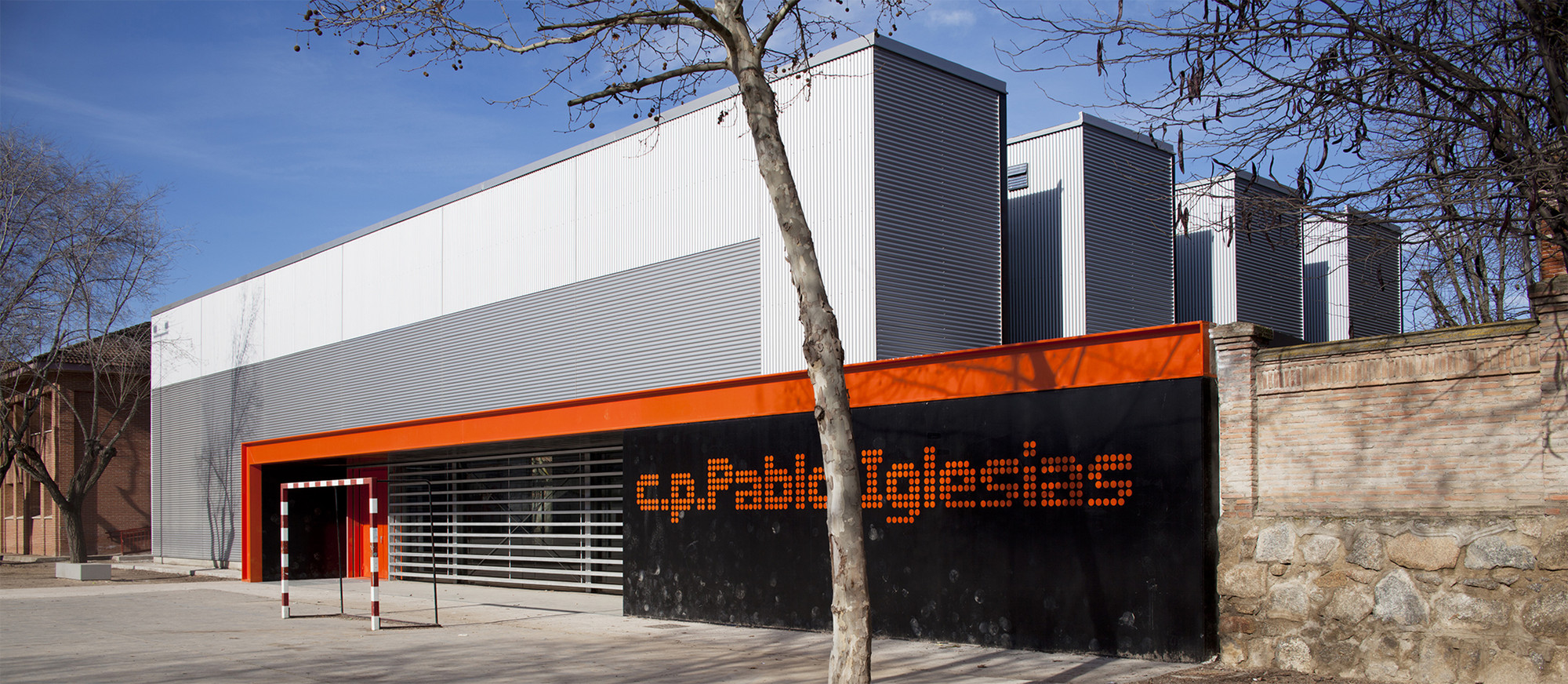

The south elevation constitutes the main façade towards schoolyard. The main entrance is aligned to the old classroom buildings by a paved axis, blending in this way with the existing pedestrian paths of the complex. A space of transition between this area and the new pavilion building is created by a large porch that serve as a shaded area to play during breaks. This low piece built in front of the sports building box reduces the visual impact towards the school.

© Miguel de Guzmán
© Miguel de Guzmán

Assembly

An exercise of economic, light, industrialized and dry construction has been carried out. Almost every construction piece is manufactured at workshops and assembly in situ. There was no need to lay a single brick. A good care of joints dignifies the prefabricated system, and gets to worth and values this pieces that are normally used at industrial buildings. The steel plates normally used for constructions fences, here become the finishing surface material; humble, but respectable.

© Miguel de Guzmán
© Miguel de Guzmán

The 19.5 m distance is spanned by steel HEB 500 beams resting on HEB 180 columns. The longitudinal skylights are hanging down from these by steel six millimeter plates, which greatly helps to give the structure a weightless sensation.

© Miguel de Guzmán
© Miguel de Guzmán

The exterior walls are made with self-supporting galvanized trays, which are exposed in the interior. Steel lacquered sheets, grey or black, close the exterior of the building. For the deck roof, steel micro-perforated sheets are used to improve the acoustic of the room. Both the installations and the rainwater downpipes remain completely hidden inside these walls.
