Avelar Brotero Secondary School / Inês Lobo Arquitectos

  • 01:00 - 15 December, 2013
Avelar Brotero Secondary School / Inês Lobo Arquitectos
Avelar Brotero Secondary School / Inês Lobo Arquitectos, © Leonardo Finotti
© Leonardo Finotti

© Leonardo Finotti © Leonardo Finotti © Leonardo Finotti © Leonardo Finotti + 39

  • Design Team

    Inês Lobo, João Rosário, João Vaz, Gilberto Reis, Júlia Varela, Filipe Soares, Sérgio Silva, Sérgio Pereira, Henrieta Selcová, Vasco Lopes, Sónia Ribeiro, Job Morais, Pedro Coelho, Rafael Marques.
  • Structures

    ADF Engenheiros Consultores; Pedro Morujão
  • Hydraulic Installations

    Fernanda Valente
  • Electrical Installations, Telecommunication and Security

    GPIC Projectos Consultoria e Instalações; Fernando Aires, Alexandre Martins
  • Heating, Ventilation, Building Physics, Thermic and Acoustics

    NaturalWorks; Guilherme Carrilho da Graça
  • Landscape Architecture

    Global Arquitectura Paisagista Lda, João Gomes da Silva
  • Project Revision

    Rui Prata Ribeiro Lda; Rui Prata Ribeiro, Paula Balseiro
  • Construction Company

    Ramos Catarino S.A, Conduril, S.A.
  • More Specs Less Specs

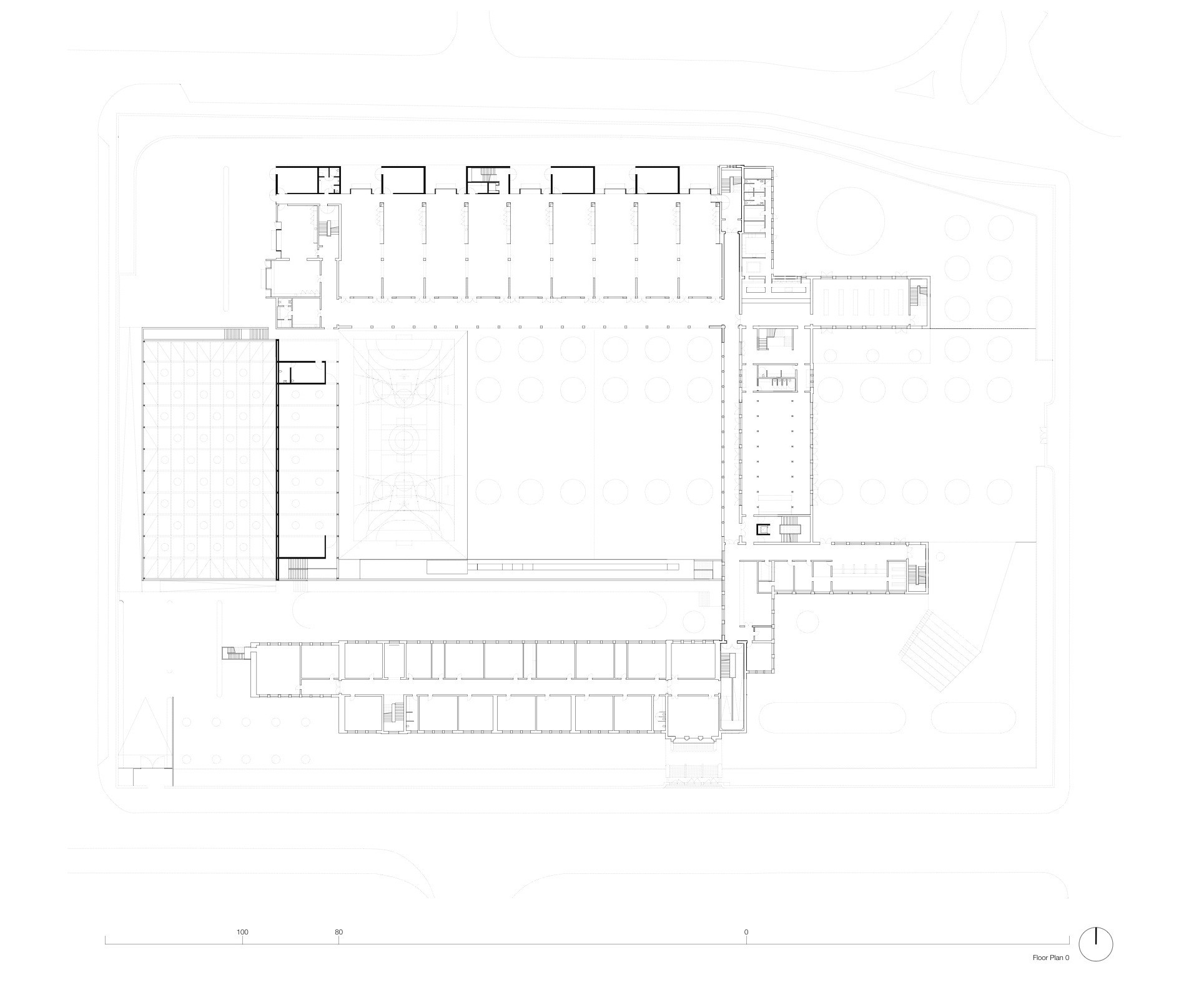

Floor Plan 0
Floor Plan 0

Text description provided by the architects. Avelar Brotero Secondary School was founded in 1884 under the name Escola de Desenho Industrial (School ofIndustrial Design). Subsequent reforms brought change to the school´s designation, but not to is academic vocation, which, to this day, in parallel to its regular syllabus, maintains a technological and workshop teaching feature. This academic programme is naturally reflected in the building the School currently occupies, as it has since 1950s. It is a building complex essentially made up of three blocks, sets of spaces structured together around a central open space.

© Leonardo Finotti
© Leonardo Finotti

A first block accupies the length of the Rua General Humberto Delgado (bloco A), were the classrooms, laboratories, administrative areas and library are the found. Linked to this block, a central block (Body C) houses the gymnasium and the changing rooms, as well as the canteen and bar, and a small group of classrooms, in two separate arms of the main body. A final large Block is made up of the workshop areas (Body B), wich complete the building complex. The outer spaces are the most part occupied by sports fields.

© Leonardo Finotti
© Leonardo Finotti

clear and flexible spatial and volumetric structure | extensive overall area | extensive overall outer areas

© Leonardo Finotti
© Leonardo Finotti

- unbalanced use of space | evidente lack of space in certain teaching areas | lack of clarity in the structural relationship between the constructions

© Leonardo Finotti
© Leonardo Finotti

Strategy. Having identified the advantages and disadvantages that the building offers in the current state been, we now move on to define an action strategy according to four basic vectors: defining new teaching areas; redefining accessibility; redistributing the program me; clarifying circulation.

© Leonardo Finotti
© Leonardo Finotti

New Areas. The new teaching areas contemplated in this intervention are those already identified in the situation and it stands. Thus, the areas to be build are:

© Leonardo Finotti
© Leonardo Finotti

An indoor sports center and a gymnasium, to be established semi-interred at the western end to the central yard (Body E). A teacher working and support area (Body D), to be established at mid height, embedded in the current slope, which flanks the central yard to the south and two general support spaces, in the category of meeting spaces, in two volumes established on the terraces of the two arms of the central body: the bar and the multi-purpose room.

© Leonardo Finotti
© Leonardo Finotti

Another new area of invention will be established  over part of an existing building, for which partial demolition is proposed, in order to create an adjoining new volume for workshop and laboratories, capable of increasing the floor area in this body and to better suit the intended programme: supporting areas to the workshop area and new physics, chemistry, biology and geology laboratories.

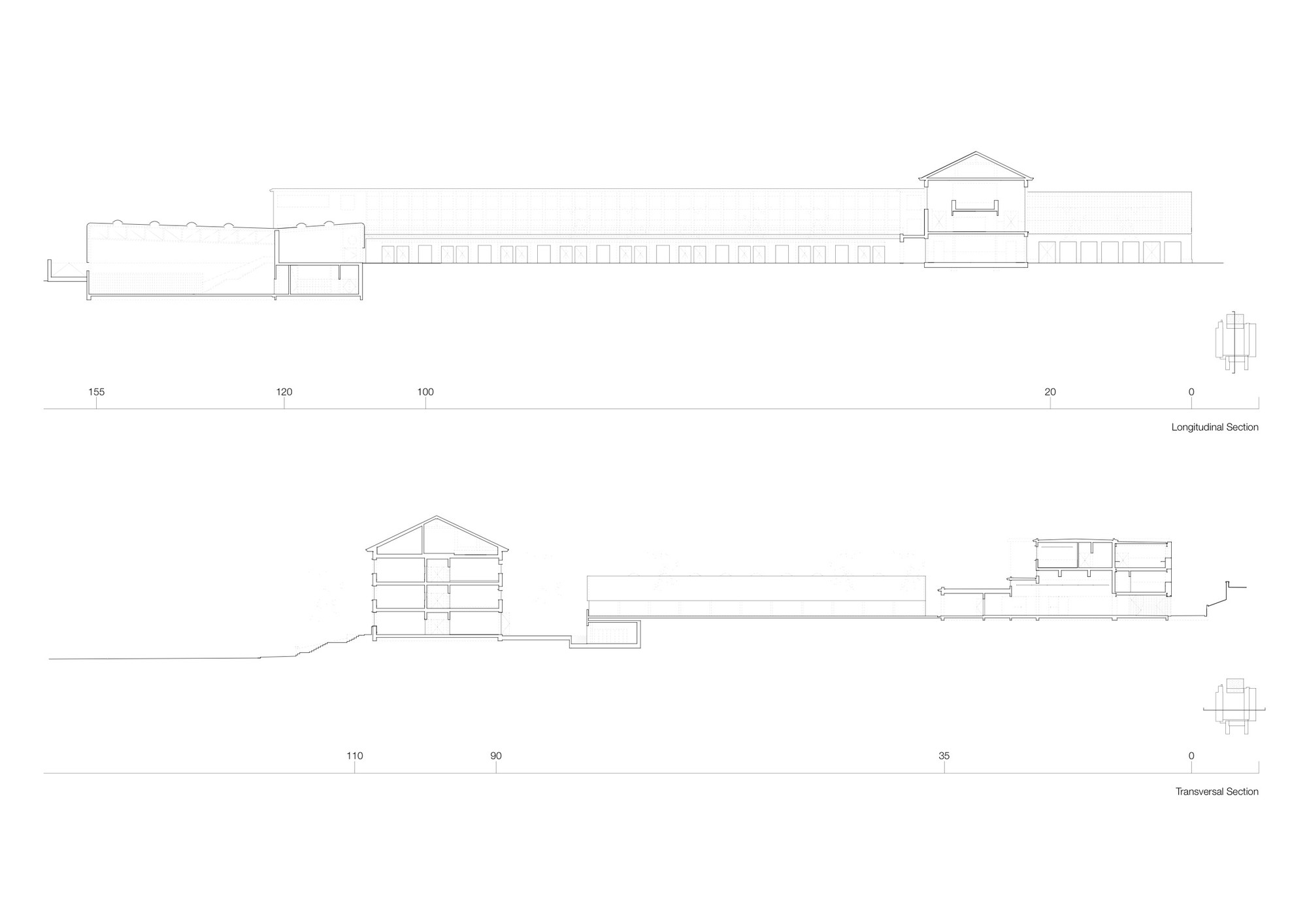

Sections
Sections

Programme. The teaching area redistribution intended by this proposal aims above all the current discrepancy in intensity of use of the different parts of the school, as well as to promote an effective integration between the two main educational options that the school houses - standard and technological education.
