Diamond House / Formwerkz Architects

  • 01:00 - 30 August, 2013
Diamond House / Formwerkz Architects
Diamond House / Formwerkz Architects, ©  Albert Lim
© Albert Lim

©  Albert Lim ©  Albert Lim ©  Albert Lim ©  Albert Lim + 21

  • Architects

  • Location

  • Design Team

    Alan Tay , Foo Yuet Yee, Cai Xun
  • Structure

    Portwood & Associates
  • Builder

    Sinwah-Apac Construction Pte Ltd
  • Area

    5000.0 sqm
  • Project Year

  • Photographs

©  Albert Lim
© Albert Lim

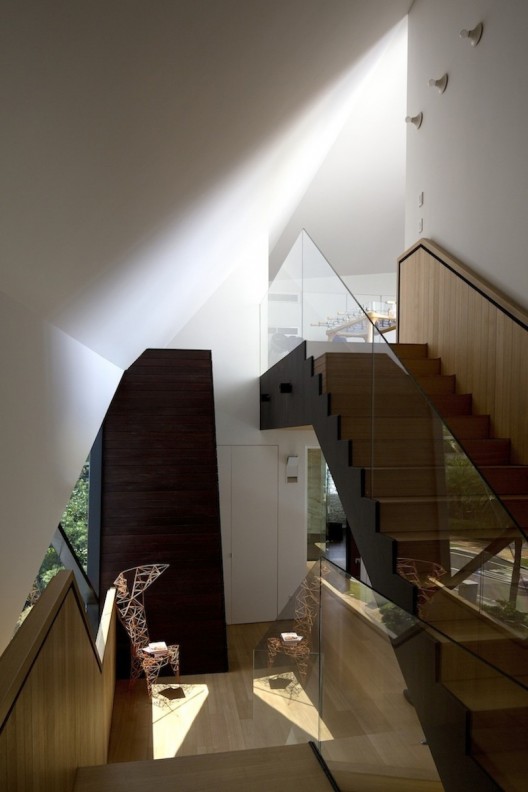

Text description provided by the architects. The house along Cove Drive in Sentosa sits on a slightly tapered site that faced a man-made lake. Built for a small family that greatly cherish their privacy, the house turns it back on the street and the sides where the neighbours are in close proximity. Like a monolith resting over the gardens, the single, faceted volume house the main spaces with their primary view to the waterway.The main entrance brings one into the centre of the house with the living and dining space on the sides. The upper floors are split in the middle into two volumes that house the daughter and the parent’s bedrooms.

©  Albert Lim
© Albert Lim

The basement accommodate the guest room, entertainment, services and garage, lit and ventilated largely by the sunken courtyards.

©  Albert Lim
© Albert Lim

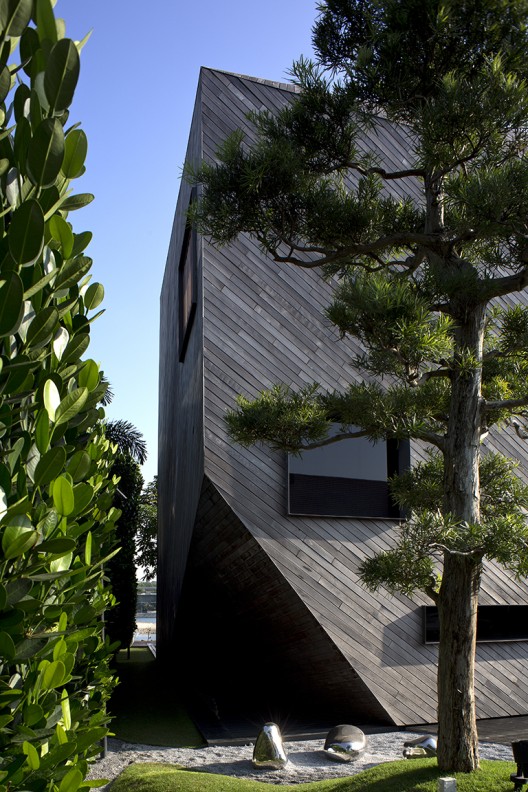

The massing on grade is kept deliberately small to create more garden spaces within the tight site. The geometry is derived from negotiating with the planning parameters imposed on the neighborhood and the desire to simplify the building form. The front and side facades are pared down with openings strategically position to allow optimal daylighting with minimum compromise in privacy. The sloping walls at the corners allow for a smaller footprint while expanding the spatial volume at upper levels.

©  Albert Lim
© Albert Lim

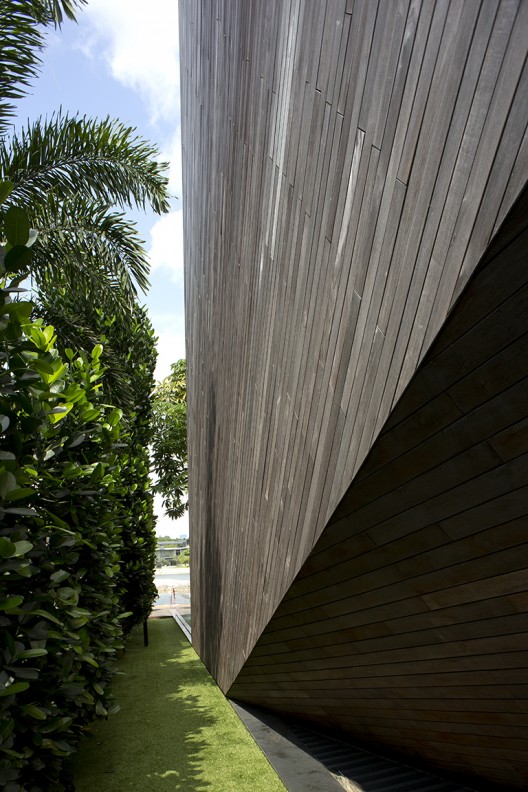

Like its simple form, few architectural materials were used. The facades are entirely wrapped in iron wood. The interior adopts a lighter palette of oak and travertine. At nightfall, fragments of the internal spaces are seen on the facade. The muted, impenetrable volume gradually gives way to the volumes of internal light, revealing the intricacy within.

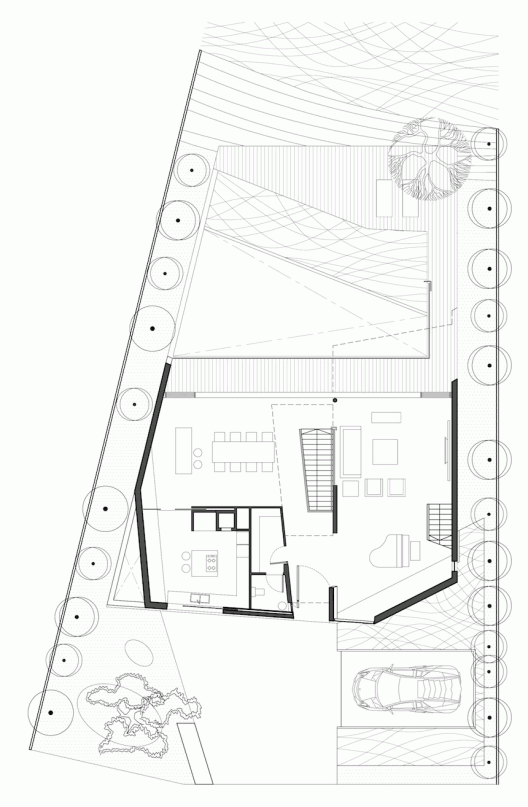

First Floor Plan
First Floor Plan
