Cabañas Tumbaco / Diez + Muller Arquitectos

Cabañas Tumbaco / Diez + Muller Arquitectos
© Sebastián Crespo
© Sebastián Crespo

© Sebastián Crespo © Sebastián Crespo © Sebastián Crespo Cortesía de Felipe Muller + 22

Text description provided by the architects. The opportunity of re-conceptualizing the idea of what the cabin ¨typology¨, is what made this commission very interesting.  In a 4 hectares property and an orchard of trees, we had this opportunity.

© Sebastián Crespo
© Sebastián Crespo

The clients required two cabins to complement their weekend home, and thus enabling to share their property with their extended family. Simplicity both in the typology as well as the program allowed us to give a more conceptual and less functional approach to develop our ideas.

© Sebastián Crespo
© Sebastián Crespo

The main one relies on abstracting the basic elements of a home that are the "roof" and the "floor", thus placing them in the middle of the trees that are in the site. This allows the most direct contact and primitive experience with the environment and nature.

© Sebastián Crespo
© Sebastián Crespo

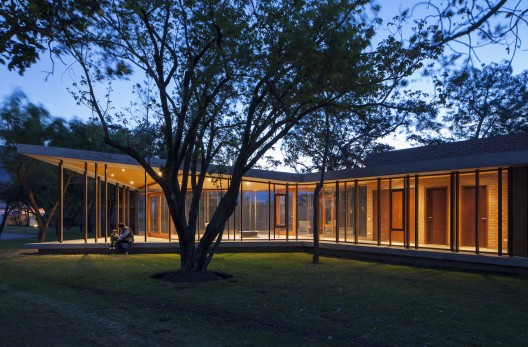

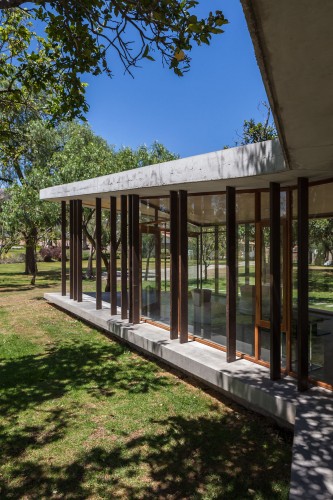

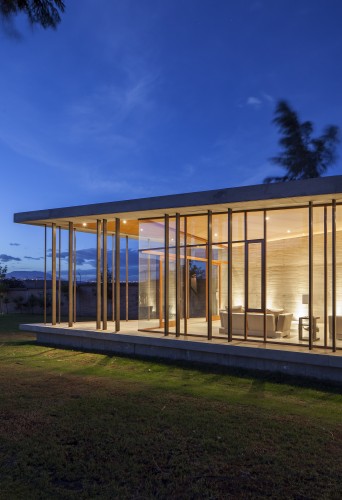

First, the placement of the project responds to the location of cabins among the trees, keeping all existing ones, and thereby creating the most natural setting possible. This makes the plan morphology of the two cabins obviously different. At the same time the formal vocabulary and constructive ideas are the same, starting with the trees as the background canvas on which we worked. Two exposed concrete horizontal planes (roof and floor) are inserted into the trees where the habitable space between these is completely permeable to the outside through a large glass envelope.

© Sebastián Crespo
© Sebastián Crespo

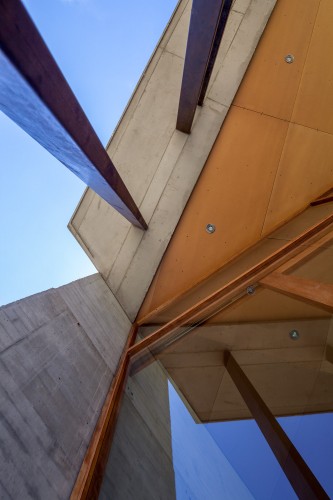

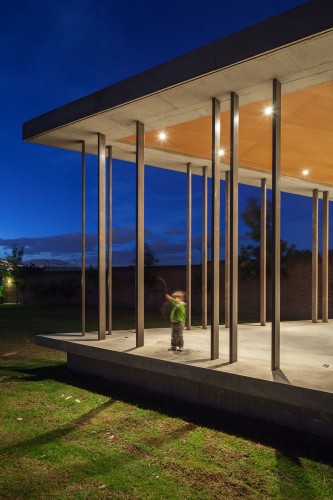

The continuity of the trees is abstracted in the supporting structure of the cabins through metal rectangular columns that in addition to replicating the verticality of the forest, they recreate the random placement of trees and their spacing. Finally, the private areas are brick cubes that in addition to defining the programmatic components of the project, they also respond to the construction of the main house built with the same material.

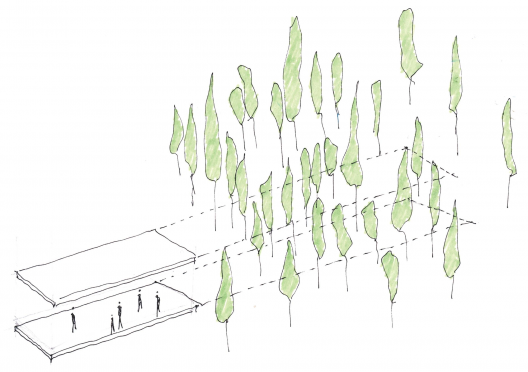

Diagram
Diagram

There is a connection and dialog between the constructed object and the environment from the inside to the outside but also from outside to inside.  Shadows and reflections of vegetation and trees bathe the different planes that contain the built space.

© Sebastián Crespo
© Sebastián Crespo

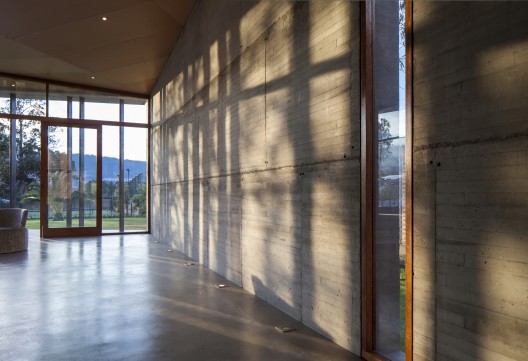

These shadows accentuate the materiality of concrete walls that delimit the architectural object, generating a number of textures and hues that change throughout the day.

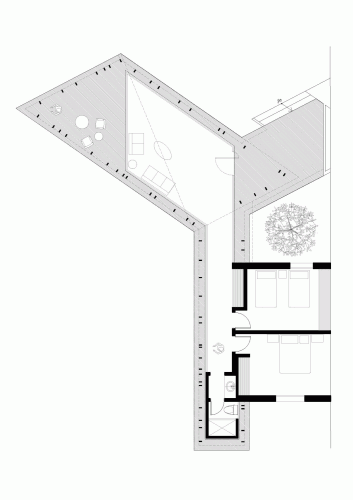

Plan
Plan

View the complete gallery

Location to be used only as a reference. It could indicate city/country but not exact address. Cite: "Cabañas Tumbaco / Diez + Muller Arquitectos" [Cabañas Tumbaco / Diez + Muller Arquitectos] 03 Dec 2012. ArchDaily. (Trans. Jordana, Sebastian) Accessed . <https://www.archdaily.com/301004/tumbaco-cabins-diez-muller-arquitectos/> ISSN 0719-8884
