UseRoofs, Support structure designed by others
ApplicationsCommercial, sports, educational, cultural, industrial, transportation
CharacteristicsStructural, glare-free, balanced daylighting, thermal performance, low maintenance, durable, fast installation, design versatility
CertificationNFRC Certified, OSHA Fall thru compliant, UL Listed, ICC-ES, CE, BS, contributes to LEED, BREEAM, GreenSpec listed
The Custom Skyroof® system features Kalwall composite panels over sub-structure by others, for when energy efficient, diffuse daylighting at monumental scale is required. Kalwall is a translucent, structural sandwich panel which uses prismatic glass fibers embedded in the panels face sheets. The glass prisms refract sunlight to provide a balanced, diffuse wash of glare-free light.
Flat, curved or combination systems are possible offering design versatility. Installation is fast and easy, coupled with large size panels to further speed the process. As with all Kalwall panels, the skyroofs are man-safe and OSHA fall through compliant. U-values available up to .05,
During the manufacturing process, panels are fitted with translucent insulation to reduce solar heat gains. For maximum thermal performance, Kalwall offers a Lumira™ panel, the most highly insulated, light transmitting product in the market.

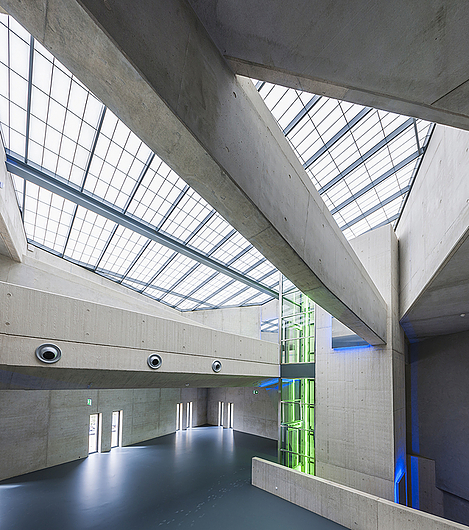

Freeport Luxembourg Airport Free Trade Zone | Luxembourg | Atelier d’Architecture 3BM3
- Glare-free, balanced daylighting
- Superior thermal performance
- Energy and electricity saving
- Low maintenance life cycle requirements
- Security through visual privacy
- Hurricane and blast rated options
- Class A Roof
Please visit kalwall.com to all specifications, CAD details, BIM families and performance charts online.
