Curtain Walls Systems | OTTOSTUMM

Share
  • Use

    Exterior fenestration systems
  • Applications

    19th/20th-century renovation, residential, commercial, institutional
  • Characteristics

    Acoustic & thermal insulation, laser welded, invisible weld seams, customizable profile design, slender mullions
  • Sizes

    Length: <15m (f9ft) | Depth: <500mm (20")
  • Certification

    Recognized by Green Guide
Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
I want to receive a sample
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

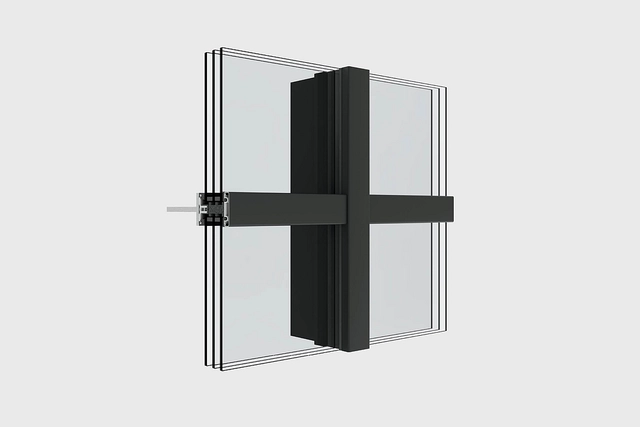

OTTOSTUMM supplies components for steel fenestration systems. OS-TEC is a set of solutions developed for large steel-glass curtain walls. The range has sightlines of 50, 60 and 80 mm. The system can be connected to any type of steel mullion or transom and offers exceptional acoustic and thermal insulation.

OTTOSTUMM also offers free-form mullions and transoms for the customized steel façades. For architecturally exposed steel projects, laser welded profiles are ideal because it is the only technology that allows unfolding custom design on steel, cor-ten steel or stainless steel curtain walls. Mullions of 15 m (49 ft) length and up to 500 mm (20”) depth can be specified. All profiles have sharp crisp corners, clean shadow lines and smooth almost invisible weld seams.

Features

undefined

  1. Sharp crisp corners and clean shadow lines
  2. Custom lengths up to 15 m (49 ft)
  3. Profiles are available in steel, Cor-Ten steel, and stainless steel
  4. Massive steel webs and flanges for high moment of inertia
  5. High flexibility on profile design
  6. Extremely slender steel mullions and transoms
  7. Wide range of square and angular glazing beads
  8. External add-on glazing system with sight lines of 50, 60 and 80 mm
  9. Design cover caps available in aluminum, stainless steel AISI 316, Cor-Ten steel and architectural bronze

Sustainability

The steel bil­lets, rods and strips, from which OTTOSTUMM steel window profiles are formed, is smelted from almost 100% recycled steel scrap. At the end of their life, steel windows can be systematically dis­mantled and the frames, fittings, and glass recycled.
