Cladding Panels in Transport Stations and Underground Spaces | Swisspearl
Navigate products using your keyboard
  1. ArchDaily
  2. Products
  3. Fiber Cements / Cements
  4. Cladding Panels in Transport Stations and Underground Spaces

Cladding Panels in Transport Stations and Underground Spaces | Swisspearl

Share
  • Use

    Interior cladding
  • Applications

    Metro stations, pedestrian tunnels
  • Characteristics

    Floor coverings and tunnel linings require a careful selection of materials which are subject to precisely defined criteria. They must be fire-resistant, durable, break-resistant, easy to clean and replaceable.
Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

Subway systems have become a mass phenomenon. Underground stations constitute a pivotal extension of urban space, often undervalued, not only by the general public but also by the architects themselves. Such systems usually spawn massive urban development along their routes. Densely built-up inner city areas, however, complicate the planning of new stations in times when untenable traffic conditions and growing ecological awareness demand the expansion and upgrading of public transport.

Clear passenger routes and generous, well illuminated spaces are among the main priorities. Floor coverings and tunnel linings require a careful selection of materials which are subject to precisely defined criteria. They must be fire-resistant, durable, break-resistant, easy to clean and replaceable. The following two projects illustrate two distinct approaches in the usage of Swisspearl Panels for this particular design task.

Triangeln Railway Station, Malmö, Sweden

Client: City of Malmö
Architects: SWECO, Malmö; Lars Lindahl
Photos: Claes Westlin, Malmö
Building period: 2005 – 2009
General contractor: NCC Construction Sweden AB
Façade construction: Nauth SL Fassadentechnik GmbH, Kapellen-Drusweiler (Germany)
Façade material: Swisspearl Carat Onyx 7090

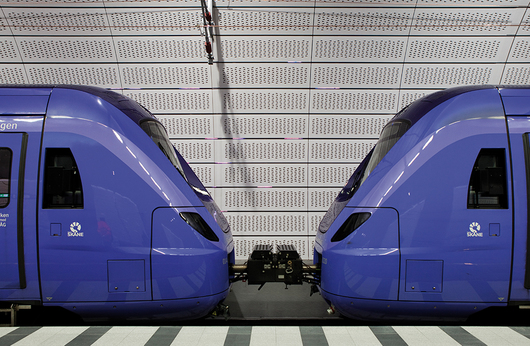

Metro Stations Malmö, Sweden © Claes Westlin

In March 2005, the City of Malmö launched its ambitious City tunnel project to provide additional capacity and facilitate transport connections to adjacent regions in the north. Scheduled for completion in 2011, the project includes a total of 17 kilometers of electrified railway, a third of it subsurface. Apart from an underground extension to Malmö Central Station, two new intermediate stations will be built: Hyllie, at the southern exit of the tunnel, and most notably, Triangeln underground station in the city center.

Malmö City tunnel serves to illustrate the extraordinary expenditure inherent in today’s large-scale infrastructure projects, whose complexity is reflected in countless separate and often challenging tasks. One such task was the planning and construction of the tunnel lining, entirely of white Swisspearl panels, at Triangeln railway station. In keeping with the name of the station, each panel shows a pattern of triangular perforations with chamfered edges that were cut at the plant in Switzerland using state of the art CNC machinery.

Metro Stations Malmö, Sweden © Claes Westlin

The combination of curved tunnel walls and weighty large-size panels called for a high-standard technical solution. These difficulties were over – come by German façade engineers Nauth, who designed a framework system that incorporated Swisspearl Sigma undercut anchors for unobtrusive fixing of the 12 millimeter thick panels, as well as concealed sound-absorbing boards. To complete the overall wall design, artist Christian Partos envisioned nosy little “light-creatures” that hide in the tunnel when a train approaches and emerge when it leaves again. To accomplish this, a purpose built motion-sensitive lighting system uses LED rails fitted into the joints between some of the panels.

Metro Stations , Santiago de Chile, Chile

Client: Metro Chile
Architects: Burmeister Arquitectos Consultores S.A., Santiago de Chile; Enrique Burmeister, Cristián Castillo, Cristián Barahona, Alfredo Lizana
Photos: Cristián Barahona, Santiago de Chile
Building period: 2006 – 2009
General contractor: Constructora Internacional Limitada, Constructora CYPCO S.A., Santiago de Chile
Façade construction: Comintecc, Vitacura/Santiago de Chile
Façade material: Swisspearl Carat Jade 7050, 7051, 7052, Amber 7083, Azurite 7043, 7040, 7041, Onyx 7091

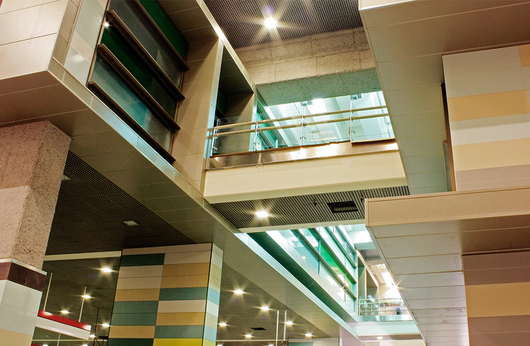

Metro Stations Santiago, Chile © Cristián Barahona

The station platform areas are marked by distinct signature walls displaying a mosaic of tone-on-tone Swisspearl strips whose visual impact was tested beforehand by means of life-size mock-ups. Site conditions proved logistically challenging as the parcels had to be lowered into the tunnels through a very confined void. The strips were then mounted on-site to a metal framework by the use of adhesive tape.

The color hue of each station was selected with regard to its respective context. Manquehue displays earth tones indicative of the nearby mountains; Magallanes is blue, reminiscent of the legendary navigator, while Los Dominicos reflects the green of the plaza and the white of the nearby historic buildings.

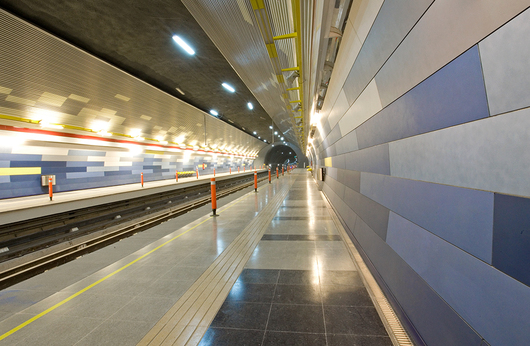

Metro Stations Santiago, Chile © Cristián Barahona
