Hidden Panel Fastener - Standard Range | Fastmount®
Navigate products using your keyboard
  1. ArchDaily
  2. Products
  3. Hidden Joints
  4. Hidden Panel Fastener - Standard Range

Hidden Panel Fastener - Standard Range | Fastmount®

Share
  • Use

    Ceiling and wall panels
  • Applications

    Architectural, marine, aviation and recreational vehicles
  • Characteristics

    Self-aligning installation without adhesives, perfect panel alignment, 5kg pull out load per clip, hidden fixing, easy panel remova

Supplementary Files

Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
I want to receive a sample
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

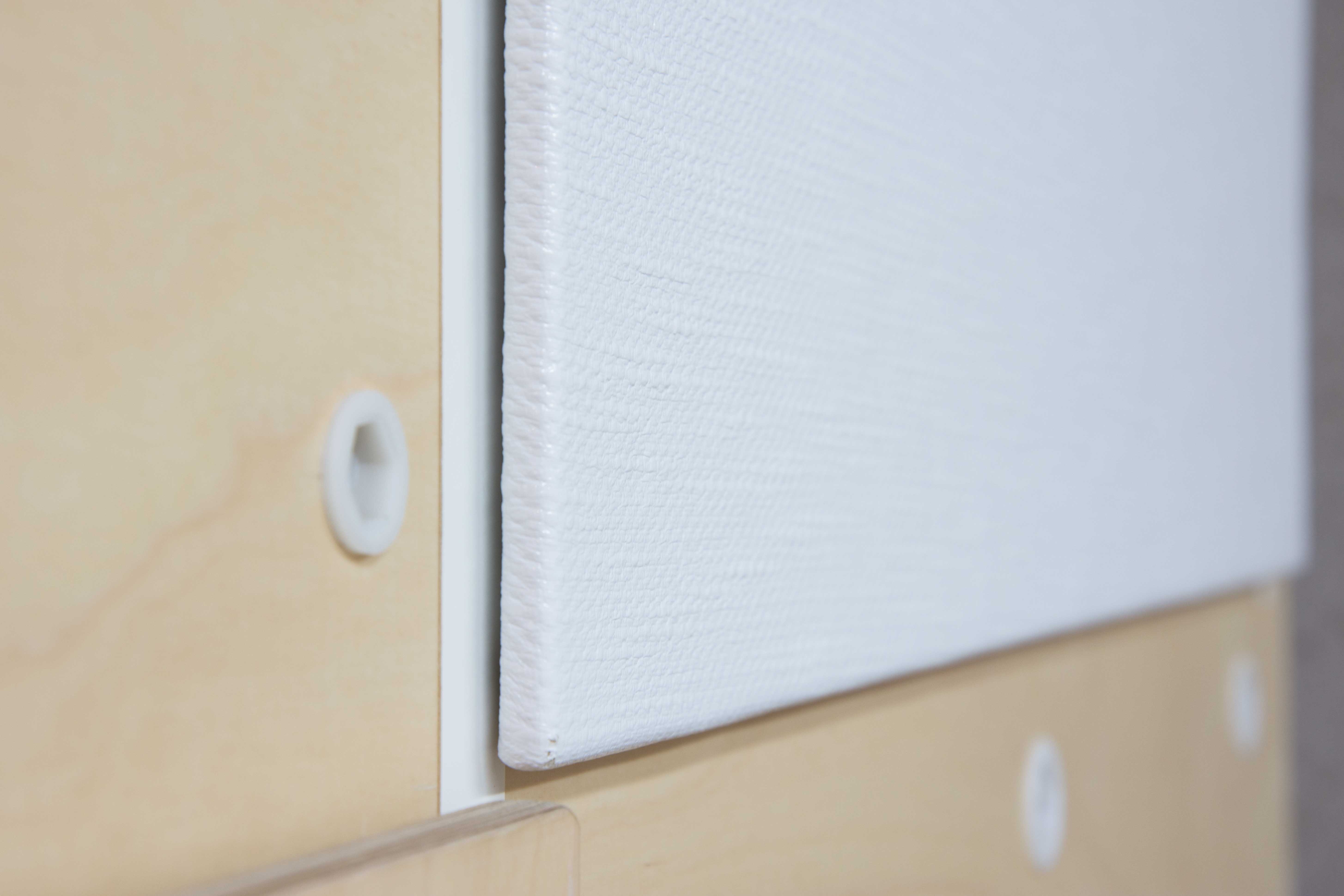

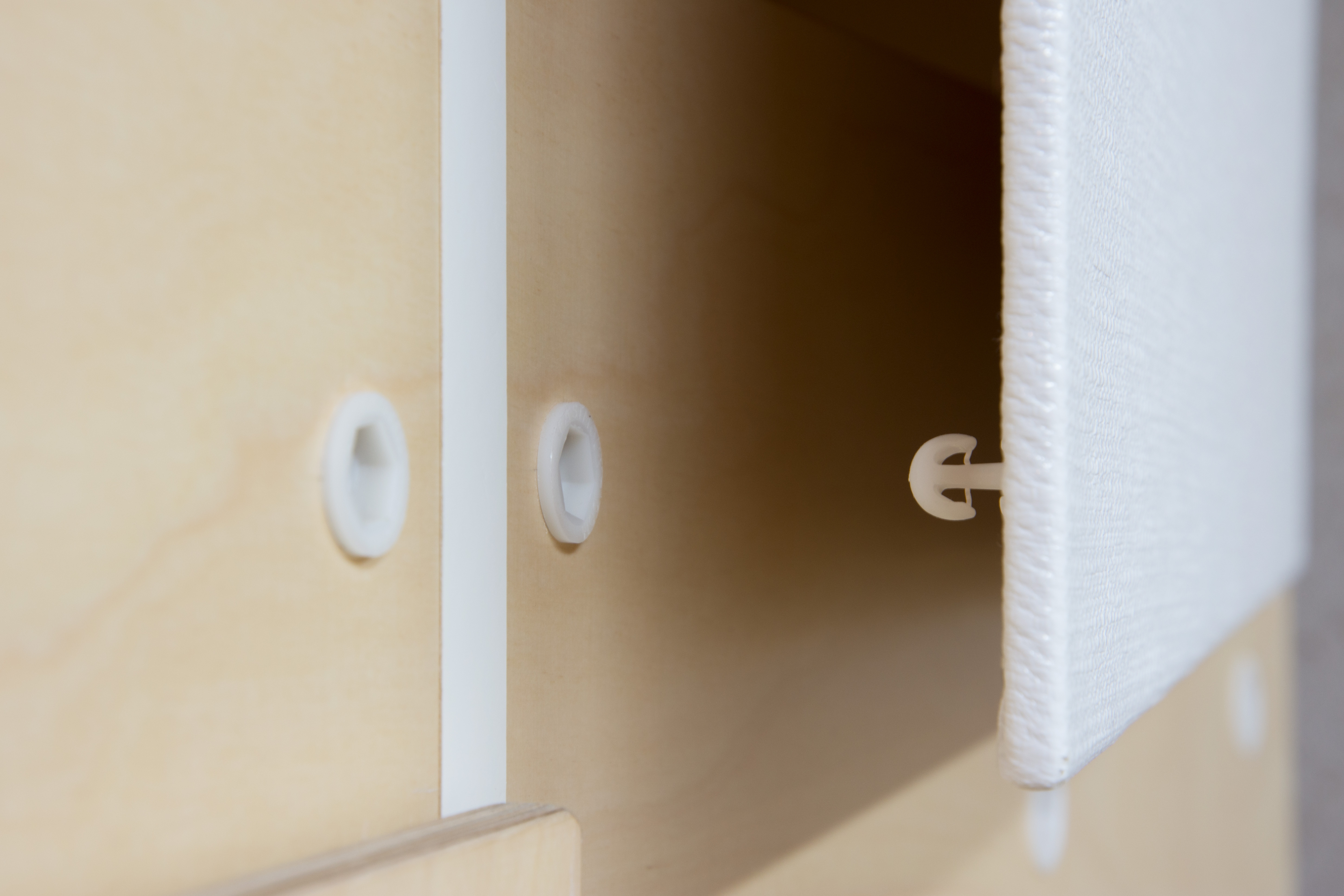

Fastmount™'s Panel mounting system is ideal for removable ceiling and wall panels. All panel clips are interchangeable with each other, to create a hidden fixing system that allows for flexing and expansion of the panel and support frame. To ensure quality, installation and removal tools are supplied.

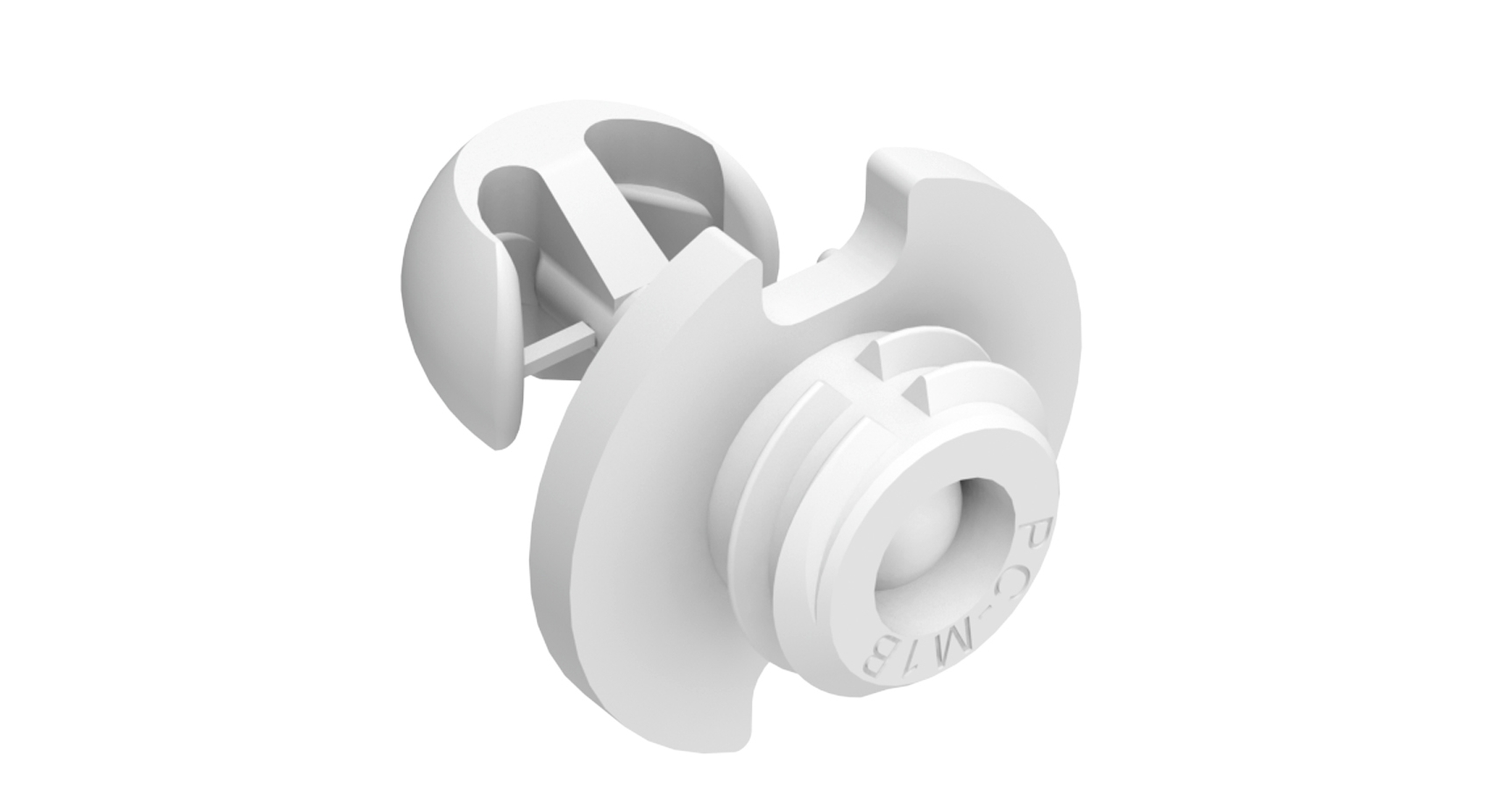

PC-M1B. Self tapping male
Suitable for most panel mounting applications. Each of the clips has a pull out load of 5kg, is fixed with srews into 10mm holes with CT-01 or CT-09 and installed with CT-10.

Hidden Panel Fastener - Standard Range - PC-M1B panel clip

Benefits

  • Self-aligning installation without adhesives
  • Perfect panel alignment and secure mounting every time

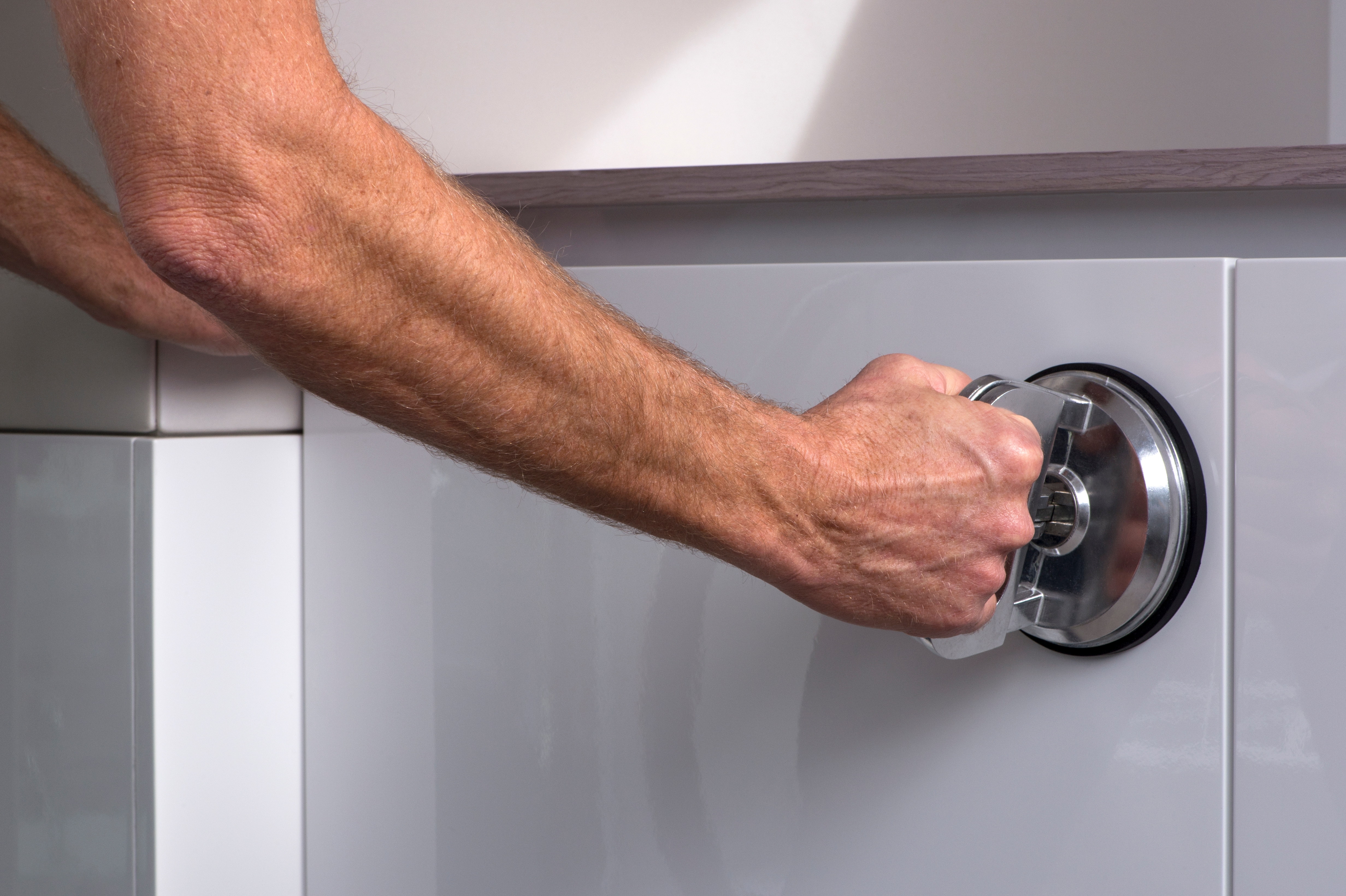

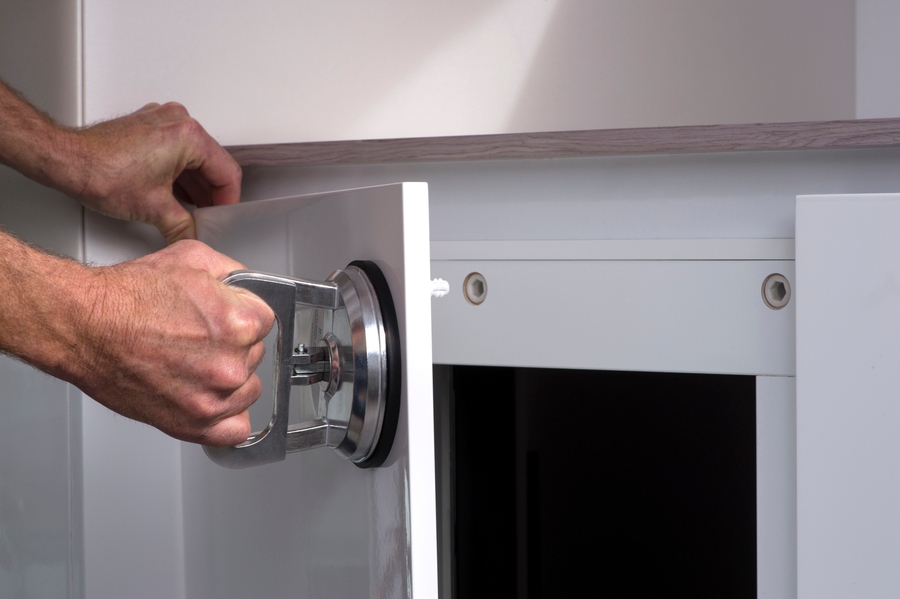

  • Remove and refit panels in any sequence multiple times
  • Saves time and reduces cost
  • 5kg pull out load per clip
  • Allows for flexing and expansion of panel and support frame applications
  • Material: White acetal copolymer

Applications

  • Suitable for covered, painted and prefinished panels

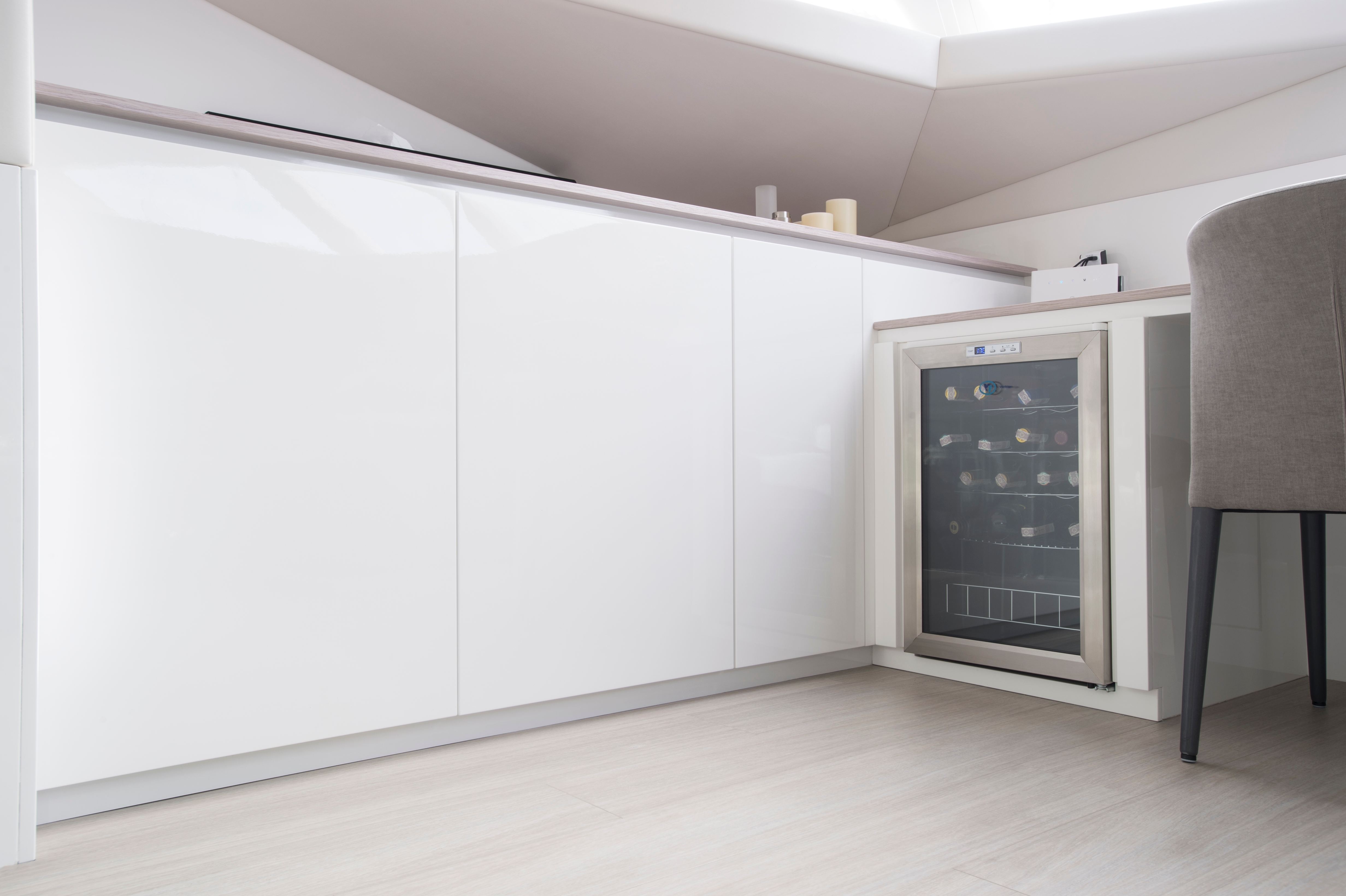

  • Ceiling and wall panels
  • Exterior panels
  • Refits and upgrades of existing installations
  • Install into a variety of substrates
  • Mounting options for composites and thin-walled panels

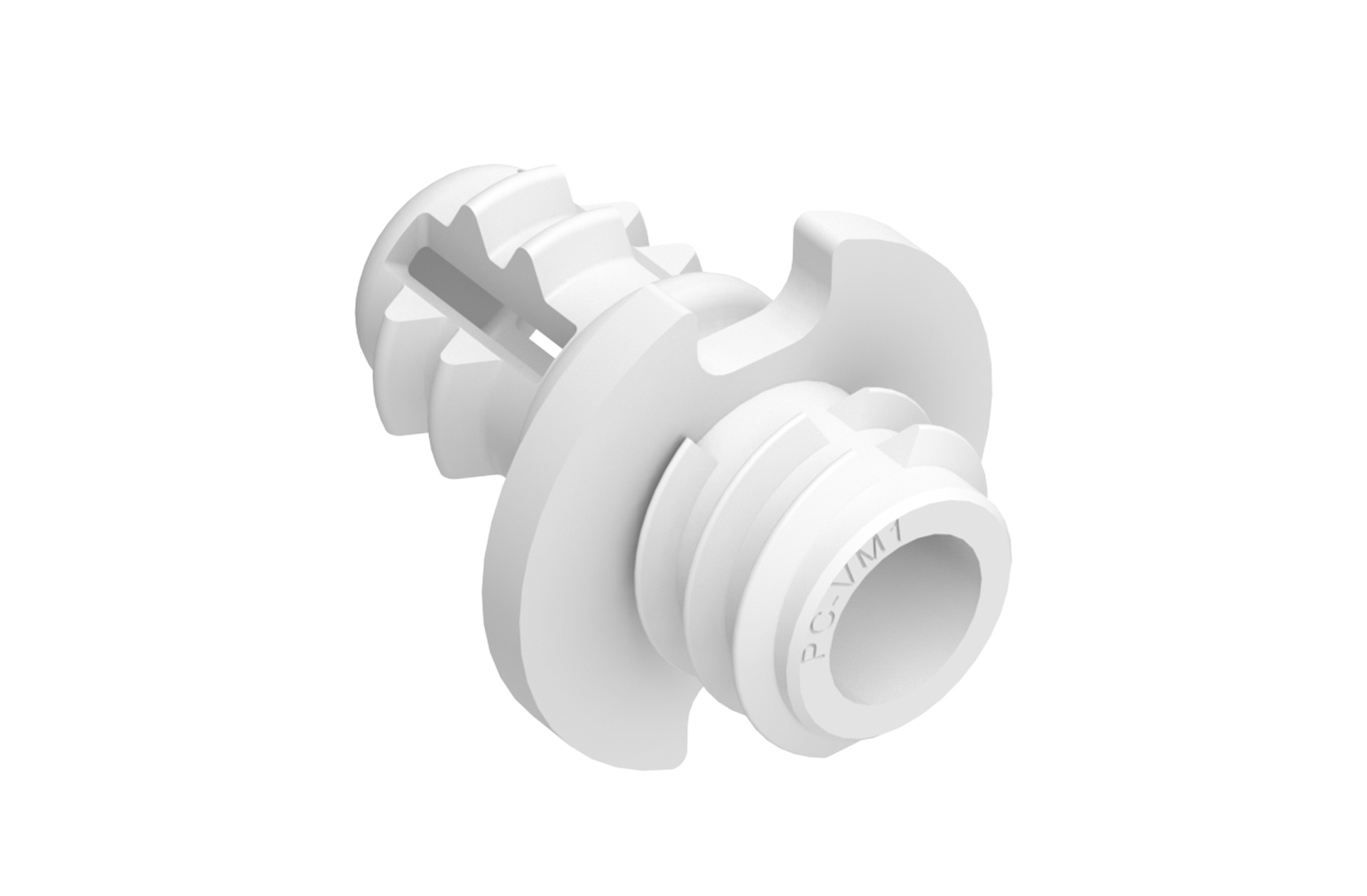

PC-VM1. Self tapping male
The self tapping clip PC-VM1 add to the existing range and are designed for variable gap, high shear strength applications. It has a pull out load of 5kg per clip. The minimum panel thickness is 9mm with screws into 10mm holes using CT-10.

5kg Pull Out Clips - PC-VM1

Benefits

  • Variable clipping depth
  • High shear load (50 kg/clipset)
  • Remove and refit panels in any sequence multiple times
  • Perfect panel alignment and secure mounting every time
  • 5 kg pull out load per clip
  • Durable design for frequent handling
  • Material: White acetal copolymer/Nylon GF

Applications

  • Seat backs and bases
  • Seat backs with removable covers
  • Heavy wall panels
  • Use in conjunction with standard range clips
  • Variety of substrates
  • Use with: PC-SF1, PC-AF1, PC-F1A, PC-RF1

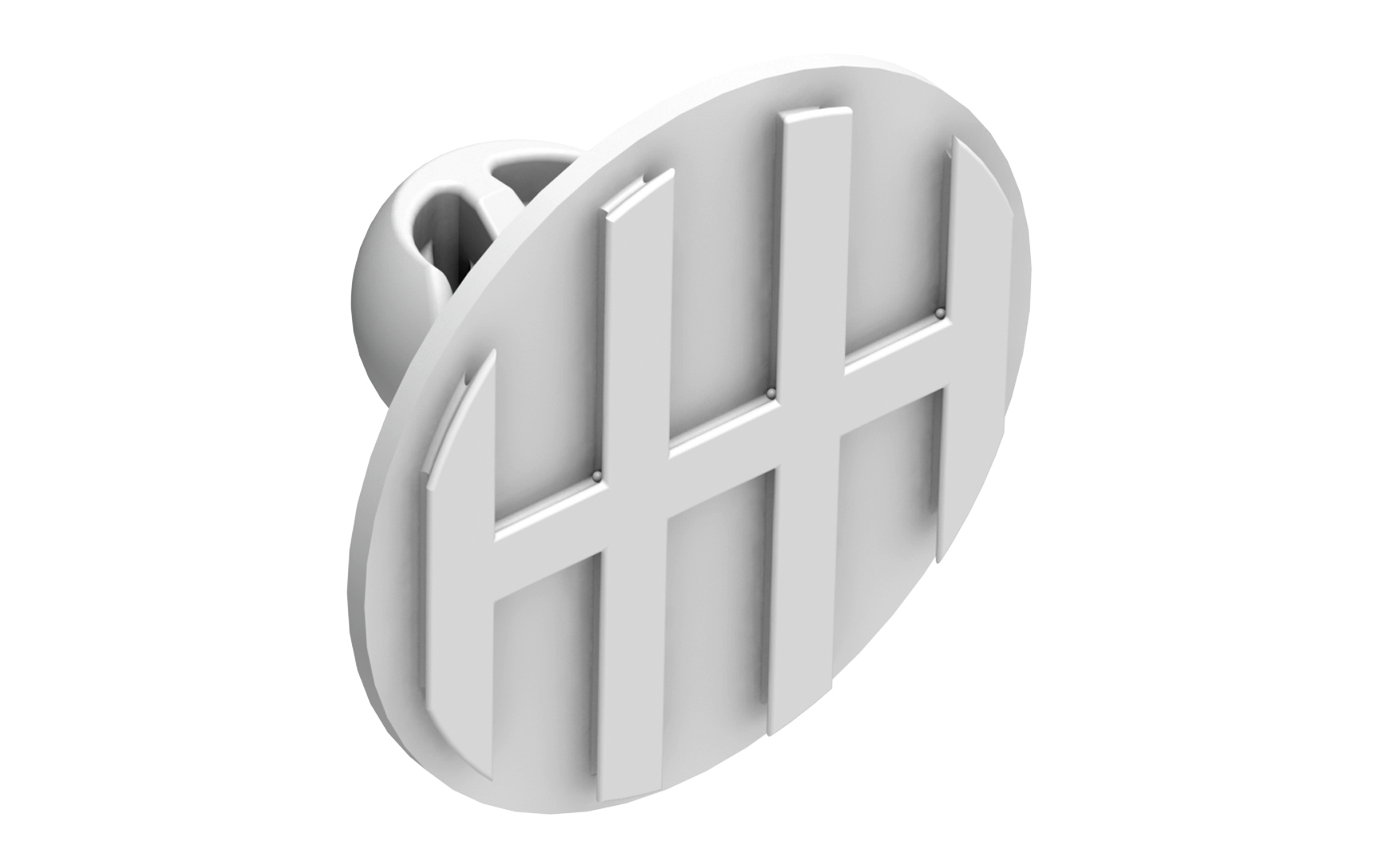

PC-SM2. Surface mount male
The surface mount male is an extension of the Fastmount™ system, designed for the use with thin walled panels and where installers prefer an adhesive fix. It is ideal for new composite materials. Glue fix with Fastmount Supergroove Adhesive or other suitable epoxy glue. No special tools are required for the installation.

5kg Pull Out Clips - PC-SM2

Benefits

  • Self-aligning secure mounting (5kg per clip)
  • Installation requires no special tools or skilled labour
  • Uses Fastmount SuperGroove Adhesive
  • No drilling of panels, fast installation
  • Works with existing Fastmount clips
  • Allows for flexing and and expansion of panel and support frame
  • Material: White acetal copolymer

Applications

  • Mounting thin walled panels less than 6mm thick
  • Soft or honeycomb cored panels with thin facings
  • Mounting panels where no drilling is preferred
  • Ideal for refit
  • Mounts into PC-F1A, PC-SF1, PC-RF1 and PC-AF1.

Compatible with the following female clips:

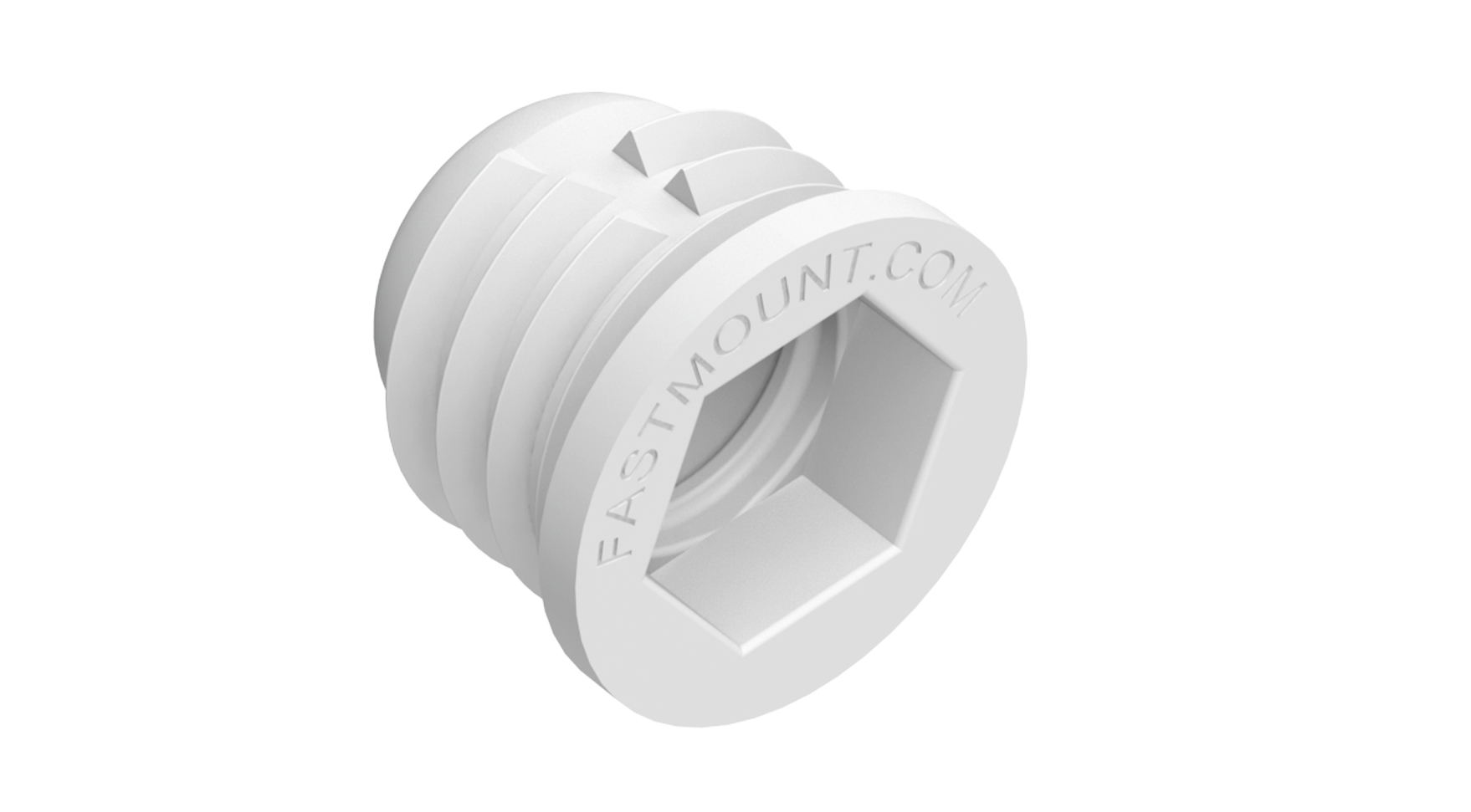

PC-F1A. Self tapping female
The self tapping PC-F1A female clip works with the all Standard range male clips and are designed for adhesive fix, heavy duty, high shear strength or variable gap requirements.

PC-F1A

Benefits

  • Self-aligning installation without adhesives Perfect panel alignment and secure mounting every time
  • Remove and refit panels in any sequence multiple times
  • Saves time and reduces cost
  • Option of 2kg, 5kg, 10kg, or 15kg pull out load per clip
  • Allows for flexing and expansion of panel and support frame
  • Material: White acetal copolymer

Applications

  • Covered, painted and prefinished panels
  • Ceiling and wall panels
  • Exterior panels
  • Refits and upgrades of existing installations
  • Variety of substrates
  • Composites and thin-walled panels
  • Use with: PC-M2H, PC-VM1, PC-SM2, PC-M1B, PC-VMX, PC-SM2H, PC-SM1AC.

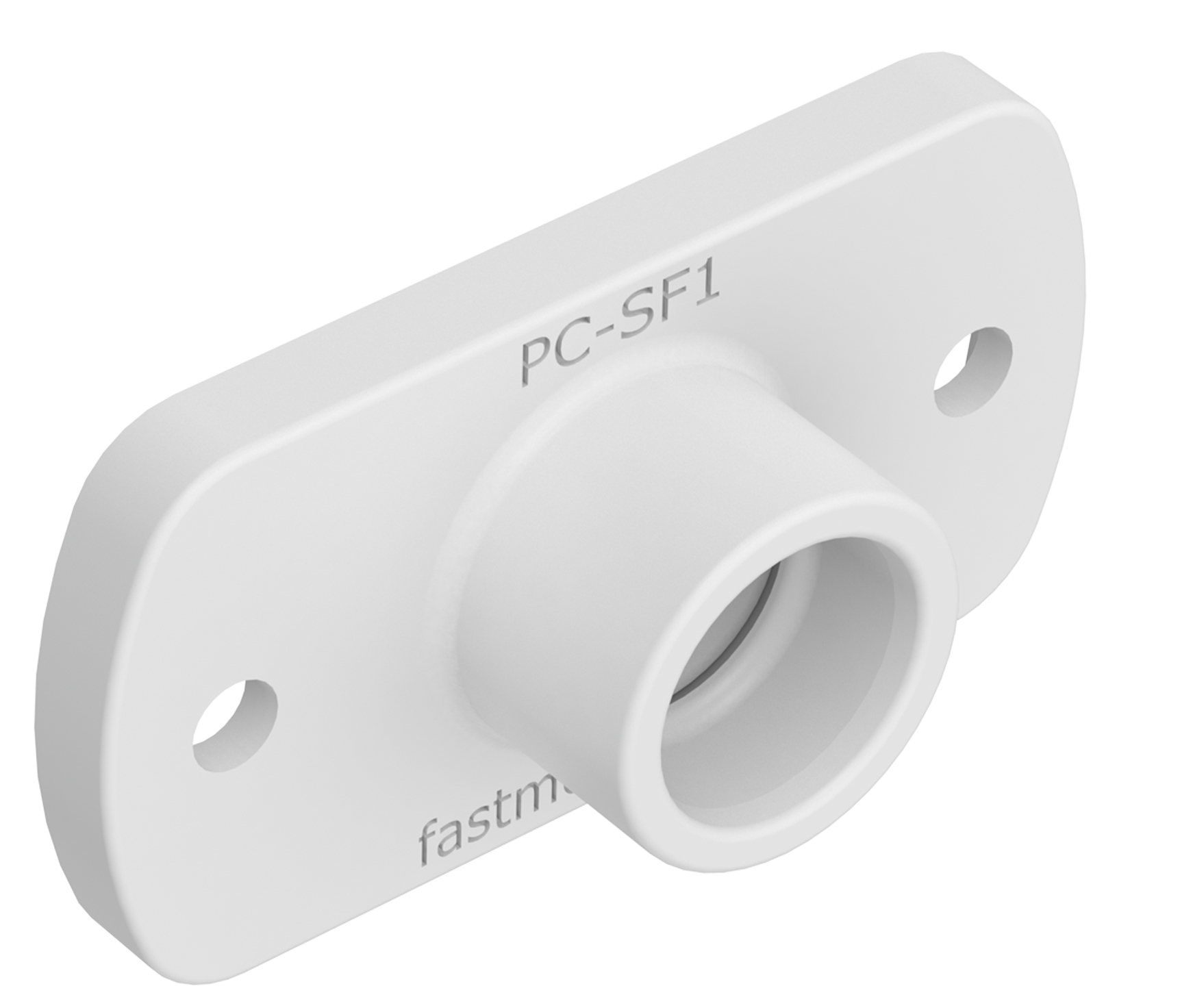

PC-SF1. Surface mount female
The surface mount female is an extension of the Fastmount™ system specifically for use where a cavity is required or where installers prefer a screw-fixed mounting. Use with clips designed for self tapping, adhesive fix, high shear strength and variable gap requirements.

PC-SF1

Benefits

  • Several mounting options
  • Screw fixed to support frame
  • Installation requires no special tools
  • Works with Standard range Fastmount clips
  • Allows for flexing and expansion of panel and support frame
  • Material: White acetal copolymer

Applications

  • Mounting onto aluminium frames
  • Mounting onto fire rated cabins
  • Mounting panels where a cavity between panel and frame is required
  • PC-SF1 can be used on panel or support frame side
  • Use with: PC-M1B, PC-VM1, PC-SM2, PC-M2H, PC-VMX, PC-SM2H, PC-SM1AC.

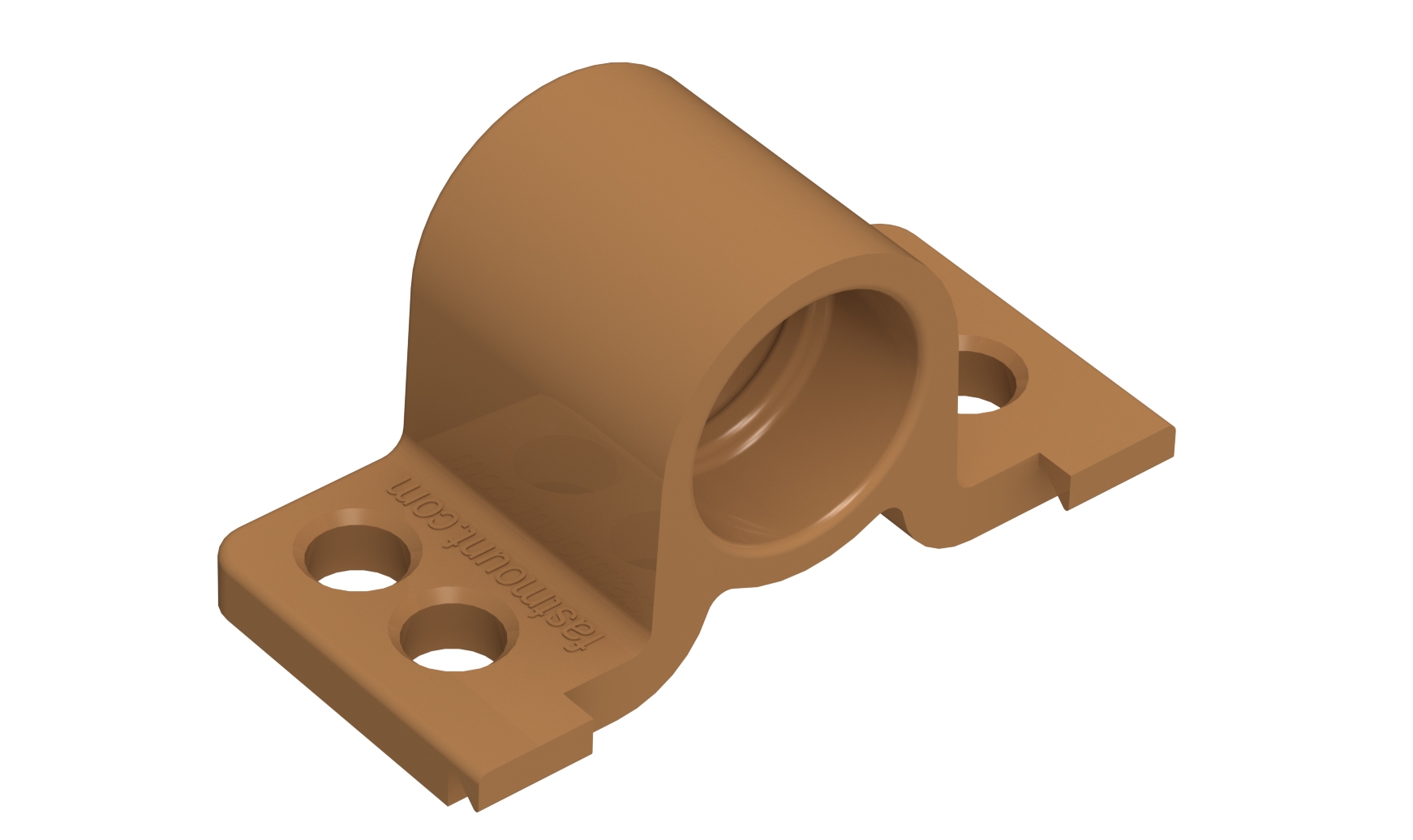

PC-RF1. Side mount female

Ideal for applications that require side mounting, such as refit, cabinet construction or securing floor panels. This versatile screw-fixed clip works with all male clips from the Standard range.

5kg Pull Out Clips - PC-RF1

Benefits

  • Side mounting
  • Installation requires no special tools
  • Screw fixed to frame
  • Several mounting options
  • Works with existing Standard range Fastmount clips
  • Allows for flexing and expansion of panel and support
  • Material: Brown acetal copolymer

Applications

  • Ceiling, wall and exterior panels
  • Cabinet assembly and shelf support
  • Refits and upgrades of existing installations
  • Variety of substrates
  • Floor panels
  • Inspection hatches
  • Use with: PC-M1B, PC-VM1, PC-SM2, PC-SM1AC, PC-M2H, PC-VMX, PC-SM2H.

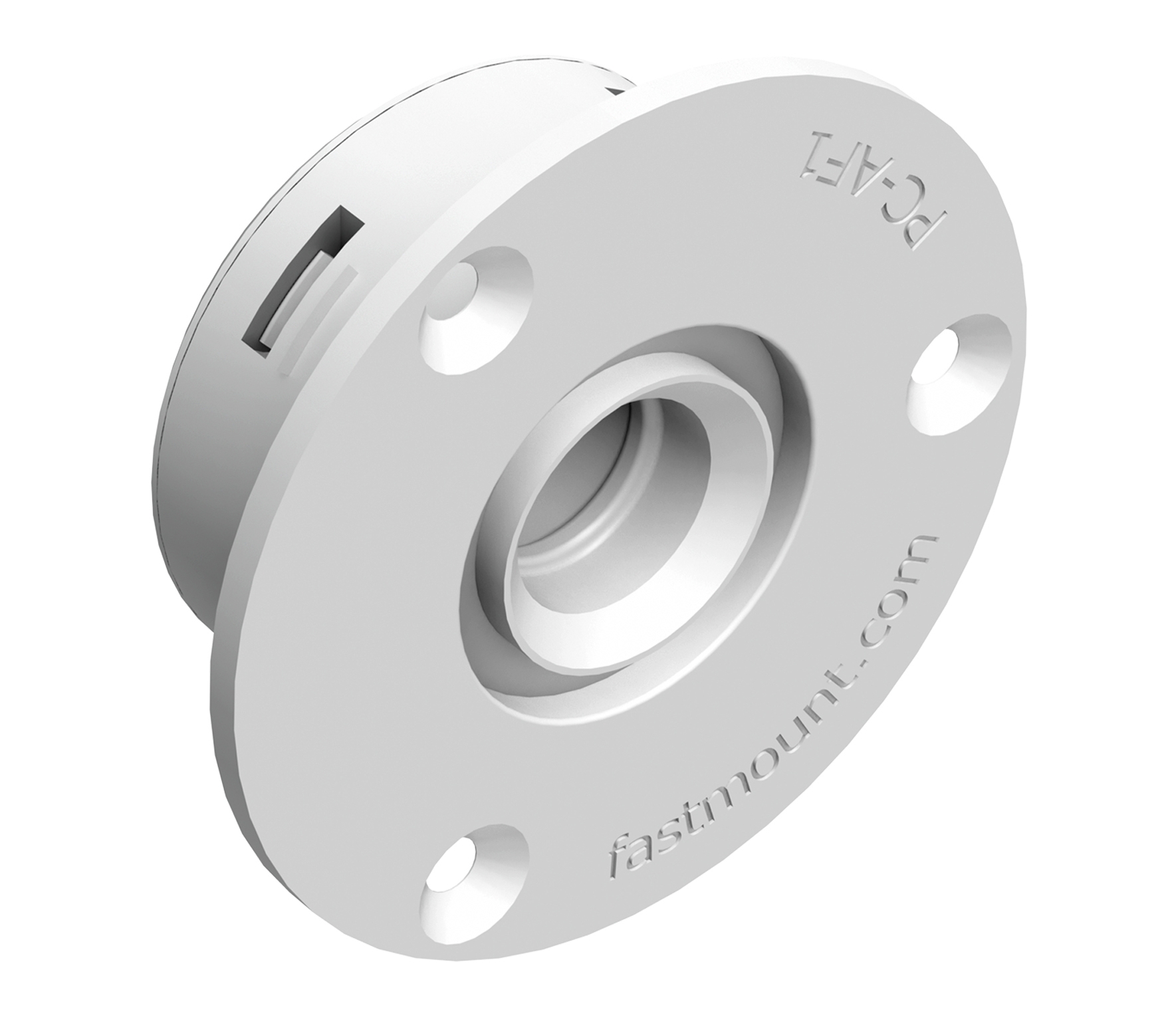

PC-AF1. Autofit female clip
The Fastmount™ autofit PC-AF1 is ideal for applications that require lateral adjustment, such as curved panels. This versatile screw-fixed clip works with all Standard range male clip types.

5kg Pull Out Clips - PC-AF1

Benefits

  • Lateral panel adjustment in all directions
  • Installation requires no special tools
  • Push fit into 35Ø hole
  • Several mounting options
  • Works with Standard range Fastmount clips
  • Material: White acetal copolymer

Application

  • Complex shaped panels where lateral adjustment is required
  • Celing, wall and exterior panels
  • Mounting of curved panels
  • Variety of substrates
  • Moulded into hull
  • Mounts with: PC-F1A, PCRF1, PC-SF1, PC-AF1.

For more information see Fastmount™'s catalogue.
