Reynaers Aluminium presents its Curtain Wall system in different formats. Their aluminum curtain wall systems are well equipped to deal with the requirements which enhance the living and working environment of a building.

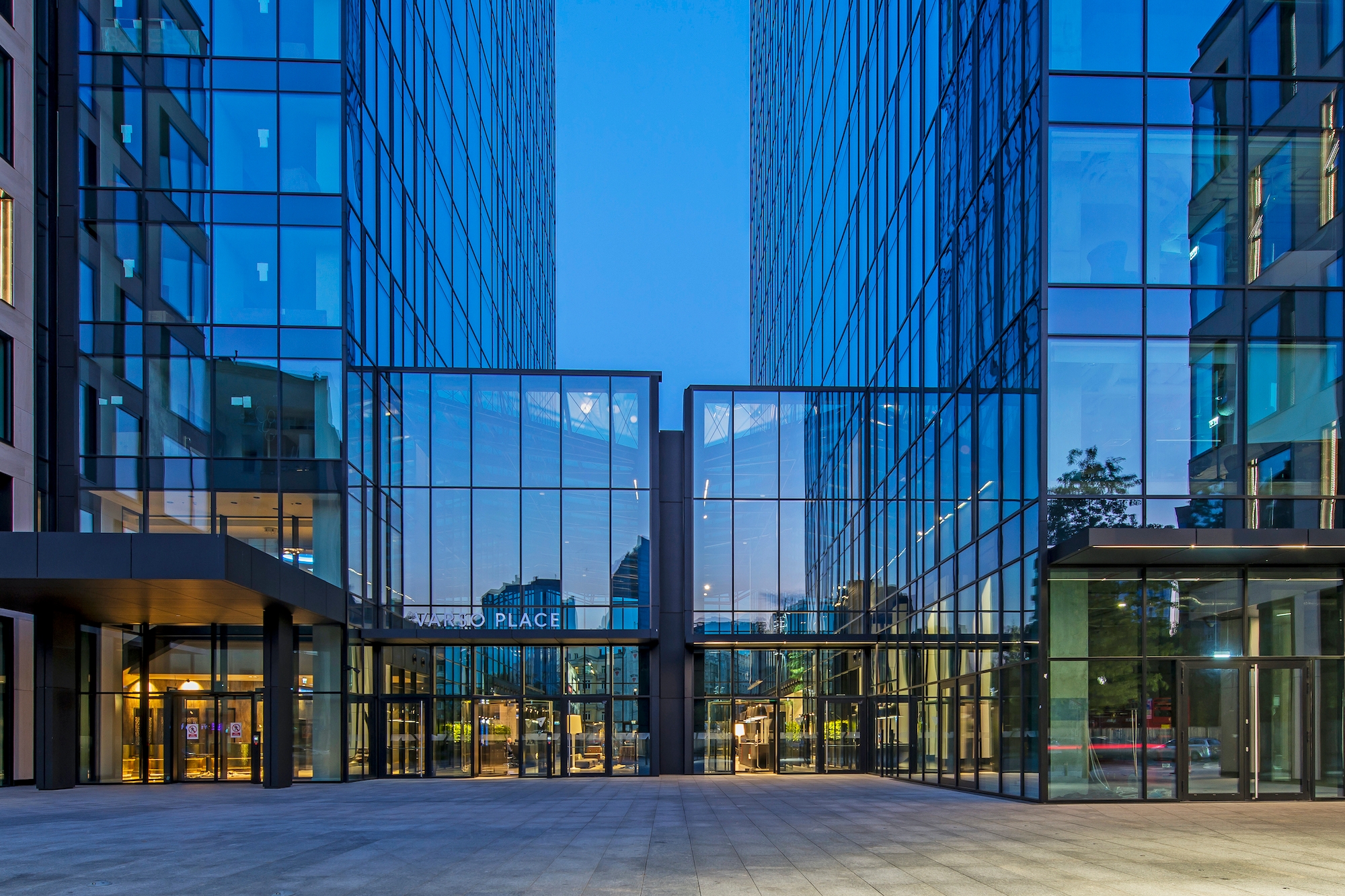

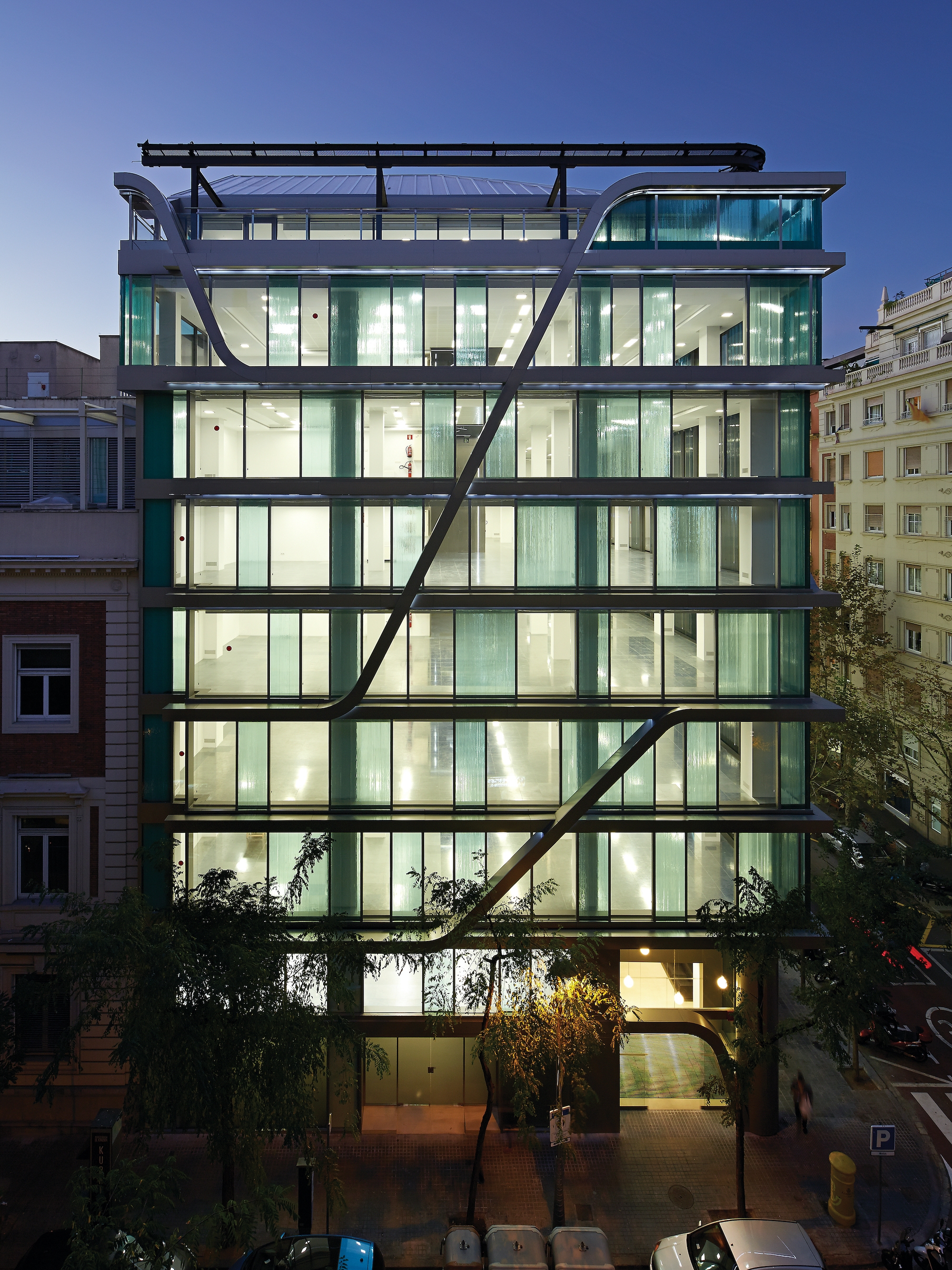

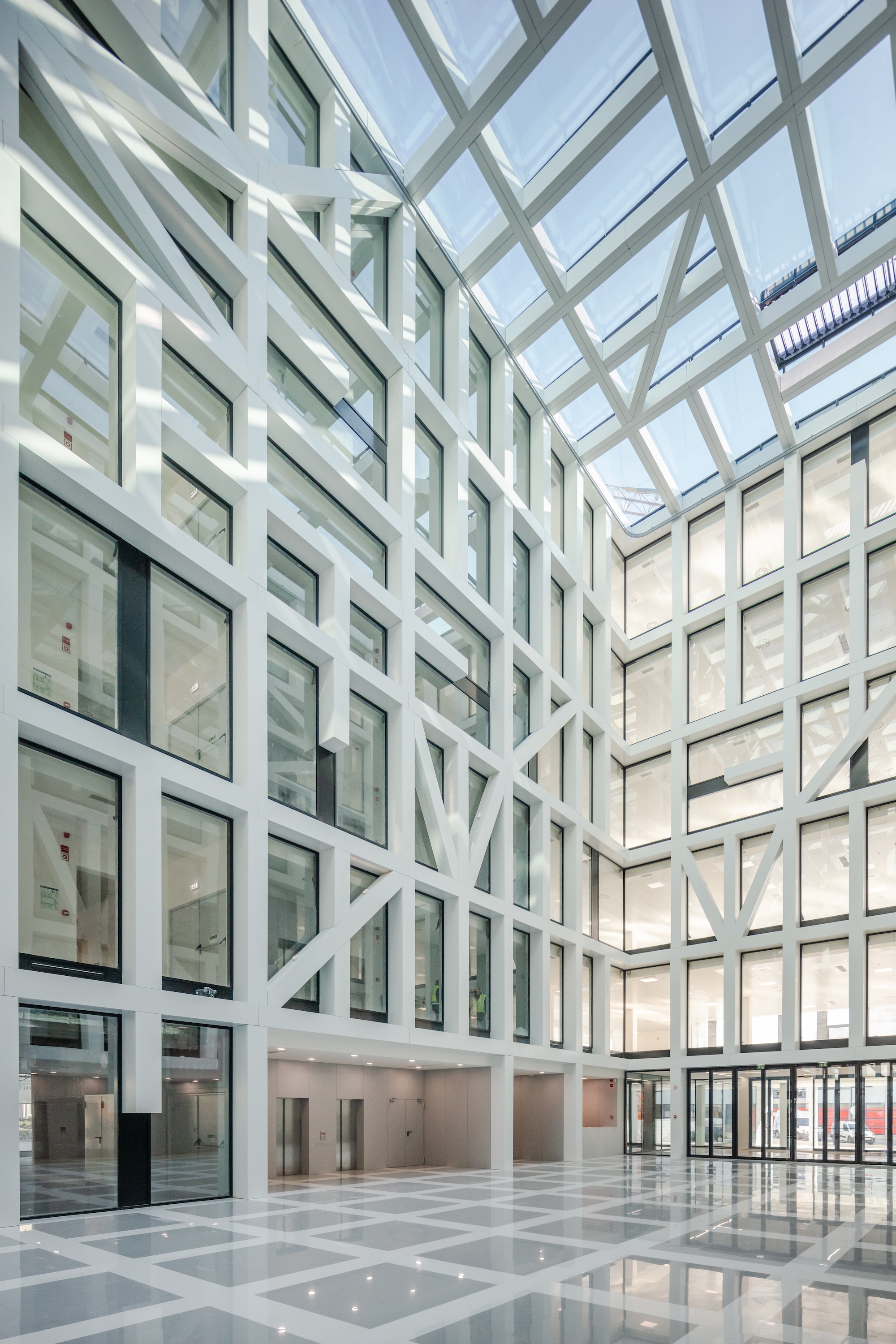

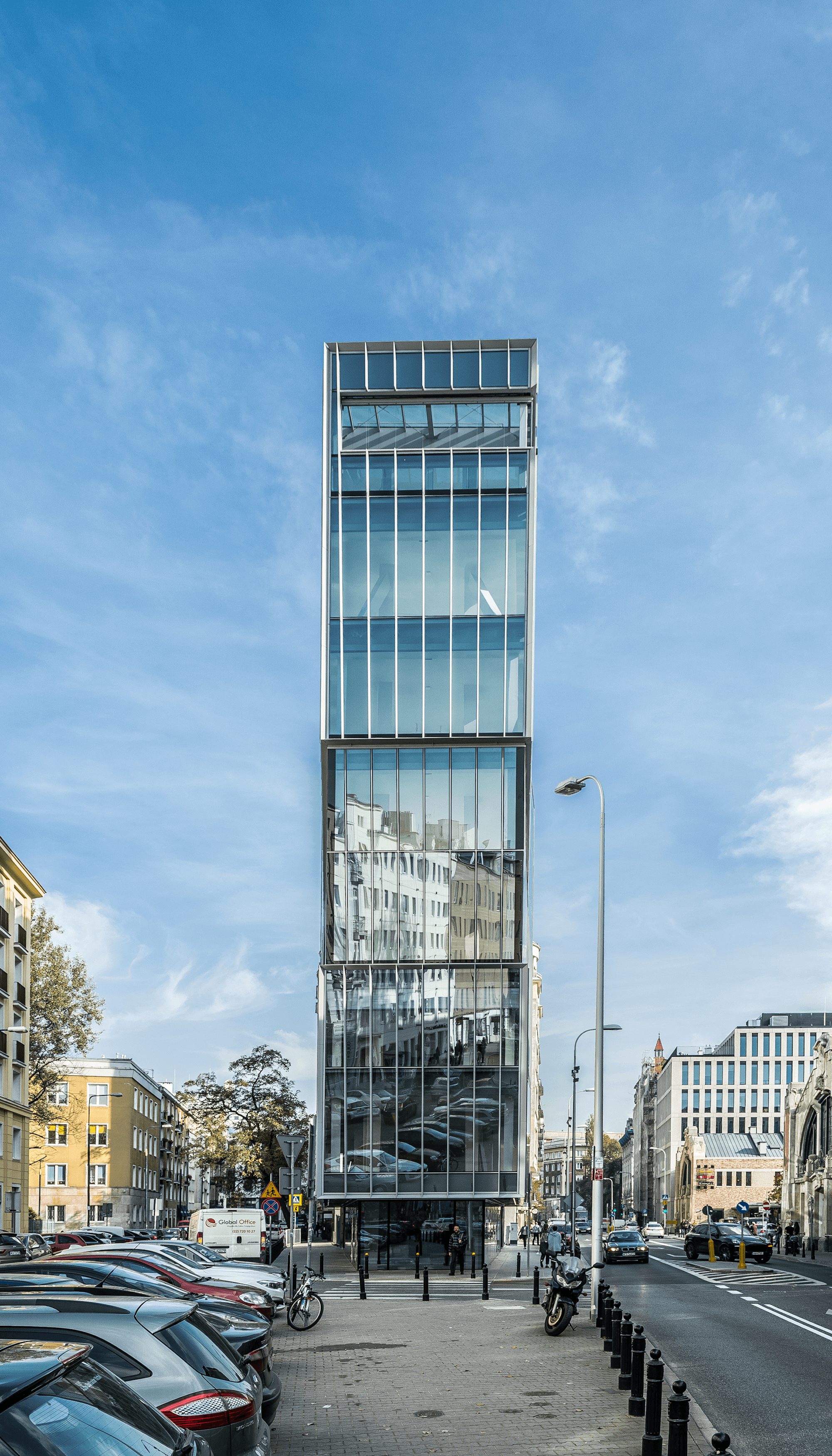

Concept Wall® 50:
This is a façade and roof system that offers unlimited design freedom and allows maximum transparency. As such, CW 50 meets all requirements of contemporary architecture. Innovative solutions contribute towards the tendency of big, heavy and thick glass panes. CW 50 supports up to 150, 310 and 700 kg in various glass support configurations. The system is available in several designs and glazing variants, like steel beam look, standard pressure plates, structurally glazed and structurally clamped solutions. Specified levels of fire-resistance, burglar-proof classes and thermal insulation, down to Uf = 0.56W/ m²K, are provided by different technical variants.

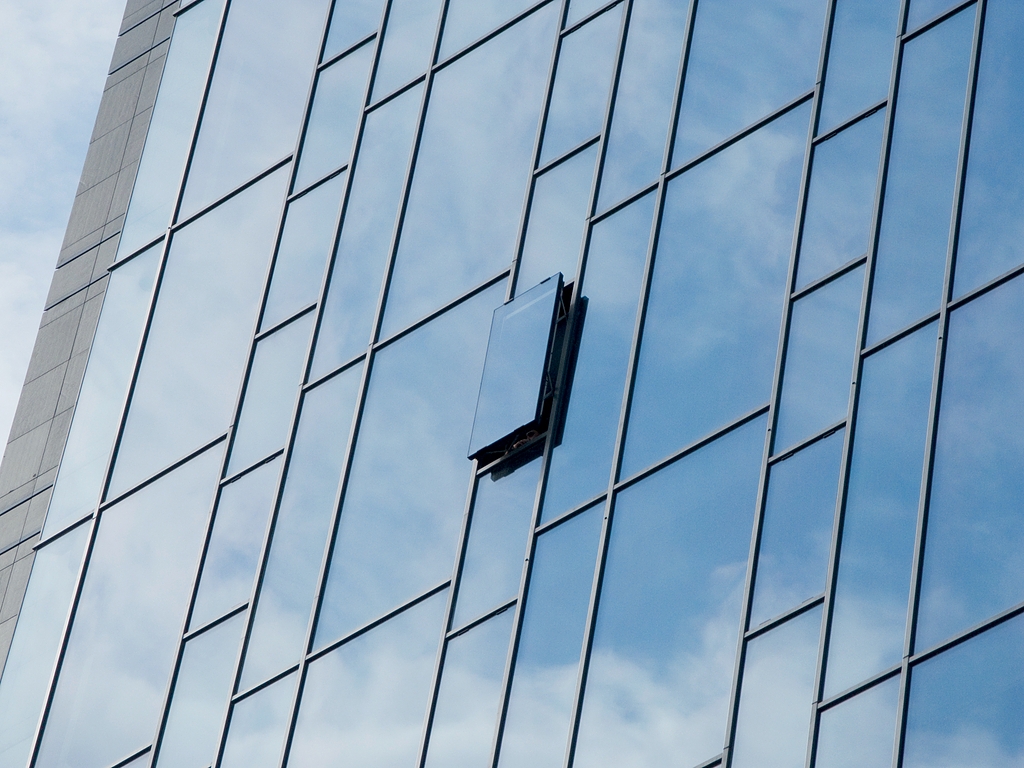

In addition to that, dedicated opening types can also be seamlessly integrated; a parallel opening window, a top hung window, a hidden vent turn and tilt window, but also a flush roof vent for integration in roof applications of CW 50. The CW 50 stands for an extensive range of profiles, gaskets, accessories, and tools. It is specially developed for easy fabrication and installation.
Concept Wall® 60:
Is an excellent thermally insulated aluminum curtain wall system from Reynaers Aluminium for the robust structure of large glass surfaces, that answers even to the specific needs of sloped or curved constructions. This modular system is designed with intelligently reinforced profiles, allowing the installation of heavyweight glass panels. The CW 60 concept meets the highest requirements in water- and air tightness, wind load resistance, and thermal insulation. The glazing is secured by a rebate height of 25 mm. The ability to hold up to 62 mm of glass thickness makes it possible to integrate triple glazing. This curtain wall system is standard available in 4 different aesthetical outside appearances. In addition, CW 60 is made up of an extensive profile range and facilitates the integration of all types of windows including attic windows.
Concept Wall 65:
Façade element from Reynaers Aluminium enables unitized façades to be completely preassembled in the workshop. This results in a high execution speed on the site. Productivity here, however, embraces architectural aesthetic requirements as the CW 65-EF works with slender profiles of only 65 mm. The slender profile is strong and can be used for maximum widths of 1600 mm and heights up to 3700 mm. The façade system is thus well suited for high-rise constructions. Profiles can easily be adapted to fit project depending requirements.
CW 65-EF provides increased insulation with an Uf-value of up to 2.6 W/m²K. The opening elements such as a top hung and parallel opening window can be integrated into the system. The high insulation variant, CW 65-EF-HI, offers increased insulation with a Uf-value of up to 1,5 W/m²K and allows for the installation of triple glazing up to 63mm glass thickness. CW 65-EF is also available in the aesthetic looking structural glazing version where the glass plates are separated by a minimum joint of 16 mm. The glass plate itself is glued directly onto a pre-assembled frame, reducing the required number of components and further minimizing the construction time.
Concept Wall 86:
With CW 86 Reynaers Aluminium architects can build cassette façades using a traditional stick structure (CW 86). It also enables unitized façades (CW 86-EF) to be completely pre-assembled in the workshop that results in a high execution speed on the building site. CW 86 is available in Structural Glazing (SG) and Cassette Glazing (CG). The system makes the motorization of opening elements such as top hung or parallel opening windows possible. Different types of windows, doors, sliding systems, and brise soleil can be integrated and different inner and outer colors are available.
You can find the BIM models for this product here.
