Steampunk Pavilion / Gwyllim Jahn & Cameron Newnham + Soomeen Hahm Design + Igor Pantic

Steampunk Pavilion / Gwyllim Jahn & Cameron Newnham + Soomeen Hahm Design + Igor Pantic - Image 2 of 19Steampunk Pavilion / Gwyllim Jahn & Cameron Newnham + Soomeen Hahm Design + Igor Pantic - Image 3 of 19Steampunk Pavilion / Gwyllim Jahn & Cameron Newnham + Soomeen Hahm Design + Igor Pantic - Image 4 of 19Steampunk Pavilion / Gwyllim Jahn & Cameron Newnham + Soomeen Hahm Design + Igor Pantic - Image 5 of 19Steampunk Pavilion / Gwyllim Jahn & Cameron Newnham + Soomeen Hahm Design + Igor Pantic - More Images+ 14

  • Area Area of this architecture project Area:  25
  • Year Completion year of this architecture project Year:  2019
  • Photographs
    Photographs:Tõnu Tunnel
  • Manufacturers Brands with products used in this architecture project
    Manufacturers:  Fologram, Robert McNeel & Associates
  • Lead Architects: Gwyllm Jahn, Cameron Newnham, Soomeen Hahm, Igor Pantic
  • Project Team: Sean Guy, Xavier Madden, Nick van den Berg, Hanjun Kim, Aishe Kokoshi, Triin Juhanson, Karim Rouabah, Szymon Padlewski, Thorlak Solberg, Christopher Ferris, Jack Mansfield-Hung, James Morton, Muhammad Ejle, Taivo Lints, Hugo Loydell, Mathilde Grodem, Trine Jarsto, Bodil Eiterstraum, Gerda Levin, Simon Greil, Linn Johansson, Filip Nyborg, Anne Frydenlund, Arissara Reed, Haya Termanini, Mikkel Sorenson, Katrin-Maria Terras, Liis Aleksejeva, Annika Ülejõe, Kertu Jõeste, AnnaLiisa Saavaste, Helena Ojabstein, Lukas Winter, Philippe Hannequart, Tristan Krevald, Finbar Charleson, Ben Norris and Tom Morgan, Katerina Konstantinidou.
  • Client: Tallinn Architecture Biennale 2019
  • City: Tallin
  • Country: Estonia
More SpecsLess Specs
Steampunk Pavilion / Gwyllim Jahn & Cameron Newnham + Soomeen Hahm Design + Igor Pantic - Image 7 of 19
© Tõnu Tunnel

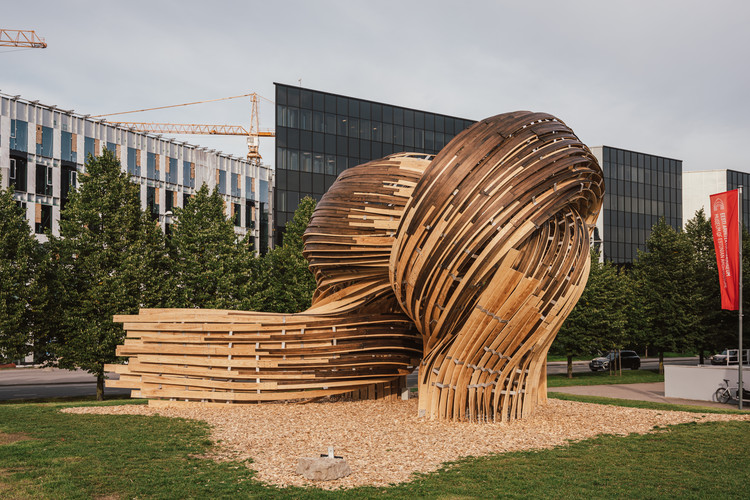

Steampunk is a pavilion constructed from steam-bent hardwood using primitive hand tools augmented with the precision of intelligent holographic guides. Designed by Gwyllim Jahn, Cameron Newnham (Fologram), Soomeen Hahm Design and Igor Pantic with Format Engineers, the installation was built for the 5th edition of Tallinn Architecture Biennale (TAB 2019) in Estonia, and will remain in place until the Biennale’s next edition in 2021.

Steampunk Pavilion / Gwyllim Jahn & Cameron Newnham + Soomeen Hahm Design + Igor Pantic - Image 16 of 19
© Tõnu Tunnel

As the designers of Steampunk we have not produced drawings or lines of CNC code from which parts of our design might be cut, printed or assembled and instead have developed an experimental approach to materialising architecture that serves as a deliberate polemic in the context of robotic production and automation. While computer aided manufacturing and robotics have given architects unprecedented control over the materialization of their designs, the nuance and subtlety commonly found in traditional craft practices is absent from the artefacts of robotic production because the intuition and understanding of the qualitative aspects of a project as well as the quantitative is difficult to describe in the deterministic and explicit language of these machines.

Steampunk Pavilion / Gwyllim Jahn & Cameron Newnham + Soomeen Hahm Design + Igor Pantic - Image 6 of 19
© Tõnu Tunnel

We are interested in approaches to making that hybridize analogue construction with the precision and flexibility of digital models. By rendering digital models as holographic overlays directly within construction environments, fabricators can use their own expertise and inventiveness to produce highly intricate and complex objects entirely by following these holographic guides using relatively primitive analogue tools. This approach removes the necessity of anticipating every aspect of material behaviour in digital models and in so doing leaves open a certain degree of indeterminacy as material affects are discovered, desired and amplified during construction. It is this liberation of digital expression from the constraints of digital fabrication, together with the opportunity for nuance and material affects derived from material craft, that drive the architectural effects of the pavilion.

Steampunk Pavilion / Gwyllim Jahn & Cameron Newnham + Soomeen Hahm Design + Igor Pantic - Image 10 of 19
© Tõnu Tunnel

The plan of the pavilion is a cross that divides the grassy mound of the Biennial site into four distinct spaces that frame views towards the old city of Tallinn and the Architecture Museum. The variable surface effects in the pavilion are a product of expediency, as bending three dimensional curves from straight 100x10mm boards forces the timber profile to twist along its length. This attempt to produce an architecture from standardised lengths of material is more akin to weaving than assembling, and twisting timber sections contribute stiffness and compression strength to a composite timber and steel shell. Tracing the lines of the woven timber leads from conventional orthogonal surfaces to the complete break down of familiar topology, toying with the ambiguity of the form of the knot, inside and outside, surface and volume. In order to create a strong enough shell structure from light weight materials the pavilion also plays with positive and negative space, defining an intimate interior from a massive poche.

Steampunk Pavilion / Gwyllim Jahn & Cameron Newnham + Soomeen Hahm Design + Igor Pantic - Image 14 of 19
© Tõnu Tunnel

The timber elements in the structure are fabricated following the somewhat arcane and notoriously difficult process of steam bending. Each strip is bagged, steamed, and bent over an adaptable, moldless formwork using a holographic model as a reference to the desired result. This fabrication process utilizes two forms of feedback: holographic models provide fabricators with clear visual feedback on the accuracy of the forming process and allow them to intuitively adapt fabrication techniques or formwork positions until parts match digital models within accepted tolerances. Physical parts can also be digitized and fed back into the digital model, allowing the design to accomodate and adapt where necessary. In each case the feedback is a direct collaboration between designer and maker, between expected behaviour and observed results. The beauty of the project lies in this tension, in deciding when to give and take, when to adhere to preconceived design intent and when to abandon precision and begin to react.

Project gallery

See allShow less

Project location

Address:Tallinn, Estonia
