  7. The Compound Pistil Pavilion / NanJing University Of The Arts

The Compound Pistil Pavilion / NanJing University Of The Arts

  • 23:00 - 19 June, 2019
  • Curated by 韩爽 - HAN Shuang
The Compound Pistil Pavilion / NanJing University Of The Arts
The Compound Pistil Pavilion / NanJing University Of The Arts, The scene of the day. Image © Ping Hu
The scene of the day. Image © Ping Hu

The space of minimal surface. Image © Ping Hu The space of minimal surface. Image © Ping Hu Rest space. Image © Ping Hu Rest space. Image © Ping Hu + 19

  • Architects

  • Location

    Nanjing University of the Arts, Nanjing, Jiangsu, China
  • Category

  • Design Team

    Xiangru Liu, Jinlu Zhang, Ping Hu, Fan Wen, Xuan'an Li, Xiaojin Li, Xiaoting Li, Xingguang Chen
  • Tutor

    Jiong Xu
  • Project Year

    2019
  • Photographs

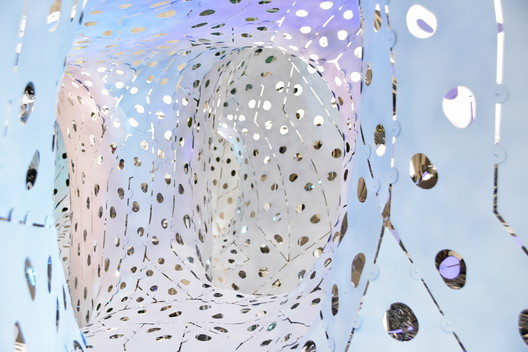

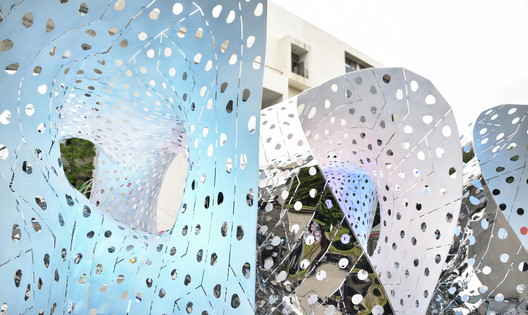

The space of minimal surface. Image © Ping Hu
The space of minimal surface. Image © Ping Hu

Text description provided by the architects. The research direction of this space installation is “formation and digital construction of extremely small curved surfaces”. The design team members integrate the forms of two flowers into the design and create the “double-core” virtual form through the computer.

The space of minimal surface. Image © Ping Hu
The space of minimal surface. Image © Ping Hu

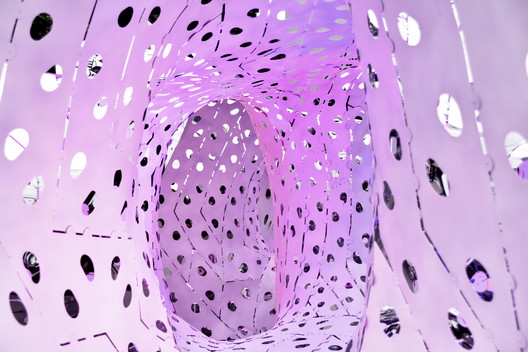

The space of minimal surface. Image © Ping Hu
The space of minimal surface. Image © Ping Hu

The surface of the work is segmented and flattened by the grid block algorithm of grasshopper software. Then, 397 mirrored stainless steel plates are formed by block cutting machine, CNC engraving equipment, and 2200 holes are connected by the rivet. The steel plate with a thickness of only 0.3 mm is constructed by self-supporting materials to form a physicalized space.

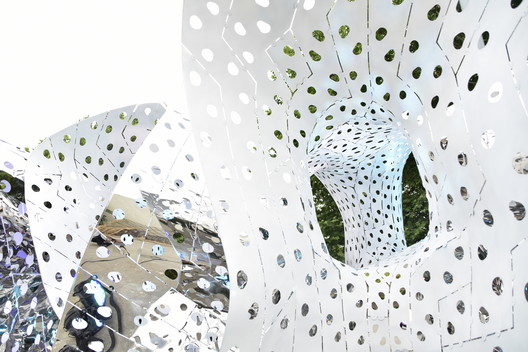

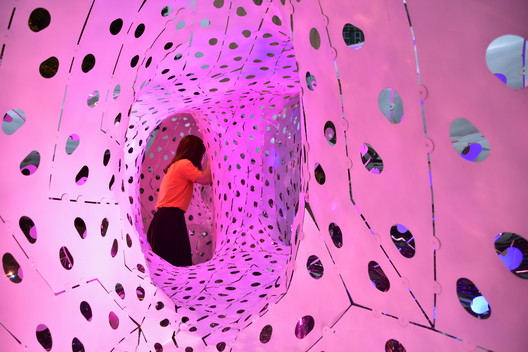

Rest space. Image © Ping Hu
Rest space. Image © Ping Hu

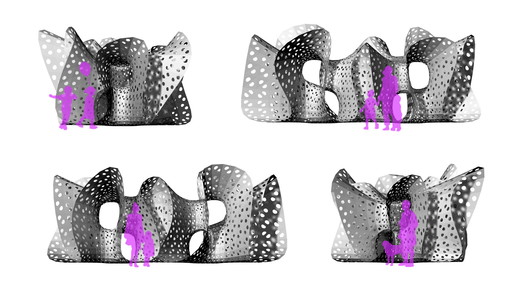

Formal evolution
Formal evolution
CNC data
CNC data

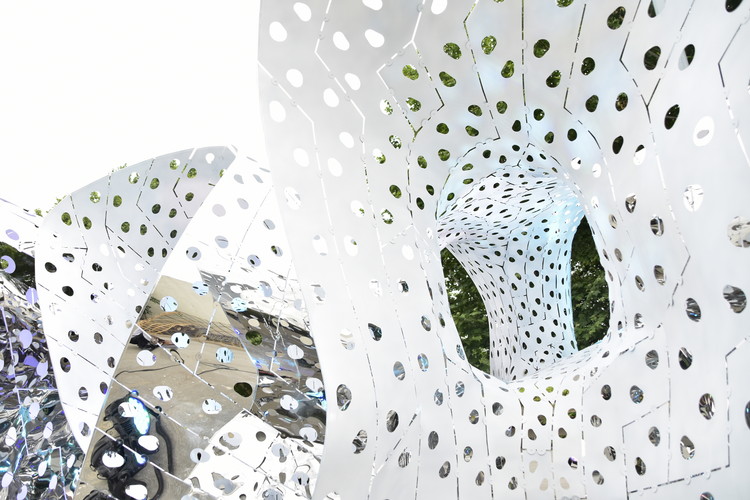

Rest space. Image © Ping Hu
Rest space. Image © Ping Hu

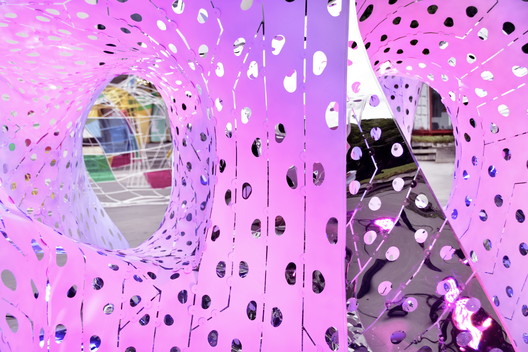

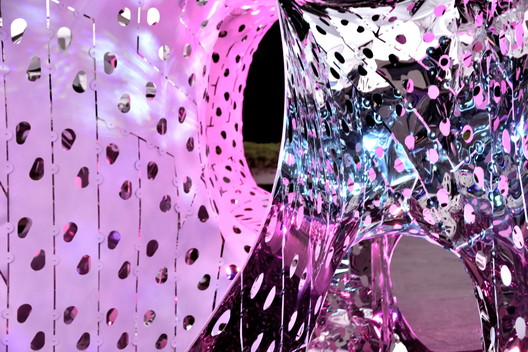

The inner and outer surface form an interesting Mobius ring space, since the interface of the work is painted in white. The work produced different spatial and visual experiences in different situations as daylight and evening lighting. The varied and complex spatial layers make the work full of unique place spirit.

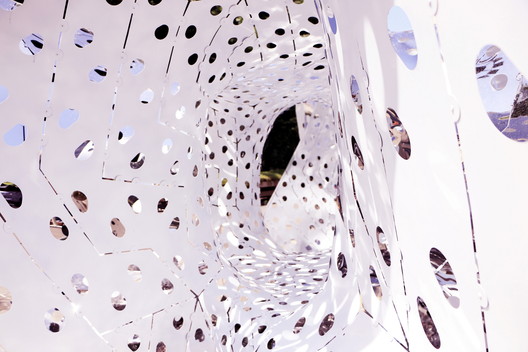

The space of minimal surface. Image © Ping Hu
The space of minimal surface. Image © Ping Hu
Rest space. Image © Ping Hu
Rest space. Image © Ping Hu
