Vali Homes Prototype / colab studio + 180 degrees design

  • 01:00 - 27 December, 2014
Vali Homes Prototype / colab studio + 180 degrees design
Vali Homes Prototype / colab studio + 180 degrees design , © Mark Bosclaire
© Mark Bosclaire

© Mark Bosclaire © Mark Bosclaire © Mark Bosclaire © Mark Bosclaire + 17

  • Structural

    BDA engineers, ltd.
  • Mechanical

    Otterbein Engineering
  • Electrical

    Woodward Engineering
  • Civil

    DRW
  • More Specs Less Specs
© Mark Bosclaire
© Mark Bosclaire

Text description provided by the architects. A triumvirate team of Developer/Sustainability-Consultant, Architect, and General Contractor engaged in creating a standard plan prototype house for infill lots in downtown Phoenix. Three main goals were:

1. Create a prototype house inspired by the “case-study” homes of the 1960’s, designed for our time and place, and with the greatest amount of sustainability possible.

© Mark Bosclaire
© Mark Bosclaire

2. Create a low-to-mid cost home with high design, quality, and sustainability.

3. Create a design that may be replicated for any typical lot within Phoenix.

© Mark Bosclaire
© Mark Bosclaire

The team processed six versions. We tested, energy-modelled, and priced each to find an optimal balance between design, performance, and cost.

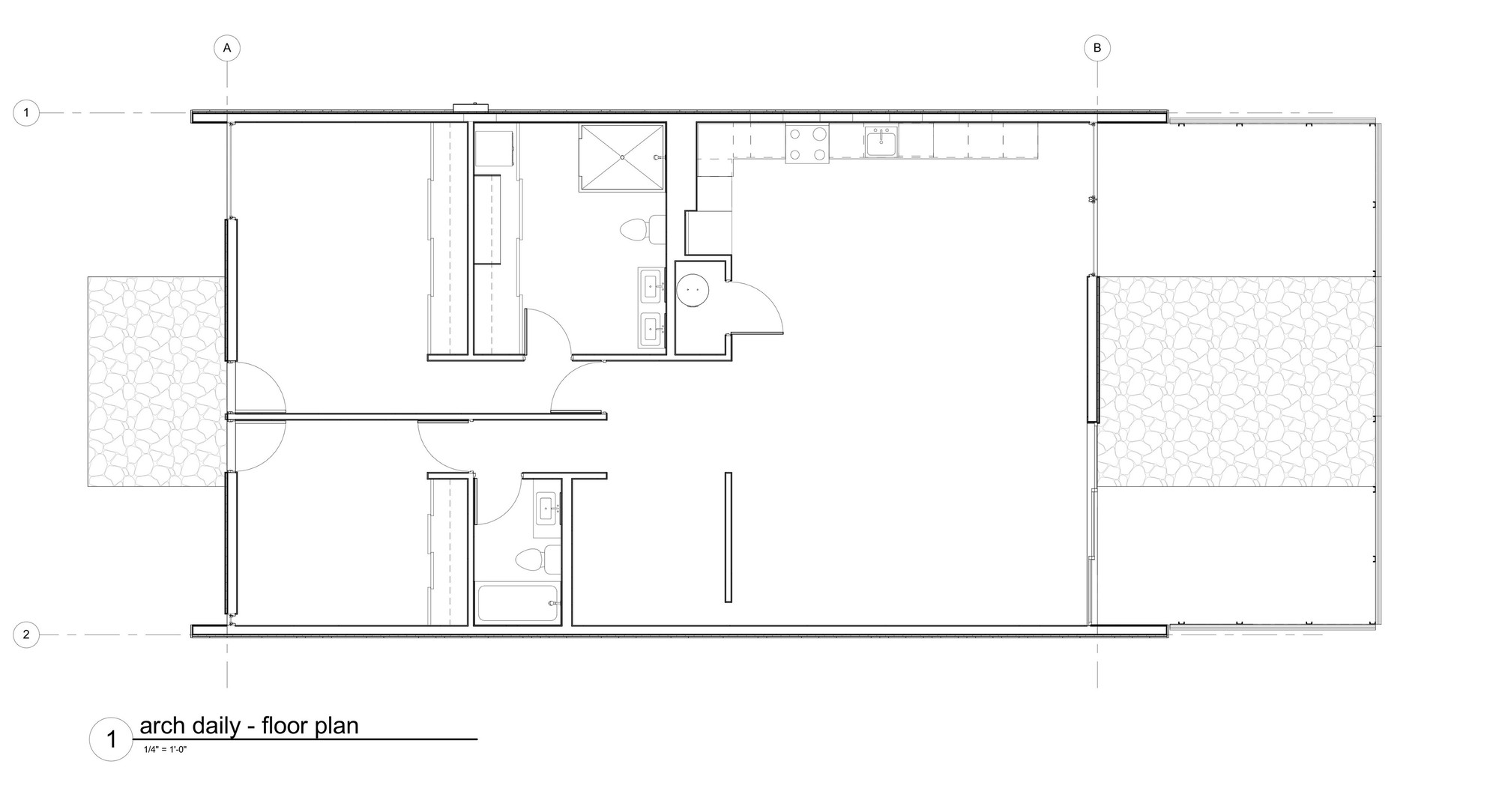

Floor Plan
Floor Plan

The two-bedroom home is designed to fit on any typical lot downtown. The goal is to improve existing neighborhoods by building homes where derelict sites currently exist.

© Mark Bosclaire
© Mark Bosclaire

The home surpassed LEED Platinum certification, and provided a blower test rating of .68 ach50. The 1500 GSF house uses about 6000 kWh (about $700 worth) of electricity per year offset by a 3.6 kw PV system for a net-positive energy house.

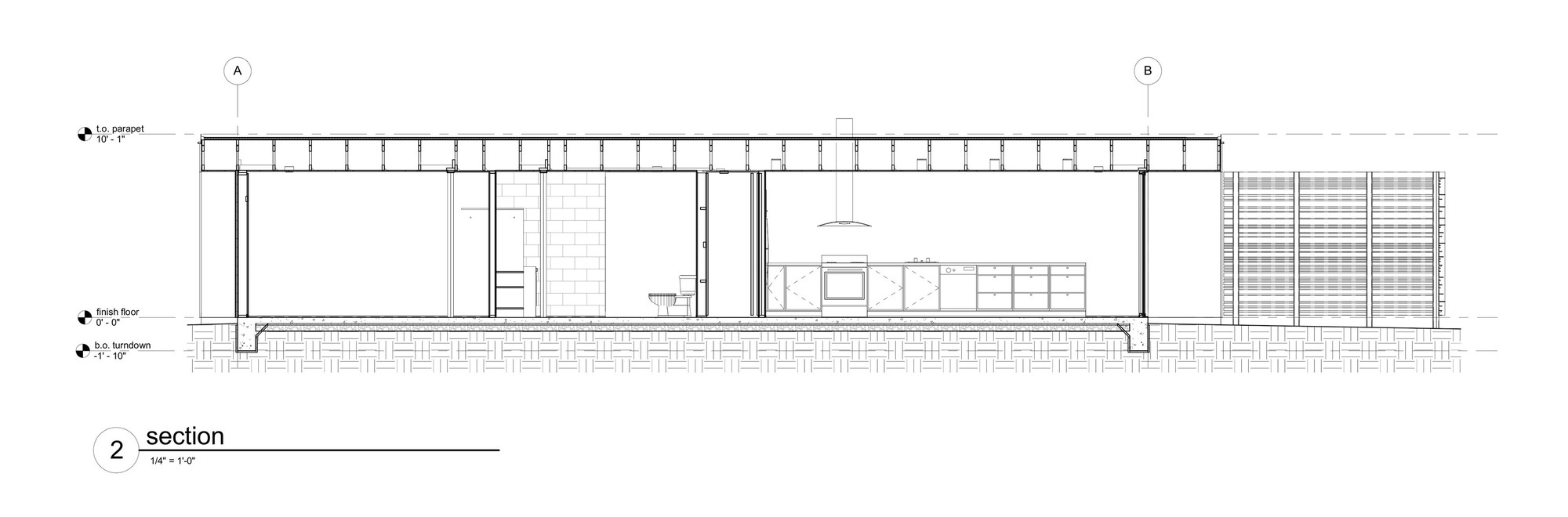

Section
Section
© Mark Bosclaire
© Mark Bosclaire
