Gangouroubouro Primary School / LEVS architecten

  • 01:00 - 11 November, 2014
Gangouroubouro Primary School / LEVS architecten
Gangouroubouro Primary School / LEVS architecten, Courtesy of LEVS architecten
Courtesy of LEVS architecten

Courtesy of LEVS architecten Courtesy of LEVS architecten Courtesy of LEVS architecten Courtesy of LEVS architecten + 19

  • Architects

  • Contractor

    Enterprise Dara (Sevaré, Mopti) in collaboration with students of the Technical College in Sevaré and with the local population of Gangouroubouro
  • Area

    295.0 sqm
  • Project Year

    2013

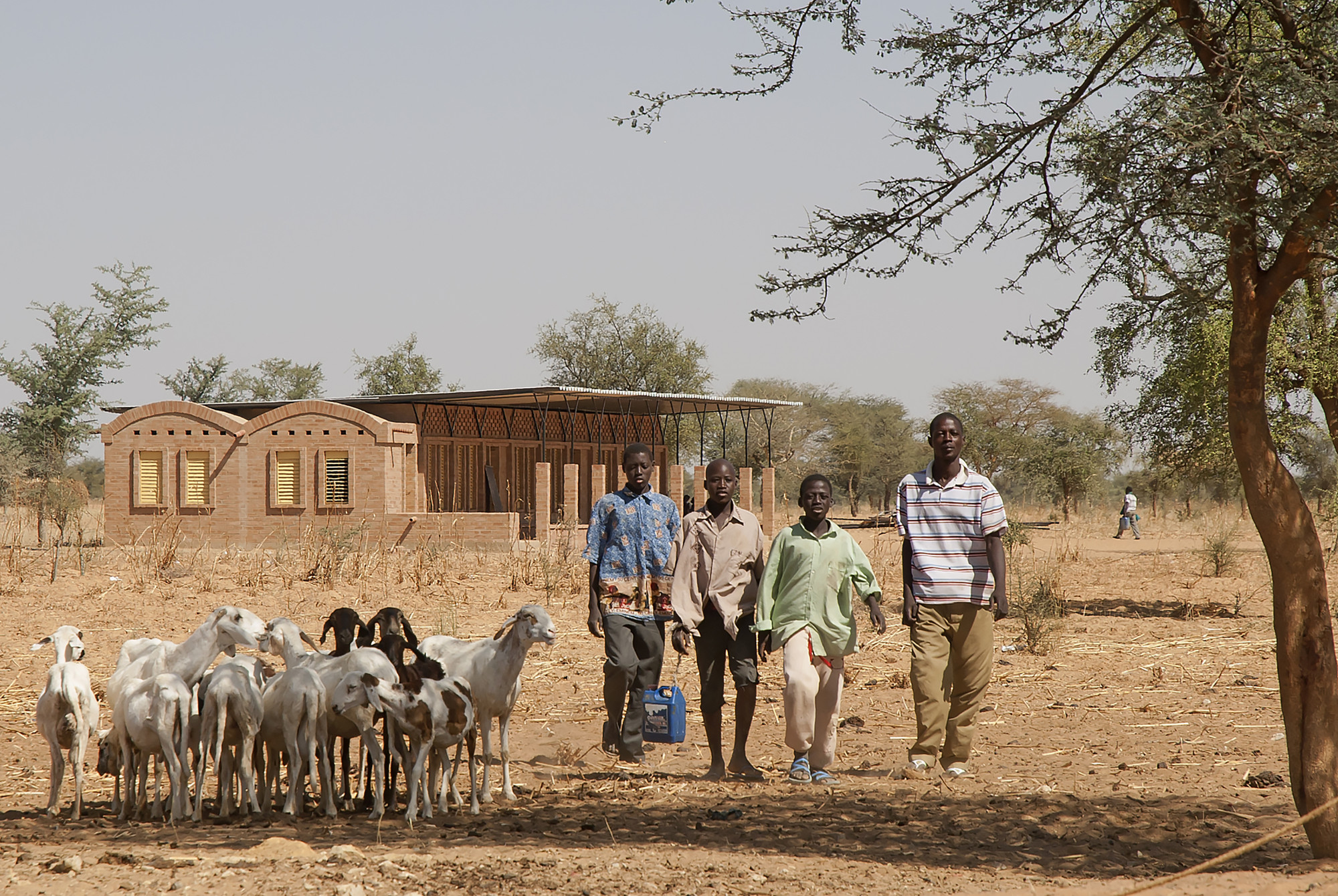

Courtesy of LEVS architecten
Courtesy of LEVS architecten

Text description provided by the architects. In the open plain near the Malian village Gangouroubouro LEVS designed a new primary school. The architecture of the school reflects a connection to the local building traditions, culture and function. Compared with the rich architectural areas near the rocky walls in the Dogon area, particularly at this location the plain offers the possibility of a different architectural appearance.

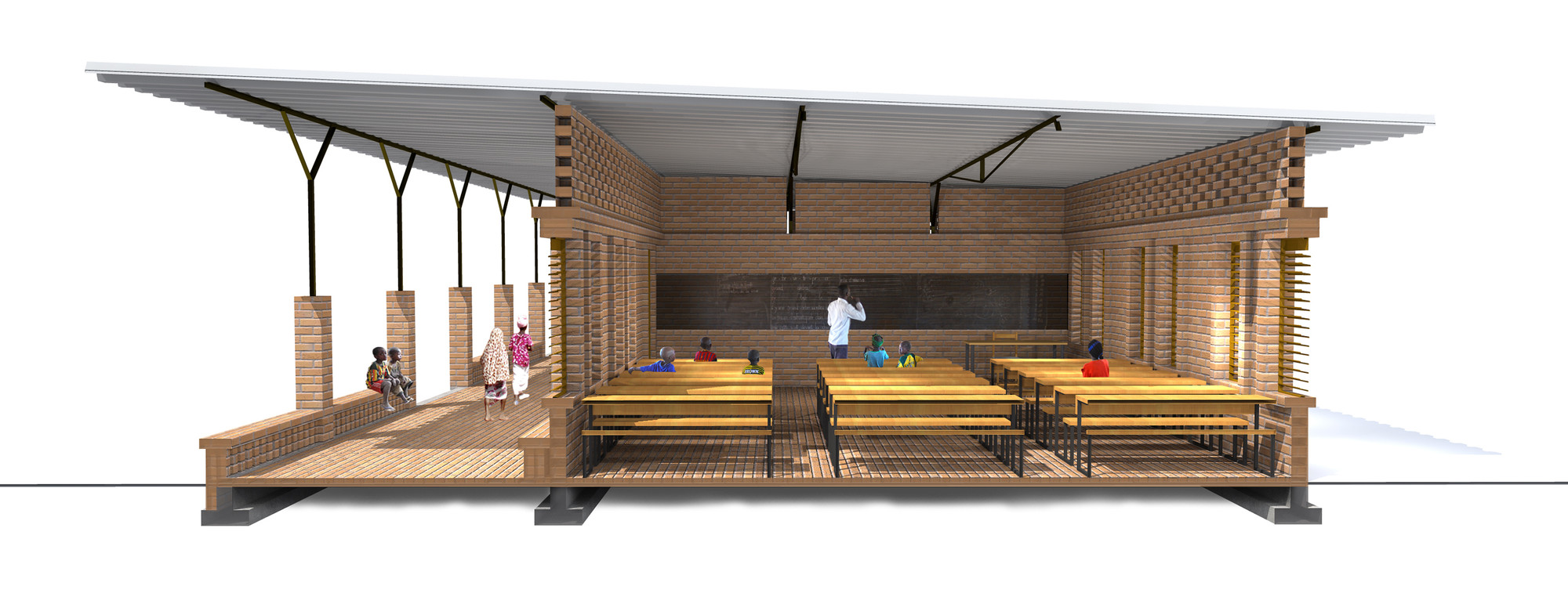

Rendering
Rendering

The ensemble consists of a school, blocks with sanitary facilities and a communal outdoor space. The structure of the school building consists of an enlarged front porch of more than 3 meters parallel to the three classrooms.

Courtesy of LEVS architecten
Courtesy of LEVS architecten

The walls are constructed with newly developed and locally produced hydraulic compressed earth blocks (HCEB) in alternating strips. They determine the rhythm of the facades and provide a cool inside climate. The porch, which is equipped with stone benches on both sides, forms the large terrace of the school.

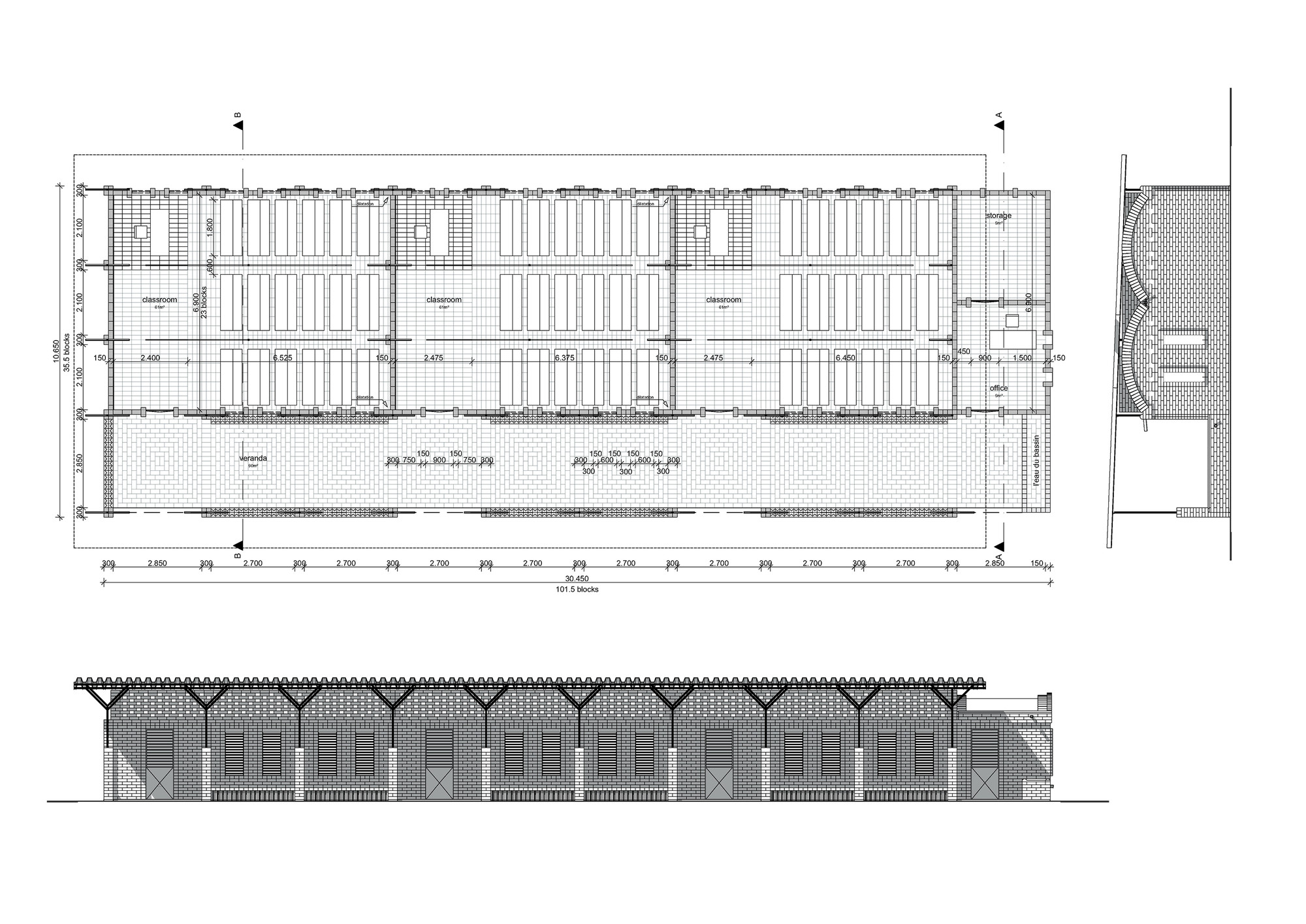

Floor Plan
Floor Plan

The roof is constructed of overlapping steel plates, each hanging 1 meter over and creating extra shade spaces. By means of thin steel shaft profiles, the mass of the roof is being transferred to the buttresses. The Poligny rafters stretch across the class rooms and create a free floor surface.

Courtesy of LEVS architecten
Courtesy of LEVS architecten

Wind forces are prevented from pushing up the roof by a wide stroke of semi-open masonry for ventilation and by the use of several openings of long and narrow windows. The openings in the facade with its tilt window frames are painted in an ochre yellow colour. The office and the storage facility have been built with curved roofs and on a smaller scale, corresponding to the function of the space.

Courtesy of LEVS architecten
Courtesy of LEVS architecten
