Inter|Section / Campos Leckie Studio

Inter|Section / Campos Leckie Studio

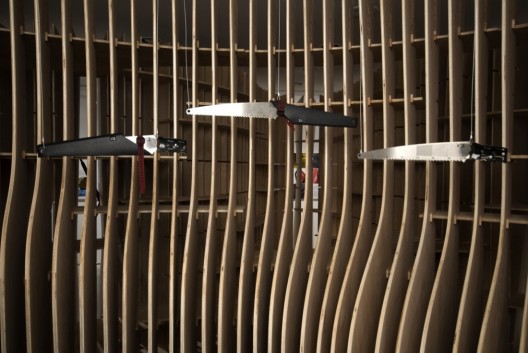

© Scott Massey
© Scott Massey

Canadian Architects Campos Leckie Studio shared with us this recent installation for an Exhibition for the 2010 Cultural Olympiad in Vancouver.

Consistent with the exhibition theme of Canadian innovation in design, inter/section demonstrates the potential of contemporary wood fabrication technologies to generate formal variation from standardized wood construction materials within the constraints of material efficiency, ease of assembly/disassembly, and adaptive reuse.

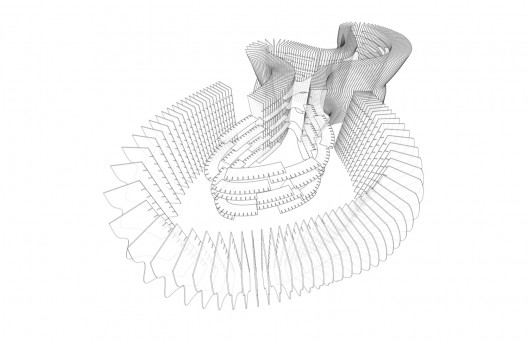

exploded axo
exploded axo

The form of inter/section structures the relationship between the viewer, the exhibition objects, and associated graphic information while specific sections respond to the particular placement and spatial dimensions of each of the objects.

© Scott Massey
© Scott Massey

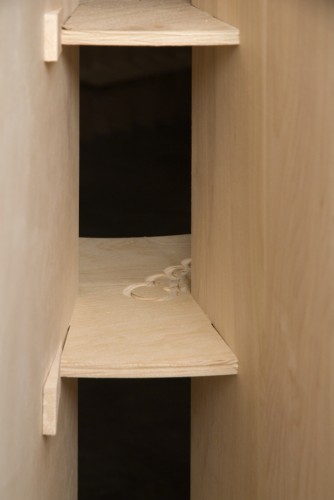

All components in the assembly are joined through interlocking friction connections without the use of fasteners or adhesives. The installation is created using 172 sheets of plywood that were cut using a 3-axis CNC (computer numerically controlled) router. The 288 vertical planes are paired and cut from 144 sheet of plywood. The remaining 28 sheets are used for interlocking horizontal pieces that shape this particular installation.

© Scott Massey
© Scott Massey

Developed to be reconfigured in other spaces inter/section employs a standardized placement of interlocking connection slots on the vertical sections. These create a system with a high degree of flexibility that allows the overall reconfiguration of the installation while maintaining the specificity inherent in the vertical sections. The entire assembly can be packaged to fit within a volume of 4’-0” x 8’-0” x 7’-0”.

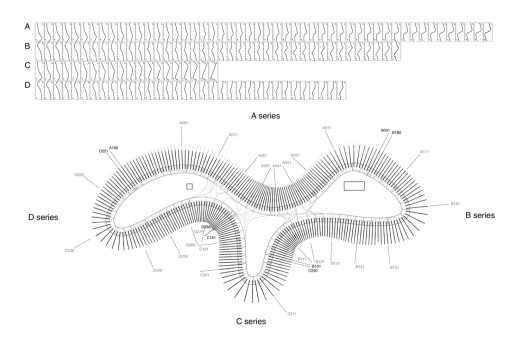

floor plan
floor plan
