Daoíz y Velarde Cultural Center / Rafael De La-Hoz

  • 01:00 - 4 March, 2014
Daoíz y Velarde Cultural Center / Rafael De La-Hoz
Daoíz y Velarde Cultural Center / Rafael De La-Hoz, © Alfonso Quiroga
© Alfonso Quiroga

© Alfonso Quiroga © Alfonso Quiroga © Alfonso Quiroga © Alfonso Quiroga + 12

  • Architects

  • Location

    Calle Alberche, Venturada, Madrid, Spain
  • Direction Works

    Rafael de la- Hoz Castanys, Silvia Villamor
  • Area

    6850.0 sqm
  • Project Year

  • Photographs

  • Project Design

    Silvia Villamor
  • Project Director

    Silvia Villamor, Ángel Rolán, Margarita Sánchez
  • Project Team

    Paola Merani, Concepción Cobo, Susanne Forner
  • Quantity Surveyors

    Elena Elósegui, Javier Fernández
  • Graphic Design

    Daniel Roris, Luis Muñoz
  • Models

    Fernando Mont, Víctor Hugo Coronel
  • Structures Engineering

  • Intallations engineering

  • Construction company

    Férnández Molina Obras y Servicios S.A.
  • Climate control

  • Geothermal energy

  • Lighting Consulting

    Antón Amán. Architectural Lighting Solutions
  • More Specs Less Specs
© Alfonso Quiroga
© Alfonso Quiroga

Text description provided by the architects. As part of the Daoiz y Verlarde complex of former barracks the objective is to preserve the architecture; a representative sample of Madrid’s industrial and military heritage.

© Alfonso Quiroga
© Alfonso Quiroga

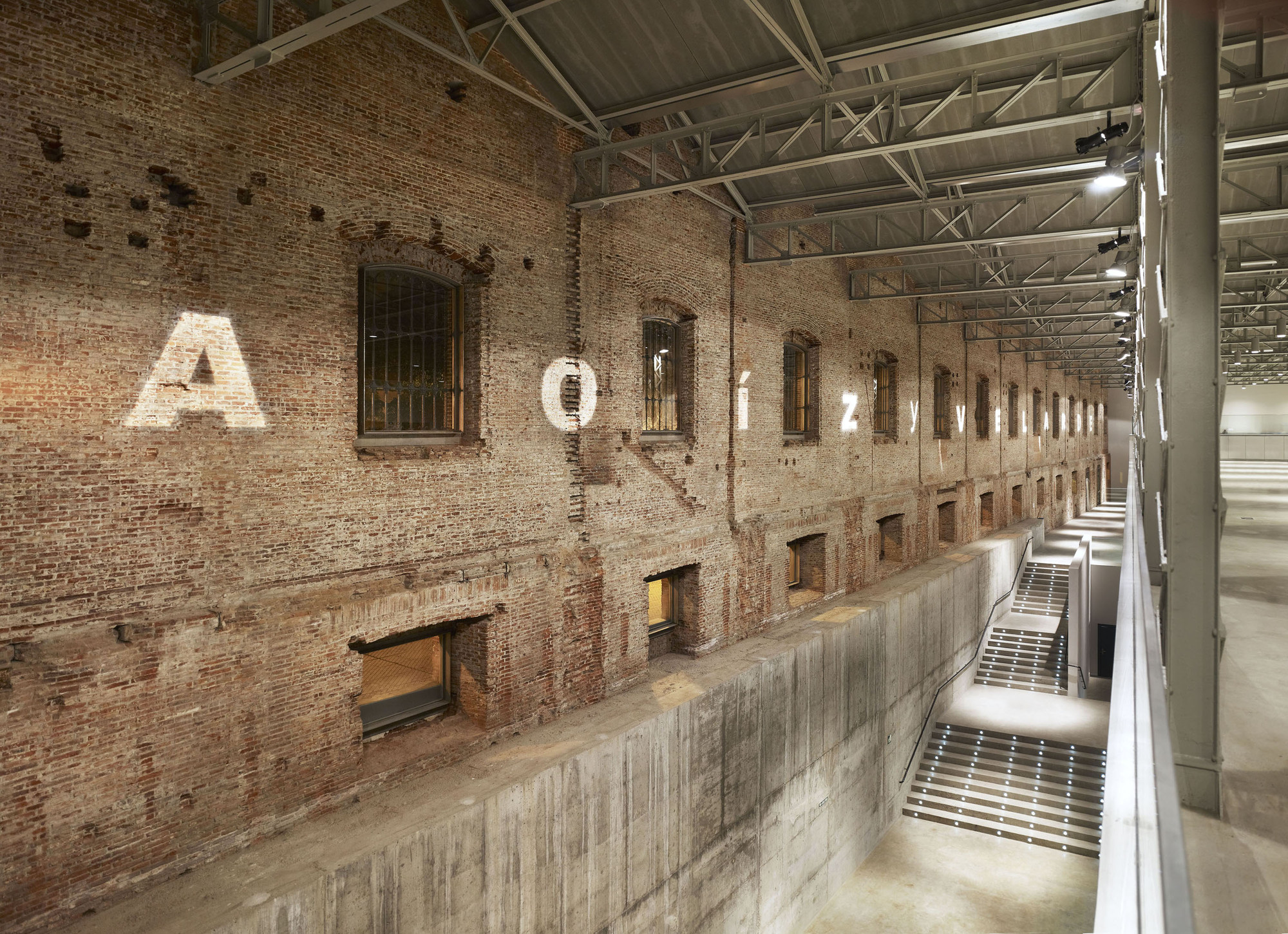

From the start, the idea was to respect the basic geometry of the existing building, as well as its saw-tooth metal structure and the brick-built façade. The interior space has been emptied to create a container for the Cultural Centre, which is divided into two areas with separate entry points and circulation areas, but with a strong visual and spatial connection between them, and the possibility of their adaptation to different types of events.

Ground Floor Plan
Ground Floor Plan

A newly created intermediate space separates the former container from the new uses to bring the character of the existing building to the fore and set up a protective filter with the exterior. These intervening spaces establish visual connections that foster variations in the spatial experience.

© Alfonso Quiroga
© Alfonso Quiroga

A generous communal space has been created at the entry points; a place for meeting, information and exhibitions, which works as a covered agora, as if the square outside extended into the building.

© Alfonso Quiroga
© Alfonso Quiroga

A hi-tech roof has been developed to take the best advantage of natural light and ventilation.

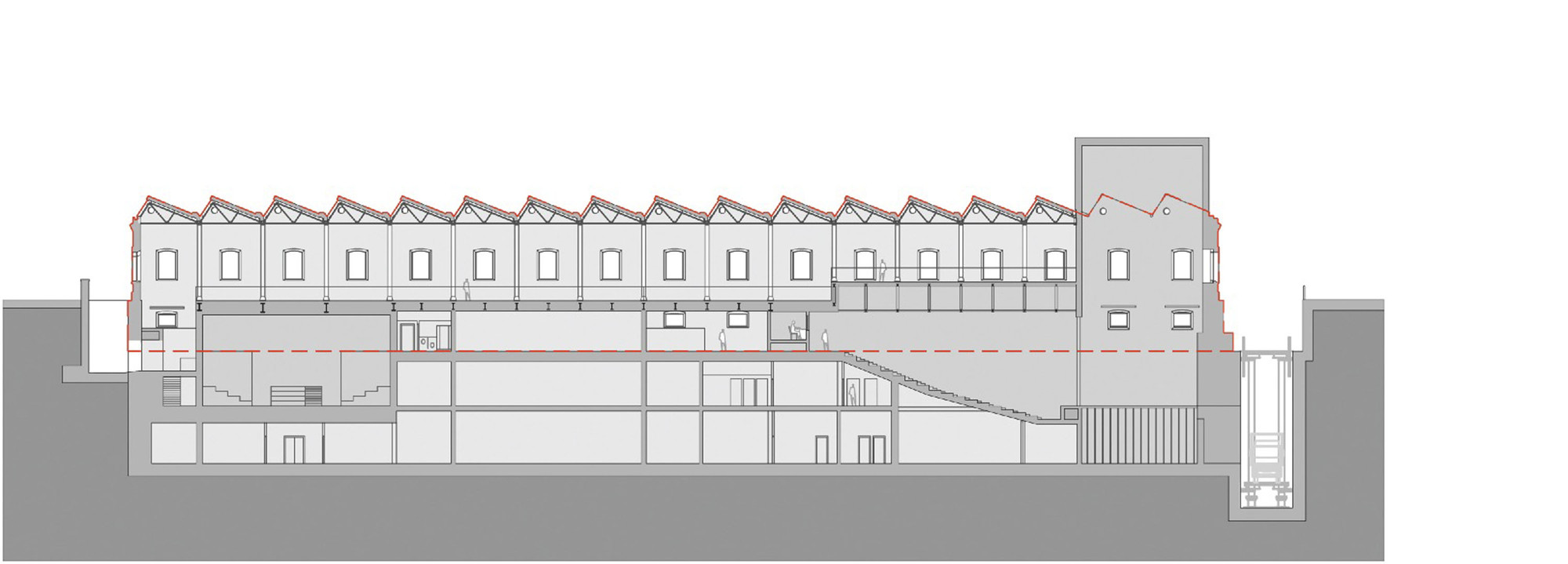

Longitudinal Section
Longitudinal Section

Sustainable and energy saving refurbishing

The refurbishment of this former industrial building, and abandoned barracks, has been made in a sustainable way as regards energy efficiency and the integration of renewable energy capture systems.

© Alfonso Quiroga
© Alfonso Quiroga

The existing brick façade has been respected, as has the structure of the roof built from metal profiles, and a new structure of concrete slabs has been created, which will be used for the HVAC of the building through its thermo-activation. The existing roof truss and its metal pillars remained suspended in the air while the rest of the interior of the building was completed.

© Alfonso Quiroga
© Alfonso Quiroga

Geothermal renewable energy is used to heat and cool the building, and the air-ground exchanger works as a pre-treatment mechanism for the primary renewal air.

© Alfonso Quiroga
© Alfonso Quiroga

The final energy cost of the building, employing this type of HVAC systems, is far lower than it would be otherwise using conventional systems.
