MR House / MAPA

  • 01:00 - 4 December, 2013
  • Translated by Lorena Quintana
MR House / MAPA
MR House / MAPA, Courtesy of MAPA
Courtesy of MAPA

Courtesy of MAPA Courtesy of MAPA Courtesy of MAPA Courtesy of MAPA + 24

  • Architects

  • Location

  • Category

  • Project Architect

    Cristian Larraín, Matías Madsen, Bernardo Valdés
  • Collaborators

    Karina Pardo
  • Construction

    Constructora DML
  • Structures

    Alex Popp
  • Project Area

    170.0 m2
  • Project Year

  • Photography

    Courtesy of MAPA

The commission consisted of the construction of a shelter for a family that will house two large areas. In the first, the space around the fire and the kitchen to be constituted as a module without divisions, with the fireplace, wood stove and a play room. And in the second, a module for the bedrooms and bathrooms.

Courtesy of MAPA
Courtesy of MAPA

From the commission, the project proposed the following set of rules:

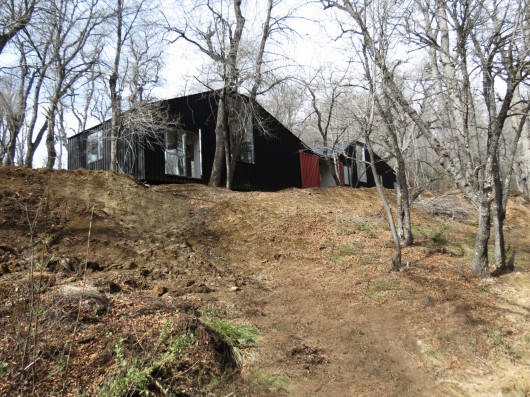

The project is located in the forests of the Andes, in a place called "El Buchen", in the region of Maule, Chile. It is a place of ancient trees and difficult access.

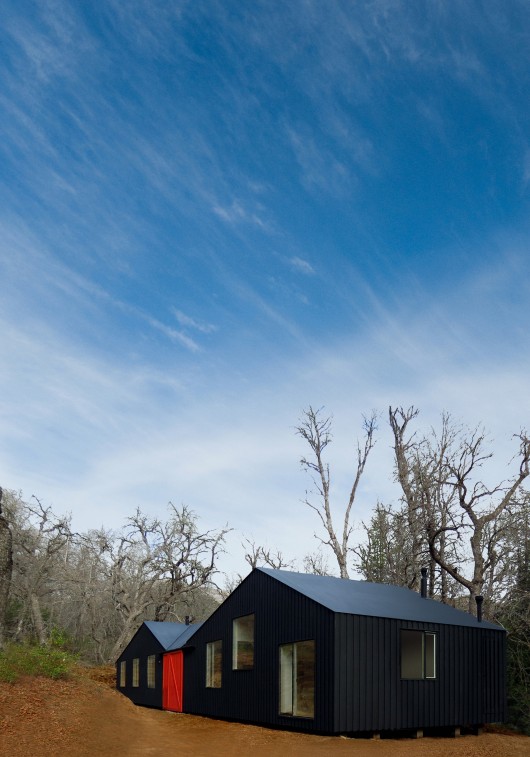

The project is located in a forest clearing in order to avoid interfering with existing trees, an element that defines the length, width and height of the volume.

Courtesy of MAPA
Courtesy of MAPA


From the commission of building a shed arises the problem of how to inhabit it, understanding that it is a single undivided space. We propose the construction of spaces differentiated by lower volumes containing the various program requirements, which in turn are able to differentiate the temperatures necessary to inhabit them, obtaining different areas that are climatically controlled.

Courtesy of MAPA
Courtesy of MAPA

This led to three types of spaces

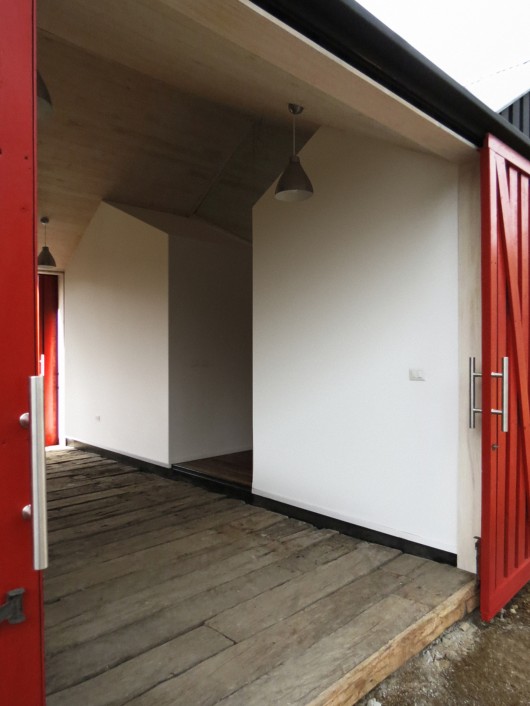

Vestibule space, mediating between interior / exterior. It can be used as a terrace in the summer, opening its doors and allowing cross ventilation. It can also be used as a hall in winter, behaving as the first barrier of climate control.

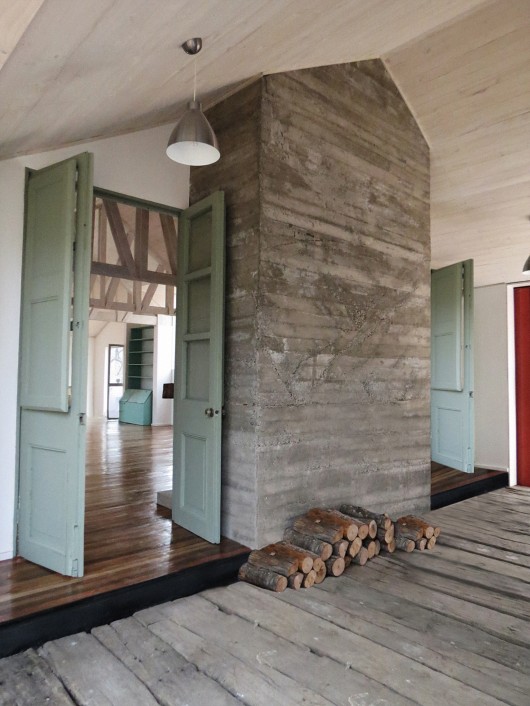

Common area, living / dining / kitchen, which takes advantage of the full height of the building, establishing itself as a mid temperature space.

Courtesy of MAPA
Courtesy of MAPA

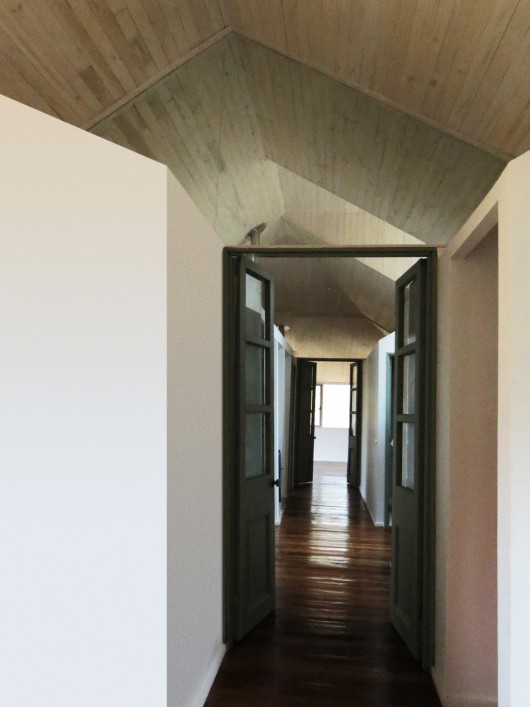

Private space, bedrooms and bathrooms. With low ceilings and openings controlled by their orientation, in order to achieve thermal comfort.

Form / Sheds

The study of forms arose from the observation of wood sheds in the area, which yielded as a result the following set of rules:

The idea of ​​working with closed volumes, without eaves and with controlled openings, wherein the roof is constructed first to protect from the weather, and then the interiors are built.

Courtesy of MAPA
Courtesy of MAPA

One form within another. As a result of building the roof as the first action, the idea arose of ​​organizing the program through smaller volumes within the overall volume. For this, we chose to build two smaller sheds inside the larger one, which grouped the bedrooms on one hand and the bathrooms on the other. These differ in color and materiality from the rest of the construction.

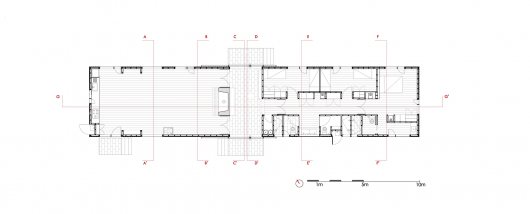

First Floor Plan
First Floor Plan
