Cascades Academy of Central Oregon Campus / Hennebery Eddy Architects

  • 01:00 - 3 November, 2013
Cascades Academy of Central Oregon Campus / Hennebery Eddy Architects

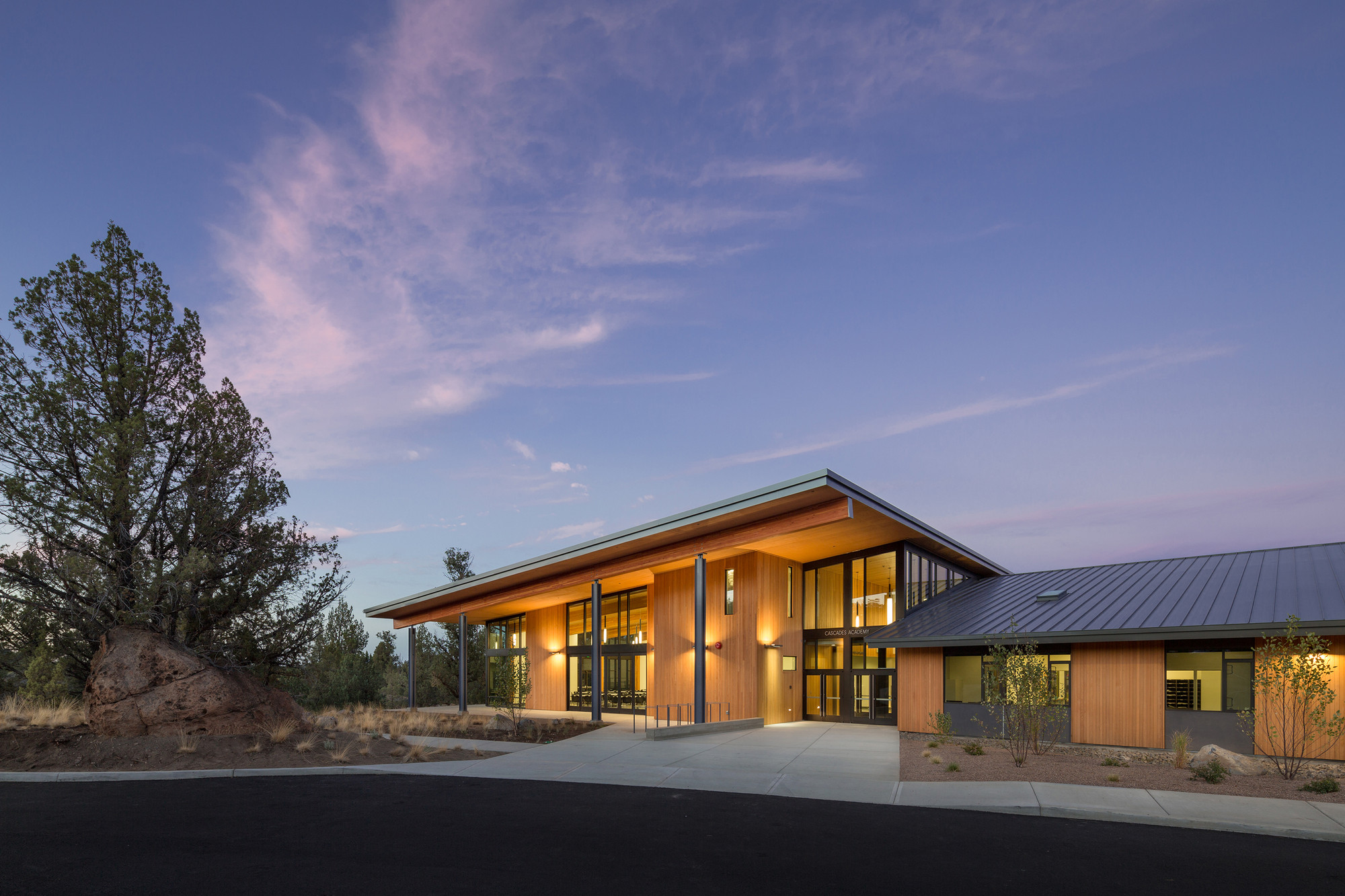

Cascades Academy of Central Oregon Campus / Hennebery Eddy Architects, © Josh Partee
© Josh Partee

© Josh Partee © Josh Partee © Josh Partee © Josh Partee + 18

  • Architects

  • Location

    19860 Tumalo Reservoir Road, Bend, OR 97701, United States
  • Architect in Charge

    Timothy R. Eddy, AIA
  • Project Architects

    Dan Petrescu
  • Project Designer

    Camilla Cok, AIA
  • Project Team

    Siavash Kazeminejad, Kristy Hausladen, Steve Sandstrom
  • Design Team

    James Gantz, AIA; Diana Bustardo; Alan Osborne, AIA;
  • Interior

    Angelique Nossa, IIDA
  • Area

    38500.0 sqm
  • Project Year

    2013
  • Photographs

  • Structural Engineer

    Walker Structural Engineering, LLC
  • MEP/FP Engineer

    Interface Engineering
  • Landscape Architect

    Mayer/Reed
  • More Specs Less Specs
© Josh Partee
© Josh Partee

Text description provided by the architects. Nestled in juniper and ponderosa pines and volcanic boulders on a gentle slope, on the rim of a dramatic canyon, Cascades Academy of Central Oregon houses students from Pre-Kindergarten through 12th grade.  The 38,500 SF independent school near the Deschutes River consists of distinct wings forming a protected courtyard: the main wing with a library, science labs, and offices; the commons, upper and lower classroom wings; and a detached gymnasium.

© Josh Partee
© Josh Partee

The non-profit school encourages experiential learning in the natural environment. This is expressed architecturally with spatial connections, terraces, porches and views to the high desert landscape; abundant daylight flooding in from clerestories, skylights, and banks of deeply shaded glazing; natural and displacement ventilation coupled with operable windows; and healthy, natural materials.  Careful planning avoided impacting the sensitive canyon landscape and parking is knit into the site to retain existing trees.

© Josh Partee
© Josh Partee

Interior spaces flow into one another and beyond, to the site.  The Library sliding barn door opens to the main corridor; the main entry spills into the commons; folding glass panels connect the commons with the canyon; and glazed garage doors link the gym to the outdoors. Large overhanging roofs at exterior gathering spaces provide shade and shelter from snow.  Panels of western red cedar siding, continuous from exterior to interior, are separated by vertical strips of glazing that evoke openness and permeability.  Surprise windows are playfully, yet strategically, placed for students to connect to the site.  Interior accent colors are inspired by the surrounding trees, skies, and earth. As the Middle and Upper School corridor widens to a student seating area, the Lower School corridor narrows to an intimate space for younger children.

© Josh Partee
© Josh Partee

A geothermal field beneath the athletic field is the primary energy source taking advantage of the excavation required to for the playing field on the rocky site.  The school is heated by exposed radiant slabs.  A small window is provided in the slab for students to see the radiant tubing. The gymnasium, constructed with an insulated concrete forms, relies entirely on passive cooling and ventilation with large ceiling fans and air intakes with automated dampers.

© Josh Partee
© Josh Partee

Our clients were exceptionally committed to long-term thinking and retaining the character of their site.  In realizing the project at $200/SF, the designers, contractor and owner all worked together with a deep sense of ownership.

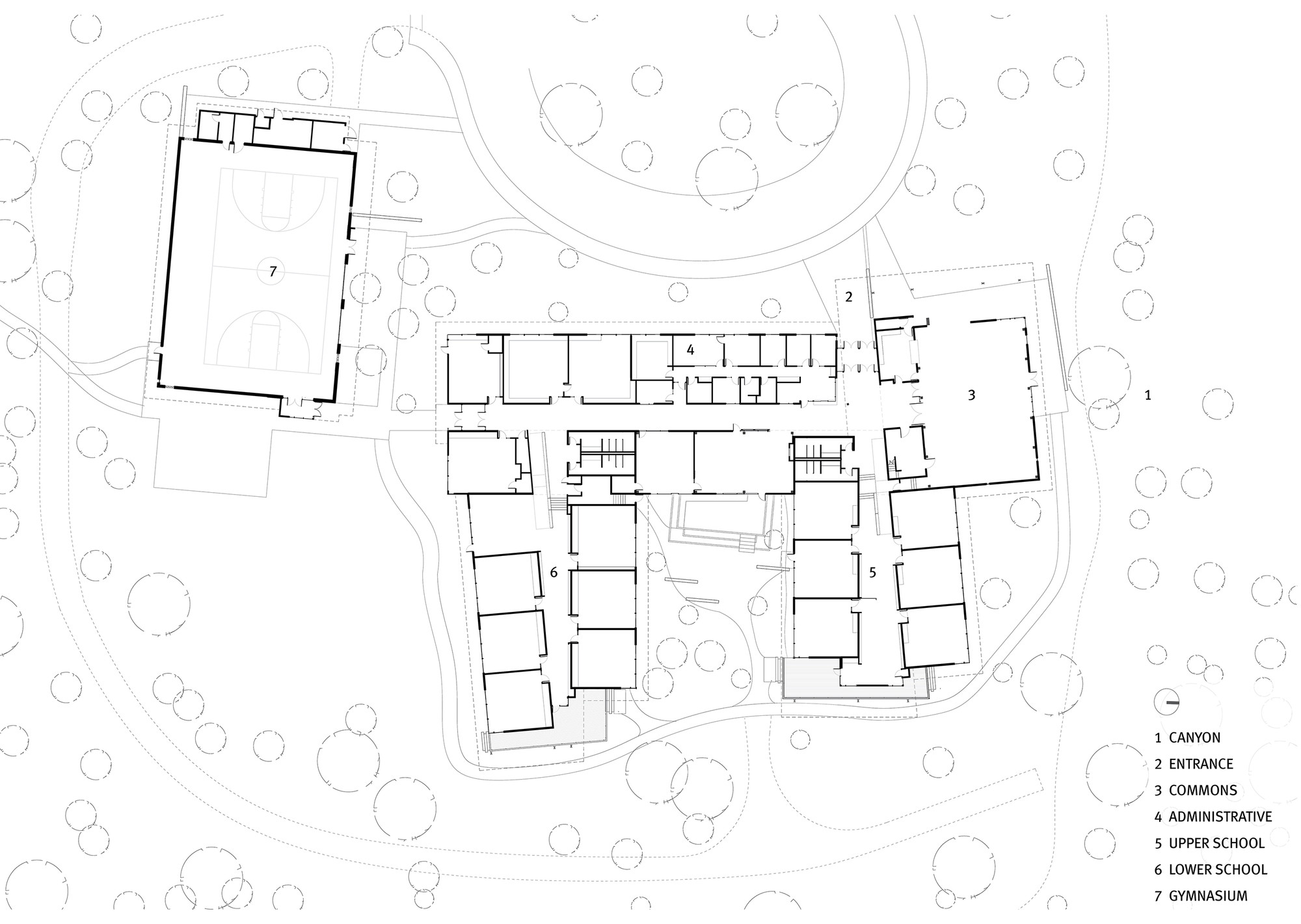

Floor Plan
Floor Plan
