TJAD New Office Building / TJAD

TJAD New Office Building / TJAD

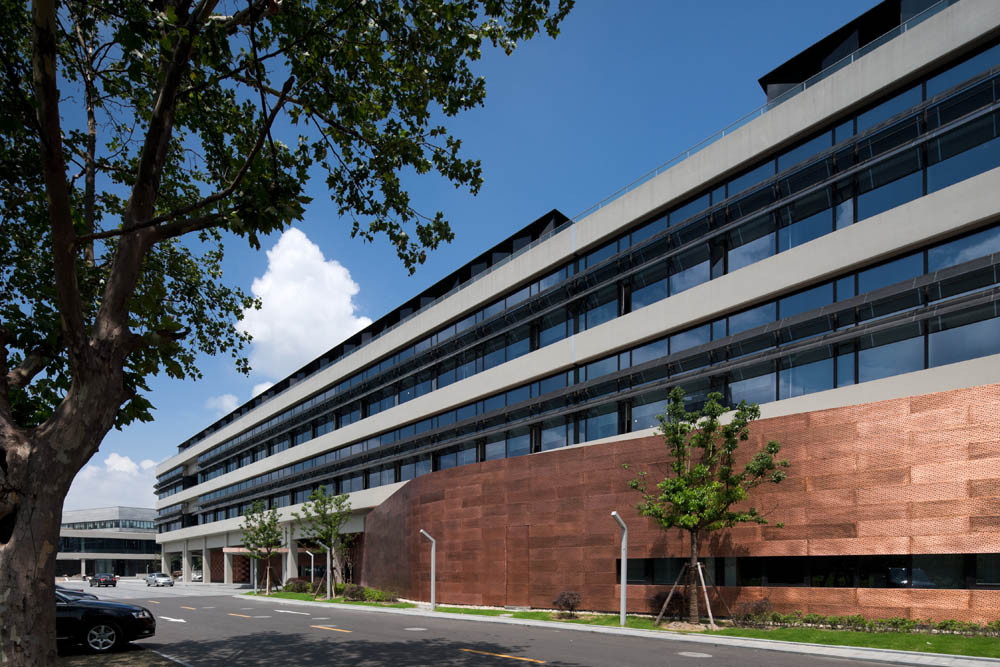

TJAD New Office Building / TJAD - Windows, Facade
Courtesy of TJAD
  • Architects: TJAD
  • Area Area of this architecture project Area :  64522
  • Year Completion year of this architecture project Year :  2011

TJAD New Office Building / TJAD - FacadeTJAD New Office Building / TJAD - ColumnTJAD New Office Building / TJAD - Stairs, HandrailTJAD New Office Building / TJAD - Windows, FacadeTJAD New Office Building / TJAD - More Images+ 70

  • Project Director : Ding Jiemin
  • Head Of Design : Zeng Qun
  • Project Architects : Zeng Qun, Wen Xiaoqin, Wu Min, Sun Ye, Chen Kangquan, Zhang Yan, Wang Xiang
  • Interior Designers : Zeng Qun, Wen Xiaoqin, Zhang Hongwu, Sun Qian, Li Yujing, Wang Xiang, Chen Yanjuan, Wan Shaoqiu
  • Structural Engineer : Chen Xi, Xu Xiaoliang, Hong Wenming, Wu Shuxun, Zhang Zhun, Yu Hui, Di Liuxun, Wan Yuerong
  • City : Shanghai
  • Country : China
More SpecsLess Specs
TJAD New Office Building / TJAD - Image 71 of 75
Diagram

Text description provided by the architects. Design Concept
With its clear geometric mass, RC structure and continious horizontal lines, Parking Garage of Bus No.1 suggest of stability and weightiness. The new design has preserved its general standing as the vessel carrying all kinds of change. The free and flexible space division, the application of delicate and moderns materials and the concise vertical facades form an interesting contrast with the original architectural form and gain in each other's presence.

TJAD New Office Building / TJAD - Facade, Windows
Courtesy of TJAD

Built in 1999, this parking garage was in service for about ten years only. And the building's large mass (150m x 75m) and operational life fully justify the renovation project. The bus garage was originally a standalone functional transport facility without any redundant component. It was a three-storied, concrete-framed structure, and with the floor height at 5m-6m, widthwise column spacing at 7,5m, and lengthwise column spacing at 15m, it featured a rhythmical, minimalist and even monotonous structural form. The biggest challenge faed by the renovation of Parking Garage of Bus No.1 lay in how modern design approaches could be applied so that the venue that was once for vehicle use could be now transformed into one for "human use".

TJAD New Office Building / TJAD - Windows, Facade
Courtesy of TJAD

At the beginning stage of the design, two large internal courtyards inside the building were considered as part of the effort to improve the lack of spatial scale by giving it basic orientation and fluidity so as to facilitate the reorganization of the traffic flow.

TJAD New Office Building / TJAD - Facade, Windows
Courtesy of TJAD

This approach could better meet the functional demands of the new structure and effectively increase the connectivity between the spaces on different levels as well as that between architecture and nature.

TJAD New Office Building / TJAD - Image 73 of 75
Diagram

Project gallery

See allShow less

Project location

Address:1230 Siping Road, Shanghai, China

Click to open map
Location to be used only as a reference. It could indicate city/country but not exact address.
