23 Semi-collective Housing Units / Lacaton & Vassal

23 Semi-collective Housing Units / Lacaton & Vassal

23 Semi-collective Housing Units / Lacaton & Vassal - Windows, Chair23 Semi-collective Housing Units / Lacaton & Vassal - Windows, Chair, Table, Shelving23 Semi-collective Housing Units / Lacaton & Vassal - Windows23 Semi-collective Housing Units / Lacaton & Vassal - Facade23 Semi-collective Housing Units / Lacaton & Vassal - More Images+ 29

Trignac, France
23 Semi-collective Housing Units / Lacaton & Vassal - Windows
© Philippe Ruault

Text description provided by the architects. Our goal is to produce quality housing at low cost.

23 Semi-collective Housing Units / Lacaton & Vassal - Facade
© Philippe Ruault
23 Semi-collective Housing Units / Lacaton & Vassal - Image 20 of 34
Detail
23 Semi-collective Housing Units / Lacaton & Vassal - Facade, Steel
© Philippe Ruault

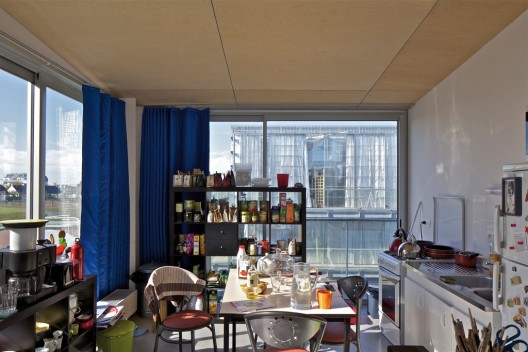

23 Semi-collective Housing Units / Lacaton & Vassal - Windows, Chair
© Philippe Ruault

The idea of the structure, meant to be simple, economical and efficient, was based on on the principle of the loft: a surface of maximum volume, possessing qualities of contrasting and complementary moods.

23 Semi-collective Housing Units / Lacaton & Vassal - Windows, Chair, Table, Shelving
© Philippe Ruault
23 Semi-collective Housing Units / Lacaton & Vassal - Image 26 of 34
Diagram
23 Semi-collective Housing Units / Lacaton & Vassal - Windows
© Philippe Ruault

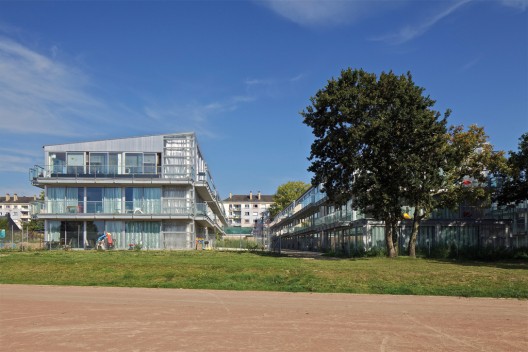

Both buildings are designed based on this principle:

- A column-beam structure on a concrete level in one building and two levels for the other building.

- Horticultural greenhouses, covering the entire surface of a light, transparent skin, to form the upper floor of each building.

23 Semi-collective Housing Units / Lacaton & Vassal - Facade
© Philippe Ruault
23 Semi-collective Housing Units / Lacaton & Vassal - Image 30 of 34
Elevation & Section
23 Semi-collective Housing Units / Lacaton & Vassal - Windows, Facade, Handrail
© Philippe Ruault

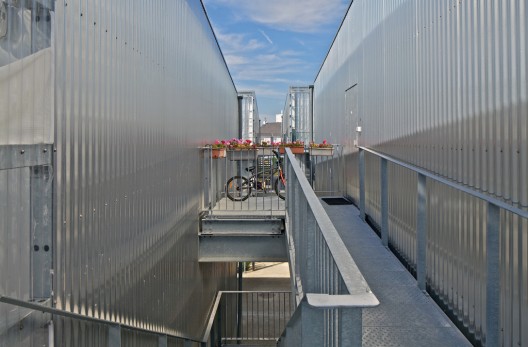

The structure is galvanized steel, clear polycarbonate or natural aluminum.

23 Semi-collective Housing Units / Lacaton & Vassal - Facade, Handrail, Balcony
© Philippe Ruault

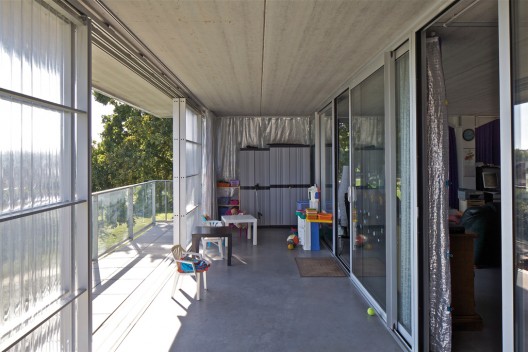

Part of the greenhouse volume is insulated and heated. The other part is a winter garden with a well-ventilated roof and facade. Horizontal shading takes place inside the greenhouse.

23 Semi-collective Housing Units / Lacaton & Vassal - Image 15 of 34
© Philippe Ruault

The greenhouse, with its automatic climate management, allows the development of bioclimatic comfort solutions and obtains performance goals for reducing energy consumption.

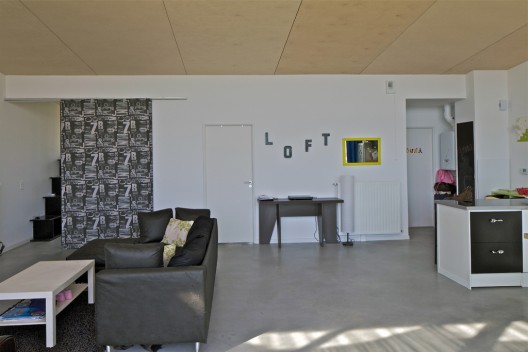

The volumes created are shared.The homes are mostly duplex and enjoy all the different qualities offered by a variety of space.

23 Semi-collective Housing Units / Lacaton & Vassal - Facade
© Philippe Ruault
23 Semi-collective Housing Units / Lacaton & Vassal - Image 31 of 34

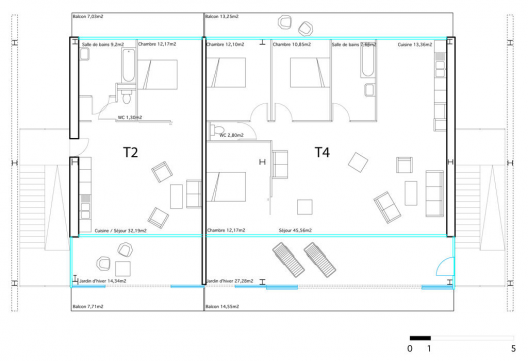

Plan
23 Semi-collective Housing Units / Lacaton & Vassal - Windows
© Philippe Ruault

Project gallery

See allShow less

Project location

Address:Trignac, France

Click to open map
Location to be used only as a reference. It could indicate city/country but not exact address.
About this office
Cite: "23 Semi-collective Housing Units / Lacaton & Vassal" 13 Jul 2012. ArchDaily. Accessed . <https://www.archdaily.com/254147/23-semi-collective-housing-units-lacaton-vassal> ISSN 0719-8884
