Sacre Coeur / 4a architekti

  • 00:00 - 19 April, 2012
Sacre Coeur / 4a architekti
Sacre Coeur / 4a architekti, Courtesy of  4a architekti
Courtesy of 4a architekti

Courtesy of  4a architekti Courtesy of  4a architekti Courtesy of  4a architekti Courtesy of  4a architekti + 19

  • Architects

  • Location

    Smíchov, 150 00 Prague-Prague 5, Czech Republic
  • Partner In Charge

    Jan Schindler
  • Project Architects

    Luděk Obal, Andrea Trembuľaková
  • Design Team

    Alejandro Flores, Ute Winnefeld, Ingrid Vurm Lermen
  • Structural Engineers

    Němec Polák, spol. s r.o.
  • Investor

  • Area

    12000.0 m2

Text description provided by the architects. Residence Sacre Coeur – Praha 5, Smíchov

Courtesy of  4a architekti
Courtesy of 4a architekti

By the late 80 ' s the entire area was occupied for the construction of the city "Strahov" transit tunnel, the construction of which was carried out by open excavation. This drastic method destroyed major parts of the existing residential city blocks from the 19th century. Formerly this beautiful location near the city centre situated in between the historical Sacre Coeur park , St.Gabriel Monastery and the Kinsky Gardens, literally became abandoned.

Courtesy of  4a architekti
Courtesy of 4a architekti

Our urban task was to revitalise the original appearance and fill the U-shaped gap and close the residential block. The building 's site slopes 15m and basically sits on top of the Strahov tunnel roof structure and an adjacent civil protection bunker. After lengthy searches and surveys, the loading capacity of the existing structure was found to limit the building's foundation placement possibilities.

Courtesy of  4a architekti
Courtesy of 4a architekti

This together with the alignment logic of a residential building to optimised with a number of floors on the diagonal shape of the tunnel tubes became the main architectural challenge to be solved. In accordance with all site restrictions and our vision of an urban apartment block , we designed a compact building volume whose roof line reflects the slope of the surrounding treets and so allows for the creation of a terraced roof scape. This simple principle reflects the main potential of the site and offers mostly all apartments panoramic views to the city and surrounding parks.

Courtesy of  4a architekti
Courtesy of 4a architekti

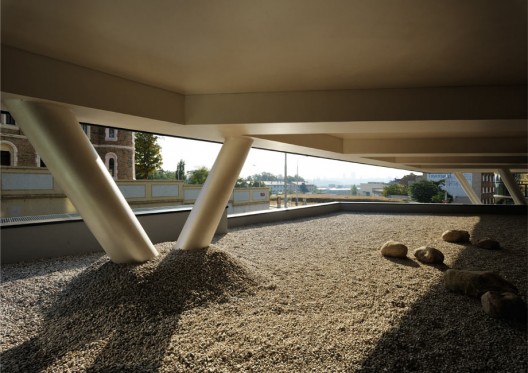

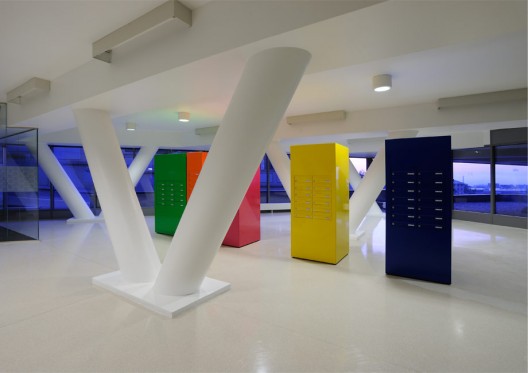

The leading visual impact is seen from the southern crossroads junction in the form of an " inverse " building corner with a free parterre (left open) . Views through this open point allows visual contact with the green inner yard and also accomodates the diagonal steel structure which transmits loads between the orthogonal reinforced concrete grid of the residential block and the foundation piles , respecting the diagonal body of the tunnel.

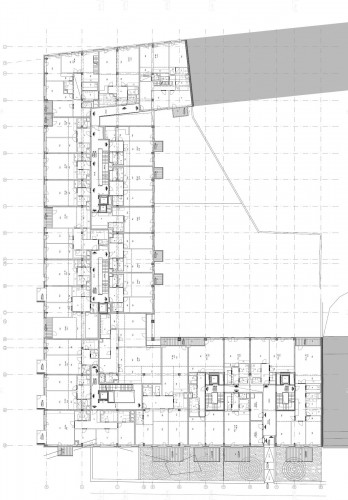

The apartments are organized around five vertical communication cores with three entrances from the street and a shared reception area connected to three floors of underground parking. The whole building contains 103 apartments from one to four bedrooms.

Courtesy of  4a architekti
Courtesy of 4a architekti
