Spring in Pantone 375C, Mas Rodó Winery / SALA FERUSIC Architects

  • 00:00 - 7 August, 2011
Spring in Pantone 375C, Mas Rodó Winery / SALA FERUSIC Architects

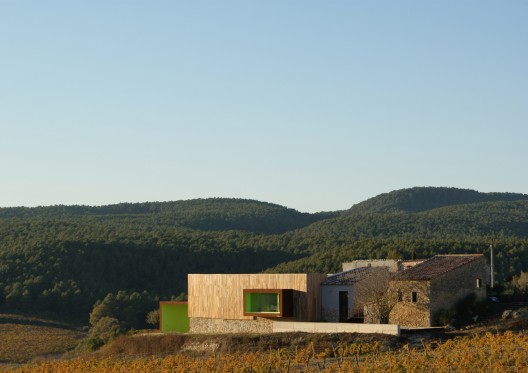

Spring in Pantone 375C, Mas Rodó Winery / SALA FERUSIC Architects, Courtesy of SALA FERUSIC Architects
Courtesy of SALA FERUSIC Architects

Courtesy of SALA FERUSIC Architects Courtesy of SALA FERUSIC Architects Courtesy of SALA FERUSIC Architects Courtesy of SALA FERUSIC Architects + 19

  • Architects

    Carles Sala, from SALA FERUSIC Architects
  • Location

    Carrer del Penedés, 14, 08789 La Torre de Claramunt, Spain
  • Collaboration

    Josep Maria Estivill, Construction Management; Carops, Enology; Kraal, Lightning
  • Contractor

    Josep Ferran
  • Area

    880.0 m2
  • Project Year

    2008

Text description provided by the architects. The Mas Rodó winery consists of a refurbishment and transformation of an agricultural warehouse built in the seventies on top of an old Catalan cottage of the XVIII century, where the structure remained and the intervention focused on defining an image and conditioning the space for a contemporary wine production.

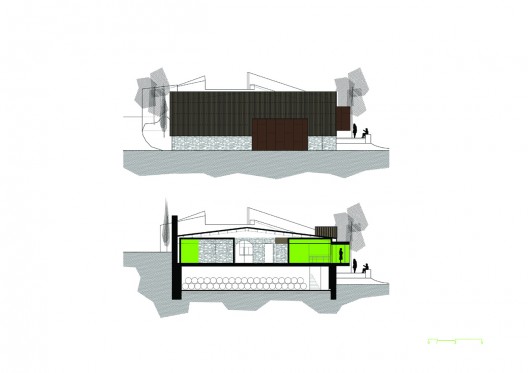

elevation + section
elevation + section

Over an original masonry skirting, the new wooden and steel façade redefines the volume of the building and takes comfort among nature and history. A system of double skin temperates the interior of the wine-producing room to optimize the control in must’s fermentation, as well as it minimizes the energy consumption; while the thickness of the old stone wall provides great humidity and temperature conditions for wine-aging.

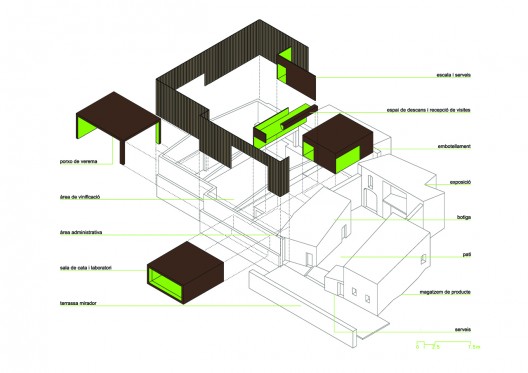

axon
axon

Two volumes brake the opacity of the building and relate the exterior and the interior, that is, the vineyard and the wine: the window of the tasting room in the south, over the fields, and the porche in the west, for the entrance for grape harvest. Covered in corten steel, both inject the interior with brightness and landscape through a spring-like Pantone 375C colour.

Courtesy of SALA FERUSIC Architects
Courtesy of SALA FERUSIC Architects

View the complete gallery
