Korean Institute for Archaeology & Environment / Hohyun Park + Hyunjoo Kim

© Jungmin Seok

Architect: Hohyun Park + Hyunjoo Kim
Location: 248 Seochang-dong, Jochiwon-eup, Yongigun, Chungchongnamdo Korea
Project Team: Yonggoo Lee, Seong gon Cho
Client: Korean Institute for Archaeology & Environment
Construction: COA Construction
Site Area: 4,298 sqm
Building Area: 847.99 sqm
Total Floor Area: 2,497.02 sqm
Project Year: 2009-2010
Photographs: Jungmin Seok &

Korean Institute for Archaeology & Environment was founded as an artifacts research center as part of Korea University’s Archaeology Department in 1995. In 2006, research center changed its name to current name. Major activities are excavation, research, publication, exhibition, and seminars. Since its foundation in 1995, the research institute has grown and existing facilities (within Korea University’s Sejong Campus) are not enough to provide good research environment. So, new research center was planned in early 2009.

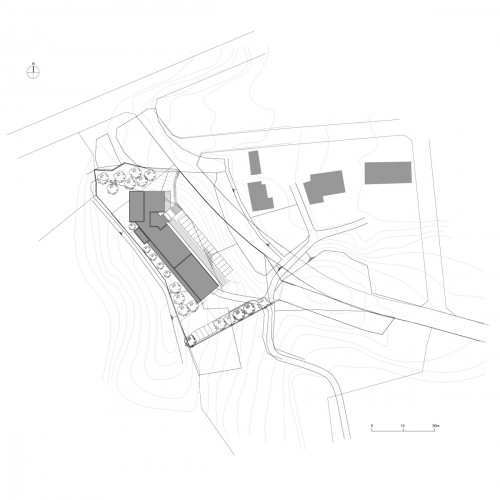

site plan

Requirement from the client was total floor area should not exceed 2,300 sqm and Building scope was 3~4 floors. We divided programs into two groups according their function and planned service areas between two groups. Since budget and construction time were limited, we decided to design relatively a simple form.

© Jungmin Seok

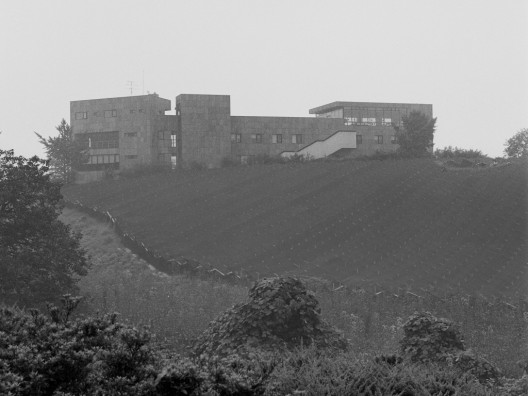

The site is located nearby the Sejong campus. Most of surrounding area is farmland and our site is next to proposed road, which will be constructed in few years. Current access to the site is limited from a small unpaved road on south east side. The building is planned to be situated parallel to the proposed road. Since north east side of the site is 3 meter lower than south west of the site, placing of the building is planned at south west of the site in order to reduce earth works.

© Jungmin Seok

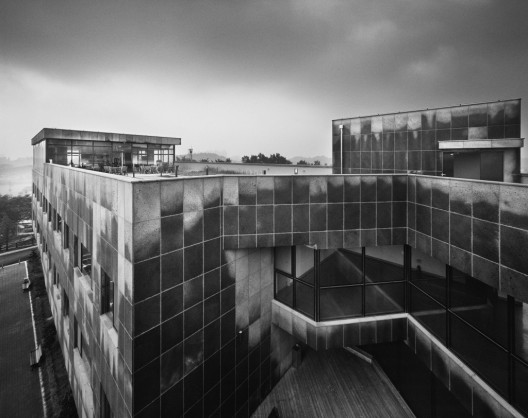

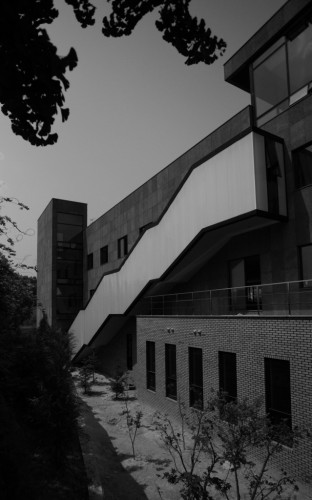

The building consists of two asymmetrical wings and a central core. Most of research activities are programmed at the long wing (called research wing), where research offices and storage for artifacts are located. The short wing (called seminar wing) is space for seminars, library, and meetings. The research wing is divided into a brick finished storage on 1st floor and a lava stone finished research offices on 2nd & 3rd Floor by shifting of upper mass about 2 meters. An exposed translucent polycarbonate finished staircase and terrace space at 2nd floor are situated in this gap. Cafeteria on 4th floor is accessed through the rooftop garden. Since there are no big buildings around, cafeteria has a great view through full glass windows.

© Hohyun Park

Circulation of the building is divided into two. One is for moving artifacts and the other is for researchers. Due to its function, artifacts loading space was planned at the south end on 1st floor. All the process of cleaning, photographing, and storing is started from this loading space. Two staircases were required by local law and U-shaped staircase is planned as a major vertical circulation and a straight run staircase, which connect lobby to research office on 2nd and 3rd floor, is designed for more efficient moving.

© Jungmin Seok
second floor plan

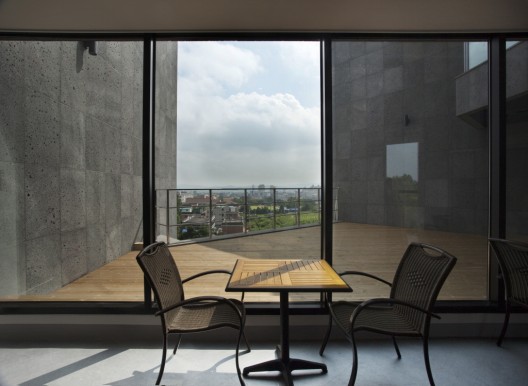

What we focused on during design was to make many rest space. By placing big and small terraces at many places, research space becomes more efficient and by adding an exposed translucent staircase on simple and linear form, we tried to create fun and efficient space.

Cite: "Korean Institute for Archaeology & Environment / Hohyun Park + Hyunjoo Kim" 17 Oct 2010. ArchDaily. Accessed 21 Dec 2014. <http://www.archdaily.com/?p=82075>
