Maipu Building / Nicolás Campodonico

  • 29 Jan 2013
  • Housing Selected Works
© Walter Salcedo

Architects: Nicolás Campodonico
Location: , Santa Fe,
Design Team: Nicolás Campodonico, Martin Lavayen, Tomas Balparda
Collaborators: Mássimo Triches, Carolina Dangelo, Ylenia Arca, Laura Vitale, Enriqueta Brozzo, Pablo Taberna
Structure: Susana Boccaccio, Jose Moya
Area: 2,078 sqm
Year: 2011
Photography: Walter Salcedo, Summa+/Gustavo Sosa Pinilla, Martin Lavayen, Simon Deprez

The Project is located in Rosario city, which, like most of Argentinian cities, it´s layout is homogeneous and organized (an endless repetition of squared shaped blocks) and totally heterogeneous in it´s elevation… the opposite of the historic European city: unstructured in it´s layout with an organized and continuous elevation. The project takes the street order and plays it´s role in the unstructured urban elevation.

© Summa+/Gustavo Sosa Pinilla

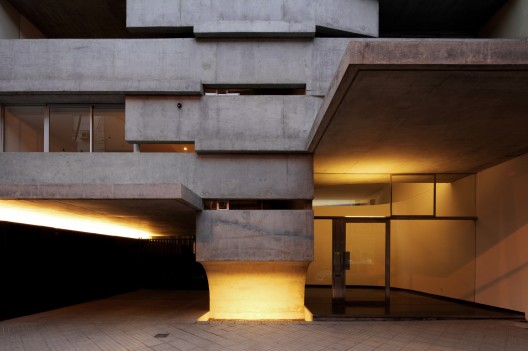

It is a building with a Ground Floor and 15 storeys, with 2 parking levels, where the structure design is determinant. Although it is between dividing walls, the two lower neighbours transform the building in what seems to be a tower. The structure is solved only with a perimeter made of concrete walls and a single large column, which not only works as a structural piece but also allows the vertical movements of people, and contains every infrastructure systems.

© Summa+/Gustavo Sosa Pinilla

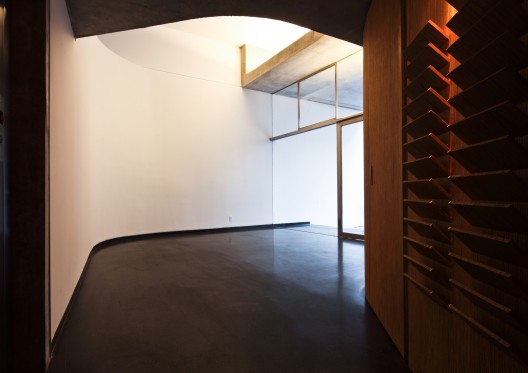

The beams system in the façade transmit all the weight to the centre of the building, and also  works as a fixed ventilated sunshade in a 60% on the west façade, and the 40% remaining are balconies. The continue alternation between slabs and beams makes several windows for laundries and the staircase. This piece, fully made of reinforced concrete, solves the construction stages making small vertical movements in each piece avoiding constructive marks on the concrete. Inside the apartments there is a second wall to contain the infrastructure systems, to make partitions, and to provide heat isolation.

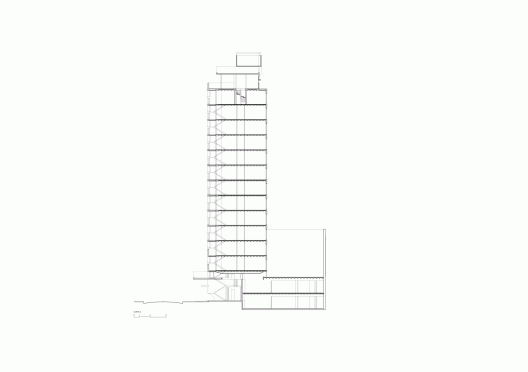

Section
