Spa Querétaro / Ambrosi I Etchegaray

© Luis Gordoa

Architects: Ambrosi I Etchegaray
Location: Carretas, , Querétaro, Mexico
Collaborators: Miguel Montor, Julie Rousset, Ricardo Carrillo
Contractor: Octavio Pérez
Area: 490 sqm
Year: 2010
Photographs: Luis Gordoa

© Luis Gordoa

The assignment was to create an Integral Yoga and Spa Center in an area of 418 irregular square meters, located in Colonia Carretas, two blocks from the historic Arcos, in the city of Querétaro.

© Luis Gordoa

The design premise was to create a center in constant contact with nature (the outside). For that purpose the project generates a thick slab in the totality of the plot, which is perforated to create inner patios with gardens. All the spaces in the project relate constantly through these patios.

© Luis Gordoa

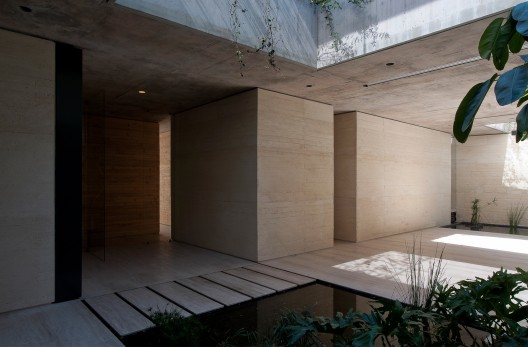

The ground floor is a large space subdivided by a sequence of patios where the cafeteria and the multipurpose room are located. This level was defined by colored concrete walls to enhance the materiality.

© Luis Gordoa

Adjacent to this sequence of courtyards is the entrance to the spa where assembled wood volumes contain the massage rooms, generating an interesting combination between light and rambling paths. The massage rooms open onto a completely private triangular patio.

© Luis Gordoa

On the upper floor are located the yoga pavilions overlying the thick slab. These are solved in steel and glass looking for the best views of the trees in the surroundings. From these pavilions you have access to a gravel garden surrounded by vegetation which is used for breaks between yoga sessions.

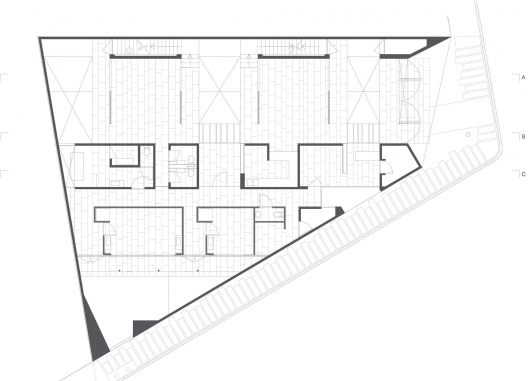

Plan
