Windows - Jansen Art'System | Jansen

Share
  • Use

    Slim steel profile system for uninsulated windows/window doors
  • Applications

    Renovation
  • Characteristics

    Narrow face widths, easy to fabricate, visually suitable for listed buildings
  • Certification

    CE marking in accordance with product standard EN 14351-1 | Resistance to wind load C5 (2000 Pa) | Watertightness up to class 7A (300 Pa) Sound reduction up to 43 dB | Thermal transmittance of Uf from 5.2 W/m2K | Air permeability class 3 (600 Pa) | Mechanical strength class 4

1 BIM Object

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.

3 Supplementary Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

More about this product

Jansen Art'System is a non-insulated profile system for windows and window doors. The system has been specially developed for the renovation of old buildings and is particularly suited to listed buildings which place high requirements on the external appearance of the building.

Jansen Art'System enables the fabrication of inward-opening windows and window doors which are virtually identical to the existing units. However, Art'System can also play to its strengths in sustainably planned newbuilds as an innovative, space-saving profile system with extremely narrow face widths. The narrow profile face widths from Jansen Art'System meet the desire of today's architects to have large glass areas held in narrow frames.

Materials/Surface Finish

  • Bright
  • Strip galvanized steel

Window Types/Opening Types

  • Side-hung window, single and double-vent, inward-opening
  • Inward-opening bottom-hung window
  • Window doors

Fittings

  • Dry or wet glazing
  • Surface-mounted fittings
  • Locks and handles for the window doors
  • Curved units
  • Multi-point locking
  • Glass thicknesses of 5 to 27 mm
  • Max. weight 100 kg

Special Technical Features

  • Basic depth of 50 mm

Very Narrow Face Widths:

  • Fixed glazing 30 mm
  • Window vent 25 mm
  • Window meeting stile design 75 mm
  • Easy to fabricate
  • Window vent sizes up to 872 x 2072 mm
  • Combination Jansen-Economy 50 possible

Message the manufacturer

Related Products

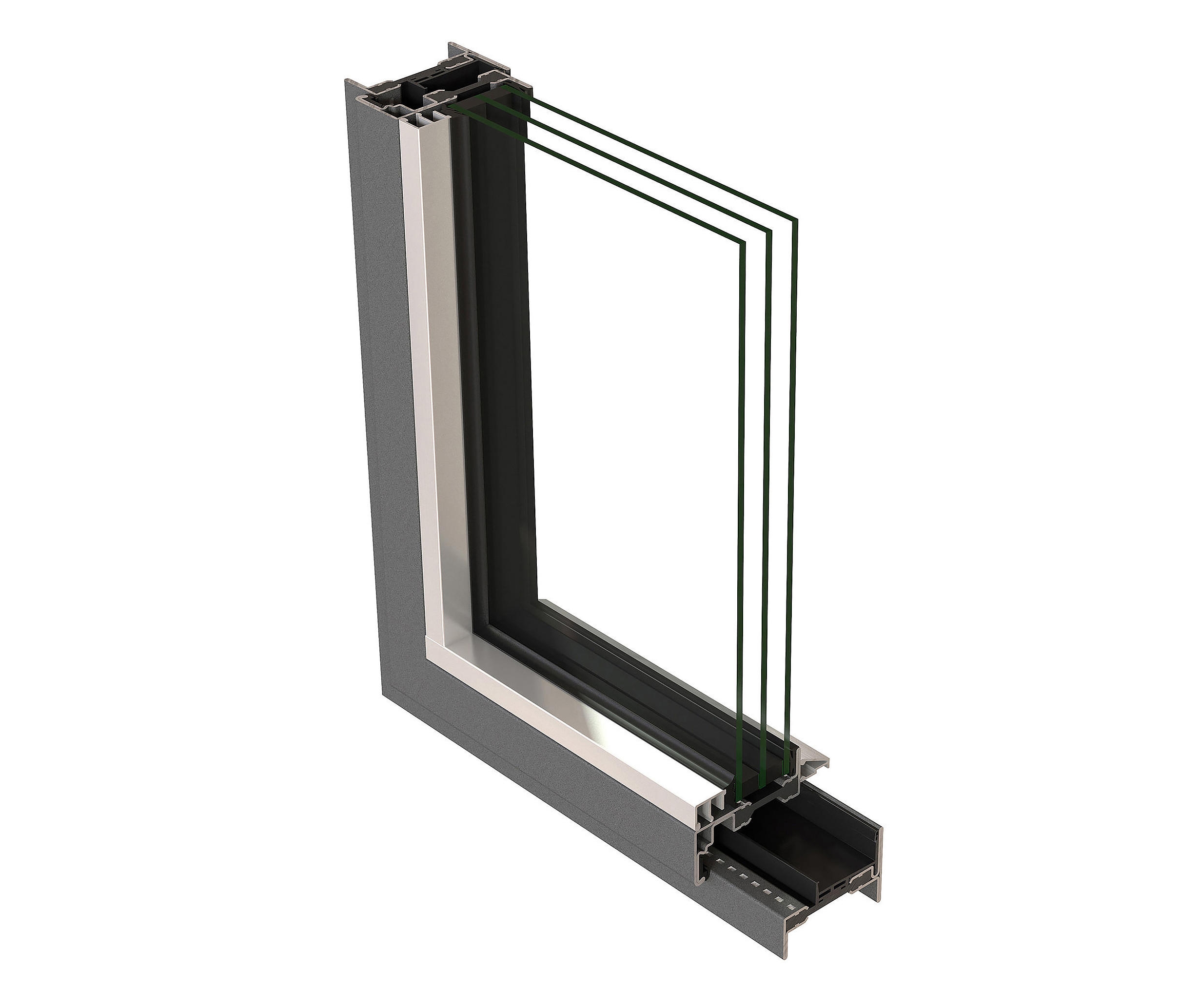

Windows - Janisol Arte 66

Jansen

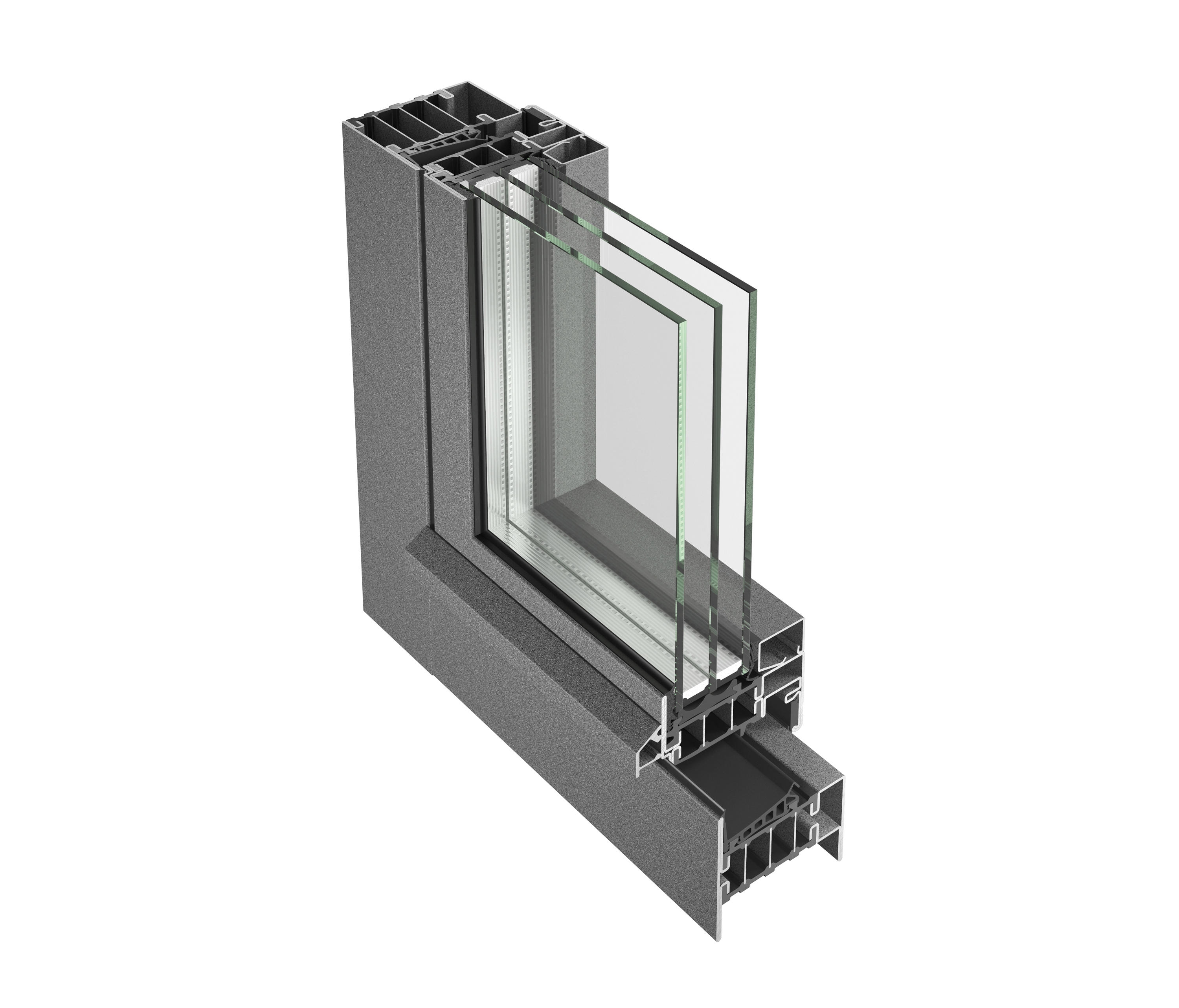

Windows - Janisol HI window
